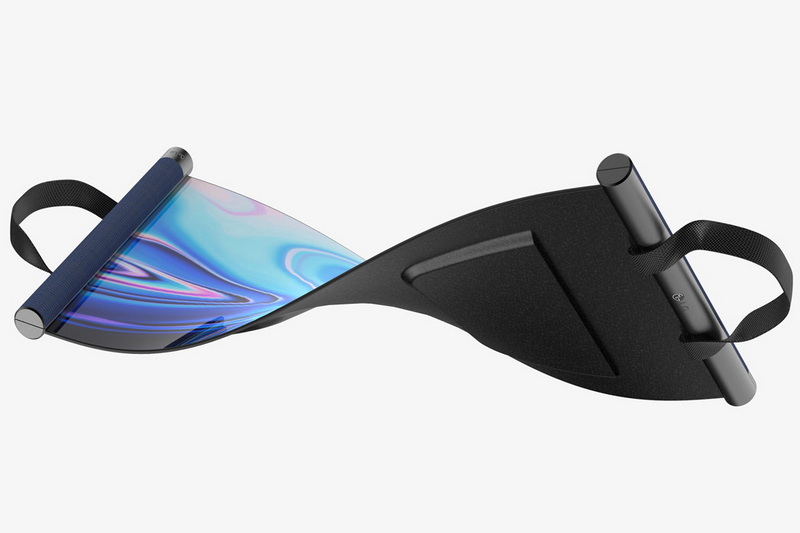

Flexible OLED screens are transforming the display industry, powering innovations from foldable smartphones to wearable health monitors and futuristic automotive dashboards. This comprehensive article explores the science, materials, manufacturing processes, and practical steps involved in creating a flexible OLED screen. You'll find detailed explanations, illustrative descriptions, and answers to common questions about this remarkable technology.
Flexible OLED (Organic Light Emitting Diode) screens represent a paradigm shift in display technology. Unlike traditional rigid displays, these screens can bend, curve, and even roll up without losing functionality. This flexibility opens up new possibilities for product design, user interaction, and integration into unconventional surfaces.
The technology behind flexible OLEDs combines organic materials that emit light with flexible substrates, enabling displays that are not only visually stunning but also mechanically versatile. This innovation is driving the next generation of consumer electronics, from foldable phones to wearable health monitors. The growing demand for lightweight, durable, and energy-efficient displays has accelerated research and development in this field, making flexible OLEDs a focal point for both manufacturers and consumers.
The core innovation behind flexible OLED screens lies in their substrate. Traditional OLEDs are built on rigid glass, but flexible OLEDs use substrates made of plastic or thin metal foil. This allows the entire display to bend and flex without breaking.
- Flexible Substrates: Common materials include polyimide, polyethylene terephthalate (PET), and polyethylene naphthalate (PEN). These materials are chosen for their ability to withstand repeated bending and mechanical stress.
- No Need for Backlight: OLEDs emit their own light, eliminating the need for a rigid backlight layer found in LCDs. This self-emissive property is crucial for achieving ultra-thin and flexible displays.
- Thin-Film Encapsulation: Protects the sensitive organic materials from moisture and oxygen, which can degrade performance. The encapsulation must itself be flexible and robust.
The flexibility is achieved by replacing the traditional glass substrate with materials that can withstand bending stresses while maintaining electrical and optical performance. This requires advanced material science and precise manufacturing techniques. The entire stack, including electrodes and organic layers, must be engineered to maintain performance under mechanical deformation.
A flexible OLED display is a complex stack of ultra-thin layers, each serving a specific function. The integrity and performance of the display depend on the careful selection and integration of these materials.
1. Flexible Substrate: Polyimide or PET provides the base for all other layers. The substrate must be optically clear, chemically stable, and able to endure high processing temperatures.
2. Anode Layer: Often made of indium tin oxide (ITO), deposited onto the substrate. The anode is transparent and conducts electricity to the organic layers.
3. Organic Layers: Includes the emissive layer (where light is generated) and additional layers to transport electrons and holes. These organic semiconductors are engineered for efficient charge transport and light emission.
4. Cathode Layer: Usually a thin metal such as aluminum or silver, which completes the electrical circuit.
5. Thin-Film Encapsulation: Multiple alternating organic and inorganic layers to protect the OLED from moisture and oxygen. This layer is critical for longevity and reliability.
- Polyimide: Offers high thermal stability, excellent flexibility, and chemical resistance.
- PET/PEN: Provide good optical clarity and flexibility, though they are less thermally stable than polyimide.
- Organic Semiconductors: Tailored for efficient light emission and charge transport, these materials are at the heart of OLED technology.
The precise engineering of these layers ensures that the display maintains high brightness, color accuracy, and durability even when bent or folded. The thickness of each layer is controlled at the nanometer scale, and the interfaces between layers must be free of defects.

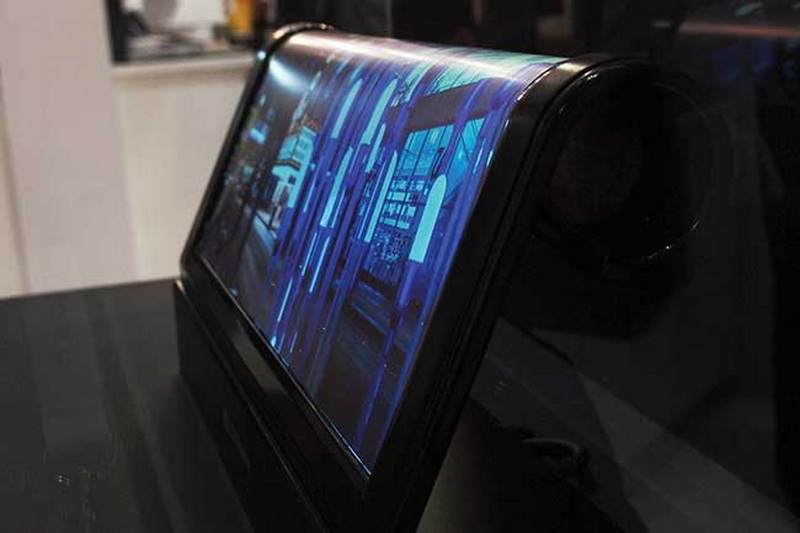

The process of making a flexible OLED screen involves several highly controlled steps, often performed in cleanroom environments to prevent contamination.
- Cleaning: The flexible substrate is thoroughly cleaned to remove contaminants that could affect layer adhesion or performance.
- Surface Treatment: Techniques such as plasma treatment or chemical priming are used to enhance adhesion for subsequent layers.
- ITO Coating: Indium tin oxide is sputtered onto the substrate to form the transparent anode. The uniformity of this layer is crucial for consistent display performance.
- Vacuum Thermal Evaporation: Organic materials are deposited in ultra-thin layers under vacuum conditions. This process ensures purity and uniformity.
- Patterning: Photolithography or shadow masks are used to define pixel regions and create the desired display resolution.
- Metal Layer: A thin layer of aluminum or another metal is deposited as the cathode. The deposition must be uniform and free of pinholes.
- Thin-Film Encapsulation: Alternating organic and inorganic layers are applied to protect the OLED from environmental damage. Flexible encapsulation techniques, such as atomic layer deposition, are often used.
- Laser or Infrared Sealing: Advanced sealing techniques ensure long-term reliability by preventing moisture and oxygen ingress.
- Cutting and Wiring: The display is cut to size, and electrical connections are made using flexible circuit technology.
- Testing: Each display is thoroughly tested for defects, brightness, color accuracy, and flexibility.
This manufacturing process requires precision and cleanliness to ensure the delicate organic materials are not damaged and the final product meets quality standards. Even minor defects can lead to significant performance issues or reduced lifespan.

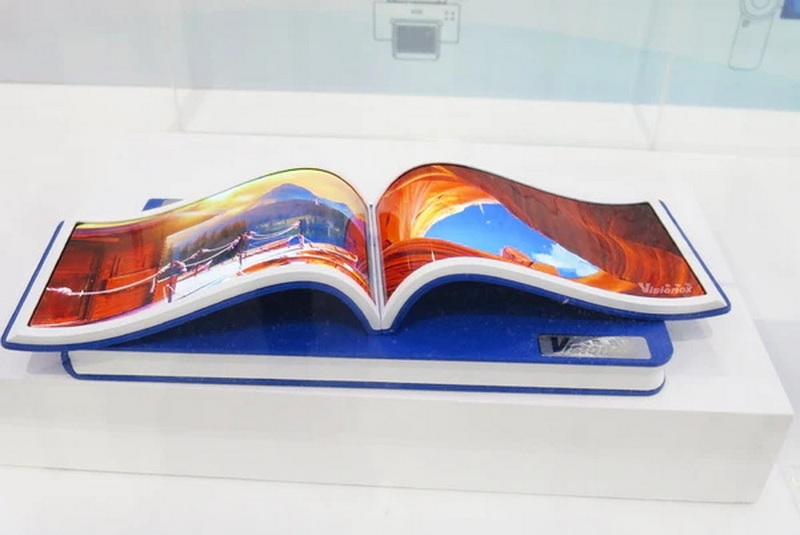

While industrial production requires sophisticated equipment, the basic principles can be understood through a simplified step-by-step process.
- Choose a high-quality polyimide or PET film. The substrate must be free from scratches and particles.
- Clean the substrate with solvents and dry it in a dust-free environment. Any contamination can cause defects in the final display.
- Use sputtering or evaporation to apply a thin layer of ITO. The thickness and uniformity are carefully controlled.
- Pattern the ITO using photolithography to define pixel areas and electrical pathways.
- Place the substrate in a vacuum chamber to prevent contamination.
- Sequentially deposit the hole transport layer, emissive layer, and electron transport layer using thermal evaporation or inkjet printing. Each layer must be uniform and free of defects.
- Deposit a thin metal layer (aluminum or silver) as the cathode. The deposition process must avoid damaging the underlying organic layers.
- Apply thin-film encapsulation using atomic layer deposition or plasma-enhanced chemical vapor deposition (PECVD) to protect the OLED stack from moisture and oxygen. This step is crucial for long-term reliability.
- Attach flexible circuit connectors to enable integration with other electronics.
- Cut the display to the desired shape and size using precision laser cutting or mechanical methods.
- Test the display for uniformity, brightness, color accuracy, and flexibility. Rigorous quality control ensures only defect-free displays are shipped.
This simplified overview highlights the complexity and precision required to produce flexible OLED screens. Each step must be carefully controlled to achieve high yield and consistent performance.
Flexible OLED displays are enabling a new generation of products and experiences across multiple industries:
- Foldable Smartphones: Screens that fold without visible creases, offering tablet-sized displays in a compact form factor. These devices rely on the mechanical durability and optical performance of flexible OLEDs.
- Wearable Devices: Wristbands, smartwatches, and health monitors with curved, conformable displays that fit comfortably on the body.
- Automotive Displays: Seamless integration into dashboards and control panels, providing drivers with customizable and visually striking interfaces.
- Rollable TVs: Large screens that roll up for storage or portability, making it possible to have a big-screen experience in small living spaces.
- Transparent Displays: Used in retail, museums, and augmented reality applications, these displays can overlay digital information onto real-world objects.
Emerging innovations include stretchable OLEDs that can deform in multiple directions, ultra-thin displays for integration into clothing or flexible furniture, and hybrid displays that combine OLED with other technologies for enhanced performance.
- Ultra-Thin and Lightweight: Ideal for portable and wearable devices, reducing overall device weight and thickness.
- Durable and Shatterproof: Resistant to impact and breakage compared to glass-based displays, making them suitable for rugged environments.
- Superior Image Quality: High contrast, deep blacks, and vibrant colors due to the self-emissive nature of OLEDs.
- Energy Efficient: Each pixel emits its own light, reducing power consumption, especially when displaying dark images.
- Design Freedom: Enables new form factors, such as foldable, rollable, and curved devices that were previously impossible.
- Cost: Flexible OLEDs are more expensive to manufacture than traditional LCDs, primarily due to complex processes and lower yields.
- Lifetime: Organic materials can degrade over time, especially when exposed to moisture or oxygen, leading to reduced brightness and color shifts.
- Manufacturing Complexity: Requires advanced equipment, cleanroom facilities, and precise process control, making large-scale production challenging.
- Supporting Components: Batteries, circuit boards, and other components must also be flexible for fully bendable devices, which adds to design complexity.
Understanding these pros and cons is essential for manufacturers and consumers considering flexible OLED technology. Ongoing research aims to address these limitations, making flexible OLEDs more accessible and reliable.
Flexible OLED screens are at the forefront of display innovation, offering unprecedented design freedom, durability, and visual performance. By leveraging advanced materials like polyimide substrates and thin-film encapsulation, manufacturers can produce displays that bend, fold, and roll while delivering stunning image quality. While challenges remain in cost and manufacturing complexity, ongoing research and development promise even more versatile and affordable flexible OLED solutions in the near future.
The future of flexible OLED technology is bright. As material science advances and manufacturing techniques improve, we can expect to see even more innovative applications, from smart clothing to rollable televisions and beyond. Flexible OLEDs are not just a technological curiosity—they are rapidly becoming a cornerstone of modern electronic design.
Flexible OLED screens primarily use polyimide, PET, or PEN as substrates, with organic semiconductors for the emissive layers and thin metal films for the electrodes. Thin-film encapsulation is applied to protect the sensitive layers from moisture and oxygen.
Flexible OLEDs use plastic or metal foil substrates instead of rigid glass, allowing the display to bend and flex. They are lighter, thinner, and more durable than traditional OLEDs, but require additional encapsulation to maintain performance.
Key challenges include ensuring uniform layer deposition on flexible substrates, achieving effective encapsulation, and integrating flexible supporting components like batteries and circuit boards. Manufacturing costs and yield rates are also significant hurdles.
While the basic principles can be understood and some small-scale kits are available, making a high-quality flexible OLED screen at home is extremely challenging due to the need for vacuum deposition, cleanroom conditions, and precise process control. DIY projects are generally limited to assembling pre-made flexible OLED modules.
Future trends include the development of fully stretchable and transparent OLEDs, rollable and foldable large-format displays, and integration into wearable electronics and smart surfaces. Advances in materials science are expected to improve durability, reduce costs, and enable new applications.
