How To Lcd Display with 3.7v Battery?

Views: 222 Author: Tina Publish Time: 2025-04-01 Origin: Site

Inquire

Content Menu

● Introduction to LCD Displays with 3.7V Batteries

● Understanding 3.7V LiPo Batteries

● Powering LCD Displays

● Components Needed

● Safety Considerations

● Example Projects

● Challenges and Solutions

● Power Saving Techniques

● Displaying Battery Life on LCD

● Impact of LCD Screens on Battery Life

● Conclusion

● Frequently Asked Questions

>> 1. How Do I Choose the Right Battery for My LCD Display?

>> 2. What Are the Safety Precautions When Using LiPo Batteries?

>> 3. How Can I Boost Voltage from a 3.7V Battery to Power an LCD Display?

>> 4. Can I Use a 3.7V Battery to Power Both the Logic and Backlight of an LCD Display?

>> 5. What Are the Common Issues When Powering an LCD Display with a Battery?

● Citations:

Introduction to LCD Displays with 3.7V Batteries

LCD displays are widely used in various electronic devices due to their low power consumption and high visibility. When it comes to powering these displays using a 3.7V battery, such as a LiPo (Lithium Polymer) battery, several considerations need to be taken into account. This article will guide you through the process of using a 3.7V battery to power an LCD display, including the necessary components, potential challenges, and solutions.

how to lcd display with battery_1

Understanding 3.7V LiPo Batteries

LiPo batteries are popular for portable projects due to their lightweight and high energy density. They typically range from 4.2V when fully charged to 3.7V when discharged. However, most LCD displays require a higher voltage, often around 5V for the logic and sometimes even higher for the backlight.

Powering LCD Displays

To power an LCD display with a 3.7V battery, you have two main options:

1. Voltage Boosting: Use a voltage booster (e.g., MT3608) to increase the voltage from 3.7V to the required level, typically 5V or higher for the backlight. This is necessary if your display requires a higher voltage than what the battery provides.

2. Voltage Regulation: If the LCD can operate at 3.7V, ensure it is compatible. Some displays require additional components like resistors and capacitors when running at lower voltages.

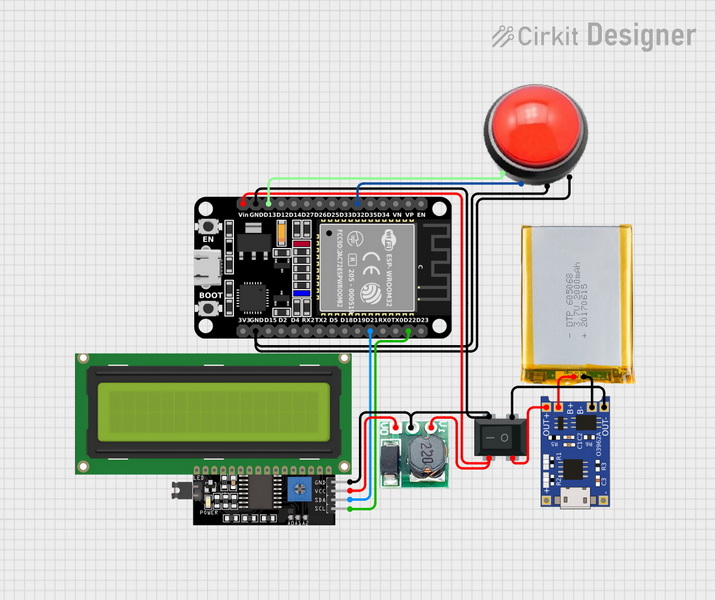

Components Needed

- 3.7V LiPo Battery: Ensure it has a compatible connector (e.g., JST) and includes protection circuitry.

- Voltage Booster (Optional): MT3608 or similar for boosting voltage to 5V or higher.

- LCD Display: Choose one compatible with your voltage setup.

- Charging Circuit (Optional): TP4056 for charging the LiPo battery safely.

how to lcd display with battery_2

Safety Considerations

When working with LiPo batteries, safety is paramount:

- Overcharging/Discharging: Use a charger with protection circuitry to prevent overcharging, which can cause fires.

- Handling: Never short, bend, crush, or puncture LiPo batteries.

Example Projects

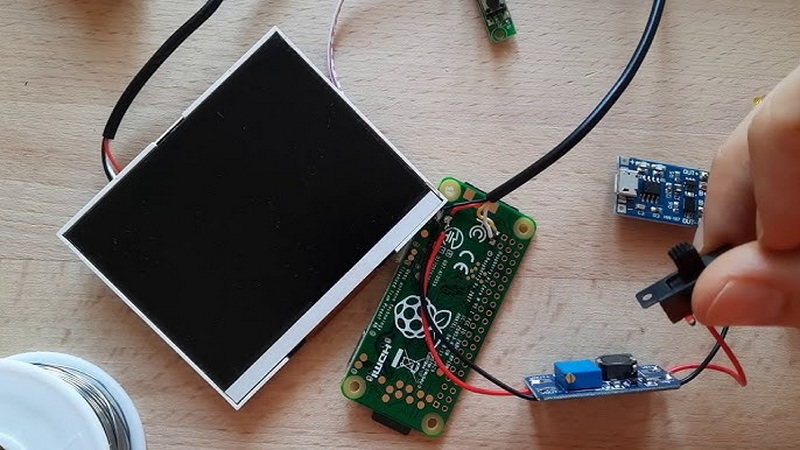

1. Raspberry Pi Zero with LCD: Use a voltage booster to power both the Pi and the LCD from a 3.7V battery. This setup is ideal for portable projects that require both computing power and display capabilities.

2. Teensy 4.0 with DOG LCD: Power the Teensy with a 3.7V battery and use its 5V output for the LCD. This setup is suitable for projects that require a microcontroller with a built-in voltage regulator.

Challenges and Solutions

- Voltage Requirements: Ensure the LCD's voltage requirements are met. If it needs 5V, use a voltage booster.

- Current Limitations: Ensure the battery can supply enough current for both the logic and backlight.

how to lcd display with battery_4

Power Saving Techniques

For portable devices, power saving is crucial to extend battery life. Techniques include:

- Backlight Dimming: Reducing the intensity of the backlight can significantly extend battery life[4].

- Dynamic Voltage Scaling: Adjusting the voltage and frequency of components can reduce power consumption[4].

- Low-Power Modes: Some LCDs can operate in low-power modes by reducing the refresh rate, which is ideal for static images[6].

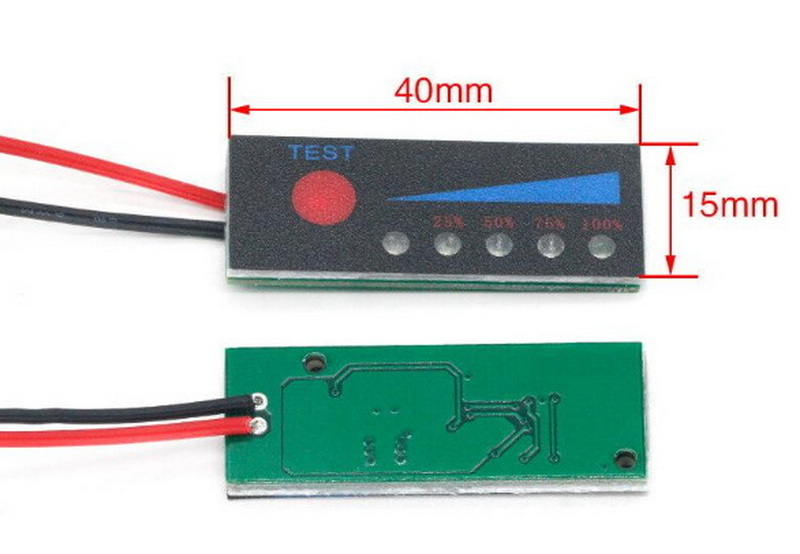

Displaying Battery Life on LCD

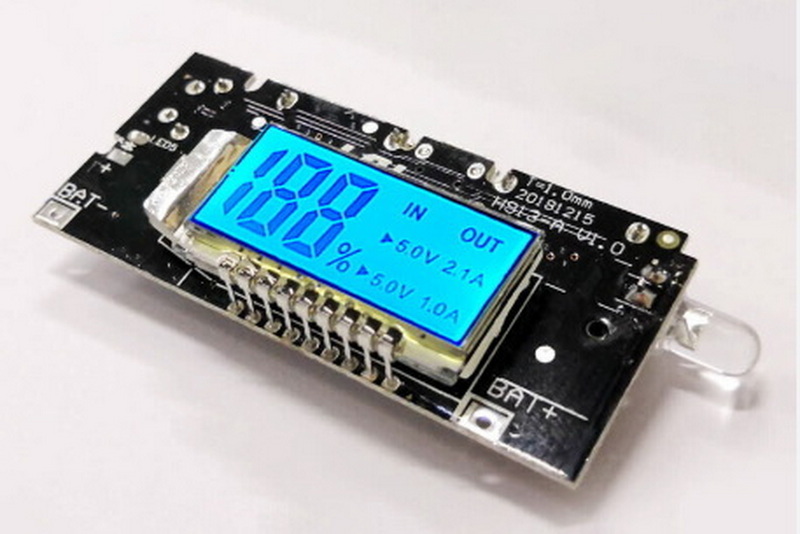

Displaying battery life on an LCD can be useful for monitoring power consumption in real-time. This can be achieved using an Arduino or similar microcontroller to read the battery voltage and display it on the LCD[1]. The display can show battery life as a percentage or using custom images.

Impact of LCD Screens on Battery Life

LCD screens tend to consume more power compared to other types of displays, primarily due to the backlight required for visibility[2]. However, advancements in backlight technology, such as using LEDs, have improved efficiency. Techniques like reducing screen brightness and using power-saving modes can mitigate the impact on battery life[2].

Conclusion

Powering an LCD display with a 3.7V battery requires careful consideration of voltage and current requirements. Using a voltage booster can help meet higher voltage needs, while ensuring safety with proper charging and handling practices is crucial. Implementing power-saving techniques can further extend battery life, making LCD displays suitable for a wide range of portable applications.

how to lcd display with battery_3

Frequently Asked Questions

1. How Do I Choose the Right Battery for My LCD Display?

When selecting a battery for your LCD display, ensure it meets the voltage and current requirements of your setup. A 3.7V LiPo battery is suitable for many projects, but you may need a voltage booster if your display requires a higher voltage.

2. What Are the Safety Precautions When Using LiPo Batteries?

Always use a charger with protection circuitry to prevent overcharging. Never short, bend, crush, or puncture LiPo batteries. Monitor the battery's condition and avoid using damaged batteries.

3. How Can I Boost Voltage from a 3.7V Battery to Power an LCD Display?

Use a voltage booster like the MT3608 to increase the voltage from 3.7V to the required level for your LCD display. This is necessary if your display requires a higher voltage than what the battery provides.

4. Can I Use a 3.7V Battery to Power Both the Logic and Backlight of an LCD Display?

If the LCD display can operate at 3.7V, you can power it directly. However, if it requires a higher voltage for the backlight, you will need a voltage booster. Ensure the battery can supply enough current for both components.

5. What Are the Common Issues When Powering an LCD Display with a Battery?

Common issues include insufficient voltage or current, leading to dim or flickering displays. Ensure your setup meets the display's specifications, and consider using a voltage booster if necessary.

Citations:

[1] https://www.instructables.com/Displaying-Battery-Life-on-a-Liquid-Crystal-Displa/

[2] https://www.kimeery.com/the-impact-of-lcd-phone-screens-on-battery-life.html

[3] https://forum.arduino.cc/t/how-to-battery-power-a-5v-microcontroller-with-a-3-7v-lithium-battery-wt32-sc01-plus/1195165

[4] https://www.ijert.org/research/review-power-saving-techniques-for-display-of-electronic-gadgets-IJERTV4IS050457.pdf

[5] https://focuslcds.com/journals/mini-lcd-display-power-considerations/

[6] https://www.usmicroproducts.com/blog/ultralow-power-displays

[7] https://batteryuniversity.com/article/bu-302-series-and-parallel-battery-configurations

[8] https://forum.arduino.cc/t/need-help-with-battery-power-for-lcd1602/537018

[9] https://www.aliexpress.com/item/1005002938158391.html

[10] https://www.cdtech-lcd.com/news/fixing-problems-with-10-1-tft-lcd-displays.html

[11] http://old.denver.eu/media/11874/denver-act-5020twc-english.pdf

[12] https://forum.arduino.cc/t/battery-life-lcd/381492

[13] https://xdaforums.com/t/how-to-cut-off-power-to-lcd-display-via-software.4629779/

[14] https://liitokala.com.cn/LiitoKala-Charger/380.html

[15] https://www.designsciencecorp.com/battery-powered-displays/

[16] https://endless-sphere.com/sphere/threads/lcd-display-problem.100833/

[17] https://dl.acm.org/doi/10.1145/581630.581664

[18] https://www.ifixit.com/Answers/View/625839/Broken+LCD+screen,+battery+problems,+how+to+fix+it

[19] https://charger.nitecore.com/Uploads/FLASHLIGHTS/download/sc4.pdf

[20] https://forums.raspberrypi.com/viewtopic.php?t=45361
