LCD displays are an essential component in many Arduino projects, providing a simple and effective way to display data such as sensor readings, messages, or menus. This guide will take you through everything you need to know about using an LCD display with Arduino, from hardware setup to practical applications.

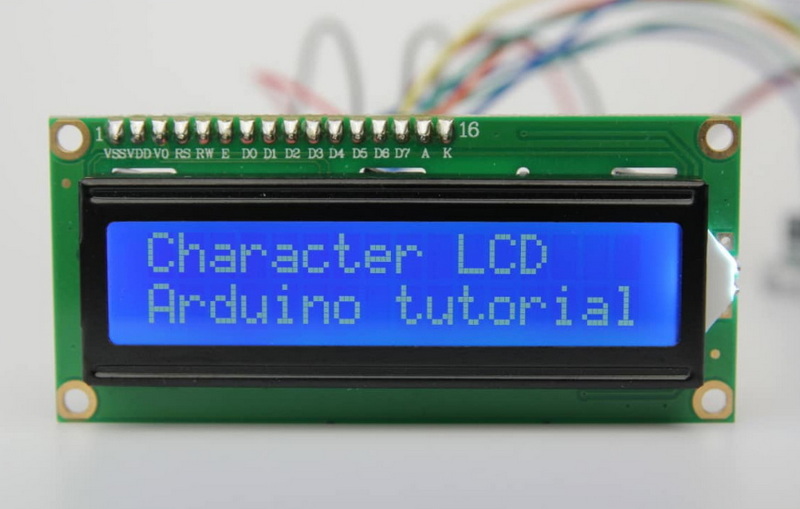

An LCD (Liquid Crystal Display) is a screen that uses liquid crystals to display text, numbers, or graphics. The most common type for Arduino projects is the 16x2 character LCD, which can display 16 characters per row across two rows. Other variants include 20x4 displays and graphical LCDs.
- Character-based Display: Displays ASCII characters in fixed grids.
- Pinout: Includes power pins (VSS/VDD), contrast control (Vo), data pins (D0-D7), and backlight control.
- Modes: Operates in 4-bit or 8-bit mode; 4-bit mode is more commonly used to save Arduino pins.
To interface an LCD display with Arduino, you'll need the following components:
- Arduino Uno or compatible board
- 16x2 or 20x4 LCD screen
- Breadboard
- Jumper wires
- Potentiometer (10k ohm) for contrast adjustment
- Resistor (220 ohm) for backlight control

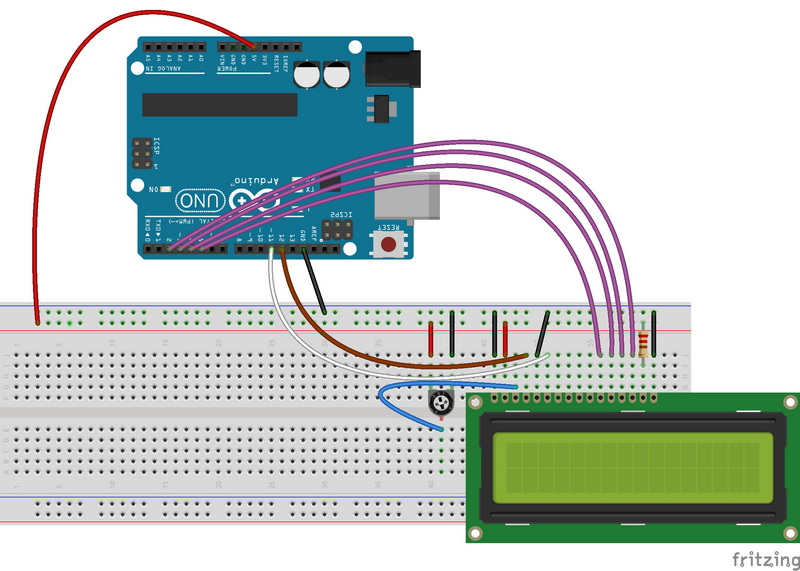

The wiring process involves connecting the pins of the LCD to the corresponding pins on the Arduino. Below is a typical connection scheme:
| LCD Pin | Connection |
|---|---|
| VSS | GND |
| VDD | +5V |
| Vo | Potentiometer wiper |
| RS | Digital pin 12 |
| RW | GND |
| Enable | Digital pin 11 |
| D4-D7 | Digital pins 5, 4, 3, 2 |
| Backlight | +5V via a 220-ohm resistor |
The Vo pin controls the contrast of the display. Connect this pin to the middle terminal of a potentiometer, then connect the other two terminals of the potentiometer to +5V and GND. Rotate the potentiometer to adjust the screen's contrast.
For a simpler wiring setup, you can use an I2C module. This reduces the number of connections by using only two pins (SDA and SCL). You'll need an additional library like `LiquidCrystal_I2C` for this setup.
Arduino's LiquidCrystal library simplifies communication with character LCDs. Below are some common functions:
- `lcd.begin(16,2);`: Initializes a 16x2 LCD.
- `lcd.print("Hello World");`: Prints text on the screen.
- `lcd.setCursor(0,1);`: Moves the cursor to column 0 of row 1.
- `lcd.clear();`: Clears all text from the screen.
1. Scrolling Text:
Use `lcd.scrollDisplayLeft()` or `lcd.scrollDisplayRight()` to scroll long messages.
2. Blinking Cursor:
Enable a blinking cursor with `lcd.blink()` and disable it with `lcd.noBlink()`.
3. Custom Characters:
Create custom characters using `lcd.createChar()` and display them using their assigned index.
LCD displays are versatile and can be used in various projects:
Display real-time readings from sensors like temperature, humidity, or distance sensors.
Use buttons or rotary encoders to navigate through menus displayed on the LCD.
Show system status or warnings in security systems.
Display data from IoT devices such as weather stations or smart home systems.
If your LCD isn't working as expected:
1. No Display Output: Check wiring and ensure proper power supply.
2. Poor Contrast: Adjust the potentiometer connected to Vo.
3. Incorrect Characters: Verify connections of data pins D4-D7.
4. Backlight Issues: Ensure proper resistor placement for backlight control.
Using an LCD display with Arduino adds significant functionality and interactivity to your projects. By following this guide, you can successfully set up and program an LCD for various applications, whether it's displaying sensor data or creating custom menus.
Character LCDs display fixed ASCII characters in grids (e.g., 16x2), while graphical LCDs use pixels for more flexible displays like images or custom fonts.
An I2C module reduces connections from six pins (RS, RW, Enable, D4-D7) to just two (SDA and SCL), simplifying setup and saving Arduino pins.
Use a potentiometer connected to Vo for contrast adjustment or control backlight brightness with PWM signals on digital pins.
Yes, but you'll need multiplexers or additional libraries like `LiquidCrystal_I2C` to manage multiple displays efficiently.
Advanced applications include scrolling text displays, IoT dashboards showing live data feeds, and interactive systems with custom graphics or animations.
