LCD stands for Liquid Crystal Display, a technology widely used in electronic devices such as televisions, monitors, and mobile phones. LCDs work by using a backlight to illuminate a layer of liquid crystals, which block or allow light to pass through to create images. Understanding how to identify an LCD display is crucial for diagnosing issues, selecting replacements, or simply appreciating the technology behind these devices.

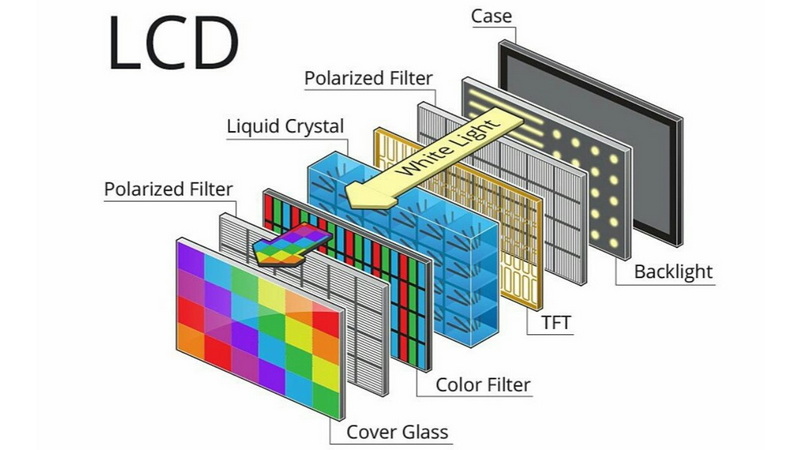

LCDs consist of two glass sheets with liquid crystals sandwiched between them. The outer sheet has subpixels that can be controlled to allow light from the backlight to pass through, creating images. The backlight is typically a fluorescent lamp, such as a CCFL (Cold-Cathode Fluorescent Lamp), although modern LCDs often use LED backlighting, which is more energy-efficient and provides better color accuracy. LED backlighting involves using an array of light-emitting diodes around the edges of the screen, which are directed towards the viewer through a diffuser. This setup allows for thinner designs and improved brightness control.
Identifying whether a display is an LCD can be done through several methods:
1. Check the Specifications: The most straightforward way is to check the product specifications. Look for terms like "LCD" or "CCFL backlight" in the manual or on the manufacturer's website.
2. Visual Inspection: LCD screens typically have a noticeable frame due to the multiple panels used. They are also generally thicker than LED screens because of the backlight module. However, modern LCDs with LED backlighting can be quite slim.
3. Power Consumption: LCDs with CCFL backlights consume more power than LED-backlit displays. If your device consumes a lot of power, it might be using an older LCD technology.
4. Viewing Angles: LCDs often suffer from reduced brightness and color accuracy when viewed from the side. This is particularly noticeable in older models. Newer LCDs, especially those with IPS (In-Plane Switching) technology, have improved viewing angles significantly.
5. Response Time: LCDs can have a slower response time compared to OLED displays, which may result in motion blur during fast-paced content.
- TN (Twisted Nematic): Offers good brightness and fast response times but suffers from poor viewing angles.
- IPS (In-Plane Switching): Known for its wide viewing angles and good color accuracy.
- VA (Vertical Alignment): Provides high contrast ratios and good color accuracy but can suffer from slower response times.
To find the model number of an LCD screen, follow these steps:
1. Power Down and Unplug: Ensure your device is turned off and unplugged.
2. Remove the Screen: For laptops, carefully remove the bezel around the screen using a plastic pry tool.

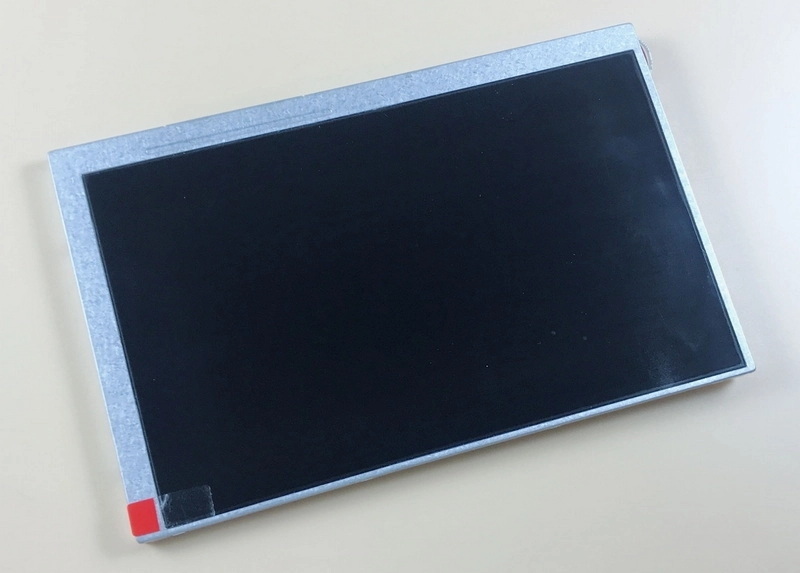

3. Locate the Label: On the back of the LCD panel, look for a sticker or label containing the manufacturer's name, model number, screen size, and serial number.
4. Record the Information: Write down the model number and other relevant details.
- AU Optronics: B
- BOE Hydis: HB
- Chi Mei / Innolux: N
- Chunghwa: CLAA
- HannStar: HSD
- LG Display: LP
- Samsung: LTN
- Sharp: LQ or LM
- Toshiba: LTM or LTD
These codes can help identify the manufacturer and model of your LCD screen, which is essential for purchasing replacement parts or troubleshooting issues.
Common issues with LCD displays include dead pixels, backlight failure, and screen flickering. Dead pixels are usually permanent but can be mitigated with software tools. Backlight failure can be fixed by replacing the backlight module. Screen flickering often results from loose connections or faulty drivers and can be resolved by updating drivers or checking the display cable.
- Clean Regularly: Use a soft cloth and a gentle cleaning solution to remove dust and fingerprints.
- Avoid Extreme Temperatures: Keep your device away from direct sunlight or cold environments.
- Update Drivers: Regularly update display drivers to ensure optimal performance.
Identifying LCD displays involves understanding their technology and using various methods such as checking specifications, visual inspections, and finding model numbers. This knowledge is essential for maintaining devices and ensuring optimal performance. Whether you're troubleshooting issues or simply curious about the technology behind your screen, understanding LCDs can enhance your user experience.
The main difference between LCD and LED displays is the backlighting technology. LCDs typically use CCFLs, while LEDs use light-emitting diodes for backlighting, which offers better energy efficiency and color accuracy.
Check the specifications or perform a visual inspection. If the screen appears thin with vibrant colors, it likely has an LED backlight.
Most modern laptops manufactured after 2011 come with LED-backlit displays due to their superior energy efficiency and image quality.
No, replacement screens must match in size, resolution, connector type, and backlight technology (LCD vs LED).
Press and hold the "D" key while turning on your Dell laptop to enter the built-in self-test mode. This will cycle through different colors on the screen, allowing you to assess its functionality.
