How To Get Lcd To Display Output Arduino?

Content Menu

Introduction to Displaying Output on LCD with Arduino

Components Needed

Wiring the LCD to Arduino

Using the LiquidCrystal Library

Displaying Images on LCD

Using I2C LCD Modules

Common Challenges and Solutions

Advanced Applications

Troubleshooting Tips

Future Developments

Conclusion

Frequently Asked Questions

>> 1. What is the difference between a character LCD and a graphic LCD?

>> 2. How do I adjust the contrast of my LCD display?

>> 3. What is the purpose of the RS pin on an LCD display?

>> 4. Can I display images on a standard 16x2 LCD display?

>> 5. How do I connect an I2C LCD module to Arduino?

Citations:

Introduction to Displaying Output on LCD with Arduino

Arduino boards are widely used in electronics projects for their ease of use and versatility. One common application is connecting an LCD display to show text or other data. This article will guide you through the process of setting up an LCD display with Arduino, including the necessary components, wiring, and basic operations.

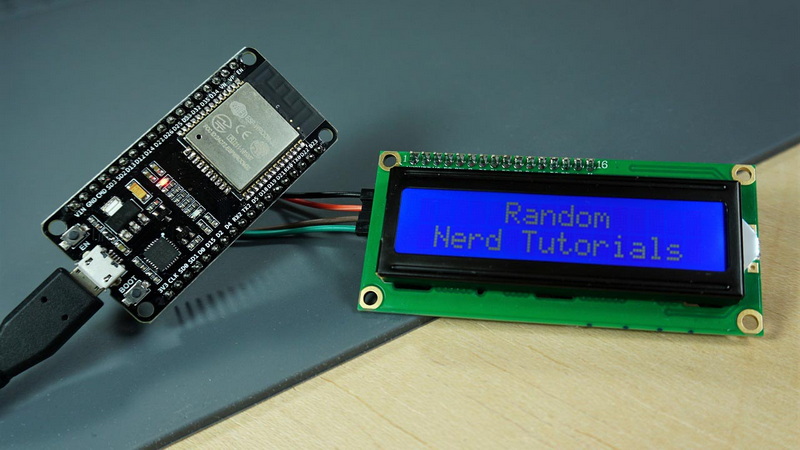

how to get lcd to display output arduino_2

Components Needed

- Arduino Board: The brain of your project, responsible for processing and sending data to the LCD. Common models include the Arduino Uno, Arduino Mega, and Arduino Nano.

- LCD Display: Typically a 16x2 or 20x4 display, which can show text and basic graphics. These displays are widely available and inexpensive.

- Breadboard: For connecting components without soldering, making it easier to prototype and test projects.

- Jumper Wires: For connecting components on the breadboard. They come in various colors to help organize connections.

- Potentiometer: To adjust the display contrast. A 10k potentiometer is commonly used for this purpose.

- Power Source: Usually the Arduino's power supply or an external battery. Ensure the power source matches the voltage requirements of your components.

Wiring the LCD to Arduino

The LCD display has a 16-pin interface. Here's how to connect it to an Arduino Uno:

1. VCC (Pin 2): Connect to Arduino's 5V pin. This provides power to the LCD.

2. GND (Pin 1): Connect to Arduino's GND pin. Grounding is essential for completing the circuit.

3. Vo (Pin 3): Connect to a potentiometer for contrast adjustment. This allows you to adjust how clear the text appears on the screen.

4. RS (Pin 4): Register Select pin, connects to an Arduino digital pin (e.g., Pin 12). This pin determines whether the LCD receives commands or data.

5. R/W (Pin 5): Read/Write pin, usually grounded for write mode. This is because most projects only need to write data to the LCD.

6. E (Pin 6): Enable pin, connects to an Arduino digital pin (e.g., Pin 11). This pin is used to enable data transfer.

7. D4-D7 (Pins 7-10): Data pins, connect to Arduino digital pins (e.g., Pins 5, 4, 3, 2). These pins transfer data to the LCD.

8. Backlight Pins (Pins 15 & 16): Connect to 5V and GND for backlight control. This is optional but enhances visibility in low-light conditions.

how to get lcd to display output arduino_3

Using the LiquidCrystal Library

The LiquidCrystal library simplifies the process of controlling the LCD. It supports both 4-bit and 8-bit modes, but 4-bit mode is more common due to fewer pin requirements.

Library Functions

- `lcd.begin(16, 2)`: Initializes the LCD with 16 columns and 2 rows. This sets up the display for text output.

- `lcd.print("Text")`: Prints text on the LCD. You can display any string of characters.

- `lcd.setCursor(0, 1)`: Sets the cursor to the first column of the second row. This allows you to control where text is displayed on the screen.

Displaying Images on LCD

For displaying images, you typically need a graphic LCD or TFT screen, not a character LCD. Here's a brief overview:

1. Hardware Needed: Arduino Uno, TFT screen, micro SD card. The micro SD card stores the image files.

2. Software: Use libraries like Adafruit_GFX and Adafruit_ILI9341 for TFT screens. These libraries provide functions to draw images and shapes.

3. Image Requirements: Images should be in .bmp format and sized appropriately for the screen. Ensure the image resolution matches the TFT screen's resolution.

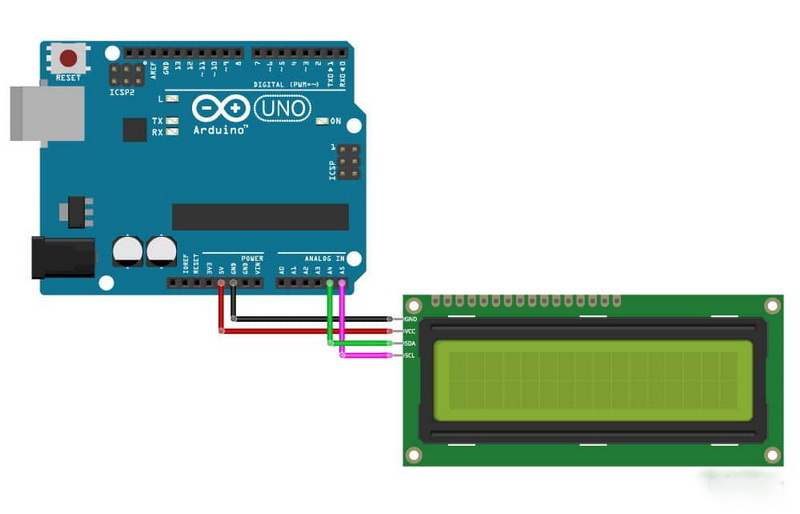

Using I2C LCD Modules

I2C LCD modules reduce wiring by using only two pins (SCL and SDA) for communication.

Advantages

- Simplifies wiring.

- Saves Arduino pins for other components.

How It Works

I2C modules use a dedicated IC (Integrated Circuit) that handles communication with the LCD. This IC is programmed to communicate with the Arduino using the I2C protocol, which requires only two wires.

how to get lcd to display output arduino

Common Challenges and Solutions

- Display Not Showing Text: Check wiring, ensure the backlight is on, and adjust the contrast.

- Text Not Clear: Adjust the contrast using the potentiometer.

- Backlight Not Working: Verify connections to 5V and GND.

Advanced Applications

- Sensor Data Display: Use sensors like temperature or humidity sensors to display real-time data on the LCD.

- Menu Systems: Create interactive menus using buttons to navigate through options displayed on the LCD.

- Game Development: Develop simple games using the LCD as the display and buttons for input.

Troubleshooting Tips

- Check Connections: Ensure all wires are securely connected to the correct pins.

- Use a Multimeter: Verify voltage levels at different points in the circuit.

- Consult Documentation: Refer to the datasheet of your LCD and Arduino for specific pinouts and requirements.

Future Developments

As technology advances, we can expect more efficient and high-resolution displays to become available for Arduino projects. This could include OLED displays or higher resolution TFT screens, offering better visual quality and more complex graphics capabilities.

Conclusion

Connecting an LCD display to Arduino is straightforward and enhances project capabilities by providing visual feedback. Whether you're using a character LCD for text or a TFT screen for images, Arduino's versatility makes it an ideal platform for beginners and advanced users alike. With the right components and libraries, you can create a wide range of projects from simple text displays to complex interactive systems.

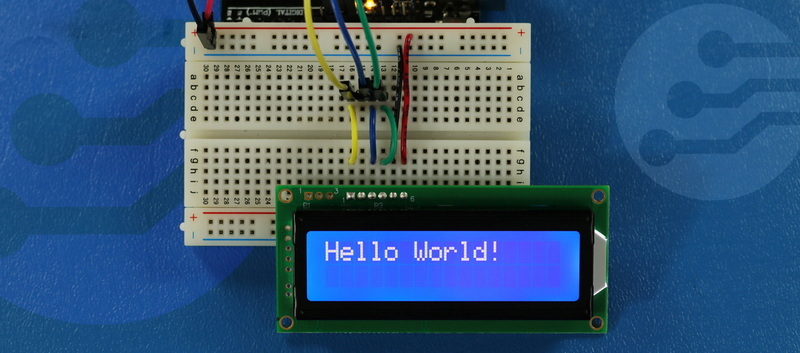

how to get lcd to display output arduino_1

Frequently Asked Questions

1. What is the difference between a character LCD and a graphic LCD?

Answer: Character LCDs display text and basic symbols, while graphic LCDs can display images and complex graphics. Character LCDs are simpler and more common, using the LiquidCrystal library, whereas graphic LCDs require more complex libraries and hardware.

2. How do I adjust the contrast of my LCD display?

Answer: You can adjust the contrast by connecting a potentiometer to the Vo pin of the LCD. Turning the potentiometer changes the voltage applied to the Vo pin, thereby adjusting the display's contrast.

3. What is the purpose of the RS pin on an LCD display?

Answer: The RS (Register Select) pin determines whether the LCD receives commands or data. Setting RS to LOW sends commands (e.g., clearing the screen), while setting it to HIGH sends data (e.g., text to display).

4. Can I display images on a standard 16x2 LCD display?

Answer: No, standard character LCDs like the 16x2 cannot display images. You need a graphic LCD or TFT screen for image display.

5. How do I connect an I2C LCD module to Arduino?

Answer: Connect the SCL pin of the I2C module to Arduino's SCL pin (usually Pin 21 on Uno) and the SDA pin to Arduino's SDA pin (usually Pin 20 on Uno). Use the LiquidCrystal_I2C library for programming.
