The 2004 Mazda 6 is a popular vehicle known for its reliability and performance. However, like many electronic systems, its LCD display can sometimes malfunction. This guide will walk you through the steps to diagnose and potentially fix issues with the LCD display in your 2004 Mazda 6.

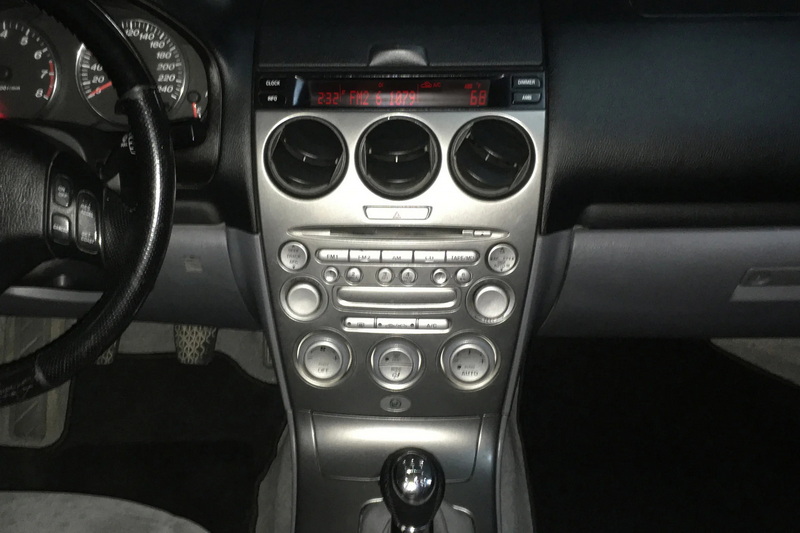

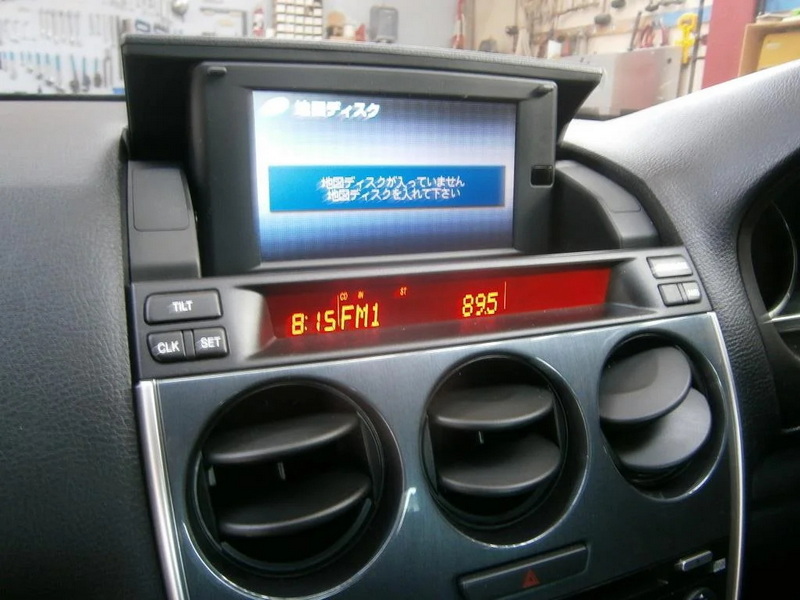

The LCD display in the Mazda 6 is used for various functions, including showing the time, temperature, and other vehicle information. If the display starts losing segments or fails to show any information, it can be frustrating and affect the overall driving experience. Understanding the causes of these issues is crucial for effective troubleshooting.
1. Physical Damage: The display might be damaged due to physical stress or impact. This could be from an accident, improper handling during maintenance, or even extreme environmental conditions.
2. Electrical Issues: Problems with the wiring or connections can prevent the display from working properly. Corrosion, loose connections, or damaged wires are common culprits.
3. Component Failure: Over time, components within the display can fail, leading to malfunction. This is often due to wear and tear or manufacturing defects.
To access the LCD display, you need to remove parts of the dashboard trim. This includes the cupholders and shift plate. There are plenty of guides available online that detail this process. It's essential to be careful to avoid damaging any of the trim pieces or the dashboard itself.
Once you have access to the display, inspect the connections for any signs of damage or corrosion. Clean the connections if necessary and ensure they are securely attached. Use a soft brush or a cotton swab to gently remove any debris.
If the display is losing segments, it might be due to loose pins. Gently bend the pins back into place if they are loose. However, this is a temporary fix, and the problem may recur. It's crucial to ensure all pins are securely connected to prevent future issues.
If the display is damaged beyond repair, you may need to replace it. Ensure you purchase a compatible replacement for your vehicle model. Check online marketplaces or visit a local auto parts store to find the correct display.
- Use a Wire Harness: Creating or purchasing a custom wire harness can simplify the installation process and reduce the risk of damaging the factory wiring. This is especially useful if you're not familiar with electrical systems.
- Consult a Professional: If you are not comfortable with DIY repairs, consider consulting a professional mechanic or auto electrician. They can provide expert advice and ensure the job is done correctly.
- Check Power Supply: Ensure the display is receiving power. Check fuses and wiring for any damage. Use a multimeter to verify voltage at the display's power input.
- Reset the System: Sometimes, disconnecting the battery for a few minutes can reset the system and resolve issues. This is a simple step that can often resolve minor glitches.
- Verify Connections: Ensure all connections are secure and not damaged. Double-check that all wires are properly connected to the correct terminals.
- Check for Interference: Other electronic devices in the vehicle might interfere with the display. Try turning them off to see if the issue resolves. This includes aftermarket stereos or GPS systems.
- Check for Moisture: Moisture can cause the display to flicker. Inspect for any signs of water damage or condensation. Use a desiccant or let the area dry completely before reconnecting.
- Replace Capacitors: If the issue persists, it might be due to failing capacitors within the display's circuit board. Replacing these can resolve the problem, but it requires soldering skills.
Regular maintenance can help prevent future issues with your LCD display. Here are some tips:
- Regular Inspections: Periodically inspect the connections and wiring for signs of wear or damage. Early detection can prevent more serious problems.
- Protect from Physical Stress: Avoid exposing the display to physical stress, such as impacts or extreme temperatures. This can help extend its lifespan.
- Avoid Overuse: While the display is designed for continuous use, excessive brightness or prolonged operation can strain the components. Adjust settings to minimize strain.
When fixing your LCD display, there are several common mistakes to avoid:
- Incorrect Replacement Parts: Using parts not designed for your vehicle model can lead to compatibility issues and further problems.
- Improper Handling: Handling electrical components without proper grounding can cause static damage. Use an anti-static wrist strap when working with sensitive electronics.
- Rushing the Process: Rushing through repairs can lead to overlooked details or improper connections. Take your time to ensure each step is completed correctly.
Fixing the LCD display in your 2004 Mazda 6 can be a manageable task if you follow the right steps and precautions. Whether you choose to DIY or seek professional help, ensuring your display is functioning correctly will enhance your driving experience. Remember to take your time, use the right tools, and consider seeking professional advice if you're unsure about any part of the process.
If your LCD display is consistently malfunctioning, showing incorrect information, or not turning on despite proper connections, it may need replacement.
It's generally not recommended to use a display from a different model year unless it is specifically designed to be compatible with your vehicle. Different models may have different pinouts and functionalities.
Regularly inspecting the connections and ensuring they are clean and secure can help prevent future issues. Avoid exposing the display to extreme temperatures or physical stress.
Yes, some issues can be fixed yourself, such as cleaning connections or bending pins. However, more complex problems may require professional assistance.
Basic tools like a screwdriver and pliers are often sufficient. For more complex repairs, you may need specialized tools or a custom wire harness.
