TFT LCD displays are widely used in various applications due to their high resolution, vibrant colors, and touch capabilities. This guide will walk you through the process of setting up and using a TFT LCD display, covering both hardware and software aspects. It includes practical examples and troubleshooting tips to help you get started with your projects.
TFT LCDs, or Thin-Film Transistor Liquid Crystal Displays, are a type of active matrix LCD. They offer superior performance compared to passive matrix displays, with faster response times and higher contrast ratios. TFT LCDs are commonly used in smartphones, tablets, and other portable devices, as well as in industrial and automotive applications.
- High Resolution: TFT LCDs can display high-resolution images with millions of colors, making them ideal for applications requiring detailed graphics.
- Touchscreen Capability: Many TFT LCDs come with built-in touchscreens, allowing users to interact directly with the display.
- Low Power Consumption: TFT LCDs are energy-efficient, which is crucial for battery-powered devices.
To start using a TFT LCD display, you need to connect it to a microcontroller or a single-board computer like Arduino or ESP32. Here's a step-by-step guide to setting up the hardware:
1. Choose Your Microcontroller: Popular choices include Arduino boards (e.g., Arduino UNO, Mega) and ESP32 boards.

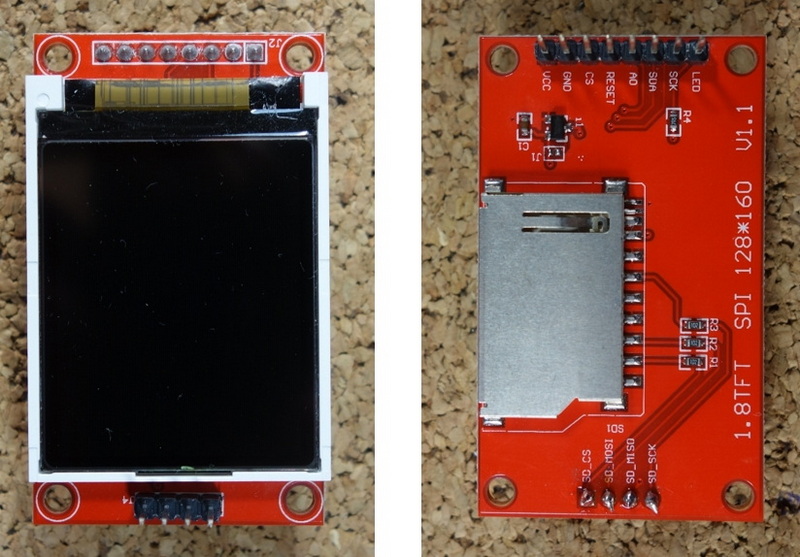

2. Select the TFT LCD Display: Common sizes include 2.8 inches, 3.5 inches, and larger. Ensure it matches your project requirements.

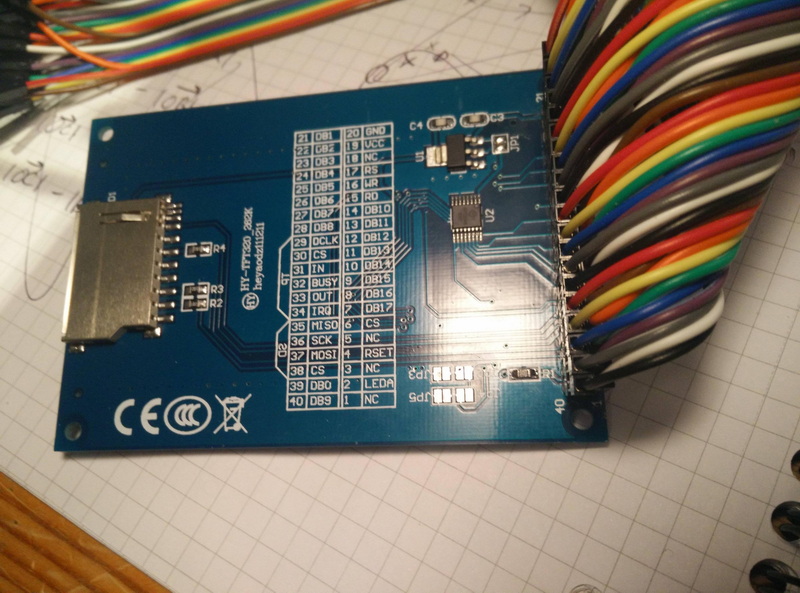

3. Connect the Display: Use jumper wires to connect the display pins to the microcontroller. The typical connections include:
- SPI Pins: For communication with the display.
- Touchscreen Pins: If your display includes a touchscreen.
- Power Pins: Connect VCC to the appropriate voltage (3.3V or 5V) and GND to ground.
To drive the TFT LCD display, you need to set up the software environment on your computer:
1. Install the Arduino IDE: Download and install the Arduino IDE from the official Arduino website.
2. Add Libraries: Install necessary libraries for your TFT display. For example, if using an ILI9341 display, install the Adafruit GFX and Adafruit ILI9341 libraries via the Library Manager in Arduino IDE.
3. Example Projects: Start with simple projects to test the display and touchscreen functionality.
Once your hardware and software are set up, you can start using the TFT LCD display for various applications:

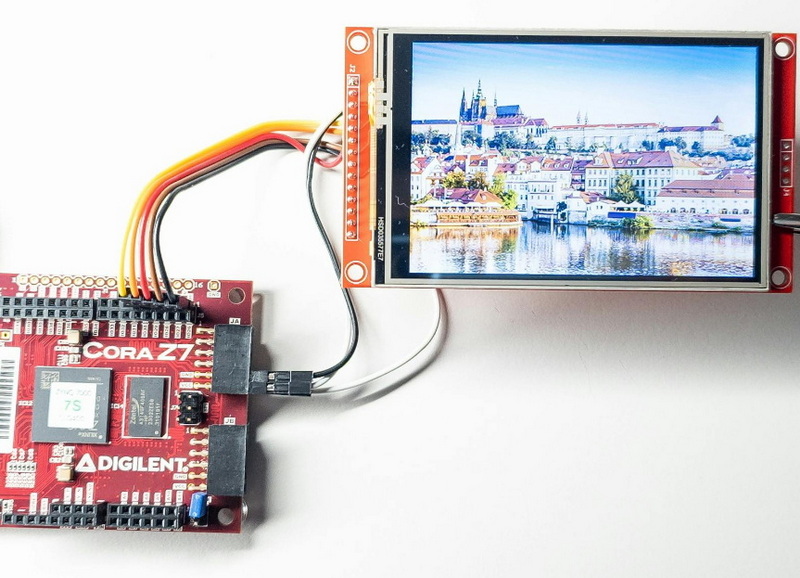

- Displaying Text and Images: Use the display to show text, shapes, and images. You can convert images to BMP format and store them on an SD card if your display supports it.

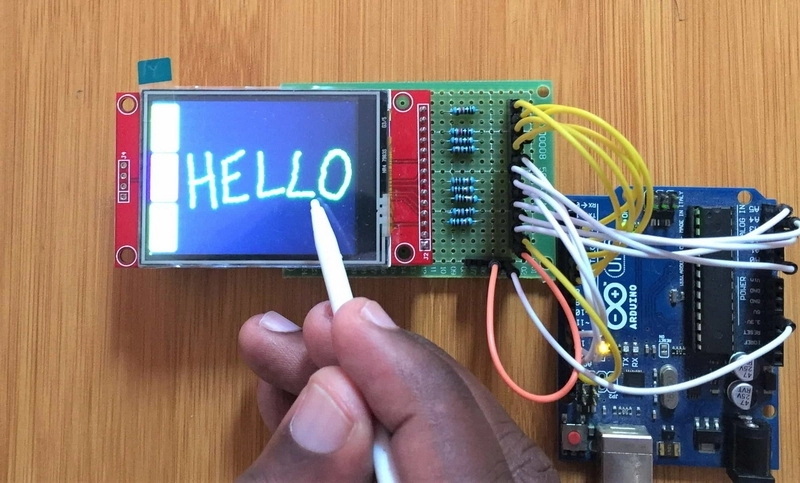

- Touchscreen Functionality: Connect the touch panel pins and use libraries like TouchScreen or XPT2046 Touchscreen to handle touch inputs.
- Brightness and Contrast Adjustment: Adjust these settings to optimize visibility under different lighting conditions.
- Color Calibration: Some displays allow color calibration to ensure accurate color representation.
When working with TFT LCD displays, you might encounter some common issues:
- Display Not Turning On: Check the power connections and ensure the backlight is enabled.
- Touchscreen Not Working: Verify the touchscreen pins are correctly connected and the appropriate library is installed.
- Incorrect Color Representation: Check if the display is properly calibrated and if the correct color mode is selected.
TFT LCD displays can be used in more complex projects, such as:
- Graphical User Interfaces (GUIs): Create interactive interfaces for IoT devices or industrial control systems.
- Games and Entertainment: Develop games or interactive applications using the touchscreen functionality.
- Data Visualization: Use the display to visualize real-time data from sensors or other devices.
- SD Cards: Use an SD card to store images or data that can be displayed on the TFT LCD.
- Sensors: Connect sensors to display real-time data, such as temperature, humidity, or motion detection.
To make your project more unique, you can customize the display:
- Custom GUI Elements: Design custom buttons, sliders, or other interactive elements using graphics libraries.
- Custom Fonts: Load custom fonts to match your project's aesthetic.
Driving a TFT LCD display involves setting up both the hardware and software components. With the right libraries and connections, you can unlock a wide range of applications, from simple text displays to complex graphical interfaces. Whether you're working on a hobby project or a professional application, TFT LCDs offer the flexibility and performance needed to bring your ideas to life.
- TFT LCDs can have various resolutions, but common ones include 240x320 pixels for smaller displays and up to 1920x1080 pixels for larger ones.
- Connect the display pins to the appropriate GPIOs on the ESP32, ensuring correct SPI and power connections.
- Typically, a microcontroller is required to drive a TFT LCD display. However, some modules may include built-in controllers for simpler applications.
- You will need the Adafruit GFX and Adafruit ILI9341 libraries for an ILI9341 display.
- Calibration involves running a specific sketch that records touch points on the screen to adjust the touch coordinates.
- Consider factors like display size, resolution, and whether you need a touchscreen. Ensure compatibility with your microcontroller.
- Common issues include display not turning on, touchscreen not responding, and incorrect color representation. Check connections and library installations.
- Yes, but ensure the display is designed for outdoor use, with features like high brightness and UV protection.
- Use low-power modes when possible, adjust backlight brightness, and optimize your code to minimize unnecessary updates.
- Advanced applications include creating interactive GUIs, developing games, and integrating with IoT devices for real-time data visualization.
