Driving a graphic LCD display involves several steps, from understanding the hardware requirements to developing the necessary firmware. This article will guide you through the process of connecting and programming a graphic LCD display using a microcontroller.
Graphic LCD displays are versatile devices used in various applications, from simple electronic gadgets to complex industrial systems. They allow for the display of images and text, making them more flexible than character LCDs. A common example of a graphic LCD is the G126FLGFGS164T33XAR, which features a 128x64 monochrome dot resolution.
To drive a graphic LCD, you need a microcontroller development board. Popular choices include the STM32F411RE-Nucleo from ST Microelectronics and Arduino boards like the Arduino Uno. The microcontroller should have enough power to drive the LCD and any additional components like the backlight.
A small piece of prototyping PCB is often used to connect the display to header pins, allowing for easy connection to the microcontroller board using jumper wires. This setup simplifies the debugging process and makes it easier to manage connections.
Firmware development involves writing software that controls the LCD's operation. This includes initializing the display, setting up communication protocols (like SPI), and drawing images or text on the screen. For microcontrollers like the STM32, you would typically use a development environment like STM32CubeIDE to generate and manage the code.

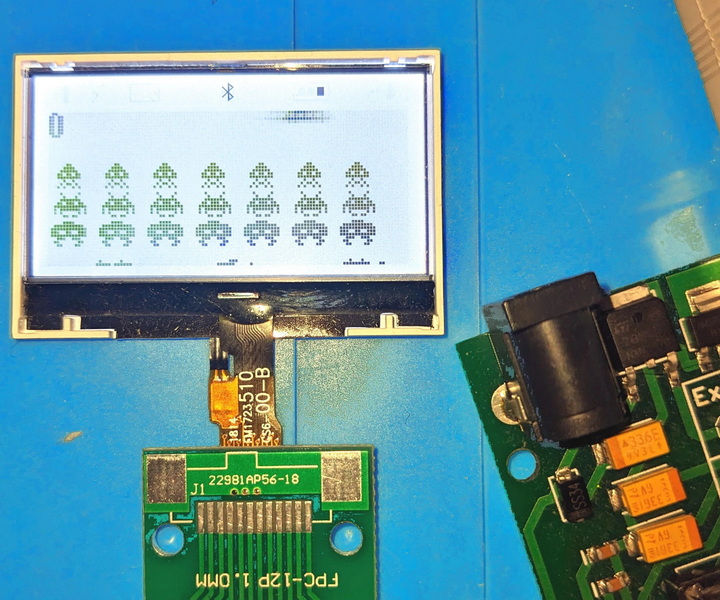

The G126FLGFGS164T33XAR is a 3.175” graphic LCD that uses the ST7565 controller chip. It is interfaced using the SPI protocol and requires a 3.3V supply rail for operation. The STM32F411RE-Nucleo board is suitable for this task due to its 3.3V supply capability and SPI interface.
LCDs work by controlling the orientation of liquid crystals to block or allow light through a matrix of pixels. In graphic LCDs, each pixel can be individually controlled to display images.
- Static LCDs: These are simpler and require fewer connections but are less common in graphic displays.
- Multiplexed LCDs: These are more complex, allowing for more pixels with fewer connections, but require more sophisticated driving logic.
Understanding the type of LCD you are working with is crucial for selecting the right driving method. Multiplexed LCDs are more common in graphic displays due to their ability to display more complex graphics with fewer pins.

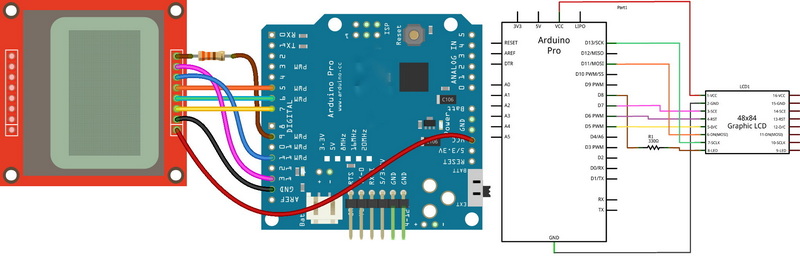

Arduino boards are popular for driving graphic LCDs due to their ease of use and extensive community support. The process involves identifying the LCD model, setting up the serial interface, and writing the necessary Arduino sketch.
If you have a salvaged LCD with a standard controller like the ST7565, you can drive it using an Arduino board. This involves figuring out the LCD model, activating the serial interface, and writing the appropriate Arduino code. Libraries like the Adafruit ST7565 library can simplify this process by providing pre-written functions for common operations.
For displays like the CFAG14432D, sample Arduino sketches are available that demonstrate how to drive these LCDs using boards like the Seeeduino v4.2 or Arduino Uno. These sketches typically include functions for initializing the display, drawing pixels, and displaying text.
- ST7565: Commonly used in graphic LCDs, this controller is supported by many Arduino libraries.
- ST7920: Used in displays like the CFAG14432D, this controller is also compatible with Arduino boards.
Understanding the controller chip is essential for selecting the right library or writing custom code. The ST7565 is particularly popular due to its widespread use in various graphic LCD models.
Driving graphic LCDs can present several challenges, including managing the AC voltage requirements and ensuring proper pixel refresh rates.
LCD drivers control the complex AC voltage requirements for LCDs, ensuring that pixels are refreshed correctly. A dedicated LCD controller is essential for managing these tasks efficiently. For example, the ST7565 controller handles tasks like line spacing and pixel refresh, making it easier to drive the LCD.
Graphic LCDs typically require a separate power supply for the backlight to ensure sufficient current. This is because the backlight can consume more power than the microcontroller's power supply can handle. Using a separate power supply helps prevent overloading the microcontroller and ensures stable operation.
To maintain image quality, it's crucial to ensure that the pixel refresh rate is adequate. This involves configuring the LCD controller to refresh the pixels at a rate that prevents flickering or ghosting. The refresh rate depends on the LCD model and the complexity of the graphics being displayed.
While most graphic LCDs are monochrome, some models offer color capabilities. Driving color graphic LCDs requires more complex firmware due to the need to manage color data and potentially higher power consumption.
Some graphic LCDs come with integrated touchscreens, allowing users to interact directly with the display. Implementing touchscreen functionality involves using additional hardware components like touch controllers and writing firmware to interpret touch inputs.
Creating custom graphics for graphic LCDs involves designing images that fit within the display's resolution. Tools like Adobe Photoshop or GIMP can be used to create and edit images, which are then converted into a format compatible with the LCD.
Driving a graphic LCD display requires careful consideration of both hardware and software components. By understanding the LCD technology, selecting the appropriate microcontroller, and developing the necessary firmware, you can successfully integrate graphic LCDs into your projects. Whether using Arduino or more advanced microcontrollers like the STM32, the key is in the setup and programming.

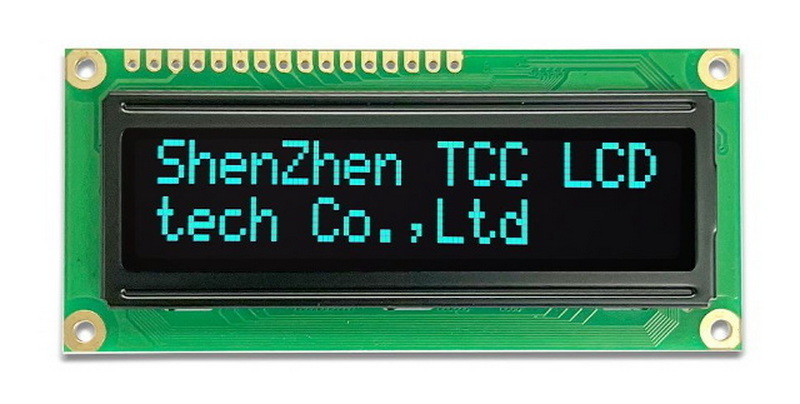

- Character LCDs display text only, while graphic LCDs can display images and text.
- Choose a microcontroller that supports the necessary communication protocol (e.g., SPI) and has enough power to drive the LCD.
- The LCD controller manages tasks like pixel refresh rates and line spacing, ensuring the display operates correctly.
- Yes, if the salvaged LCD uses a standard controller like the ST7565, you can drive it with an Arduino.
- Managing AC voltage requirements and ensuring proper pixel refresh rates are common challenges.
