Scrolling displays on LCD screens are a common feature in many electronic devices, from simple calculators to complex industrial control systems. This functionality allows for the display of more information than the physical screen size can accommodate, making it particularly useful in applications where space is limited. In this article, we will explore how to achieve a scrolling display using an LCD with an Arduino microcontroller, a popular platform for DIY electronics projects.
LCD stands for Liquid Crystal Display. It is a type of electronic display device that uses liquid crystals to produce visual output. LCDs are widely used in many electronic devices due to their low power consumption, lightweight design, and long lifespan. They are commonly found in calculators, watches, mobile phones, televisions, and computer monitors.
To implement a scrolling display with an LCD, you will need the following components:
- Arduino Board: This is the microcontroller that will control the LCD.
- LCD Display: Typically a 16x2 or 16x4 LCD is used for these projects.
- Breadboard: For connecting components.
- Jumper Wires: For making connections between components.
- Potentiometer (10k ohm): For adjusting the contrast of the LCD.
- Resistor (220 ohm): For powering the backlight of the LCD.

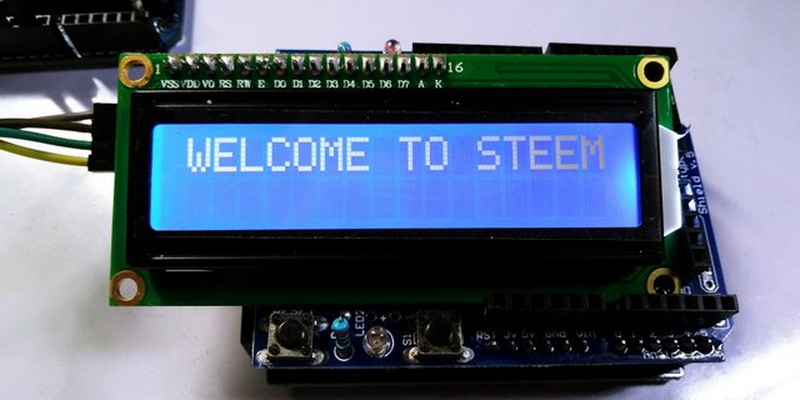

Setting up the circuit involves connecting the LCD to the Arduino. Here's a general overview of how to connect them:
1. LCD RS Pin to Arduino Digital Pin 12.
2. LCD Enable Pin to Arduino Digital Pin 11.
3. LCD D4 Pin to Arduino Digital Pin 5.
4. LCD D5 Pin to Arduino Digital Pin 4.
5. LCD D6 Pin to Arduino Digital Pin 3.
6. LCD D7 Pin to Arduino Digital Pin 2.
7. Connect the 10k potentiometer to +5V and GND, with its wiper connected to the LCD's VO pin.
8. Use a 220 ohm resistor to power the backlight.
The circuit setup is crucial for ensuring that the LCD functions correctly. Proper connections will prevent damage to the components and ensure reliable operation.
There are two primary methods to achieve a scrolling display:
- Using the LiquidCrystal Library: This library provides functions like `scrollDisplayLeft()` and `scrollDisplayRight()` to scroll the text horizontally.
- Manual Scrolling: By manipulating the text string and using a loop to shift characters, you can create a scrolling effect.
The LiquidCrystal library simplifies the process of scrolling text on an LCD. Here's how it works:
- Initialize the LCD with the desired dimensions (e.g., 16x2).
- Use `scrollDisplayLeft()` or `scrollDisplayRight()` to scroll the text.
- Add a delay between scrolls to control the speed.
This method is straightforward and efficient, making it ideal for beginners and simple projects.
For more control over the scrolling effect, you can manually shift the text characters using a loop. This method allows for custom scrolling patterns and speeds. It involves storing the text in a string, then using a loop to shift each character one position at a time. This technique requires more programming effort but offers greater flexibility.
Manual scrolling is particularly useful when you need to implement complex scrolling patterns or integrate scrolling with other display functions.

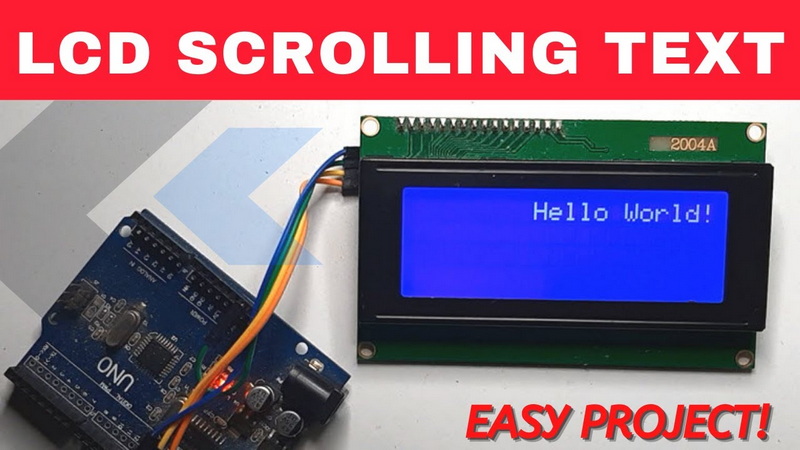

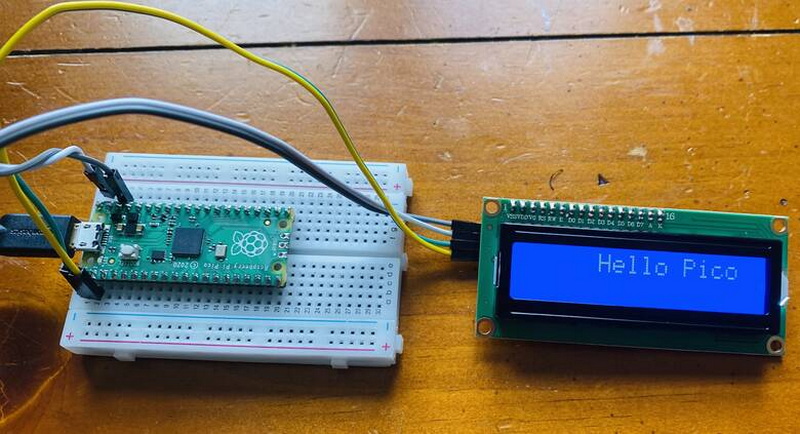

I2C LCD modules simplify the wiring process by reducing the number of pins needed to connect the LCD to the Arduino. They are ideal for projects where space is limited.
- Arduino Board
- I2C LCD Module
- Jumper Wires
- Simplified wiring.
- Reduced pin usage on the Arduino.
- Easier to integrate into compact projects.
I2C LCD modules are particularly useful in projects where minimizing the number of connections is crucial. They also make it easier to add more components to your project without running out of pins on the Arduino.
Beyond basic scrolling, you can enhance your display by incorporating additional features:
- Vertical Scrolling: While less common, vertical scrolling can be achieved by manipulating the cursor position and printing text line by line.
- Custom Characters: You can create custom characters using the LCD's built-in character generator. This allows for displaying logos or icons alongside scrolling text.
- Color LCDs: For more vibrant displays, consider using color LCDs. These require more complex wiring and programming but offer a richer visual experience.
Vertical scrolling involves moving text up or down on the screen. This can be useful for displaying lists or menus. It requires careful management of the cursor position to ensure smooth scrolling.
Creating custom characters allows you to add unique symbols or logos to your display. This can enhance the visual appeal and functionality of your project.
Color LCDs offer a more engaging display experience. They are commonly used in gaming consoles, smartphones, and other devices where visual impact is important. However, they require more complex programming and hardware compared to monochrome LCDs.
When working with LCDs, you may encounter several common issues:
- Text Not Displaying: Check the contrast adjustment and ensure the backlight is working.
- Incorrect Pin Connections: Verify that all pins are correctly connected to the Arduino.
- Library Issues: Ensure the correct library is installed and imported in your Arduino IDE.
Troubleshooting these issues can save time and frustration during the development process.
Implementing a scrolling display on an LCD with Arduino is a straightforward process that can enhance the user interface of your projects. Whether you use the LiquidCrystal library or manual scrolling techniques, the key is to understand how to control the text flow on the LCD. With the right components and a little practice, you can create engaging and informative displays for a variety of applications.
The potentiometer is used to adjust the contrast of the LCD display. By adjusting the voltage applied to the VO pin, you can optimize the visibility of the text on the screen.
When choosing an LCD, consider the size (e.g., 16x2, 16x4), the interface type (e.g., parallel, I2C), and whether it supports the Hitachi HD44780 driver, which is commonly used with Arduino.
Scrolling left moves the text from right to left across the screen, while scrolling right moves it from left to right. The direction depends on the function used (`scrollDisplayLeft()` or `scrollDisplayRight()`).
Yes, Arduino can be used with various display types, including OLED, TFT, and LED displays. Each type requires specific libraries and wiring configurations.
The scrolling speed can be adjusted by changing the delay time between each scroll operation. A shorter delay results in faster scrolling.
