Views: 222 Author: Tina Publish Time: 2025-03-17 Origin: Site
Content Menu
● Introduction to LCD Displays
● Connecting the LCD to Arduino
>> Example Scenario: Displaying Sensor Data
>> Formatting Strings for Display
● Troubleshooting Common Issues
>> Common Issues and Solutions
>> Common Challenges in LCD Projects
● Frequently Asked Questions (FAQs)
>> 1. How do I connect an LCD to Arduino?
>> 2. What is the difference between a 16x2 and a 20x4 LCD?
>> 3. How do I display a variable value on the LCD?
>> 4. Why is my LCD not displaying anything?
>> 5. Can I create custom characters on the LCD?
Displaying variable values on an LCD screen using Arduino is a fundamental skill in electronics and robotics. It allows you to visualize data from sensors, user inputs, or calculations in real-time. This article will guide you through the process of connecting an LCD to an Arduino board, understanding the basics of LCD displays, and displaying variable values.

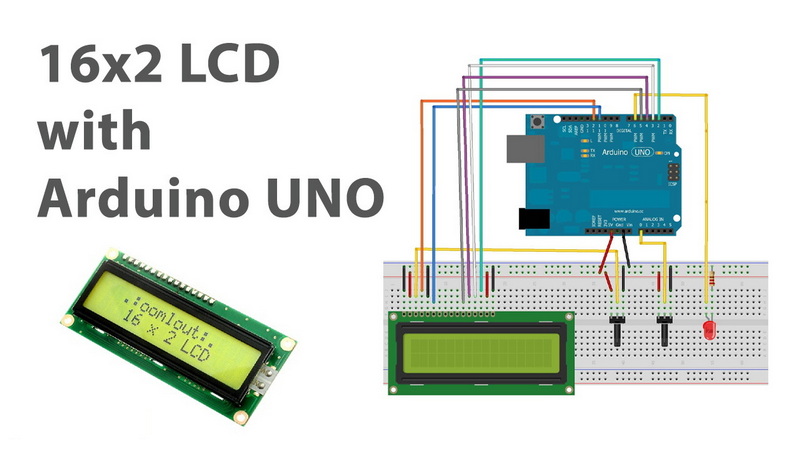

LCD (Liquid Crystal Display) screens are widely used in electronic projects due to their simplicity and affordability. The most common type is the 16x2 LCD, which can display two lines of text with 16 characters each. Other sizes include 16x1, 16x4, and 20x4. The choice of LCD size depends on how much information you need to display and the available space in your project.
There are two main ways to connect an LCD to an Arduino: using a parallel interface or an I2C module.
- Parallel Interface: This method requires more pins from the Arduino (typically 7 pins for 4-bit mode) and is more complex to set up. However, it offers faster communication, which can be beneficial for projects that require quick updates on the display.
- I2C Module: This method uses only four pins (VCC, GND, SDA, SCL) and is simpler to connect. It is ideal for projects where pin availability is limited, such as when using multiple components that require a lot of pins.
To connect an LCD to an Arduino, follow these steps:

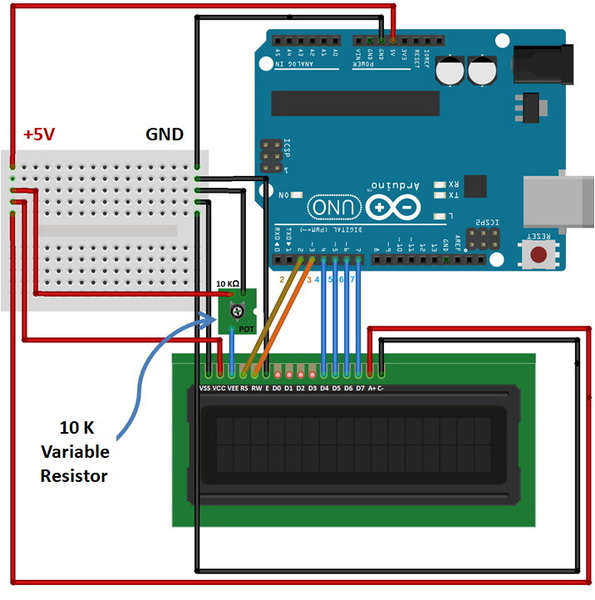

1. Parallel Connection:
- Connect VCC to Arduino's 5V.
- Connect GND to Arduino's GND.
- Connect RS (Register Select) to any digital pin.
- Connect E (Enable) to any digital pin.
- Connect D4-D7 to any digital pins for 4-bit mode.
- Adjust the contrast using a potentiometer. Proper contrast adjustment is crucial for clear visibility of the text on the LCD.
2. I2C Connection:
- Connect VCC to Arduino's 5V.
- Connect GND to Arduino's GND.
- Connect SDA to Arduino's SDA pin.
- Connect SCL to Arduino's SCL pin.
- Ensure the I2C module is properly soldered to the LCD if it's not pre-assembled.
Adjusting the contrast is essential for optimal visibility. Use a potentiometer to adjust the voltage applied to the LCD's contrast pin. This process might require some trial and error to find the perfect setting for your environment.
To display variable values, you need to understand basic LCD functions:
- lcd.begin(): Initializes the LCD with the number of columns and rows. This function must be called before any other LCD operations.
- lcd.setCursor(): Sets the position where text will be displayed. You can specify both the row and column.
- lcd.print(): Prints text or variable values on the screen. This function can handle both strings and numerical values.
- lcd.clear(): Clears the display. Useful for updating the screen with new information.
To display a variable value, you can convert it to a string and use the `lcd.print()` function. This is particularly useful for displaying sensor readings or calculated values.
Imagine you're using a temperature sensor to read ambient temperature and want to display it on the LCD.
1. Read the sensor data using an appropriate function.
2. Convert the data into a meaningful format (e.g., temperature in Celsius).
3. Use `lcd.print()` to display this value on the LCD. You might need to format the string to include units or other relevant information.
When displaying variable values, formatting the string is important for clarity. You can use string concatenation or formatting functions to include units or other text alongside the variable value.
When displaying variable values, you might encounter issues like incorrect display or no display at all. Here are some common problems and solutions:
- Incorrect Display: Check if the variable is correctly formatted as a string. Ensure that the LCD is properly initialized and the cursor is set to the correct position.
- No Display: Ensure the LCD is properly connected and the backlight is turned on. Check the contrast adjustment and make sure it's not set too high or too low.
Beyond basic text display, LCDs can offer additional features like custom characters and scrolling text.
You can create custom characters using the `lcd.createChar()` function. This is useful for displaying icons or symbols not included in the standard ASCII set. Custom characters can enhance the visual appeal of your project and provide a more intuitive interface.
To display long messages, you can use the autoscroll feature, which moves the text horizontally across the screen. This is particularly useful for displaying messages that are longer than the LCD's capacity.
Displaying variable values on an LCD has numerous practical applications:
- Home Automation: Displaying temperature, humidity, or lighting levels in a smart home setup.
- Robotics: Displaying sensor readings or navigation data on a robot's LCD screen.
- Environmental Monitoring: Displaying air quality, noise levels, or other environmental data in real-time.
1. Limited Display Space: One of the biggest challenges is managing the limited display space effectively. You need to prioritize the most important information and use formatting techniques to make the most of the available space.
2. Power Consumption: LCDs consume power, which can be a concern in battery-powered projects. Using efficient power management techniques and choosing low-power LCDs can help mitigate this issue.

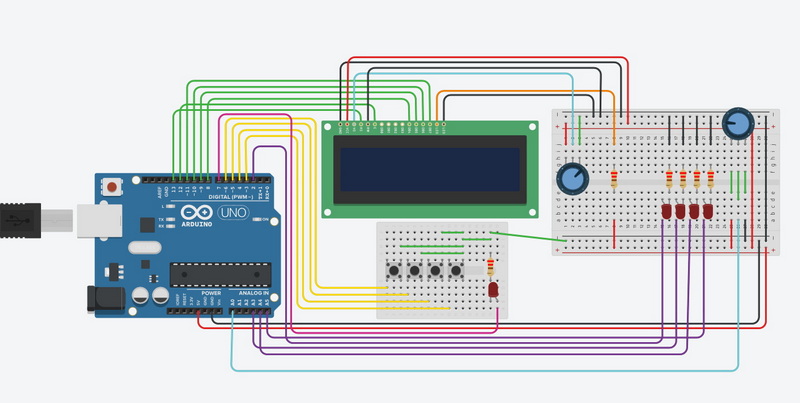

3. Interfacing with Other Components: Integrating the LCD with other components like sensors, buttons, or LEDs requires careful planning to ensure all components work harmoniously.
4. User Interface Design: Designing an intuitive user interface is crucial for user-friendly projects. This includes using clear labels, organizing information logically, and providing feedback to user inputs.
5. Debugging and Troubleshooting: Debugging issues with the LCD can be challenging due to the complexity of electronic circuits. Using systematic troubleshooting methods and checking connections carefully can help resolve most issues.
Displaying variable values on an LCD with Arduino is a versatile skill that enhances the interactivity and feedback of electronic projects. By understanding the basics of LCD connections and functions, you can effectively visualize data from sensors or calculations, making your projects more engaging and informative.
You can connect an LCD using either a parallel interface or an I2C module. The parallel method requires more pins but offers faster communication, while the I2C method is simpler and uses fewer pins.
A 16x2 LCD can display two lines of text with 16 characters each, while a 20x4 LCD can display four lines with 20 characters each. The choice depends on how much information you need to display.
Convert the variable into a string and use the `lcd.print()` function to display it on the LCD.
Check if the LCD is properly connected, the backlight is turned on, and the contrast is adjusted correctly.
Yes, you can create custom characters using the `lcd.createChar()` function, which is useful for displaying icons or symbols.
