The 8051 microcontroller is widely used in embedded systems for controlling devices. One of the most common applications is interfacing a 16x2 LCD module to display text, numbers, or symbols. This article explains the process of displaying text on an LCD using the 8051 microcontroller, covering hardware setup, interfacing techniques, and practical considerations.
A 16x2 LCD module consists of:
- 16 characters per row: Two rows that can display alphanumeric characters and symbols.
- 5x7 dot matrix: Each character occupies a grid of 5x7 pixels.
The LCD module has 16 pins categorized as:
1. Power Pins: VSS (Ground), VDD (+5V supply).
2. Contrast Pin: V0, used to adjust screen contrast.
3. Control Pins:
- RS: Register Select (Command/Data mode).
- RW: Read/Write control.
- E: Enable pin for triggering operations.
4. Data Pins: D0-D7 for sending data or commands.
5. Backlight Pins: LED+ and LED- for illumination.
There are various types of LCD modules available, including:
- Character LCDs: Display text and symbols.
- Graphic LCDs: Allow drawing images and shapes.
- TFT LCDs: Color displays used in more complex applications.
To interface the LCD with the 8051 microcontroller, you need:
- 8051 Microcontroller (e.g., AT89C51).
- 16x2 LCD Module.
- Resistors (10kΩ).
- Capacitors (22pF).
- Oscillator crystal (12 MHz).
- Breadboard and connecting wires.

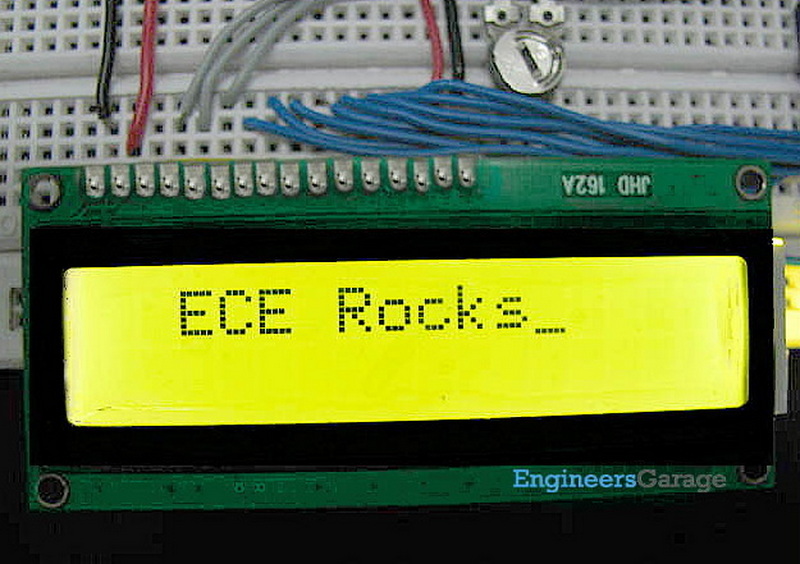

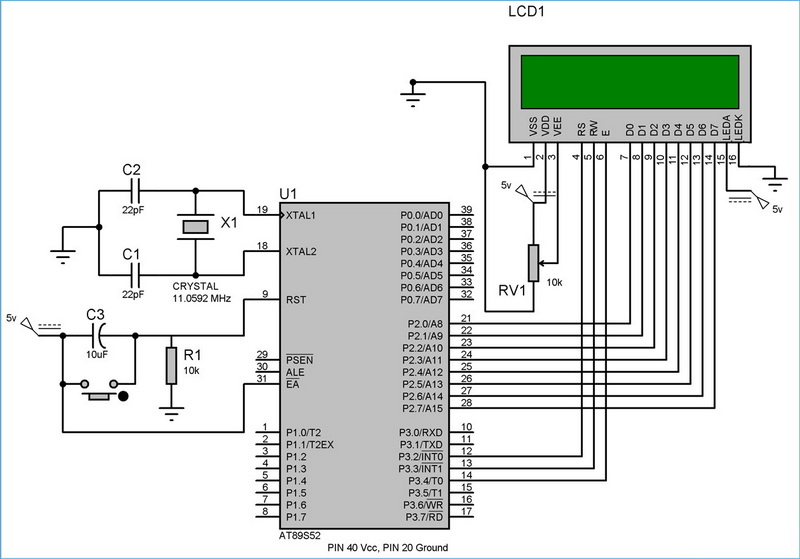

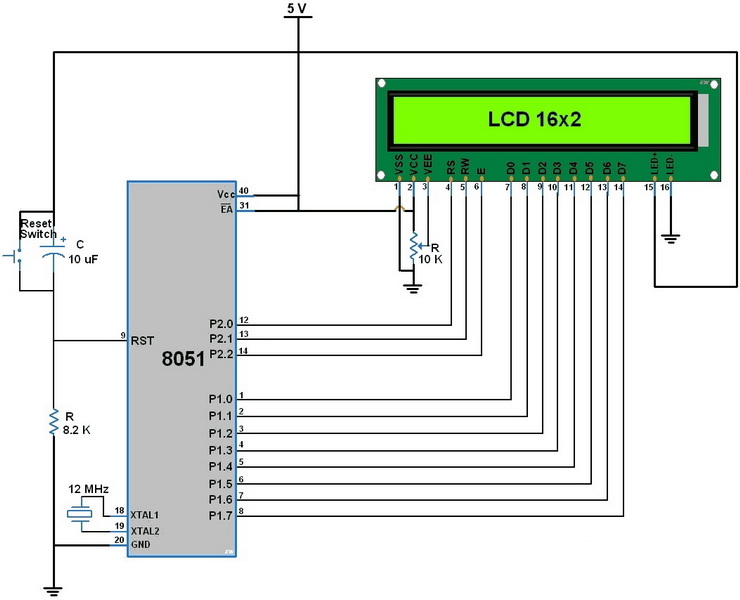

Below is a simplified circuit diagram:
1. Connect the power pins (VSS and VDD) to Ground and +5V respectively.
2. Attach the contrast pin (V0) to a variable resistor to adjust the screen contrast.
3. Link control pins RS, RW, and E to specific pins on Port 3 of the 8051 microcontroller.
4. Connect data pins D0-D7 to Port 2 of the microcontroller.
For a complete setup, you might also need:
- Power Supply: A regulated +5V supply for both the microcontroller and LCD.
- Oscillator Circuit: An external oscillator or crystal for providing a clock signal to the microcontroller.
- Reset Circuit: A simple reset circuit to ensure proper initialization of the microcontroller.
Before displaying text, initialize the LCD by sending specific commands:
- `0x38`: Configure for 8-bit mode.
- `0x0C`: Turn on display without cursor.
- `0x01`: Clear screen.
- `0x80`: Set cursor position to the first line.
Commands are sent via the RS pin set to logic low (`RS=0`). These instructions control operations like clearing the screen or setting cursor position.
To display text, send ASCII values of characters with RS set to logic high (`RS=1`).
For example, to display "Hello," you would send the ASCII values for each character: H (72), e (101), l (108), l (108), o (111).
Use a variable resistor connected to V0 for optimal visibility. Adjusting the contrast is crucial for clear text display.
Ensure proper delays between command and data transmission to avoid errors. The LCD requires time to process each command.
Check connections thoroughly if text does not appear correctly. Common issues include incorrect pin connections or insufficient power supply.
LCDs generally consume low power, making them suitable for battery-powered devices. However, backlighting can increase power consumption significantly.
To reduce wiring complexity, you can use a 4-bit mode instead of an 8-bit mode by connecting only four data pins (D4-D7). This requires additional programming steps to handle data transmission in two cycles.
Dynamic content like countdown timers can be displayed by updating data values in real-time through loops or interrupts in your code. This involves continuously updating the LCD with new data.
Some LCDs allow creating custom characters by defining pixel patterns. This is useful for displaying logos or symbols not available in the standard character set.
You can build a real-time clock by interfacing the LCD with a timer circuit. This displays the current time and date.
By integrating sensors for temperature and humidity, you can create a simple weather station that displays environmental data on the LCD.
LCDs can be used in home automation systems to display status messages or control commands for devices like lights and fans.
Interfacing a 16x2 LCD with an 8051 microcontroller is straightforward once you understand its pin configuration and command structure. By following proper initialization steps and ensuring accurate connections, you can display messages effectively on your embedded system. This setup is versatile and can be applied to various projects, from simple displays to complex automation systems.
