Views: 0 Author: Tina Publish Time: 2025-03-12 Origin: Site
Content Menu
● Introduction to Arduino and LCD Displays
>> Step 1: Connect the LCD Display
>> Step 2: Connect the Temperature Sensor
>> TMP36
>> LM35

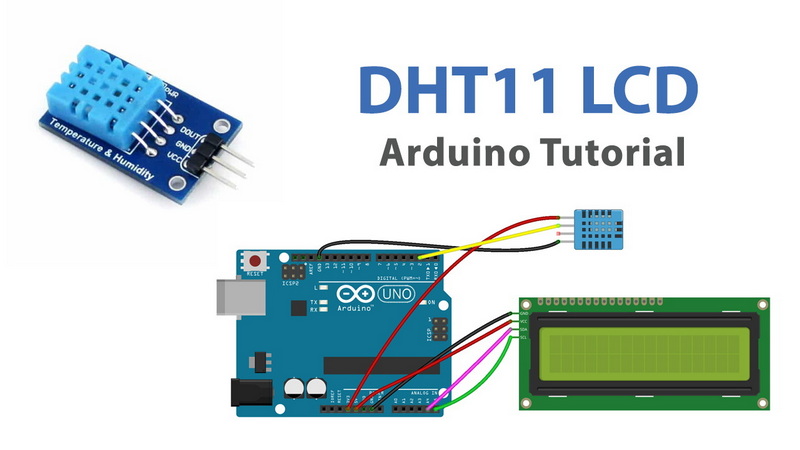

>> DHT22
● Troubleshooting Common Issues
>> Data Logging
>> 1. What are the most common temperature sensors used with Arduino?
>> 2. How do I adjust the contrast on my LCD display?
>> 3. What is the purpose of the potentiometer in the LCD circuit?
>> 4. Can I use other types of LCD displays with Arduino?
>> 5. How do I convert analog sensor readings to temperature values?
Displaying temperature readings on an LCD screen using Arduino is a popular project among electronics enthusiasts and beginners alike. This guide will walk you through the process, covering the necessary components, setup, and common issues you might encounter.
Arduino boards, such as the Arduino Uno, are versatile microcontrollers that can be used for a wide range of projects. When paired with an LCD display, they can provide visual feedback for various sensor readings, including temperature. The Arduino Uno is particularly popular due to its ease of use and extensive community support.
- Arduino Uno Board: The brain of your project, responsible for processing data.
- LCD Display: Typically a 16x2 or 20x4 character display. For simplicity, we'll focus on a 16x2 LCD.
- Temperature Sensor: Commonly used sensors include the TMP36, LM35, and DHT22. Each has its own characteristics and applications.
- Breadboard and Jumper Wires: For connecting components.
- Potentiometer: Used to adjust the LCD's contrast.

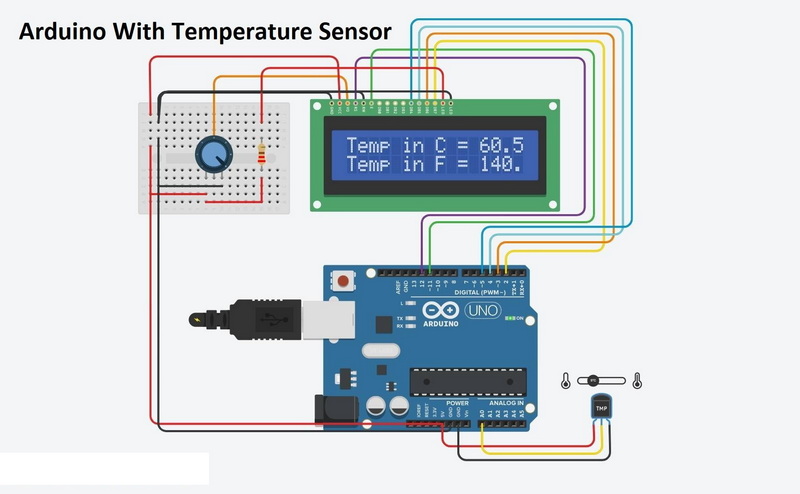

The LCD display requires several connections to the Arduino:
- Pin 1 (Vss): Connect to GND.
- Pin 2: Connect to +5V.
- Pin 3: Connect to the middle pin of a potentiometer for contrast adjustment.
- Pin 4 (RS): Connect to a digital pin on Arduino (e.g., Pin 12).
- Pin 5 (R/W): Connect to GND for write mode.
- Pin 6 (E): Connect to another digital pin (e.g., Pin 11).
- Pin 7 to 10: Not used in this setup.
- Pin 11 to 14: Data pins. Connect to digital pins on Arduino (e.g., Pins 5, 4, 3, 2).
- Pin 15 (LED+): Connect to +5V via a 220 Ohm resistor.
- Pin 16 (LED-): Connect to GND.

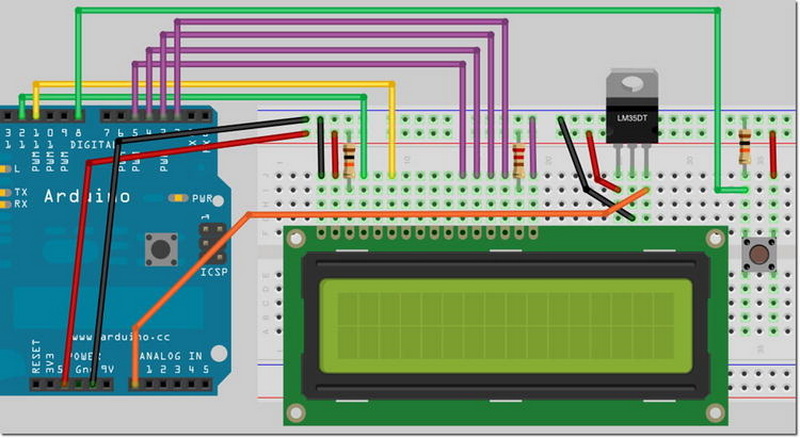

For an LM35 sensor:
- VCC: Connect to +5V on Arduino.
- GND: Connect to GND on Arduino.
- OUT: Connect to an analog input pin (e.g., A0).
- Range: -40°C to 125°C.
- Sensitivity: 10mV/°C.
- Output: Linear analog voltage.
- Advantages: Easy to use and provides a linear output, making it simple to convert voltage to temperature.
- Range: -55°C to 150°C.
- Sensitivity: 10mV/°C.
- Output: Linear analog voltage.
- Advantages: Offers a wider temperature range than TMP36 and is highly accurate.
- Range: -40°C to 80°C.
- Humidity: Also measures humidity.
- Output: Digital signal.
- Advantages: Provides both temperature and humidity readings, making it versatile for environmental monitoring projects.
1. Incorrect Readings: Ensure proper connections and calibration. Check if the sensor is correctly connected to the analog input pin and if the voltage reference is set correctly.
2. LCD Not Displaying: Check power connections and contrast adjustment. Ensure that the LCD is receiving power and that the contrast is adjusted properly using the potentiometer.
3. Sensor Not Responding: Verify sensor is properly connected and powered. Check for any physical damage or corrosion on the sensor pins.

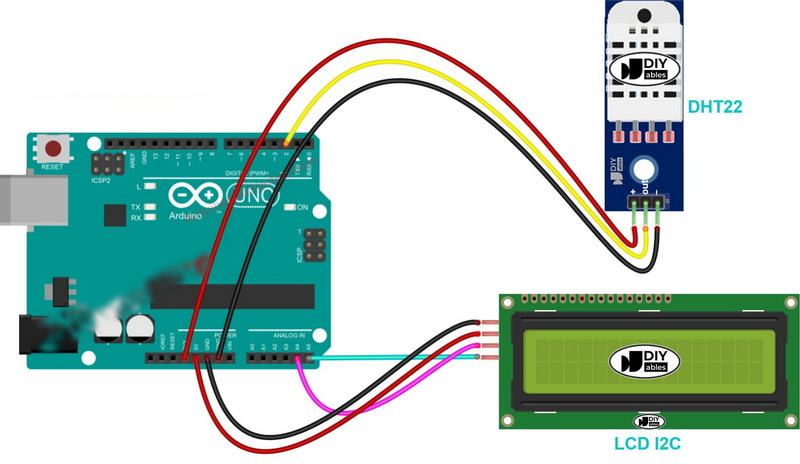

I2C LCDs are more convenient as they require fewer pins to connect, freeing up more pins for other components. They use a serial communication protocol to send data, which simplifies the wiring process.
You can enhance your project by adding more sensors, such as light sensors or pressure sensors. This allows you to monitor multiple environmental factors simultaneously.
For portability, consider using a battery to power your Arduino. Ensure that the battery voltage matches the requirements of your components.
By integrating multiple sensors, such as temperature, humidity, and pressure sensors, you can create a basic weather station. This project can be further expanded by adding features like Wi-Fi connectivity to upload data to the cloud.
Temperature readings can be used to automate home devices, such as turning on a fan when the temperature exceeds a certain threshold. This involves using relays to control AC devices.
You can use an SD card module to log temperature data over time. This is useful for monitoring temperature changes in a specific environment.
Displaying temperature on an LCD with Arduino is a straightforward yet educational project. By understanding the components and setup, you can create a functional temperature display for various applications. This project can be expanded to include more sensors and features, making it a great starting point for more complex projects.
1. TMP36: Known for its simplicity and linear output.
2. LM35: Offers a wide temperature range and high precision.
3. DHT22: Provides both temperature and humidity readings.
Use a potentiometer connected to Pin 3 of the LCD to adjust the contrast.
It adjusts the contrast of the LCD display for better visibility.
Yes, you can use different sizes and types, such as I2C LCDs, which require fewer pins.
Use the sensor's sensitivity (e.g., 10mV/°C for LM35) to calculate temperature from the analog voltage.
