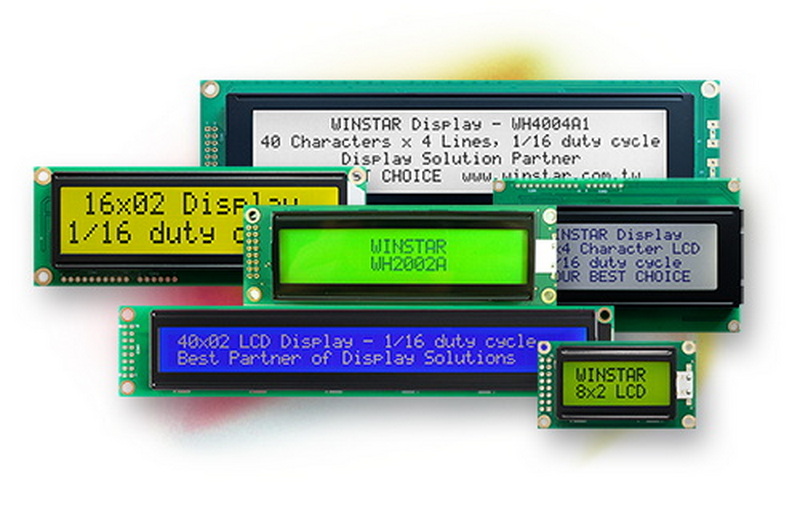

Displaying special characters on an LCD (Liquid Crystal Display) is a common requirement in various applications, from simple DIY projects to complex industrial systems. LCDs, especially the 16x2 type, are widely used due to their simplicity and versatility. However, they typically support only ASCII characters by default. To display special characters, such as hearts, arrows, or custom logos, you need to use the LCD's Character Generator RAM (CGRAM). This article will guide you through the process of creating and displaying special characters on an LCD using Arduino or other microcontrollers.

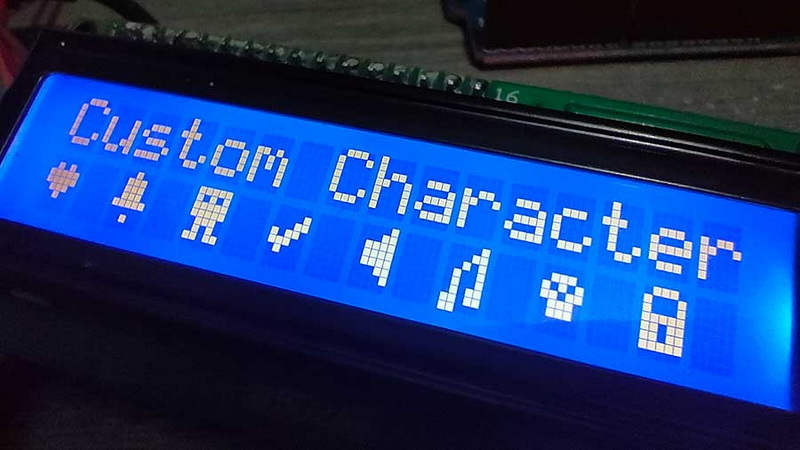

LCDs like the 16x2 model have a built-in character generator that allows you to create custom characters. Each character is composed of a matrix of pixels—typically 8 rows and 5 columns for a 16x2 LCD. The Character Generator RAM (CGRAM) can store up to 8 custom characters at a time, which can be accessed and displayed on the LCD. Understanding how to utilize this feature is crucial for enhancing the visual appeal and functionality of your projects.
1. Design Your Character: Use an LCD character generator tool to create your custom character. This tool allows you to design a character by selecting pixels in a grid. The grid is usually 8x5 pixels for a standard LCD character.
2. Convert to Binary Code: Once your character is designed, the tool will provide a binary code representing the character. This code is essential for programming the LCD. The binary code is typically a series of 8 bytes, each representing a row of pixels in the character matrix.
3. Program the LCD: Use a microcontroller like Arduino to program the LCD. You will need to initialize the LCD, define the custom character using the binary code, and then display it on the screen. The initialization process involves setting the LCD's dimensions and mode (e.g., 4-bit or 8-bit mode).
4. Display the Character: After defining the custom character, you can display it on the LCD by setting the cursor to the desired position and writing the character. This is done using specific commands that control the cursor position and character output.
Displaying special characters on LCDs is useful in various applications:
- Menu Systems: Custom icons can enhance user interfaces in menu systems, making them more intuitive and visually appealing.

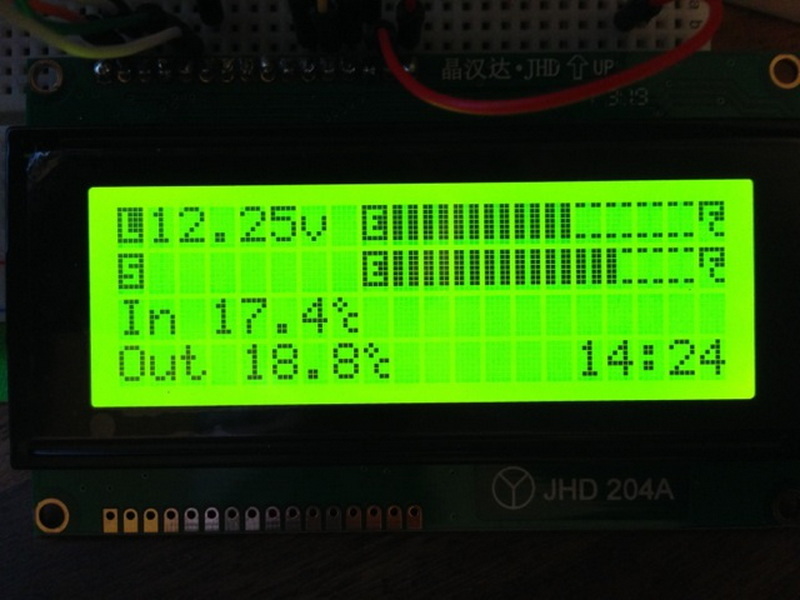

- Status Indicators: Symbols like hearts or arrows can be used to indicate status or direction, providing immediate visual feedback.
- Logos and Branding: Displaying a company logo or custom graphics adds a professional touch to products, making them stand out.
Creating custom characters involves designing the character and then converting it into a binary format that the LCD can understand. Here's a step-by-step guide:
1. Use a Character Generator Tool: These tools provide a grid where you can select pixels to create your character. The grid size is usually fixed at 8x5 pixels for standard LCD characters.
2. Save the Binary Code: Once your character is designed, save the binary code provided by the tool. This code is crucial for programming the LCD.
1. Initialize the LCD: Use the `begin()` function to set up the LCD. This involves specifying the number of columns and rows the LCD has.
2. Define the Custom Character: Use the `createChar()` function to define your custom character. This function takes the binary code as an argument.
3. Display the Character: Set the cursor position using `setCursor()` and then use the `write()` function to display the character.
- Limited Memory: The CGRAM can only store up to 8 custom characters at a time. This limitation requires careful planning when designing characters for complex projects.
- Complexity: Designing complex characters can be challenging due to the limited pixel resolution. Simple designs are often more effective.
- Optimize Character Design: Use simple designs to maximize the use of available pixels. This ensures that your characters are clear and recognizable.
- Use Multiple LCDs: If more characters are needed, consider using multiple LCDs. This allows you to display a wider range of custom characters.
In some cases, you might need to display more than 8 custom characters. While the CGRAM can only store 8 characters at a time, you can dynamically update the CGRAM to display different sets of characters. This involves redefining the characters in the CGRAM as needed, which can be done using a microcontroller.
You can create simple animations by rapidly switching between different custom characters. This technique is useful for creating dynamic displays that capture the user's attention. For example, you can create a blinking effect by switching between a filled and an empty character.
Custom characters can be integrated with other components like buttons or sensors to create interactive systems. For instance, you can use a button press to change the displayed character or trigger an animation.
Displaying special characters on LCDs is a versatile feature that enhances the functionality and appeal of various projects. By understanding how to create and display custom characters, you can add unique elements to your designs. Whether it's for a simple DIY project or a complex industrial application, custom characters can make your LCD displays more engaging and informative. The ability to create custom characters opens up a wide range of possibilities for creative expression and functional enhancement.
- A: Use an LCD character generator tool to design your character, then convert it into binary code for programming.
- A: You can store up to 8 custom characters in the CGRAM.
- A: Yes, you can display these symbols by creating them using an LCD character generator and programming them into the LCD.
- A: Initialize the LCD, define the custom character using the `createChar()` function, and then display it using the `write()` function.
- A: Common applications include enhancing menu systems, status indicators, and displaying logos or branding.
- Use an LCD character generator tool to design your character. Convert the design into binary code and program the LCD using this code.
- You can display up to 8 custom characters at a time, as the CGRAM has space for 8 characters.
- Yes, you can display these characters by creating them using an LCD character generator and programming them into the LCD's CGRAM.
- Initialize the LCD, define the custom character using the `createChar()` function, and then display it using the `write()` function.
- Common applications include enhancing menu systems, status indicators, and displaying logos or branding.
