Displaying a name on an LCD screen using a microcontroller is a fundamental project in electronics and embedded systems. This project involves connecting an LCD display to a microcontroller, writing the necessary code, and uploading it to the microcontroller to display the desired text. In this article, we will explore the steps and components involved in this process, focusing on popular microcontrollers like Arduino and 8051.
Microcontrollers are small computers on a single integrated circuit containing a processor core, memory, and programmable input/output peripherals. They are widely used in various applications, from simple robots to complex industrial control systems. LCD displays, on the other hand, are commonly used for displaying text or images due to their low power consumption and ease of use.
- Arduino Uno: Known for its ease of use and extensive community support, Arduino is a popular choice for beginners. It uses the LiquidCrystal library to interface with LCDs. The Arduino Uno has 14 digital input/output pins, 6 analog input pins, and can be powered via USB or an external power source.
- 8051 Microcontroller: An older but still widely used microcontroller, especially in educational settings. It requires manual handling of LCD commands and is known for its robustness and low cost.
- 16x2 LCD: The most common type used in projects, capable of displaying two lines of text with 16 characters each. It is widely available and easy to interface with microcontrollers.
- 20x4 LCD: Offers more display space, allowing for more complex text displays or even simple graphics.
To start this project, you will need the following components:
- Microcontroller (Arduino Uno or 8051)
- 16x2 LCD Display
- Breadboard
- Jumper Wires
- Resistors (for voltage regulation)
- Potentiometer (for contrast adjustment)
- Power Supply (5V)
- USB Cable (for Arduino)
- Programmer (for 8051, if needed)

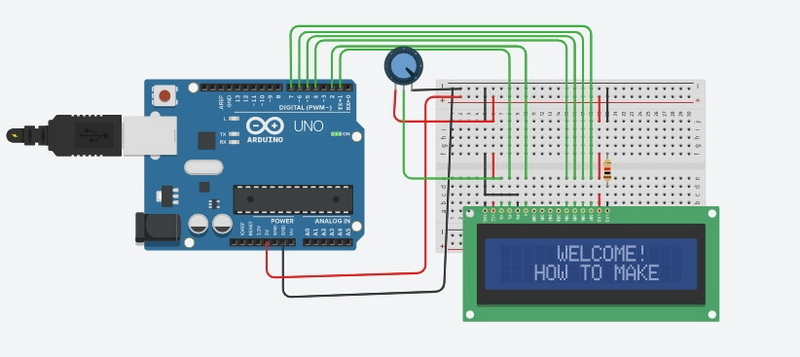

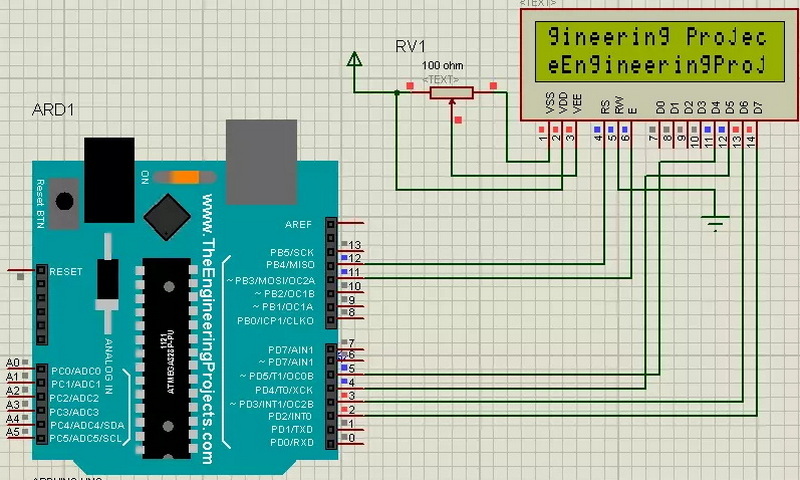

For Arduino, connect the LCD pins as follows:
- RS (Register Select) Pin: Connect to any digital pin on Arduino (e.g., Pin 12).
- RW (Read/Write) Pin: Connect to any digital pin (e.g., Pin 11).
- E (Enable) Pin: Connect to any digital pin (e.g., Pin 10).
- D4, D5, D6, D7: Connect to digital pins (e.g., Pins 5, 4, 3, 2).

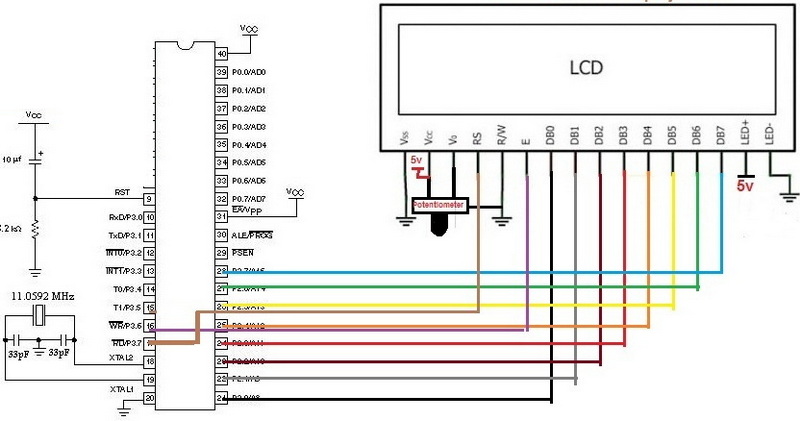

For 8051, connect the LCD data pins to Port 2 and control pins to Port 3. Ensure that the power supply is correctly connected to both the microcontroller and the LCD.
Use the LiquidCrystal library for Arduino or write custom commands for the 8051. The code should initialize the LCD, set the cursor position, and print the desired name. For Arduino, the library simplifies the process by providing functions like `lcd.print()` to display text.
Power on the circuit and verify that the name appears on the LCD screen. Adjust the contrast using the potentiometer if necessary.
- No Display: Check connections, power supply, and contrast adjustment. Ensure that the LCD is properly initialized in the code.
- Incorrect Characters: Verify the code and ensure correct ASCII values are used. Check for any typos or incorrect pin connections.
- Flickering Display: This could be due to incorrect power supply or unstable connections. Ensure that the power supply is stable and connections are secure.
You can create custom characters using the LCD's character generator RAM. This involves defining a custom character matrix and storing it in the LCD's memory. Custom characters are useful for displaying icons or symbols not available in the standard character set.
To create a scrolling effect, you can use a loop to shift the text across the screen. This involves storing the text in an array and then using a loop to print each character, shifting the cursor position after each print.
For displays with multiple lines, you can use the `lcd.setCursor()` function to move the cursor to different lines and print text accordingly.
This basic project can be extended into more complex applications:
- Digital Clocks: Display time and date using real-time clock modules.
- Weather Stations: Show temperature and humidity readings from sensors.
- Interactive Systems: Use buttons or sensors to interact with the LCD display.
Displaying a name on an LCD using a microcontroller is a straightforward project that introduces beginners to embedded systems and programming. It requires understanding the basics of microcontrollers, LCD displays, and programming concepts. With practice and experimentation, you can extend this project into more complex applications, enhancing your skills in electronics and programming.
- 4-bit Interface: Uses fewer pins (4 data pins) but requires more commands to send data.
- 8-bit Interface: Uses all 8 data pins, making data transfer faster but requiring more pins.
- Use a potentiometer connected to the Vo pin of the LCD to adjust the contrast.
- Yes, you can create custom characters using the LCD's character generator RAM.
- RS: Selects whether data or commands are sent.
- RW: Determines read or write mode.
- E: Enables data transfer.
- Send the clear display command (0x01) to the LCD.
