Displaying live data on an LCD menu using Arduino is a versatile and practical project that can be applied in various scenarios, such as monitoring sensor readings, displaying real-time information, or creating interactive interfaces. This article will guide you through the process of setting up and programming an Arduino board to display live data on an LCD display.
Arduino is a popular microcontroller platform known for its ease of use and versatility in creating interactive electronic projects. LCD displays, on the other hand, are commonly used for displaying text or images in various applications. Combining Arduino with an LCD display allows you to create dynamic and interactive interfaces that can display real-time data.
There are several types of LCD displays available, including character LCDs (e.g., 16x2 LCD) and graphical LCDs (e.g., Nokia 5110). Character LCDs are simpler and more commonly used for text-based applications, while graphical LCDs offer more flexibility for displaying images and complex graphics.

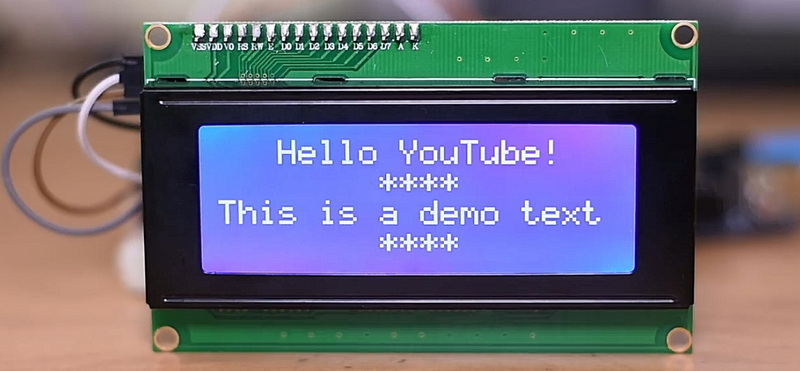

Character LCD (16x2)
- Pros: Easy to use, low cost, and widely available.
- Cons: Limited to text display.
Graphical LCD (Nokia 5110)
- Pros: Can display images and graphics, more versatile.
- Cons: Requires more complex programming, higher cost.
To connect an LCD display to an Arduino board, you need to understand the basic pins and their functions:
- Data Pins (D0-D7): These pins are used to transfer data between the Arduino and the LCD.
- RS (Register Select) Pin: Determines whether the data is a command or data to be displayed.
- EN (Enable) Pin: Used to execute commands or data transfer.
- Contrast Pin (Vo): Adjusts the display contrast.
- Power Supply Pins (+5V and GND): Provide power to the LCD.
- LED Backlight Pins: Control the backlight of the LCD.

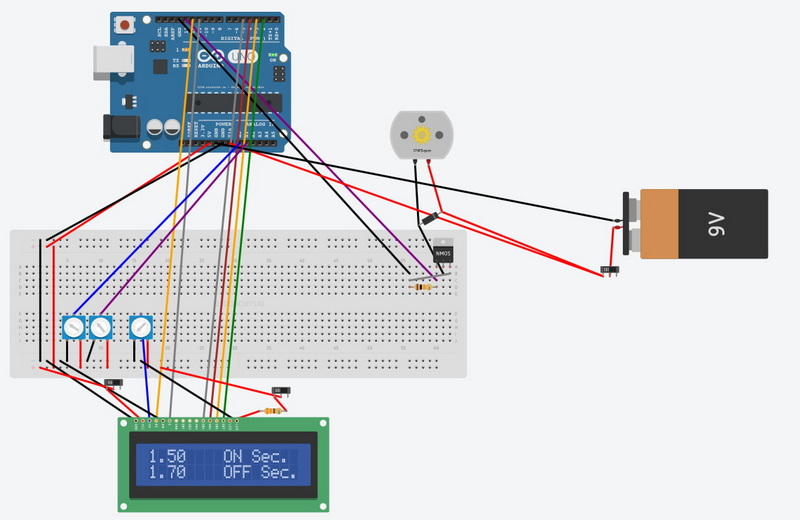

For a character LCD, you typically connect the data pins (D4-D7) to digital pins on the Arduino, along with the RS and EN pins.
1. Connect Data Pins: Connect D4-D7 to digital pins on the Arduino (e.g., pins 4-7).
2. Connect Control Pins: Connect RS to a digital pin (e.g., pin 12) and EN to another digital pin (e.g., pin 11).
3. Connect Power and Contrast: Connect +5V to VCC, GND to GND, and adjust the contrast using a potentiometer connected to Vo.
4. Backlight: Connect the LED backlight pins to +5V and GND with a resistor (e.g., 220 ohms) to limit current.
To program the Arduino, you'll use the LiquidCrystal library for character LCDs or the Adafruit_PCD8544 library for graphical LCDs like the Nokia 5110.
Displaying live data involves reading sensor inputs or other dynamic data and updating the LCD display accordingly. Common applications include:

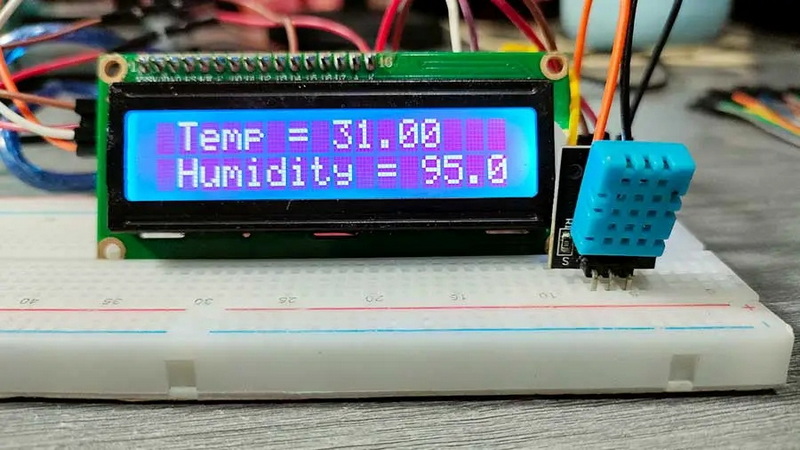

- Sensor Readings: Display temperature, humidity, or pressure readings from sensors.
- Real-Time Clock: Show current date and time using a DS3231 RTC module.
- Interactive Menus: Create menus that respond to user input from buttons or potentiometers.
To display sensor readings, you would:
1. Read Sensor Data: Use analogRead() to read data from a sensor connected to an analog pin.
2. Update LCD Display: Use lcd.print() to display the sensor data on the LCD.
To display the current date and time:
1. Connect a DS3231 RTC Module: Use I2C communication to connect the RTC module to the Arduino.
2. Read Time Data: Use a library like DS3231 to read the current time.
3. Update LCD Display: Display the time on the LCD using lcd.print().
- No Display: Check power connections, contrast adjustment, and backlight.
- Incorrect Data: Verify sensor connections and ensure correct data interpretation.
- LCD Not Updating: Ensure the loop() function is updating the display regularly.
I2C LCDs simplify connections by using only two wires for communication, making them ideal for projects with limited pin availability. This reduces clutter and makes the setup more compact.
Use buttons or potentiometers to create interactive menus that allow users to navigate through different options or settings. This can be achieved by reading input from these components and updating the LCD display accordingly.
Arduino shields and modules can expand the capabilities of your project. For example, using a Wi-Fi or Ethernet shield allows you to fetch data from the internet and display it on the LCD. Similarly, a GPS module can provide location data to be displayed.
When powering your project, consider using batteries for portability or a wall adapter for stationary setups. Ensure that the power source can supply enough current to both the Arduino and the LCD display.
Customizing your LCD display can enhance user experience. This includes adjusting the backlight brightness, using different fonts, or even creating custom characters for character LCDs. Graphical LCDs allow for more complex customization, such as displaying logos or icons.
Integrating your LCD display with other components like LEDs, buzzers, or relays can create a more interactive and engaging project. For example, using LEDs to indicate status changes or a buzzer to alert users of important updates.
Displaying live data on an LCD menu with Arduino is a powerful way to create interactive and dynamic projects. By understanding how to connect and program an LCD display, you can build a wide range of applications from simple sensor monitoring to complex interactive interfaces. Whether you're a beginner or an experienced maker, Arduino and LCD displays offer endless possibilities for innovation.
- Character LCDs (e.g., 16x2) are recommended for beginners due to their simplicity and ease of use.
- Connect data pins (D4-D7) to digital pins, RS and EN to separate digital pins, and power supply pins to +5V and GND.
- Use the LiquidCrystal library for character LCDs.
- Read sensor data or other dynamic inputs and update the LCD display within the loop() function.
- The contrast pin adjusts the visibility of characters on the LCD display.
