Displaying decimal points on an LCD can be a bit tricky, especially when dealing with floating-point numbers. However, with the right approach and understanding of how LCDs handle numerical data, you can achieve precise control over the display of decimal points. This article will guide you through the process, highlighting common issues and solutions, along with visual aids and examples to help clarify the concepts.

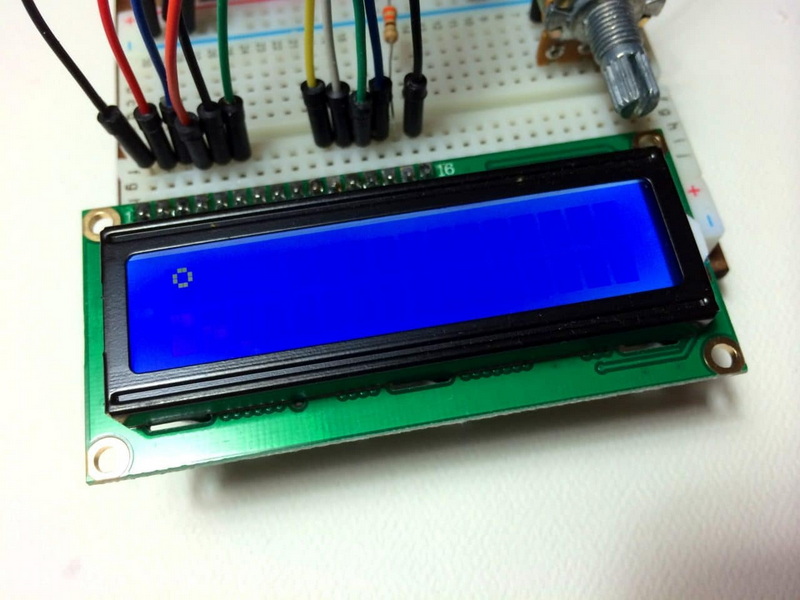

LCDs, or Liquid Crystal Displays, are widely used in electronic devices due to their low power consumption and high visibility. They are commonly found in calculators, watches, and various electronic gadgets. When it comes to displaying numerical data, LCDs can handle both integer and floating-point numbers, but displaying decimal points requires specific formatting techniques.
Floating-point numbers are used to represent real numbers in computing. They consist of a mantissa and an exponent, allowing for a wide range of values. However, when displaying these numbers on an LCD, the precision and formatting become crucial to ensure that the decimal point is correctly positioned.
One of the most common issues when displaying decimal points on LCDs is the lack of control over the number of decimal places shown. Without proper formatting, floating-point numbers might display too many decimal places or none at all. Another challenge is aligning the decimal point correctly, especially when dealing with numbers of varying lengths.
The most straightforward way to control decimal places is by using formatting options available in programming languages. For example, when printing a floating-point number, you can specify the number of decimal places to display. This ensures that the decimal point is correctly positioned and only the desired number of decimal places are shown.
Another approach is to use integer math to manually control the decimal point. This involves multiplying the number by a factor (e.g., 100) to shift the decimal point, then printing the integer part and the fractional part separately. This method provides full control over the display but requires more programming effort.
When dealing with numbers of varying lengths, aligning the decimal point can be challenging. One solution is to use dynamic positioning based on the number of digits before the decimal point. This ensures that the decimal point remains in the same position on the LCD, regardless of the number's length.
Floating-point numbers can sometimes display precision issues due to their binary representation. This means that numbers like 0.1 might not be exactly representable, leading to small discrepancies in the last digit. Understanding these limitations is crucial for managing expectations when displaying decimal points.
To handle precision issues, it's essential to round numbers appropriately before displaying them. This ensures that the displayed value is as accurate as possible, despite the internal precision limitations. Additionally, learning to expect variability in the last digit of fractional numbers can help in developing workarounds for specific problems.

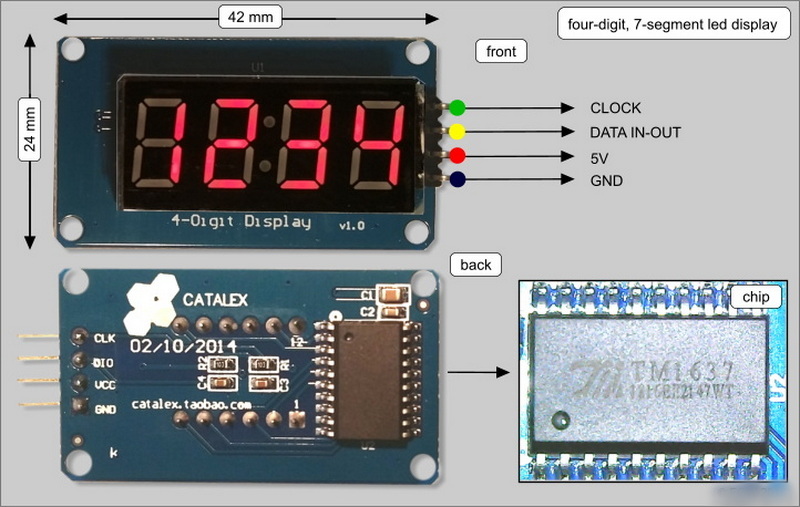

Different microcontrollers and programming environments may have unique methods for displaying decimal points. For instance, some systems might require converting floating-point numbers to ASCII arrays before printing them on an LCD. Understanding these specific requirements is vital for successful implementation.
For advanced users, understanding the nuances of floating-point arithmetic and the limitations of binary representation is crucial. This includes recognizing that some decimal numbers cannot be exactly represented in binary, leading to rounding errors. By acknowledging these limitations, developers can design more robust systems that handle decimal points effectively.
As LCD technology evolves, we can expect improvements in how decimal points are displayed. Future displays might offer more precise control over formatting and alignment, making it easier to work with floating-point numbers. Additionally, advancements in microcontroller capabilities could simplify the process of displaying decimal points by providing built-in support for floating-point operations.
When displaying decimal points, it's essential to follow best practices to ensure clarity and readability. This includes:
- Consistent Formatting: Ensure that all decimal numbers are formatted consistently throughout the display.
- Proper Alignment: Align decimal points correctly to make it easy to compare numbers.
- Precision Management: Manage precision issues by rounding numbers appropriately before display.
By following these guidelines and understanding the techniques outlined in this article, you can effectively display decimal points on LCDs and enhance the user experience of your electronic devices.
Displaying decimal points on an LCD requires careful consideration of formatting and alignment. By using floating-point formatting or integer math, you can achieve precise control over the display of decimal points. Additionally, advanced techniques like dynamic positioning can ensure that the decimal point remains aligned for numbers of varying lengths. Whether you're working with simple calculators or complex electronic devices, mastering these techniques will enhance the readability and usability of your LCD displays.
- You can display a decimal point by using floating-point numbers and specifying the number of decimal places to show.
- This happens because floating-point numbers are represented internally with a high degree of precision, which can result in many decimal places when displayed.
- Use dynamic positioning based on the number of digits before the decimal point to keep the decimal point in the same position.
- Floating-point formatting is simpler and more straightforward, while integer math provides full control but requires more programming effort.
- Yes, you can use both methods depending on your specific needs and the complexity of your application.
