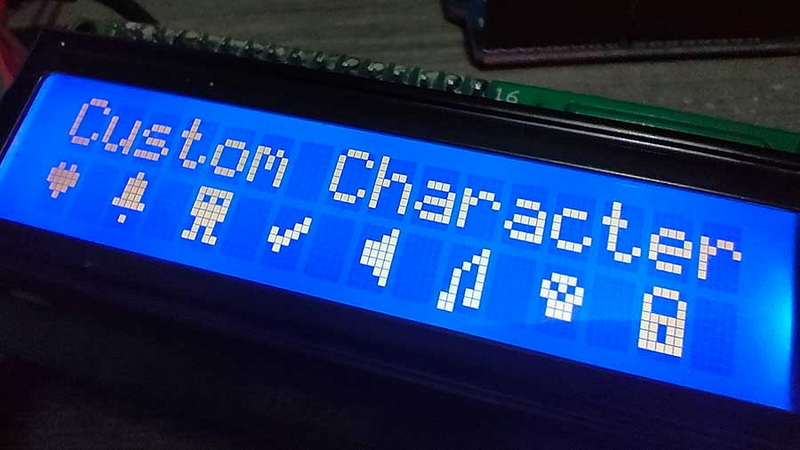

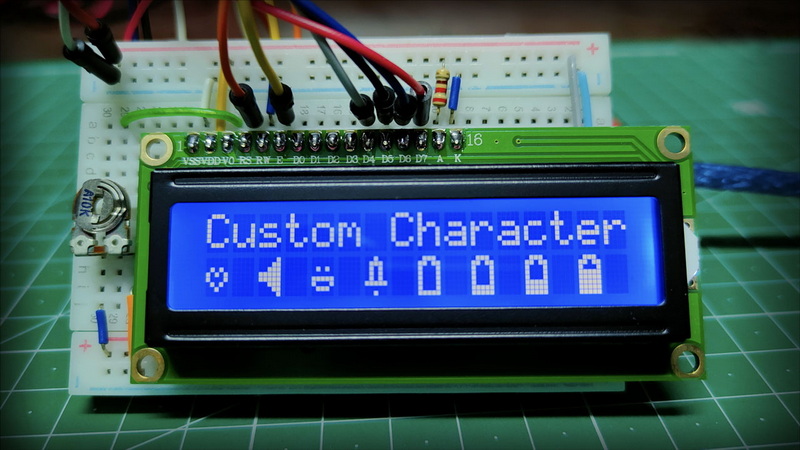

In the world of Arduino projects, displaying custom characters on a 16x2 LCD screen is a popular and versatile skill. Whether you're creating a unique user interface, designing a game, or simply want to add a personal touch to your project, mastering this technique can significantly enhance your Arduino creations. This comprehensive guide will walk you through the process of displaying custom characters on a 16x2 LCD using Arduino, complete with detailed explanations, visual aids, and practical tips.
Before diving into the creation and display of custom characters, it's essential to understand the fundamentals of how a 16x2 LCD works with Arduino.
A 16x2 LCD is a small display module capable of showing 16 characters per line on 2 lines. It's widely used in Arduino projects due to its low cost, easy integration, and sufficient display space for many applications.

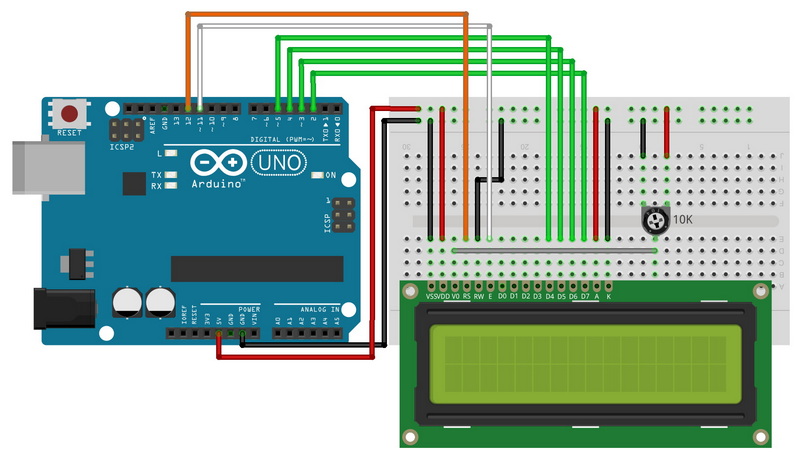

Typically, a 16x2 LCD connects to an Arduino board using several digital pins. The exact pin configuration may vary, but generally includes pins for data transfer, enable, register select, and sometimes a contrast adjustment pin.
The heart of displaying custom characters lies in creating them. Let's explore this process step by step.
Each custom character on a 16x2 LCD is composed of a 5x8 pixel grid. This means you have 40 pixels to work with when designing your character.
Several online tools and software applications can help you design custom characters for your LCD. These tools typically provide a visual grid where you can click to toggle pixels on or off, creating your desired shape.
Once you've designed your character, these tools usually generate the corresponding code that you'll use in your Arduino sketch. This code typically takes the form of a byte array, representing the on/off state of each pixel row.
With your custom characters designed, it's time to program your Arduino to display them on the LCD.
First, you'll need to include the necessary library and set up your LCD in the Arduino sketch. This involves specifying the pins used for connection and initializing the LCD.
Arduino's LiquidCrystal library provides a method called `createChar()` that allows you to store up to eight custom characters in the LCD's memory. Each character is assigned a number from 0 to 7.
To display a custom character, you use the `write()` function, specifying the number assigned to that character when you created it.
Once you've mastered the basics, you can explore more advanced techniques for using custom characters on your LCD.
By creating multiple similar characters and displaying them in sequence, you can create simple animations on your LCD.
You can combine multiple custom characters to create larger, more complex designs that span multiple character spaces on your LCD.
For more advanced projects, you might generate custom characters dynamically based on sensor data or other inputs, allowing for real-time graphical representations.
Custom characters on LCDs have numerous practical applications in Arduino projects. Here are a few examples:
Create intuitive icons for menu systems, status indicators, or mode selectors in your projects.
Develop simple games that use custom characters as game elements, such as player avatars, obstacles, or collectibles.
Use custom characters to create bar graphs, battery indicators, or other visual representations of data.
Display special symbols that aren't included in the LCD's standard character set, such as degree symbols, arrows, or mathematical notation.
When working with custom characters on LCDs, you might encounter some common issues. Here are a few troubleshooting tips:
If your character isn't displaying as expected, double-check your byte array values and ensure you're using the correct character code when calling `write()`.
Remember, you're limited to eight custom characters at a time. If you need more, you'll need to overwrite existing characters or use multiple predefined sets that you switch between.
This could be due to frequent redrawing of characters or issues with your LCD's contrast setting. Optimize your code to minimize unnecessary updates and adjust the contrast as needed.
Displaying custom characters on a 16x2 LCD using Arduino opens up a world of possibilities for creative and informative displays in your projects. From enhancing user interfaces to creating simple games or unique data visualizations, this skill allows you to take full advantage of your LCD's capabilities. With practice and experimentation, you'll be able to create increasingly complex and engaging displays that set your Arduino projects apart.
You can store up to eight custom characters in the LCD's memory at any given time. These are typically numbered from 0 to 7 when you create them using the `createChar()` function.
While each individual custom character is limited to a 5x8 pixel grid, you can create larger designs by combining multiple custom characters. This technique allows you to create more complex graphics that span multiple character spaces on your LCD.
To create animations, you can design a series of slightly different characters and display them in sequence. By rapidly switching between these characters, you can create the illusion of movement or change on your LCD screen.
Yes, you can freely mix custom characters with regular text on your LCD. This allows you to create rich, informative displays that combine standard alphanumeric characters with your custom designs.
Yes, it's possible to generate custom characters dynamically based on sensor data or other inputs. This advanced technique involves calculating the byte array for the character in real-time and updating it using the `createChar()` function. This can be useful for creating live graphical representations of data on your LCD.
