How To Connect OLED LCD Led Screen To Arduino?

Views: 222     Author: Tina     Publish Time: 2025-06-07      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
How To Connect OLED LCD Led Screen To Arduino?

Content Menu

Introduction to OLED, LCD, and LED Displays

>> OLED Displays

>> LCD Displays

>> LED Displays

Connecting an OLED Display to Arduino

>> Materials Needed

>> Wiring Overview

>> Connection Steps

>> Practical Tips for OLED

Connecting a 16×2 LCD Display to Arduino

>> Materials Needed

>> Wiring Overview

>> Connection Steps

>> Practical Tips for LCD

Connecting LED Displays to Arduino

>> 7-Segment LED Display

>> Wiring Considerations

>> Dot Matrix LED Display

>> Practical Tips for LED Displays

Programming Your Displays: Tips and Libraries

Troubleshooting Common Issues

Conclusion

Frequently Asked Questions (FAQs)

>> 1. How do I find the I2C address of my OLED display?

>> 2. Can I connect an OLED display without a breadboard?

>> 3. What voltage should I power my OLED display with?

>> 4. How do I adjust the contrast on a 16×2 LCD?

>> 5. What libraries do I need to use an OLED display with Arduino?

Arduino microcontrollers are widely used in DIY electronics and prototyping. Connecting various types of displays such as OLED, LCD, and LED screens can greatly enhance your projects by providing visual feedback and interactive interfaces. This comprehensive guide will walk you through the process of connecting and programming these displays with Arduino, covering wiring, practical tips, and troubleshooting. Whether you are a beginner or an experienced maker, this article will help you integrate displays into your projects smoothly.

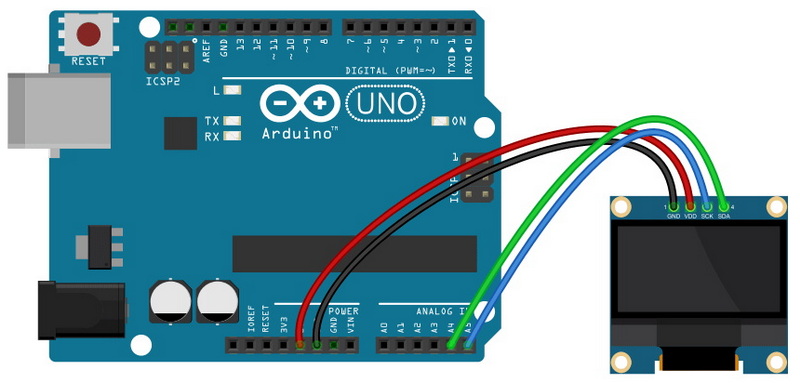

how to connect OLED LCD led screen to arduino

Introduction to OLED, LCD, and LED Displays

OLED Displays

OLED (Organic Light Emitting Diode) displays are prized for their excellent contrast, wide viewing angles, and low power consumption. Unlike LCDs, OLEDs do not require backlighting because each pixel emits its own light. This makes them especially energy efficient and ideal for battery-powered projects. The most commonly used OLED module with Arduino is the SSD1306 0.96-inch display, which offers a resolution of 128×64 pixels in monochrome.

These displays typically communicate via I2C or SPI protocols, using just a few wires, making them easy to connect. OLEDs are perfect for projects requiring sharp text and graphics in a compact form, such as wearable devices, small gadgets, or portable instruments.

LCD Displays

LCD (Liquid Crystal Display) modules are widely used for displaying text and simple graphics. The classic 16×2 character LCD is a staple in many Arduino projects. It can display two lines of 16 characters each. These LCDs usually require more pins than OLEDs because they use parallel communication, involving multiple data and control pins.

Some LCDs come with I2C adapters that reduce the number of wires needed, making them easier to connect. LCDs are well-suited for projects that require a larger display area for text or basic graphics, such as home appliances, industrial control panels, and educational kits. The contrast of an LCD can be adjusted using a potentiometer, which helps improve visibility in different lighting conditions.

LED Displays

LED displays cover a range of types, including 7-segment numeric displays and dot-matrix displays. A 7-segment display consists of seven individual LED segments arranged to form numbers and some letters. Dot-matrix displays are grids of LEDs that can show patterns or characters by lighting specific LEDs.

LED displays are excellent for numeric readouts, timers, counters, and simple animations. Their bright output makes them ideal for clocks, scoreboards, and other devices where visibility is critical. However, they usually require more complex wiring and programming, especially dot-matrix displays, which often need multiplexing or driver ICs.

Connecting an OLED Display to Arduino

Materials Needed

- Arduino board (Uno, Nano, Mega, etc.)

- SSD1306 0.96-inch OLED display (I2C interface)

- Jumper wires (female-to-male or female-to-female)

- Breadboard (optional)

Wiring Overview

OLED displays with I2C interface have only four main pins: VCC, GND, SDA (data), and SCL (clock). This makes wiring very simple compared to LCDs or LED matrices.

OLED Pin Arduino Uno Pin Description
VCC 5V Power supply
GND GND Ground
SDA A4 I2C Data line
SCL A5 I2C Clock line

For other Arduino boards, the I2C pins may differ (e.g., Arduino Mega uses pins 20 for SDA and 21 for SCL).

Connection Steps

1. Connect the OLED VCC pin to the Arduino 5V pin (or 3.3V if your OLED module requires it).

2. Connect the OLED GND pin to the Arduino GND pin.

3. Connect the OLED SDA pin to Arduino's SDA pin (A4 on Uno).

4. Connect the OLED SCL pin to Arduino's SCL pin (A5 on Uno).

If your OLED module has a reset pin, it can be connected to a digital pin or left unconnected if not required.

Practical Tips for OLED

- Always verify the voltage requirements of your OLED module to avoid damage. Some OLEDs are 3.3V only, while others tolerate 5V.

- If the display does not show anything, use an I2C scanner sketch to find the correct address. The common address is 0x3C but it can vary.

- Keep wiring connections short and secure to prevent communication errors and interference.

- Avoid powering the OLED from unstable power sources to prevent flickering.

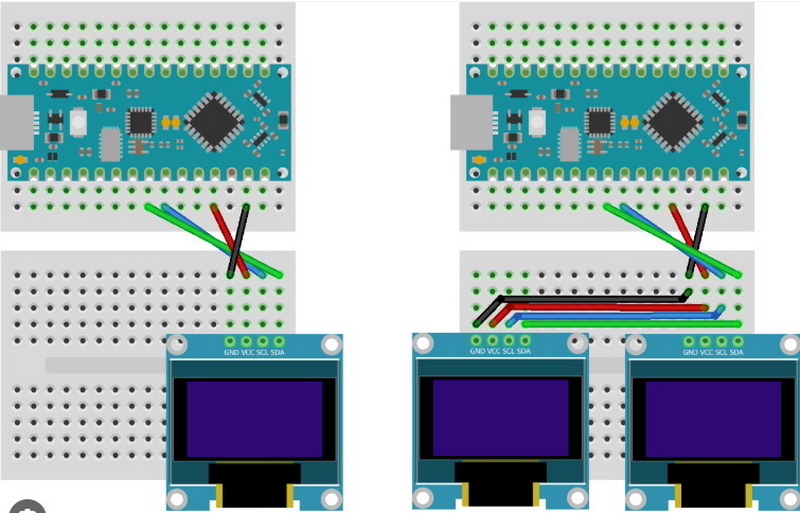

Wiring OLED Display To Arduino

Connecting a 16×2 LCD Display to Arduino

Materials Needed

- Arduino board

- 16×2 LCD module (HD44780 controller)

- 10k potentiometer (for contrast adjustment)

- Jumper wires

- Breadboard

Wiring Overview

A standard 16×2 LCD uses multiple pins for data and control:

LCD Pin Function Arduino Pin
1 GND GND
2 VCC (5V) 5V
3 Contrast (V0) Middle pin of potentiometer (ends connected to 5V and GND)
4 RS (Register Select) Digital Pin 12
5 RW (Read/Write) GND (write mode)
6 Enable (E) Digital Pin 11
11-14 Data Pins D4-D7 Digital Pins 5,4,3,2 respectively

Pins 7-10 are usually not connected for 4-bit mode.

Connection Steps

1. Connect LCD pin 1 to GND and pin 2 to 5V.

2. Connect pin 3 to the middle pin of the 10k potentiometer; connect the other two potentiometer pins to 5V and GND. This controls the display contrast.

3. Connect RS to Arduino pin 12, RW to GND, and Enable to pin 11.

4. Connect data pins D4 to D7 on the LCD to Arduino pins 5, 4, 3, and 2 respectively.

Practical Tips for LCD

- Adjust the potentiometer slowly while the display is powered on to achieve the best contrast.

- Double-check all wiring connections to prevent random characters or no display.

- Use a breadboard during prototyping for stable and neat connections.

- If you want to reduce wiring, consider using an I2C adapter for your LCD.

Connecting LED Displays to Arduino

7-Segment LED Display

7-segment displays are widely used for displaying numbers. Each of the seven segments (labeled a to g) and the decimal point (DP) is controlled by an Arduino pin through a current-limiting resistor to protect the LEDs.

Segment Arduino Pin Notes
a Pin 6 Through resistor
b Pin 5 Through resistor
c Pin 2 Through resistor
d Pin 3 Through resistor
e Pin 4 Through resistor
f Pin 7 Through resistor
g Pin 8 Through resistor
DP Pin 9 Decimal point

Wiring Considerations

- Identify if your 7-segment display is common anode or common cathode.

- For common anode, connect the common pin to 5V; for common cathode, connect it to GND.

- Use resistors (typically 220Ω to 1kΩ) for each segment to limit current and prevent damage.

Dot Matrix LED Display

Dot matrix displays consist of a grid of LEDs arranged in rows and columns. Controlling them requires multiplexing, where rows and columns are scanned rapidly to create the illusion of a stable image. This usually involves more complex wiring and often requires shift registers or driver ICs to reduce pin usage.

Practical Tips for LED Displays

- Always use current-limiting resistors to protect LEDs from burning out.

- Verify the type of 7-segment display before wiring to avoid incorrect connections.

- For dot matrix displays, consider using dedicated driver ICs like MAX7219 to simplify control and reduce wiring complexity.

- Test each segment individually before integrating into your project.

Programming Your Displays: Tips and Libraries

- OLED Displays: Use libraries such as Adafruit_SSD1306 and Adafruit_GFX. These libraries provide functions for drawing text, shapes, and images.

- LCD Displays: Use the LiquidCrystal library for parallel LCDs or LiquidCrystal_I2C for I2C LCDs. These libraries simplify sending text and controlling the display.

- LED Displays: For 7-segment displays, libraries like SevSeg make it easier to display numbers without manually controlling each segment. For dot matrix displays, libraries such as LedControl or MD_MAX72XX are helpful.

Always start with example sketches provided by these libraries to verify your hardware connections before writing custom code.

Troubleshooting Common Issues

- OLED Display Not Showing Anything:

Check all wiring connections carefully. Use an I2C scanner sketch to verify the device address. Ensure the OLED is powered with the correct voltage.

- LCD Shows Random Characters or No Display:

Adjust the contrast potentiometer slowly. Confirm that all data and control pins are correctly wired. Verify that the LCD is properly initialized in your code.

- LED Segments Not Lighting:

Check resistor values and wiring. Confirm the common anode or cathode configuration. Test each segment individually with simple code.

- General Tips:

Use a breadboard or stable jumper wires to avoid loose connections. Make sure your Arduino board is functioning correctly and powered properly.

Conclusion

Connecting OLED, LCD, and LED displays to Arduino is an essential skill for creating interactive and visually informative projects. OLED displays offer crisp, high-contrast graphics with minimal wiring, making them ideal for compact and low-power applications. LCDs provide reliable text display with adjustable contrast and are widely used in various devices. LED displays, including 7-segment and dot matrix types, are perfect for numeric and simple graphical outputs, though they may require more complex wiring and programming.

By carefully following wiring diagrams, using the appropriate libraries, and testing with example codes, you can successfully integrate these displays into your Arduino projects. With these skills, your projects will gain a professional and user-friendly interface, enhancing both functionality and appeal.

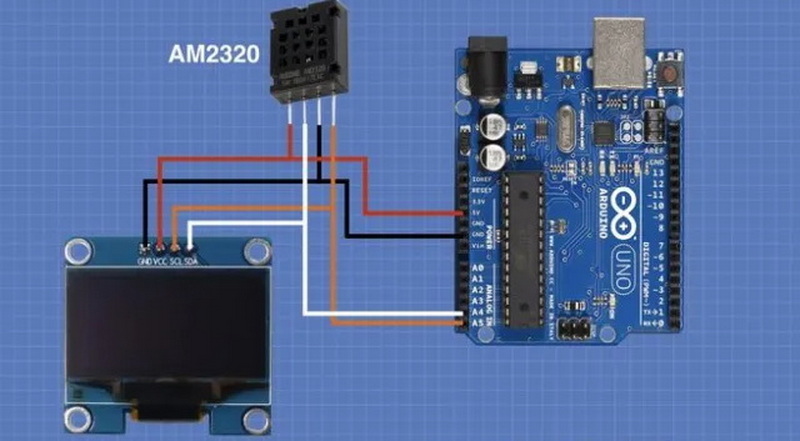

OLED LCD Arduino Hookup Diagram

Frequently Asked Questions (FAQs)

1. How do I find the I2C address of my OLED display?

You can upload an I2C scanner sketch to your Arduino, which scans all possible addresses and reports the one your OLED uses. The most common address is 0x3C, but it can vary depending on the module.

2. Can I connect an OLED display without a breadboard?

Yes, by using female-to-female jumper wires, you can connect the OLED module pins directly to the Arduino headers. This is common for compact setups or when a breadboard is not available.

3. What voltage should I power my OLED display with?

Check your OLED module's specifications. Many OLEDs work with either 3.3V or 5V, but some are strictly 3.3V. Supplying the wrong voltage can damage the display.

4. How do I adjust the contrast on a 16×2 LCD?

A 10k potentiometer connected to the LCD's contrast pin (V0) allows you to adjust the display contrast. Turning the potentiometer changes the voltage on this pin, improving visibility.

5. What libraries do I need to use an OLED display with Arduino?

Install the Adafruit_SSD1306 and Adafruit_GFX libraries via the Arduino Library Manager. These libraries provide the necessary functions to communicate with and control the OLED display easily.
