Introduction

Connecting an LCD display to a microcontroller is a fundamental skill for any electronics enthusiast or embedded systems developer. This guide will walk you through the process of interfacing various types of LCD displays with popular microcontrollers, providing you with the knowledge and confidence to incorporate visual outputs into your projects.

Understanding LCD Displays

LCD (Liquid Crystal Display) technology has revolutionized the way we interact with electronic devices. These displays offer a low-power, compact solution for presenting information visually. Before diving into the connection process, it's essential to understand the different types of LCD displays commonly used with microcontrollers.

Character LCDs

Character LCDs are the most straightforward type to interface with microcontrollers. They typically come in configurations like 16x2 (16 characters across, 2 rows) or 20x4. These displays are perfect for showing simple text and numerical data.

Graphical LCDs

Graphical LCDs offer more flexibility, allowing you to display custom graphics and icons. They come in various resolutions, with 128x64 pixels being a popular choice for hobbyist projects.

TFT LCD Displays

TFT (Thin-Film Transistor) LCDs provide full-color displays with high resolution. While more complex to interface, they offer superior visual quality and are often used in advanced projects requiring rich graphical interfaces.

Choosing the Right Microcontroller

The choice of microcontroller depends on your project requirements, including processing power, available I/O pins, and supported communication protocols. Some popular options include:

1. Arduino boards (e.g., Arduino Uno, Mega)

2. STM32 series

3. PIC microcontrollers

4. ESP32/ESP8266 for wireless capabilities

For this guide, we'll focus on connecting LCDs to Arduino and STM32 microcontrollers, as they are widely used and well-documented.

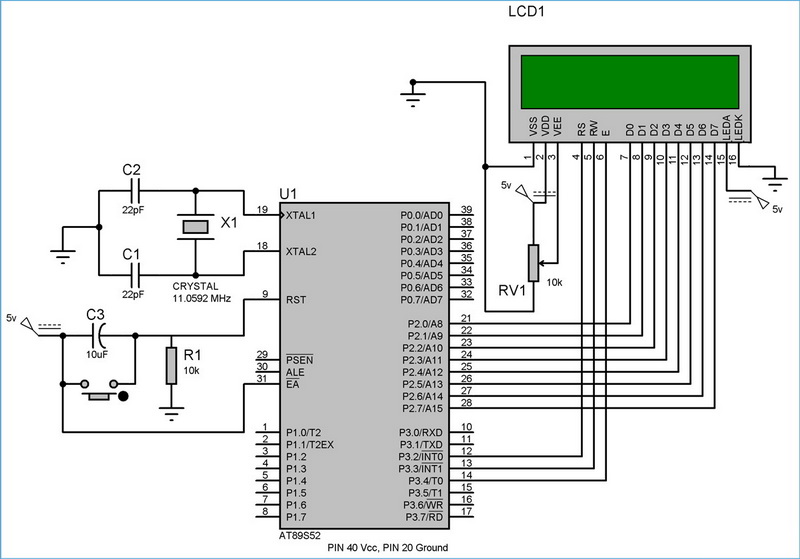

Connecting a Character LCD to Arduino

Let's start with a common scenario: connecting a 16x2 character LCD to an Arduino Uno.

Hardware Requirements

- Arduino Uno board

- 16x2 Character LCD (compatible with HD44780 driver)

- Breadboard

- Jumper wires

- 10k potentiometer

- 220-ohm resistor

Step-by-Step Connection Process

1. Connect the LCD's VSS pin to Arduino's GND

2. Connect the LCD's VDD pin to Arduino's 5V

3. Connect the LCD's V0 pin to the middle pin of the potentiometer

4. Connect the LCD's RS pin to Arduino's digital pin 12

5. Connect the LCD's RW pin to Arduino's GND

6. Connect the LCD's E pin to Arduino's digital pin 11

7. Connect the LCD's D4 pin to Arduino's digital pin 5

8. Connect the LCD's D5 pin to Arduino's digital pin 4

9. Connect the LCD's D6 pin to Arduino's digital pin 3

10. Connect the LCD's D7 pin to Arduino's digital pin 2

11. Connect the LCD's A pin (Anode) to Arduino's 5V through a 220-ohm resistor

12. Connect the LCD's K pin (Cathode) to Arduino's GND

Programming the Arduino

Once the hardware connections are made, you'll need to program the Arduino to communicate with the LCD. The LiquidCrystal library makes this process straightforward.

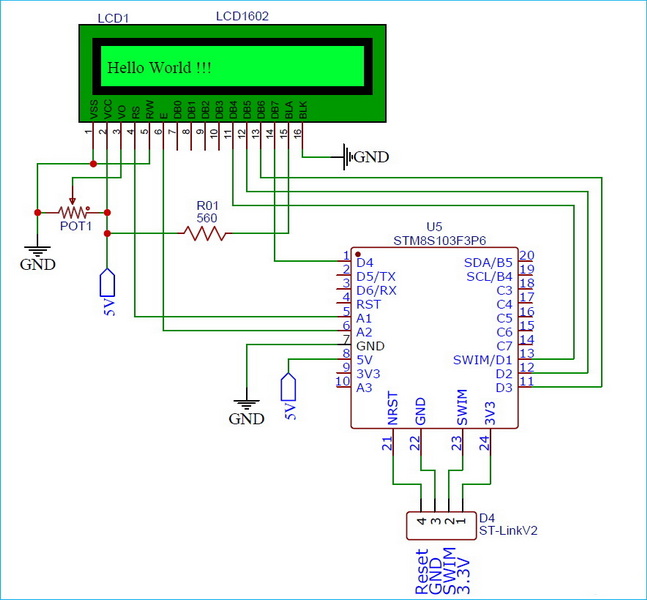

Connecting a Graphical LCD to STM32

For more advanced projects, you might want to use a graphical LCD with an STM32 microcontroller. Let's look at how to connect a 128x64 graphical LCD to an STM32F103C8T6 board (Blue Pill).

Hardware Requirements

- STM32F103C8T6 board

- 128x64 Graphical LCD (e.g., ST7920 controller)

- Breadboard

- Jumper wires

- 10k potentiometer

Step-by-Step Connection Process

1. Connect the LCD's VSS pin to STM32's GND

2. Connect the LCD's VDD pin to STM32's 3.3V

3. Connect the LCD's V0 pin to the middle pin of the potentiometer

4. Connect the LCD's RS pin to STM32's PA4

5. Connect the LCD's RW pin to STM32's PA5

6. Connect the LCD's E pin to STM32's PA6

7. Connect the LCD's PSB pin to STM32's GND (for serial mode)

8. Connect the LCD's RST pin to STM32's PA7

9. Connect the LCD's BLA pin to STM32's 3.3V

10. Connect the LCD's BLK pin to STM32's GND

Programming the STM32

Programming the STM32 to drive a graphical LCD requires more complex code than a character LCD. You'll need to use a graphics library compatible with your chosen LCD controller.

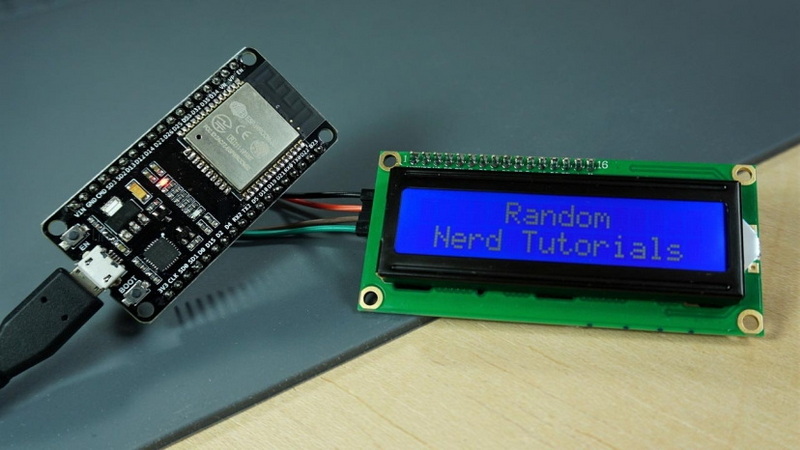

Interfacing TFT LCD with ESP32

For projects requiring wireless connectivity and a full-color display, combining an ESP32 with a TFT LCD is an excellent choice. Let's explore how to connect a 2.4" TFT LCD with ILI9341 controller to an ESP32 development board.

Hardware Requirements

- ESP32 development board

- 2.4" TFT LCD with ILI9341 controller

- Breadboard

- Jumper wires

Step-by-Step Connection Process

1. Connect the LCD's VCC pin to ESP32's 3.3V

2. Connect the LCD's GND pin to ESP32's GND

3. Connect the LCD's CS pin to ESP32's GPIO 5

4. Connect the LCD's RESET pin to ESP32's GPIO 4

5. Connect the LCD's DC pin to ESP32's GPIO 2

6. Connect the LCD's SDI (MOSI) pin to ESP32's GPIO 23

7. Connect the LCD's SCK pin to ESP32's GPIO 18

8. Connect the LCD's LED pin to ESP32's 3.3V

9. Connect the LCD's SDO (MISO) pin to ESP32's GPIO 19 (if touch functionality is required)

Programming the ESP32

The ESP32 can be programmed using the Arduino IDE with the appropriate board package installed. You'll need to use a library compatible with the ILI9341 controller, such as the TFT_eSPI library.

Best Practices for LCD Connections

To ensure reliable operation of your LCD display, consider these best practices:

1. Use appropriate voltage levels: Most LCDs operate at 5V, but some microcontrollers use 3.3V logic. Ensure you use level shifters if necessary.

2. Implement proper contrast control: Adjust the contrast using a potentiometer or PWM signal for optimal visibility.

3. Consider using I2C or SPI interfaces: For projects with limited I/O pins, these serial interfaces can reduce the number of connections required.

4. Add decoupling capacitors: Place a 100nF capacitor close to the LCD's power pins to reduce noise and improve stability.

5. Use a backlight resistor: If your LCD doesn't have a built-in current-limiting resistor for the backlight, add one to protect the LEDs.

Troubleshooting Common Issues

When working with LCD displays, you may encounter some common issues. Here are some troubleshooting tips:

1. No display or faint display: Check contrast adjustment and power connections.

2. Garbled characters: Verify data pin connections and timing in your code.

3. Display not updating: Ensure the enable pin is properly toggled in your code.

4. Backlight not working: Check backlight connections and current-limiting resistor.

5. Incorrect characters displayed: Confirm you're using the correct character set in your code.

Advanced LCD Techniques

Once you've mastered the basics of connecting LCDs to microcontrollers, you can explore more advanced techniques:

Custom Character Creation

Many character LCDs allow you to create custom characters. This feature is useful for displaying unique symbols or simple graphics.

Animations and Transitions

By carefully timing your display updates, you can create simple animations or smooth transitions between screens.

Touch Integration

Some LCD modules come with built-in touch functionality. Integrating touch capabilities can greatly enhance user interaction with your projects.

Multiple Display Setups

For complex projects, you might need to use multiple displays. This could involve connecting several small LCDs or combining different types of displays.

Real-World Applications

LCD displays connected to microcontrollers find applications in various fields:

1. Home automation systems

2. Industrial control panels

3. Educational kits and projects

4. Wearable technology

5. IoT devices and smart appliances

Future Trends in Display Technology

As technology advances, new display options are becoming available for microcontroller projects:

1. OLED displays: Offering higher contrast and lower power consumption

2. E-paper displays: Ideal for low-power applications with infrequent updates

3. Flexible displays: Enabling new form factors and wearable applications

4. Holographic displays: Emerging technology for 3D visualization

Stay informed about these developments to choose the best display technology for your future projects.

Conclusion

Connecting an LCD display to a microcontroller opens up a world of possibilities for creating interactive and informative projects. From simple character displays to advanced graphical interfaces, the ability to present visual information enhances the functionality and user experience of your embedded systems.

By following the guidelines and best practices outlined in this guide, you'll be well-equipped to incorporate LCD displays into your microcontroller projects. Remember to choose the appropriate display type and microcontroller for your specific needs, and don't hesitate to experiment with different configurations and advanced techniques.

As display technology continues to evolve, the integration of visual outputs in microcontroller-based systems will become even more powerful and versatile. Keep exploring new display options and pushing the boundaries of what's possible with your projects.

Frequently Asked Questions

Here are some common questions related to connecting LCD displays to microcontrollers:

1. What's the difference between parallel and serial LCD interfaces?

Parallel interfaces use multiple data pins to transmit information simultaneously, while serial interfaces (like I2C or SPI) use fewer pins but transmit data sequentially. Parallel interfaces are typically faster but require more connections, while serial interfaces are slower but use fewer pins.

2. Can I use a 5V LCD with a 3.3V microcontroller?

Yes, but you'll need to use level shifters to convert the 3.3V signals from the microcontroller to 5V for the LCD. Alternatively, some LCDs are designed to work with both 3.3V and 5V logic levels.

3. How do I adjust the contrast on my LCD display?

Most LCDs have a contrast adjustment pin (usually labeled V0 or VEE). You can connect this pin to a potentiometer wired between VCC and GND to allow manual contrast adjustment. Some microcontrollers can also adjust contrast using PWM output.

4. What's the advantage of using a graphical LCD over a character LCD?

Graphical LCDs offer more flexibility in displaying information. They allow you to show custom graphics, charts, and icons, which is not possible with character LCDs. However, they are generally more complex to program and may require more processing power.

5. How can I reduce the number of pins used to connect an LCD to my microcontroller?

To reduce pin usage, you can:

- Use an I2C or SPI LCD module

- Implement a shift register to control the LCD with fewer microcontroller pins

- Choose an LCD with a built-in controller that supports 4-bit mode instead of 8-bit mode

- Use an LCD driver IC that communicates with the microcontroller via a serial interface
