Arduino projects often involve displaying information and accepting user input. Two popular components for these tasks are LCD displays and keypads. This comprehensive guide will walk you through the process of connecting and using an LCD display and keypad with your Arduino board, providing you with the knowledge to create interactive and informative projects.
LCD (Liquid Crystal Display) screens are versatile output devices that can display text, numbers, and simple graphics. The most common type used in Arduino projects is the 16x2 character LCD, which can show 16 characters across two lines. These displays are popular due to their low power consumption, affordability, and ease of use.
LCDs work by manipulating liquid crystals with electric current to block or allow light passage, creating visible characters or graphics. They come in various sizes and configurations, but the 16x2 and 20x4 are the most widely used in Arduino projects.
Keypads provide a convenient way to input data into your Arduino projects. They typically come in 3x4 or 4x4 matrix configurations, with buttons arranged in rows and columns. This matrix arrangement allows for efficient use of Arduino pins, as each button doesn't require its own dedicated pin.
Keypads are essential for projects that require user input, such as security systems, calculators, or menu-driven interfaces. They offer a tactile and familiar input method that's more compact than individual buttons.

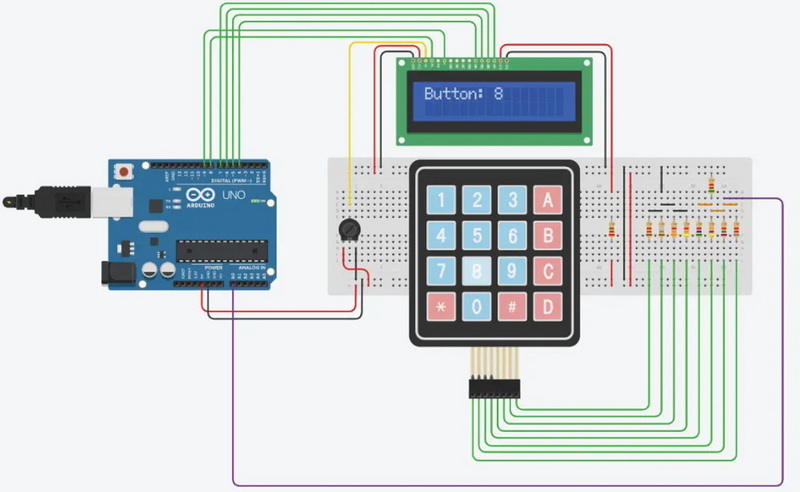

To connect a standard 16x2 LCD display to your Arduino:
1. Connect VSS (GND) to Arduino GND
2. Connect VDD (5V) to Arduino 5V
3. Connect V0 to the middle pin of a 10k potentiometer (for contrast adjustment)
4. Connect RS to Arduino digital pin 12
5. Connect RW to Arduino GND
6. Connect E to Arduino digital pin 11
7. Connect D4, D5, D6, and D7 to Arduino digital pins 5, 4, 3, and 2 respectively
8. Connect A (LED+) to Arduino 5V through a 220-ohm resistor
9. Connect K (LED-) to Arduino GND
The potentiometer connected to V0 allows you to adjust the display contrast. This is crucial for achieving optimal visibility in different lighting conditions.

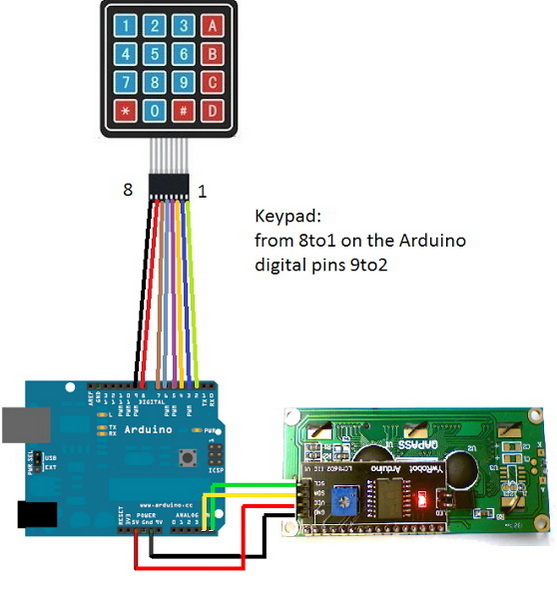

For a 4x4 matrix keypad:
1. Connect row pins to Arduino digital pins 9, 8, 7, and 6
2. Connect column pins to Arduino digital pins 5, 4, 3, and 2
It's important to note that the specific pin connections can be adjusted based on your project requirements and available pins on your Arduino board. Just remember to update your code accordingly if you change the pin assignments.
To interface with the LCD and keypad, you'll need to install two libraries:
1. LiquidCrystal: For controlling the LCD display (usually pre-installed with Arduino IDE)
2. Keypad: For reading input from the matrix keypad
To install the Keypad library:
1. Open the Arduino IDE
2. Go to Sketch > Include Library > Manage Libraries
3. Search for "Keypad"
4. Install the library by Mark Stanley and Alexander Brevig
These libraries simplify the process of interacting with the LCD and keypad, allowing you to focus on your project's core functionality rather than low-level communication details.
One of the exciting features of LCD displays is the ability to create custom characters. This allows you to display unique symbols, icons, or small graphics that aren't part of the standard character set.
To create a custom character:
1. Design your character on a 5x8 pixel grid
2. Convert the design to a byte array
3. Use the `lcd.createChar()` function to store the character in the LCD's memory
4. Display the character using `lcd.write()`
Custom characters can greatly enhance the user interface of your projects, allowing for more intuitive and visually appealing displays.
Combining the keypad and LCD, you can create a simple yet effective password input system. This can be the foundation for various security-related projects.
Key features of a password input system:
- Masked input (displaying asterisks instead of actual characters)
- Feedback for correct/incorrect passwords
- Lockout after multiple failed attempts
This system can be expanded to include features like changing passwords, multiple user accounts, or integration with other security measures like RFID or fingerprint sensors.
Implementing a menu system using the keypad for navigation and the LCD for display can significantly enhance the user experience of your Arduino projects.
A basic menu system might include:
- Main menu with multiple options
- Submenus for detailed settings
- Use of special keypad buttons (e.g., * and #) for navigation
- Visual indicators for current selection
Menu systems are particularly useful for projects with multiple functions or settings, allowing users to interact with your device in a structured and intuitive manner.
If your LCD isn't displaying correctly:
1. Check all connections: Ensure all wires are securely connected to the correct pins.
2. Adjust the contrast: Turn the potentiometer to find the optimal contrast setting.
3. Verify the LCD library: Make sure the LiquidCrystal library is correctly installed and imported in your sketch.
4. Confirm pin numbers: Double-check that the pin numbers in your code match your physical connections.
5. Test with a simple sketch: Use a basic "Hello, World!" program to isolate potential issues.
If the keypad isn't responding:
1. Double-check all wiring: Ensure each row and column is connected to the correct Arduino pin.
2. Verify the Keypad library: Confirm that the library is installed and properly imported in your sketch.
3. Check pin configurations: Make sure the pin numbers in your code match your physical connections.
4. Test individual buttons: Use a multimeter to check if each button is functioning correctly.
5. Debounce issues: Implement software debouncing if you're experiencing multiple triggers from a single press.
1. Digital Lock: Create a security system using the keypad for code entry and the LCD for feedback. This project can be extended to control an electronic lock or servo motor for physical access control.
2. Calculator: Build a simple calculator with the keypad for input and the LCD for displaying results. You can start with basic arithmetic operations and gradually add more complex functions like square roots or trigonometric calculations.
3. Game Console: Develop a simple game like "Guess the Number" using the keypad and LCD. As you become more comfortable with the setup, you can create more complex games like memory puzzles or reaction time tests.
4. Temperature Display: Use a temperature sensor with the LCD to create a digital thermometer. This project can be expanded to include humidity sensing, data logging, or even weather prediction based on trend analysis.
5. Timer/Stopwatch: Implement a timer or stopwatch with the LCD for display and keypad for control. This can be useful for various applications, from kitchen timers to workout trackers.
As you become more comfortable with using LCD displays and keypads, consider integrating other components to create more complex and interactive projects:
- Add sensors (e.g., temperature, humidity, light) to display environmental data
- Incorporate actuators (e.g., motors, servos) for physical control based on keypad input
- Use EEPROM to store settings or data that persist even when power is removed
- Implement wireless communication (e.g., Bluetooth, Wi-Fi) for remote control or data logging
Remember that the combination of an LCD display and keypad provides a powerful interface for user interaction. This setup can serve as the foundation for a wide range of projects, from home automation controls to scientific instruments.
Connecting an LCD display and keypad to your Arduino opens up a world of possibilities for interactive projects. With the ability to display information and accept user input, you can create everything from simple calculators to complex control systems. The skills you develop working with these components will serve as a strong foundation for more advanced Arduino projects.
Remember to double-check your wiring, use the appropriate libraries, and experiment with different configurations to get the most out of these versatile components. Don't be afraid to push the boundaries of what you can create – the combination of an LCD and keypad provides an excellent platform for learning and innovation in the world of Arduino programming and electronics.
As you continue to explore and develop your skills, you'll find that the principles you've learned here can be applied to a wide range of other components and project types. The journey of learning and creating with Arduino is an exciting one, full of possibilities and potential for innovation.
To adjust the contrast of your LCD display, use a potentiometer connected to the V0 pin of the LCD. Turn the potentiometer until the text on the LCD is clearly visible. If you're using the display in different lighting conditions, you might need to readjust the contrast accordingly.
Yes, you can use different size LCD displays, such as 20x4 or 8x2. You'll need to adjust your code to account for the different number of rows and columns. When initializing the LCD in your code, make sure to specify the correct dimensions. For example, for a 20x4 display, you would use `lcd.begin(20, 4)` instead of `lcd.begin(16, 2)`.
The Keypad library has built-in functions to handle multiple key presses. You can use the `getKeys()` function to read multiple keys simultaneously. This is particularly useful for implementing key combinations or for projects that require more complex input methods.

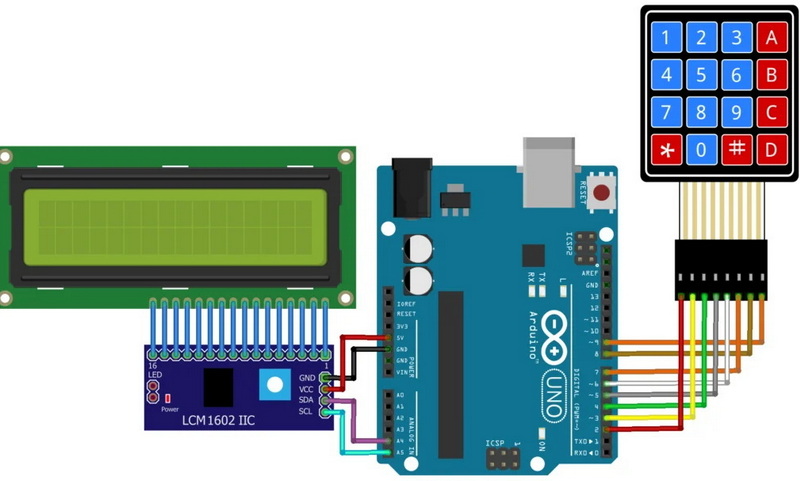

Yes, I2C LCD displays are popular alternatives that require fewer pins. You'll need to use a different library (like LiquidCrystal_I2C) and adjust your wiring accordingly. I2C displays typically only require four connections: VCC, GND, SDA, and SCL. This can significantly simplify your wiring, especially in projects with many components.
For most small projects, you can power both the LCD and keypad directly from the Arduino's 5V pin. However, for larger displays or more complex setups, you may need an external power supply. If you notice unstable behavior or dimming of the LCD, consider using a separate power source to ensure all components receive adequate power.
