Views: 222 Author: Tina Publish Time: 2024-12-02 Origin: Site
Content Menu
● Understanding the LCD Module
>> Connections
● Displaying Different Messages
● Troubleshooting Common Issues
● Advanced Features: Using Multiple LCDs
>> Setting Up I²C for Your LCD
● FAQ
>> 2. How do I adjust the contrast of my LCD?
>> 3. Can I use different types of LCDs with Arduino?
>> 4. What if my display shows only blocks?
>> 5. Is it possible to display graphics on an LCD?
Connecting an LCD module to an Arduino is a fundamental skill for anyone interested in electronics and programming. This guide will walk you through the steps needed to connect a standard 16x2 LCD to an Arduino, including wiring, coding, and troubleshooting tips. By the end of this tutorial, you will be able to display text on your LCD screen, enhancing your projects with visual output.
Before we begin, gather the following materials:
- Arduino board (e.g., Arduino Uno, Nano)
- 16x2 LCD module
- Breadboard
- Potentiometer (10kΩ for contrast adjustment)
- Jumper wires
- 220Ω resistor (for backlight)
- Arduino IDE installed on your computer
The 16x2 LCD module is a popular choice for displaying alphanumeric characters. It has:
- 16 columns and 2 rows
- A built-in controller compatible with the Hitachi HD44780 driver
- 16 pins for connections
Here's a brief overview of the pin configuration for a standard 16x2 LCD:
| Pin Number | Pin Name | Function |
|---|---|---|
| 1 | VSS | Ground connection |
| 2 | VDD | Power supply (5V) |
| 3 | VO | Contrast adjustment (connect to potentiometer) |
| 4 | RS | Register select (data/command) |
| 5 | RW | Read/Write select (usually connected to GND) |
| 6 | E | Enable pin (triggers data read/write) |
| 7 | D0 | Data pin 0 |
| 8 | D1 | Data pin 1 |
| 9 | D2 | Data pin 2 |
| 10 | D3 | Data pin 3 |
| 11 | D4 | Data pin 4 |
| 12 | D5 | Data pin 5 |
| 13 | D6 | Data pin 6 |
| 14 | D7 | Data pin 7 |
| 15 | LED+ | Backlight positive terminal |
| 16 | LED- | Backlight negative terminal |

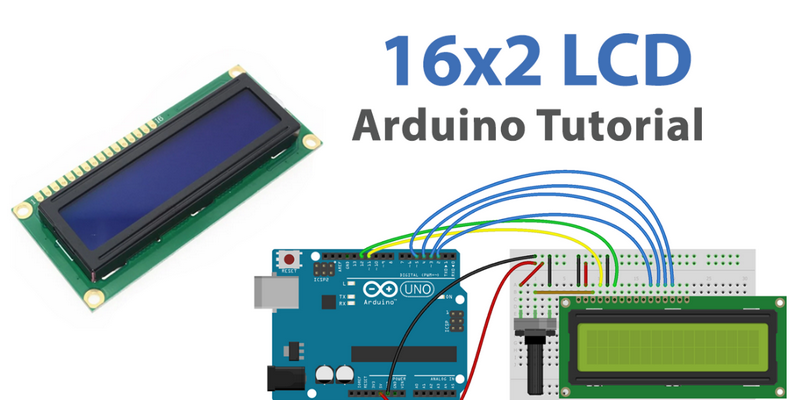

Now that you understand the components, let's connect the LCD to the Arduino. Below is the wiring diagram and instructions:
1. Connect VSS (Pin 1) to GND on Arduino.
2. Connect VDD (Pin 2) to +5V on Arduino.
3. Connect VO (Pin 3) to the middle pin of the potentiometer.
4. Connect one side of the potentiometer to +5V and the other side to GND.
5. Connect RS (Pin 4) to digital pin 12 on Arduino.
6. Connect RW (Pin 5) to GND.
7. Connect E (Pin 6) to digital pin 11 on Arduino.
8. Connect D4 (Pin 11) to digital pin 5 on Arduino.
9. Connect D5 (Pin 12) to digital pin 4 on Arduino.
10. Connect D6 (Pin 13) to digital pin 3 on Arduino.
11. Connect D7 (Pin 14) to digital pin 2 on Arduino.
12. Connect LED+ (Pin 15) through a 220Ω resistor to +5V.
13. Connect LED- (Pin 16) to GND.
Once your wiring is complete, it's time to program your Arduino using the LiquidCrystal library.
1. Open your Arduino IDE.
2. Copy and paste the code above into a new sketch.
3. Select your board type and COM port from the Tools menu.
4. Click on Upload.
After uploading your code, adjust the potentiometer connected to VO until you can see clear text on your LCD.
You can modify your code to display different messages or even scroll text across the screen.
The LiquidCrystal library also allows you to create custom characters that can be displayed on your LCD. Each character is defined by an array of bytes that represent its pixel configuration.
If you encounter issues while connecting or programming your LCD, consider these common troubleshooting steps:
- Ensure all connections are secure and correctly placed according to the wiring diagram.
- If you see blocks or no characters displayed:
- Check if the contrast is set correctly using the potentiometer.
- Verify that RW is connected to GND for write mode.
- Ensure that you are using correct pins in your code.
If you're working on more complex projects that require multiple displays or additional functionality like buttons or sensors alongside an LCD module, consider using I²C communication. This method reduces wiring complexity by allowing multiple devices to communicate over two wires.
To use I²C with an LCD module:
1. Use an I²C adapter board for your LCD.
2. Install the `Wire` library if it's not already included in your IDE.
Connecting an LCD module to an Arduino opens up many possibilities for displaying information in your projects. With this guide, you should feel confident in wiring up your display and writing basic code to interact with it. By exploring features like scrolling text and custom characters or even using I²C communication for multiple displays, you can enhance your projects significantly.
An LCD module is a display device that uses liquid crystals to produce visible images or text by controlling light passage through them.
You can adjust contrast by using a potentiometer connected to the VO pin of the LCD.
Yes, various types of LCDs can be used with Arduino as long as they are compatible with libraries like LiquidCrystal.
If your display shows only blocks, ensure that it is powered correctly and that all connections are secure.
Standard character-based LCDs can only display text; however, graphical LCDs can display images and more complex graphics.
