Connecting an ebike LCD display to your ebike controller is a crucial step in setting up or upgrading your electric bike system. The LCD display acts as the central interface, providing vital information such as speed, battery status, and pedal assist levels, while also allowing you to control various settings. This comprehensive guide will walk you through the entire process of connecting an LCD display to an ebike controller, including wiring, compatibility considerations, troubleshooting, and tips for a successful installation.

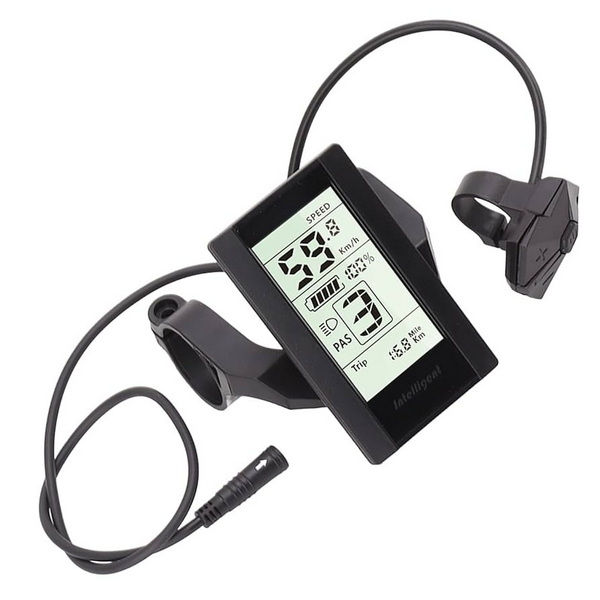

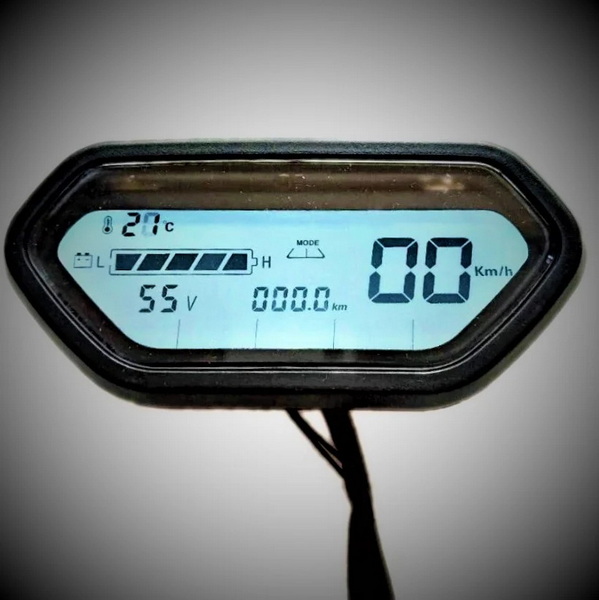

The ebike LCD display is much more than a simple screen. It serves as the communication hub between you and your electric bike's system. The display receives data from the controller and the battery, showing real-time information such as speed, battery level, distance traveled, and pedal assist mode. It also sends commands back to the controller, such as changing assist levels or turning the system on and off.
The ebike controller acts as the brain of the system. It processes inputs from the display, throttle, and sensors, then regulates power from the battery to the motor accordingly. For the system to operate smoothly, the display and controller must be properly connected and compatible, both physically and in terms of communication protocols.
Understanding these two components' roles helps you appreciate why proper connection and compatibility are essential. The LCD display is your interface, while the controller manages the ebike's electrical and mechanical functions.
Before diving into the connection process, familiarize yourself with the key components and wiring involved:
- LCD Display: Usually has multiple wires bundled in a cable, including power, ground, and data lines.
- Controller: Contains connectors for the display, throttle, motor, and battery.
- Wires and Connectors: Typically include power (VCC), ground (GND), transmit (TX), receive (RX), and sometimes control or key wires.
- Tools Needed: Wire strippers, soldering iron, heat shrink tubing, electrical tape, screwdrivers, and zip ties.
| Wire Function | Typical Color(s) | Description |
|---|---|---|
| Power (VCC) | Red | Supplies voltage to the display electronics. |
| Ground (GND) | Black | Completes the electrical circuit. |
| Transmit (TX) | Green or White | Sends data from display to controller (e.g., button presses). |
| Receive (RX) | Yellow or Blue | Receives data from controller to display (e.g., speed, battery info). |
| Key/Control | Purple, Brown, or other | Controls power on/off or mode switching. |
Understanding these wire functions is crucial because incorrect connections can lead to malfunctions or permanent damage. For example, reversing power and ground wires can fry the display's circuit board.
- Check your ebike controller's voltage rating (commonly 24V, 36V, 48V, or 60V).
- Identify the display's connector type and pinout.
- Confirm communication protocol (UART or CANBUS).
- Refer to manuals or labels on the controller and display for wiring diagrams.
- Gather wire strippers, soldering iron, heat shrink tubing, electrical tape, and zip ties.
- Ensure the battery is disconnected to prevent electrical hazards.
- Cut wires to appropriate length, allowing extra slack.
- Strip insulation carefully without damaging wire strands.
- Connect the display's red wire (VCC) to the controller's power output.
- Connect the black wire (GND) to the controller's ground.
- Ensure polarity is correct to avoid damage.
- Connect the display's TX wire to the controller's RX input.
- Connect the display's RX wire to the controller's TX output.
- This cross-connection is essential for proper two-way communication.
- Some displays have a wire for power on/off or mode switching.
- Connect this to the corresponding controller wire or switch input.
- Solder wire joints for durability.
- Cover with heat shrink tubing and/or electrical tape.
- Avoid loose or exposed wires.
- Reconnect the battery.
- Power on the system via the display or battery switch.
- Verify the display lights up and shows correct information.
Compatibility is critical. Even if connectors physically match, differences in communication protocols or firmware can prevent the display from working properly.
- Voltage Match: The display and controller must support the same system voltage.
- Communication Protocol: UART and CANBUS are common; they are not interchangeable.
- Connector and Pinout: Confirm that the number of pins and their functions align.
- Firmware: Some displays require specific controller firmware versions.
If unsure, consult the manufacturer or seek advice from ebike forums and communities. Using incompatible components can cause system failures or damage.
Many ebike LCD displays use 5-wire connections:
| Wire Color | Function |
|---|---|
| Red | VCC (Power) |
| Black | GND (Ground) |
| Green | RX (Receive Data) |
| Yellow | TX (Transmit Data) |
| Purple | Key/Control |
Some simpler displays may have only 3 wires (power, ground, and signal), but these limit functionality.
Once your ebike LCD display is connected and working, you can explore additional customization options to enhance your riding experience:
Most LCD displays allow you to configure the number of pedal assist levels and their intensity. This customization helps tailor the motor's power output to your riding style or terrain.
- Access the settings menu on the display.
- Change assist levels or sensitivity.
- Save your preferences for consistent performance.
Depending on your region or preference, you might want to switch between kilometers per hour (km/h) and miles per hour (mph), or between kilometers and miles for distance.
- Navigate to the units setting.
- Choose your preferred measurement system.
- Confirm and exit the menu.
Adjusting the backlight or brightness can improve visibility in different lighting conditions, such as bright sunlight or nighttime riding.
- Use the display's brightness controls.
- Some displays offer automatic adjustment based on ambient light sensors.
Some advanced LCD displays support firmware updates via USB or Bluetooth. Updating firmware can improve performance, add new features, and fix bugs.
- Check the manufacturer's website or app.
- Follow instructions carefully to avoid bricking the display.
Certain LCD displays support extra sensors like temperature or cadence sensors. These can provide more detailed ride data and improve motor control.
Even with careful installation, you may encounter issues. Here are common problems and how to resolve them:
- Verify battery voltage and charge.
- Check power and ground wire connections.
- Confirm that the display is compatible with your controller.
- Inspect for blown fuses or damaged cables.
- Look for loose or poor-quality connections.
- Ensure wires are not pinched or broken.
- Check for interference from other electronic devices.
- Confirm TX and RX wires are crossed properly.
- Verify communication protocol compatibility.
- Reset the controller and display.
- Check the control or key wire connection.
- Test the buttons physically for damage.
- Update firmware if possible.
- Refer to your display's manual for error code meanings.
- Common errors include motor faults, sensor failures, or battery issues.
- Address the underlying hardware problem accordingly.
- Mount the LCD display securely on the handlebar using the provided bracket.
- Route cables neatly along the frame, securing with zip ties.
- Leave slack near the handlebars to allow for turning without tension.
- Avoid sharp bends or pinching cables to prevent damage.
- Perform a final test ride to confirm all functions operate correctly.
Proper mounting not only protects your display but also ensures easy access and visibility while riding.
Connecting an ebike LCD display to your controller is a task that combines understanding your ebike's electrical system, careful wiring, and ensuring component compatibility. By following the detailed steps outlined above, you can successfully install or replace your LCD display, enhancing your riding experience with real-time data and control at your fingertips.
Proper connection and compatibility not only improve functionality but also ensure safety and longevity of your electric bike system. Always double-check wiring, use quality tools, and consult manuals or experts if needed. With patience and attention to detail, your ebike's LCD display will become a reliable and informative dashboard for every ride.
Compatibility depends on matching system voltage, communication protocol (UART or CANBUS), connector type, and firmware. Check your controller and display specifications carefully before purchasing or connecting.
Not usually. Controllers and displays must have matching wiring and communication protocols. Using a display with more wires than the controller supports can cause malfunction or require leaving some wires disconnected.
You will need wire strippers, a soldering iron, heat shrink tubing, electrical tape, screwdrivers, and zip ties for securing cables. These tools help ensure secure, insulated, and professional connections.
Check battery charge, ensure power and ground wires are connected properly, and verify that the display and controller are compatible. Inspect for loose connections or damaged wires.
Yes, but only if the new display is compatible with your controller's voltage, communication protocol, and connector type. Firmware compatibility is also important. Consult manufacturer specs or experts before upgrading.
