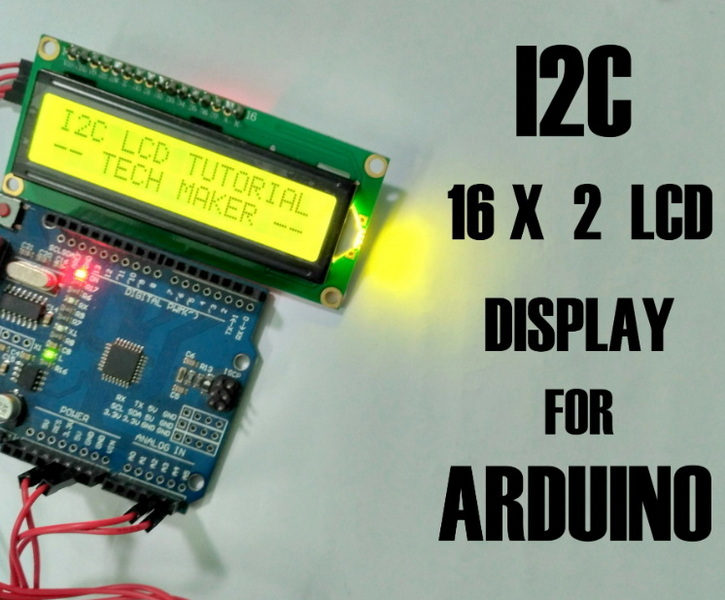

Connecting an I2C LCD display to an Arduino is a popular and efficient way to add a visual interface to your projects. This comprehensive guide will walk you through the process of wiring, programming, and troubleshooting an I2C LCD display with Arduino. We'll explore the benefits of using I2C, provide detailed instructions, and share practical examples to help you get started on your journey of integrating LCD displays into your Arduino projects.

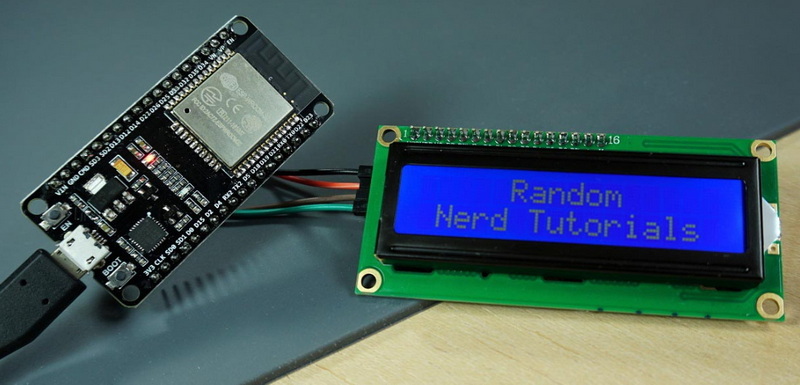

An I2C LCD display is a character LCD screen that utilizes the I2C (Inter-Integrated Circuit) communication protocol. This protocol enables the LCD to communicate with the Arduino using only two data pins, significantly reducing the number of connections required compared to standard parallel LCD interfaces. I2C LCDs are available in various sizes, with 16x2 and 20x4 being the most common configurations.
Using I2C LCD displays offers several advantages over traditional parallel interface LCDs:
- Simplified wiring: Only four connections required (VCC, GND, SDA, SCL)
- Reduced pin usage on the Arduino, freeing up pins for other components
- Easy to daisy-chain multiple I2C devices on the same bus
- Consistent communication protocol across various devices
- Lower power consumption due to fewer active pins
- Reduced electromagnetic interference (EMI) compared to parallel interfaces
To follow this tutorial, you'll need the following components:
- Arduino board (Uno, Nano, Mega, or any compatible board)
- I2C LCD display (16x2 or 20x4)
- Jumper wires
- Breadboard (optional, but recommended for prototyping)
- USB cable for programming the Arduino
Before we dive into the wiring and programming, it's essential to understand the basics of I2C communication. I2C is a serial communication protocol that uses two lines:
1. SDA (Serial Data): This line is used for transmitting data between devices.
2. SCL (Serial Clock): This line carries the clock signal that synchronizes data transfer.
I2C allows multiple devices to be connected to the same bus, each with a unique address. This makes it possible to connect several I2C devices to a single Arduino using the same SDA and SCL pins.

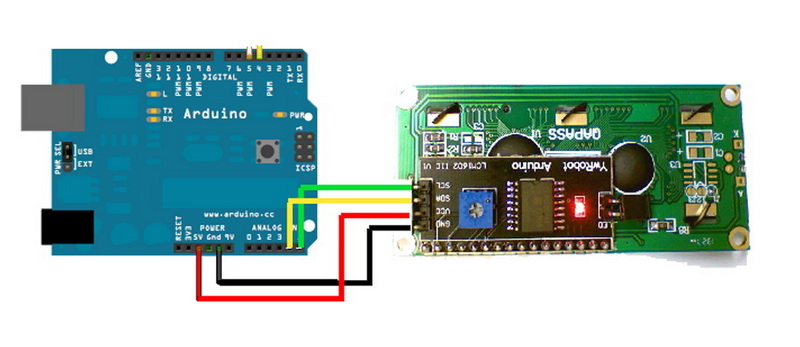

Connecting an I2C LCD to your Arduino is straightforward. Follow these steps:
1. Identify the pins on your I2C LCD module:
- VCC (Power)
- GND (Ground)
- SDA (Serial Data)
- SCL (Serial Clock)
2. Connect the pins to your Arduino:
- VCC to 5V on Arduino
- GND to GND on Arduino
- SDA to A4 on Arduino Uno/Nano (or pin 20 on Mega)
- SCL to A5 on Arduino Uno/Nano (or pin 21 on Mega)
Before programming the LCD, you need to install the necessary libraries. The most commonly used library for I2C LCDs is the LiquidCrystal_I2C library. To install it:
1. Open the Arduino IDE
2. Go to SketchInclude Library Manage Libraries
3. Search for LiquidCrystal I2C
4. Install the library by Frank de Brabander
This library provides a simple interface for controlling I2C LCD displays and includes many useful functions for displaying text, creating custom characters, and controlling the backlight.
Once you have the hardware connected and the library installed, you can start programming your I2C LCD. The basic structure of an Arduino sketch for controlling an I2C LCD includes initializing the display, setting up the backlight, and writing text to the screen.
Creating scrolling text effects can make your display more dynamic and allow you to show longer messages on a small screen. The LiquidCrystal_I2C library provides functions like scrollDisplayLeft() and scrollDisplayRight() to achieve this effect.
One of the most exciting features of LCD displays is the ability to create custom characters. This allows you to display unique symbols, icons, or small graphics that aren't part of the standard character set. You can define up to eight custom characters using arrays of bytes that represent the pixel patterns.
Combining an I2C LCD with a temperature and humidity sensor like the DHT11 or DHT22 allows you to create a simple weather station. This project can display real-time temperature and humidity readings, making it useful for monitoring environmental conditions in your home or workplace.
An I2C LCD can be used to create a versatile countdown timer for various applications, such as cooking, workouts, or time management. By utilizing the Arduino's internal timers and the LCD display, you can create an accurate and easy-to-read countdown clock.
For more complex projects, you can implement a menu system using an I2C LCD and a few buttons. This allows users to navigate through different options, change settings, or select modes in your Arduino project. Creating a menu system involves managing button inputs, updating the display, and organizing your code to handle different menu states.
To ensure your I2C LCD performs optimally in your projects, consider the following tips:
1. Use appropriate delays: Avoid using excessive delays in your code, as this can make your display appear sluggish. Instead, use millis() for timing to create non-blocking delays.
2. Update efficiently: Only update the parts of the display that have changed, rather than rewriting the entire screen on each loop.
3. Use the backlight wisely: If your project is battery-powered, consider turning off the backlight when it's not needed to conserve energy.
4. Adjust contrast: Most I2C LCD modules have a potentiometer for adjusting contrast. Fine-tune this for the best visibility in your operating environment.
As you become more comfortable with using I2C LCDs, you can explore more advanced projects and techniques:
1. Multiple displays: Connect multiple I2C LCDs to a single Arduino to create more complex information displays.
2. Graphical LCDs: Upgrade to graphical LCDs for more advanced visual outputs, such as charts or simple animations.
3. Touch integration: Combine your I2C LCD with a touch overlay to create interactive displays.
4. Data logging: Use an I2C LCD to display data from sensors, which can also be logged to an SD card or sent to a computer.
If you encounter issues with your I2C LCD, try these troubleshooting steps:
1. Double-check your wiring connections
2. Verify that you've installed the correct library
3. Ensure that your LCD's I2C address is correct (usually 0x27 or 0x3F)
4. Try adjusting the contrast using the potentiometer on the I2C module
5. Use an I2C scanner sketch to confirm that your Arduino can detect the LCD
Remember that patience and systematic debugging are key when working with electronics projects. Don't hesitate to consult online forums or Arduino communities if you need additional help.
Connecting an I2C LCD display to an Arduino opens up a world of possibilities for creating interactive and informative projects. With just four wires and a few lines of code, you can add a professional-looking display to your Arduino creations. Whether you're building a weather station, a countdown timer, or a custom control panel, the I2C LCD is a versatile and easy-to-use component that belongs in every maker's toolkit.
As you continue to explore the capabilities of I2C LCDs, you'll find that they can significantly enhance the user experience of your Arduino projects. From simple text displays to more complex menu systems and custom graphics, these displays offer a wide range of possibilities for both beginners and experienced makers alike.
Remember to experiment, push the boundaries of what you can create, and most importantly, have fun while learning. The skills you develop working with I2C LCDs will serve you well in many future electronics projects.
I2C LCD displays use only four connections (VCC, GND, SDA, and SCL) compared to the 16 pins required for standard parallel LCD interfaces. This simplifies wiring and reduces the number of Arduino pins used, making I2C LCDs more convenient for many projects.
Yes, you can connect multiple I2C devices to a single Arduino using the same SDA and SCL pins. Each device will have a unique address, allowing the Arduino to communicate with them individually. This is one of the main advantages of using the I2C protocol.
Most I2C LCD modules use either 0x27 or 0x3F as their default address. You can use an I2C scanner sketch to detect the correct address for your specific module. This sketch scans the I2C bus and reports any detected devices and their addresses.
Yes, most I2C LCD modules have a small potentiometer on the back that allows you to adjust the contrast. Use a small screwdriver to turn the potentiometer until the display is clearly visible. This adjustment can be crucial for optimal readability in different lighting conditions.
Absolutely! You can create custom characters using the createChar() function provided by the LiquidCrystal_I2C library. This allows you to display unique symbols or icons on your LCD screen, enhancing the visual appeal and functionality of your projects.
