LCD displays are essential components in many electronic projects, providing a visual interface for users to interact with their devices. In this comprehensive guide, we'll explore how to code LCD displays, covering everything from basic setup to advanced techniques. Whether you're a beginner or an experienced programmer, this article will help you master the art of LCD programming.
Before diving into coding, it's essential to understand the basics of LCD technology. LCD stands for Liquid Crystal Display, a flat-panel display technology that uses liquid crystals to produce visible images. These displays work by manipulating light passing through a layer of liquid crystals sandwiched between polarizing filters.
There are several types of LCD displays commonly used in electronics projects:
1. Character LCDs: These display a fixed number of characters in a grid format, such as 16x2 or 20x4.
2. Graphical LCDs: These allow control of individual pixels, enabling the display of custom graphics and images.
3. Color LCDs: These can display full-color images and are often found in more advanced projects.
For most Arduino and microcontroller projects, character LCDs are the most common choice due to their simplicity and low cost.
Proper setup is crucial for successful LCD programming. Most LCD displays used with Arduino and other microcontrollers are compatible with the Hitachi HD44780 driver, which uses a 16-pin interface.

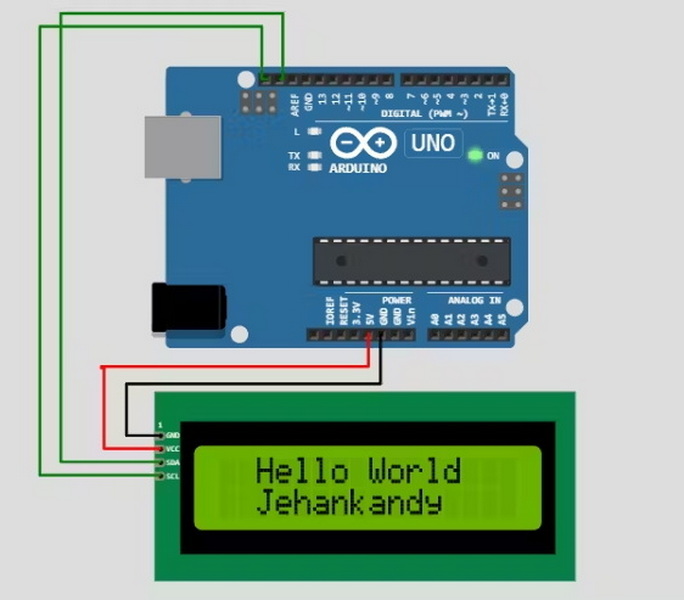

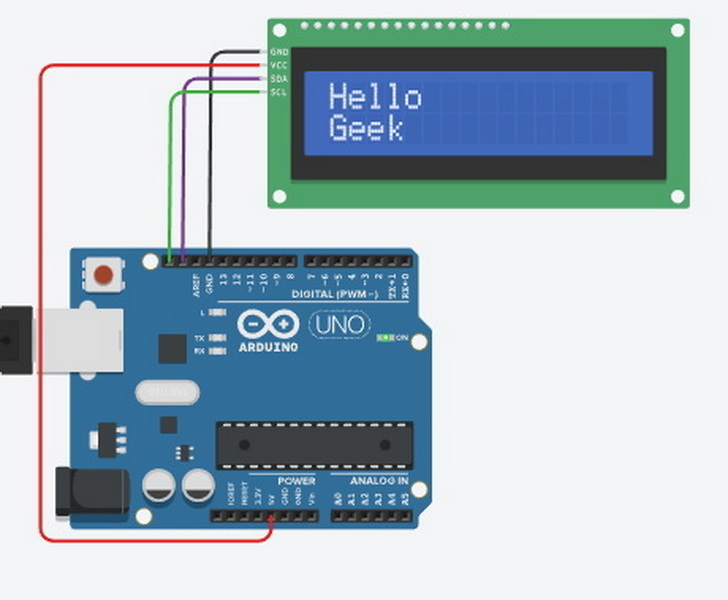

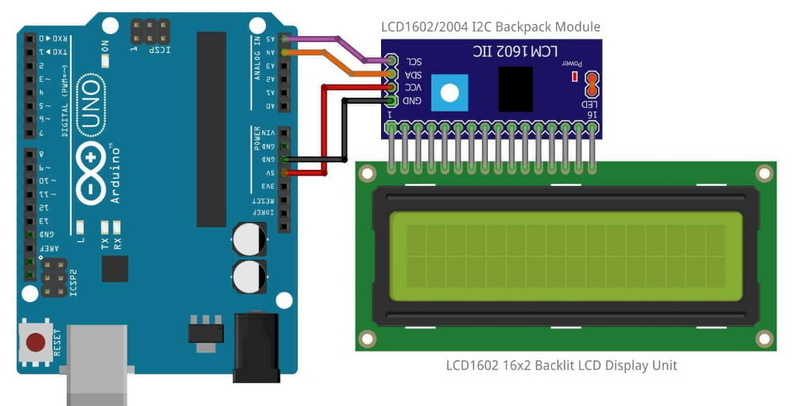

To connect your LCD display to an Arduino board, follow these steps:
1. Connect the VSS pin to ground (GND) on the Arduino.
2. Connect the VDD pin to 5V on the Arduino.
3. Connect the V0 pin to the middle pin of a 10k potentiometer. The other two pins of the potentiometer should be connected to 5V and GND.
4. Connect the RS pin to digital pin 12 on the Arduino.
5. Connect the RW pin to ground.
6. Connect the E pin to digital pin 11 on the Arduino.
7. Connect the D4, D5, D6, and D7 pins to digital pins 5, 4, 3, and 2 on the Arduino, respectively.
8. Connect the A pin (anode) of the LCD backlight to 5V through a 220-ohm resistor.
9. Connect the K pin (cathode) of the LCD backlight to ground.
Once your LCD is connected, you can start with basic programming. Most microcontrollers have libraries available for LCD control, making it easier to get started.
The first step in programming your LCD is to initialize it. This typically involves specifying the LCD's dimensions and setting up the communication pins.
Displaying text is the most basic operation you can perform with an LCD. You can print strings, individual characters, and even numeric values.
LCD libraries usually provide functions to control the cursor position and display properties. You can move the cursor, create blinking effects, and turn the display on or off.
As you become more comfortable with basic LCD programming, you can explore more advanced techniques to create interactive and dynamic displays.
Most character LCDs allow you to create and display custom characters. This feature is useful for creating simple graphics or special symbols that aren't included in the standard character set.
For longer messages that don't fit on the screen, you can implement scrolling text. This technique involves displaying a portion of the text and shifting it across the screen over time.
By rapidly changing custom characters or updating the display content, you can create simple animations on your LCD. This can add a dynamic element to your projects.
LCD displays become even more useful when combined with sensors. You can use your LCD to display real-time data from various sensors, such as temperature, humidity, light levels, or distance measurements.
A common project involves using a temperature and humidity sensor (like the DHT11 or DHT22) and displaying the readings on an LCD. This can be expanded to create a simple weather station.
Ultrasonic sensors can be used to measure distance, and the results can be displayed on an LCD. This setup is often used in robotics projects or simple rangefinders.
For more complex projects, you might want to create an interactive menu system. This involves using buttons or other input methods to navigate through different options displayed on the LCD.
Implement functions to move through menu items, select options, and return to previous menus. This creates a user-friendly interface for your project.
As the user navigates the menu, update the LCD to reflect the current selection and any relevant information for each menu item.
When working with LCD displays, it's important to optimize performance, especially in projects where speed is crucial. Here are some tips:
1. Use 4-bit mode instead of 8-bit mode to save pins and improve performance.
2. Minimize the use of full screen clear operations as they are relatively slow.
3. Update only the parts of the display that change, rather than rewriting the entire screen.
4. Use custom characters for frequently used symbols or graphics to save memory and improve speed.
5. Consider using a faster microcontroller if your project requires rapid display updates.
If you're experiencing issues with your LCD display, here are some common problems and solutions:
1. No display: Check your wiring and ensure the contrast is set correctly using the potentiometer.
2. Garbled text: Verify that you're using the correct library and pin assignments.
3. Flickering display: This could be due to loose connections or insufficient power supply.
4. Missing characters: Make sure you're not writing beyond the display's dimensions.
5. Inconsistent behavior: Check for proper grounding and consider using bypass capacitors to reduce noise.
Once you've mastered the basics, you can move on to more advanced LCD projects:
Create a data logging system that records sensor data to an SD card and displays current readings on the LCD. This is useful for environmental monitoring or long-term data collection projects.
Develop simple games that can be played on the LCD display. This could involve creating custom graphics and implementing game logic using buttons for user input.
Use an LCD as part of a home automation system, displaying status information and allowing control of various devices through a menu system.
While LCD technology has been around for decades, it continues to evolve. Some emerging trends in LCD technology include:
1. Higher resolution displays for sharper images and more detailed graphics.
2. Flexible and transparent LCDs for unique application possibilities.
3. Improved energy efficiency for longer battery life in portable devices.
4. Integration with touch technology for more interactive displays.
As these technologies become more accessible to hobbyists and makers, we can expect to see even more creative uses of LCDs in DIY projects.
LCD displays are versatile components that can greatly enhance your Arduino projects. From simple text displays to interactive menus and sensor readouts, the possibilities are endless. By mastering the techniques covered in this guide, you'll be well-equipped to incorporate LCD displays into your next project.
Character LCDs are designed to display text and pre-defined characters, typically in a grid format (e.g., 16x2 or 20x4). They are simpler to use and require less processing power. Graphical LCDs, on the other hand, allow you to control individual pixels, enabling the display of custom graphics and images. They offer more flexibility but are more complex to program and usually more expensive.
Yes, LCD displays can be used with various microcontrollers, including Raspberry Pi, ESP32, and PIC microcontrollers. The wiring and programming may differ slightly, but the general principles remain the same. Many microcontrollers have libraries or drivers available for LCD displays.
To reduce power consumption:
- Use the backlight only when necessary
- Put the display to sleep when not in use
- Update the display less frequently
- Consider using a lower voltage (3.3V instead of 5V) if your LCD supports it
- Use power-saving modes provided by some LCD controllers
Most standard character LCDs support the display of characters from the ASCII table. For non-Latin characters, you may need to create custom characters or use a specialized LCD that supports the desired character set. Some LCDs come with built-in support for multiple languages.
To protect your LCD display:
- Use a protective cover or enclosure
- Apply a thin layer of clear silicone conformal coating to the PCB and connections
- Avoid exposing the display to extreme temperatures or humidity
- Use anti-glare filters for outdoor applications
- Consider using industrial-grade LCDs for harsh environments
