Clearing an LCD display using Arduino is a fundamental operation in many projects, allowing you to update or remove information displayed on the screen. This guide will walk you through the process, including the necessary hardware, software setup, and troubleshooting tips. It also covers common issues and advanced techniques for managing LCD displays with Arduino.
LCD displays are widely used in electronic projects due to their simplicity and versatility. They are particularly popular among hobbyists and professionals working with Arduino, as they provide an easy way to display information. The most common type of LCD display used with Arduino is the 16x2 LCD, which can display 16 characters per line across two lines.
To start working with an LCD display and Arduino, you will need the following components:
- Arduino Board (e.g., Arduino Uno)
- 16x2 LCD Display
- Breadboard
- Jumper Wires
- Potentiometer (for adjusting contrast)

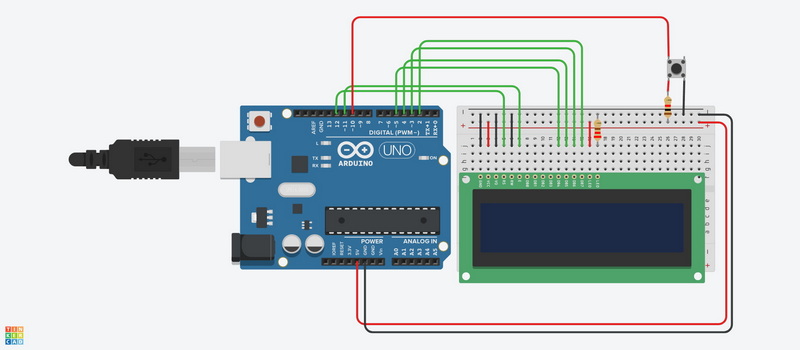

The wiring process involves connecting the LCD pins to the Arduino board. Here's a basic wiring diagram:
| LCD Pin | Arduino Pin |
|---|---|
| RS | Digital Pin 11 |
| E | Digital Pin 12 |
| D4 | Digital Pin 2 |
| D5 | Digital Pin 3 |
| D6 | Digital Pin 4 |
| D7 | Digital Pin 5 |
| VCC | 5V |
| GND | GND |
| K | GND |
| A | 5V via Potentiometer |
To control the LCD display, you need to use the LiquidCrystal library. This library simplifies the process of sending commands to the LCD, allowing you to focus on your project's logic rather than the intricacies of LCD communication.
1. Include the LiquidCrystal Library: In your Arduino IDE, go to Sketch > Include Library > LiquidCrystal.
2. Create an LCD Object: Define the LCD object with the pin connections.
3. Initialize the LCD: In the setup function, initialize the LCD with its dimensions.
To clear the LCD display, you can use a specific function that not only clears the screen but also positions the cursor at the upper-left corner. This is particularly useful when you want to update the display with new information.
Imagine you're building a weather station that displays the current temperature and humidity. When new data is available, you would clear the display and update it with the latest readings.
- Check Connections: Ensure all wires are properly connected.
- Adjust Contrast: Use a potentiometer to adjust the contrast until characters are visible.
- Check Pin Connections: Verify that the pins are connected correctly to the Arduino.
- Use Correct Library: Ensure you are using the LiquidCrystal library.
- Stabilize Power Supply: Ensure the power supply is stable and sufficient for both the Arduino and the LCD.
- Check Grounding: Verify that the ground connections are secure.
If you have text longer than 16 characters, you can use scrolling functions to display the entire message. This is useful for displaying messages or instructions that are too long to fit on the screen at once.
You can also create custom characters on the LCD display. This involves defining a set of pixels that form a character, which can then be displayed on the screen. Custom characters are useful for creating icons or symbols that are not part of the standard character set.
LCD displays are used in various projects, such as:
- Weather Stations: Display temperature and humidity.
- Robotics: Show sensor data or commands.
- Home Automation: Display status messages.
When selecting an LCD display for your project, consider factors such as size, resolution, and backlighting. Backlit displays are easier to read in low-light conditions but consume more power.
For battery-powered projects, consider using low-power LCD displays or implementing power-saving strategies like turning off the backlight when not needed.
You can customize your LCD display by creating custom characters or using different fonts. This can enhance the user experience and make your project more visually appealing.
Clearing an LCD display with Arduino is straightforward and essential for dynamic projects. By understanding how to set up and control LCD displays, you can enhance your projects with interactive and dynamic information displays. Whether you're a beginner or an experienced maker, mastering LCD control can open up a wide range of creative possibilities.
Use a specific function designed for clearing the display.
You need to use the LiquidCrystal library.
Use a potentiometer connected between VCC and GND, with the middle pin connected to the LCD's contrast pin.
The standard clear function clears the entire screen. To clear specific parts, you would need to overwrite those sections with spaces.
Most commonly used are 16x2 LCDs based on the Hitachi HD44780 chipset.
