LCD (Liquid Crystal Display) screens have become ubiquitous in our daily lives, from smartphones and laptops to televisions and industrial equipment. Ensuring these displays function correctly is crucial for optimal performance and user experience. This article will explore various methods and techniques to check LCD display patterns, helping you identify and troubleshoot common issues.
LCD display patterns are specific images or sequences designed to test various aspects of a screen's performance. These patterns help identify issues such as dead pixels, color accuracy, contrast, and overall display quality.
Before diving into the testing methods, it's essential to understand some common LCD display problems:
1. Dead or stuck pixels
2. Color inaccuracy
3. Backlight bleeding
4. Screen flickering
5. Uneven brightness
To effectively check LCD display patterns, you may need the following tools:
1. Test pattern software
2. Color calibration tools
3. Multimeter
4. Oscilloscope (for advanced testing)

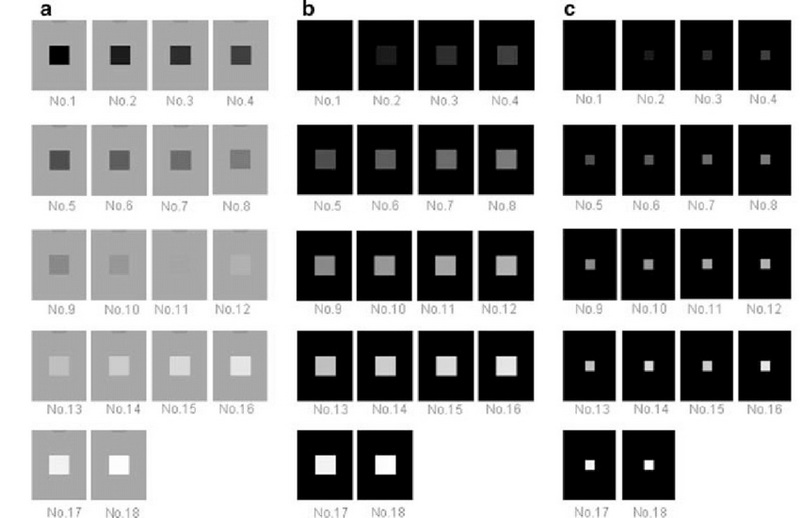

Many LCD controllers offer built-in test patterns that can be accessed through the display's on-screen menu or specific button combinations. These patterns typically include:
- Full-screen solid colors (red, green, blue, white, black)
- Checkerboard patterns
- Gradient scales
To access these patterns:
1. Power on the LCD display
2. Navigate to the on-screen menu
3. Look for options like "Test Pattern" or "Self-Diagnosis"
4. Cycle through available patterns
Various software tools can generate test patterns on your computer screen. Some popular options include:
- DisplayCAL
- EIZO Monitor Test
- Lagom LCD test
These tools offer a wide range of patterns to test different aspects of your display.
Steps to use software-based test patterns:
1. Download and install the chosen software
2. Launch the application
3. Select the desired test pattern
4. Observe the display for any irregularities
Several websites offer free LCD test patterns that you can access through your web browser. These are particularly useful for quick checks without installing any software.
Popular online LCD test tools:
- LCD Monitor Test(http://www.lagom.nl/lcd-test/)
- TestUFO(https://www.testufo.com/)
- Screen Test(https://www.eizo.be/monitor-test/)
To use these tools:
1. Visit the website
2. Select the desired test pattern
3. Maximize your browser window
4. Observe the display carefully
While not a pattern test per se, a physical inspection can reveal obvious issues:
1. Turn off the display and examine the screen surface for scratches or damage
2. Check for loose connections or damaged cables
3. Inspect the display housing for any physical defects
For more accurate results, consider using professional calibration tools such as colorimeters or spectrophotometers. These devices measure the display's color output and help create custom color profiles.
Steps for using a calibration tool:
1. Connect the calibration device to your computer
2. Launch the calibration software
3. Follow the on-screen instructions to measure various color patches
4. Review the results and adjust display settings accordingly
When checking LCD display patterns, look for the following:
- Dead or stuck pixels: Appear as black, white, or colored dots that don't change
- Color accuracy: Ensure colors appear as they should across the spectrum
- Contrast: Check that black areas are truly black and white areas are bright
- Uniformity: Look for even brightness and color across the entire screen
- Motion blur: Use motion tests to check for ghosting or smearing
If you encounter problems during your LCD display pattern tests, try these troubleshooting steps:
1. Reset the display to factory settings
2. Update display drivers (for computer monitors)
3. Check and replace cables if necessary
4. Adjust brightness and contrast settings
5. Perform a power cycle (turn off, unplug, wait 30 seconds, plug in, turn on)
For those with technical expertise, advanced testing methods include:
1. Signal voltage detection using a multimeter
2. Waveform analysis with an oscilloscope
3. Thermal imaging to detect hot spots
These methods require specialized equipment and knowledge but can provide deeper insights into display performance.
Regular maintenance can help prevent issues and extend the life of your LCD display:
1. Clean the screen gently with a microfiber cloth
2. Avoid exposing the display to extreme temperatures
3. Use a surge protector to prevent power-related damage
4. Adjust brightness to a comfortable level to reduce eye strain and power consumption
For a visual guide on checking LCD display patterns, watch this helpful video tutorial:
Checking LCD display patterns is an essential skill for anyone who relies on visual displays for work or entertainment. By using a combination of built-in tests, software tools, and physical inspections, you can ensure your LCD display is functioning optimally. Regular testing and maintenance can help identify issues early, potentially saving time and money on repairs or replacements.
It's recommended to check your LCD display patterns every 3-6 months or whenever you notice any visual anomalies. Regular checks can help identify issues early before they become more severe.
While some dead pixels may resolve on their own over time, there's no guaranteed fix. Some users report success with pixel-fixing software or gently massaging the affected area, but these methods carry risks and may void your warranty.
LCD and LED displays use different technologies for backlighting, but the pattern testing process is generally similar. LED displays may have better contrast and color accuracy, which can be more apparent during certain tests.
When used properly, LCD display pattern tests are safe and non-invasive. However, avoid leaving static patterns on the screen for extended periods, as this can lead to image retention or burn-in on some displays.
For the best color accuracy, use a hardware calibration tool like a colorimeter or spectrophotometer. These devices measure the display's output and create custom color profiles. Software-only calibration can help but is less accurate than hardware-based methods.
