A 16x2 LCD display is a common component in many electronic projects, providing a simple yet effective way to display information. However, these displays can sometimes be tricky to set up and troubleshoot. This comprehensive guide will walk you through the process of checking and troubleshooting a 16x2 LCD display, ensuring that your project runs smoothly.
Before diving into the troubleshooting process, it's essential to understand what a 16x2 LCD display is and how it works. A 16x2 LCD display is a small screen that can display 16 characters across 2 lines. It's commonly used in Arduino projects, embedded systems, and other electronic applications where a simple display is needed.
The display consists of a liquid crystal layer sandwiched between two polarizing filters. When an electric current is applied, the liquid crystals align to either block or allow light to pass through, creating visible characters on the screen. The display is controlled by a microcontroller, which sends commands and data to manipulate the liquid crystals and create the desired output.
Several issues can arise when working with 16x2 LCD displays. Some of the most common problems include:
1. Blank display
2. Garbled or incorrect characters
3. Only half of the screen working
4. Inconsistent contrast
5. No backlight
6. Slow response time
7. Ghosting or image retention
8. Temperature-related issues
The first step in troubleshooting any electronic component is to ensure it's receiving the correct power supply. For most 16x2 LCD displays, this means a 5V power source.
- Measure the voltage across the VCC and GND pins of the LCD using a multimeter.
- Ensure the voltage is stable and within the acceptable range (usually 4.7V to 5.3V).
- Check for any voltage fluctuations that might cause intermittent issues.

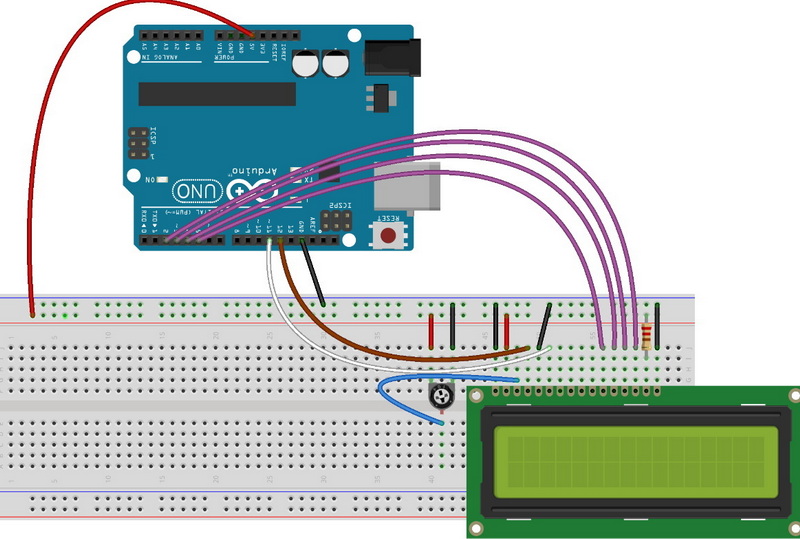

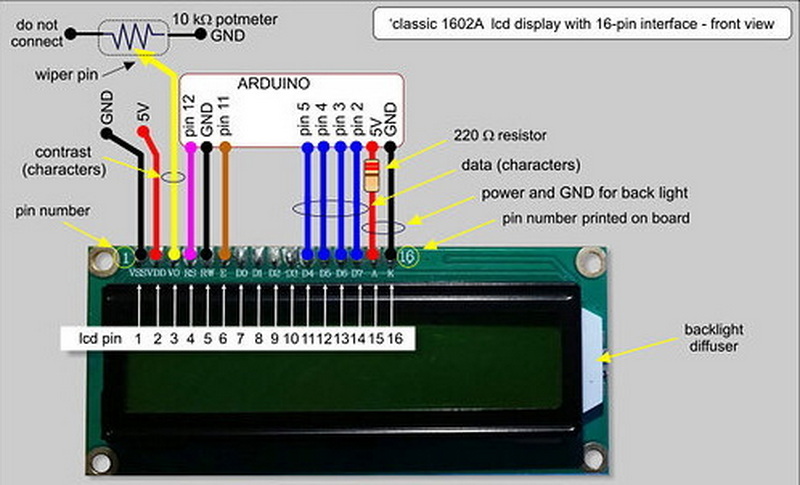

Incorrect wiring is a common cause of LCD display issues. Double-check all connections between your microcontroller (e.g., Arduino) and the LCD.
- Ensure that the data pins (D4-D7) are connected to the correct pins on your microcontroller.
- Verify that the RS (Register Select), RW (Read/Write), and E (Enable) pins are properly connected.
- Check for any loose connections or short circuits.
- Use a continuity tester to verify the integrity of your wiring.
If your display is blank or showing only faint characters, the contrast might need adjustment.
- Locate the contrast adjustment potentiometer (usually connected to the V0 pin).
- Slowly turn the potentiometer while observing the display.
- If you see black boxes or lines appear, continue adjusting until the characters become visible.
- Remember that environmental factors like temperature can affect the optimal contrast setting.
Proper initialization is crucial for the LCD to function correctly. Ensure your code includes the correct initialization sequence.
- Use the appropriate library for your LCD (e.g., LiquidCrystal for Arduino).
- Set the correct number of rows and columns (16x2 in this case).
- Clear the display after initialization to ensure a clean start.
- Set the cursor to the desired starting position.
If the display is working but appears dark, the backlight might be the issue.
- Verify that the backlight pins (usually labeled A and K) are connected correctly.
- Check if there's a jumper on the LCD module that needs to be shorted to enable the backlight.
- If using PWM to control backlight brightness, ensure the PWM signal is correct.
- Consider using a separate power source for the backlight if your microcontroller can't provide sufficient current.

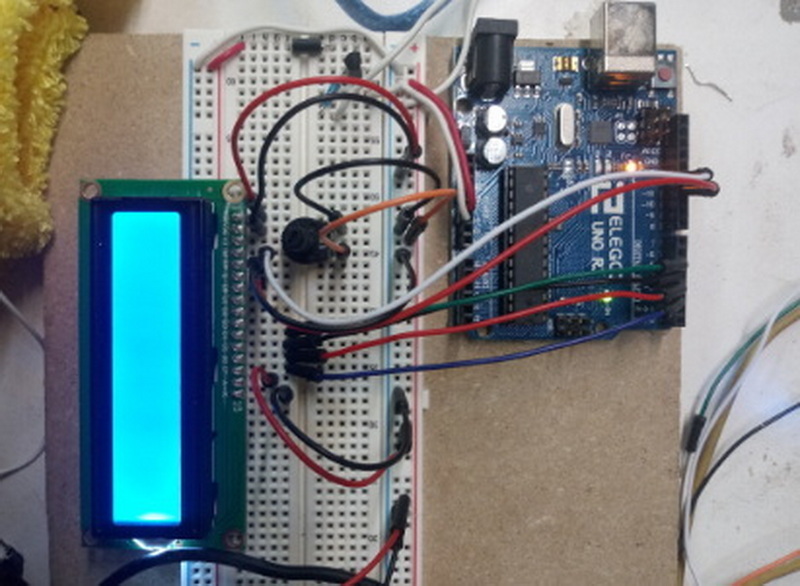

Use a basic sketch to test the LCD functionality. This can help isolate whether the issue is with the hardware or your main program.
- Write a simple program that displays a static message and a changing value (like a counter).
- If this works but your main program doesn't, the issue likely lies in your code rather than the hardware.
If all else fails, inspect the LCD and its connections for physical damage.
- Look for any burnt components or damaged traces on the LCD module.
- Check for any bent pins or damaged connectors.
- If possible, try the LCD on a different microcontroller to rule out issues with your main board.
- Inspect the ribbon cable (if present) for any signs of wear or damage.
For more advanced users, an oscilloscope can be invaluable in troubleshooting LCD issues.
- Check the timing of the E (Enable) pin to ensure it meets the LCD's specifications.
- Verify that the data signals are stable and at the correct voltage levels.
- Look for any noise or interference on the signal lines that might cause erratic behavior.
If only part of the display is working, you can test individual segments:
1. Write a custom character that activates all segments of a single character.
2. Display this character in different positions to identify which segments or characters are faulty.
3. This can help you determine if the issue is with specific parts of the LCD or the entire display.
Ensure you're using the correct communication protocol (4-bit or 8-bit mode) and that it's properly implemented in your code.
- 4-bit mode is more common and uses fewer pins but requires additional setup in the code.
- 8-bit mode is faster but requires more connections.
- Verify that your code matches the hardware configuration you're using.
LCD displays can be sensitive to temperature changes, which can affect their performance.
- If your project will be used in extreme temperatures, consider using an LCD rated for a wider temperature range.
- Test your display under the expected operating conditions to ensure reliability.
- Implement temperature compensation in your code if necessary.
Some LCD displays may suffer from ghosting or image retention, where previously displayed content remains faintly visible.
- Implement screen savers or periodic display changes to prevent static content from being displayed for too long.
- If ghosting occurs, try rapidly alternating between all-on and all-off states to "reset" the liquid crystals.
To improve performance and reduce the likelihood of display artifacts:
- Minimize the frequency of display updates to only when necessary.
- Use efficient update methods, such as updating only changed portions of the display.
- Consider using a display buffer to prepare content before sending it to the LCD.
EMI can cause erratic behavior in LCD displays. To reduce its impact:
- Use shielded cables for connections between the microcontroller and LCD.
- Keep high-frequency components and switching power supplies away from the LCD and its wiring.
- Consider adding ferrite beads to power and signal lines to filter out high-frequency noise.
Troubleshooting a 16x2 LCD display can be a challenging but rewarding process. By following this comprehensive guide, you should be able to identify and resolve most common issues with your LCD display. Remember to approach the problem systematically, checking each component and connection carefully. With patience and attention to detail, you'll have your LCD display up and running in no time.
The key to successful troubleshooting is a methodical approach. Start with the basics like power and connections, then move on to more complex issues. Don't hesitate to use advanced tools like oscilloscopes if you have access to them. And always remember that sometimes the simplest solution, like adjusting the contrast or double-checking a connection, can solve even the most perplexing display issues.
By mastering these troubleshooting techniques, you'll not only be able to fix issues with your current project but also gain valuable skills that will serve you well in future electronics endeavors. Whether you're a hobbyist or a professional, understanding how to diagnose and resolve LCD display problems is an essential skill in the world of embedded systems and microcontroller-based projects.
The most common reason for black boxes on an LCD display is incorrect contrast settings. Try adjusting the contrast potentiometer slowly until characters become visible. If this doesn't work, check your power supply voltage and ensure all connections are correct.
To improve readability in bright light conditions, you can:
1. Increase the contrast of the display.
2. Use a brighter backlight if available.
3. Consider adding a physical shade or filter over the LCD to reduce glare.
4. If possible, reposition the display to avoid direct sunlight.
LCD flickering can be caused by several factors:
1. Check your power supply for stability and correct voltage.
2. Ensure all connections are secure and not loose.
3. Verify that your code isn't updating the display too frequently.
4. Check for any electrical interference from nearby components.
Creating custom characters involves defining a bitmap and using the createChar() function:
1. Define an array with the bitmap of your character (8 rows of 5 bits each).
2. Use the createChar() function to create the character.
3. Use the write() function to display the custom character.
Yes, you can use a 16x2 LCD with a 3.3V microcontroller, but you'll need to consider the following:
1. Check if your LCD can operate at 3.3V (some can, some can't).
2. If the LCD requires 5V, use a level shifter for the data lines.
3. Ensure the backlight is compatible with your voltage or use a separate power source for it.
4. Adjust the contrast as it may differ at lower voltages.
