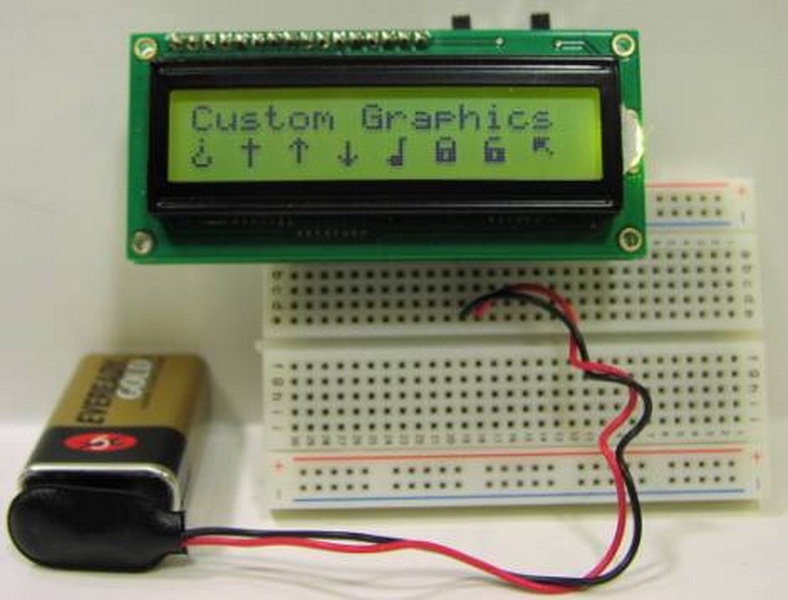

In today's digital age, custom LCD displays have become an integral part of many electronic devices and applications. Whether you're designing a unique interface for a product or creating a specialized display for a specific purpose, building a custom LCD display can be a rewarding and educational experience. This comprehensive guide will walk you through the process of creating your own custom LCD display, from understanding the basics to implementing advanced features.
Before diving into the construction process, it's essential to grasp the fundamentals of LCD (Liquid Crystal Display) technology. LCDs work by manipulating liquid crystals with electric currents to produce images. The basic components of an LCD include:
1. Two glass substrates
2. Liquid crystal material
3. Polarizing filters
4. Electrodes
5. Backlight (for transmissive displays)
Before starting the construction process, clearly outline your display requirements:
◆ Display size and resolution
◆ Color or monochrome
◆ Viewing angle
◆ Operating temperature range
◆ Power consumption
◆ Interface type (e.g., SPI, I2C, parallel)
Create a detailed layout of your custom LCD, including:
◆ Segment or pixel arrangement
◆ Icon placement
◆ Character positioning
Use design software like Adobe Illustrator or specialized LCD design tools to create your layout.
1. Clean the glass slides thoroughly to remove any contaminants.
2. If not using pre-coated glass, apply a transparent conductive coating (e.g., Indium Tin Oxide) through sputtering.
1. Design the electrode pattern based on your layout.
2. Use photolithography or laser cutting to create the electrode pattern on the ITO-coated glass.
1. Apply a thin layer of sealant around the edges of one glass substrate, leaving a small opening for filling.
2. Place spacers between the glass substrates to maintain a consistent gap.
3. Carefully align and press the two glass substrates together.
1. Heat the LCD assembly slightly to make the liquid crystal material more fluid.
2. Use a syringe to carefully inject the liquid crystal material through the opening.
3. Seal the opening with additional sealant.

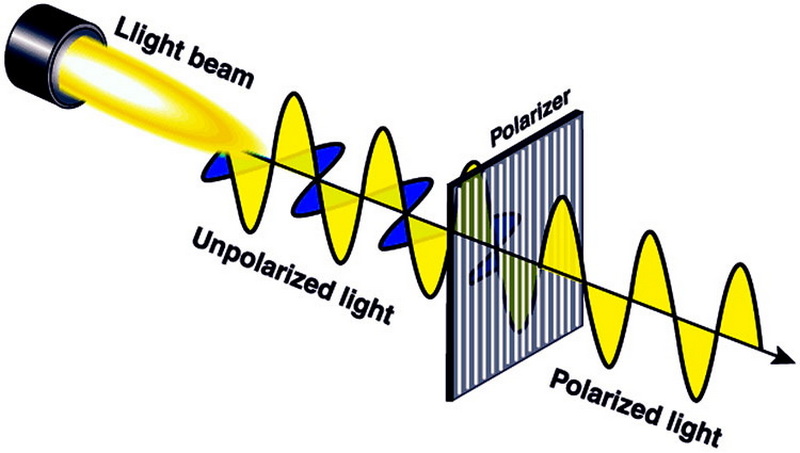

1. Cut polarizing filters to the size of the glass substrates.
2. Align and attach the filters to the outer surfaces of the glass, ensuring their polarization axes are at 90 degrees to each other.
1. Choose an appropriate backlight technology (e.g., LED, CCFL).
2. Install the backlight behind the LCD assembly.
1. Select a compatible display driver IC based on your LCD's specifications.
2. Connect the driver to the LCD's electrodes and your microcontroller.
Optical bonding improves display performance by eliminating air gaps between layers, resulting in better contrast and reduced reflections.
Incorporate touch functionality by adding a touch panel layer to your custom LCD:
1. Choose a touch technology (e.g., resistive, capacitive).
2. Integrate the touch panel with your LCD assembly.
3. Connect a touch controller to your microcontroller.
For rugged applications, consider these enhancements:
◆ Use chemically strengthened glass (e.g., Gorilla Glass)
◆ Apply anti-reflective and anti-fingerprint coatings
◆ Implement EMI shielding for sensitive environments
Let's explore a real-world example of creating a custom LCD display for an automotive application.
Requirements:
◆ Size: 7-inch diagonal
◆ Resolution: 800x480 pixels
◆ Operating temperature: -40°C to 85°C
◆ High brightness for sunlight readability
◆ Touch screen functionality
Implementation:
1. Design a layout incorporating speedometer, tachometer, and navigation elements.
2. Use LTPS TFT technology for high temperature tolerance.
3. Implement optical bonding to improve sunlight readability.
4. Integrate a projected capacitive touch screen for gloved operation.
5. Apply an anti-glare coating to reduce reflections.
6. Use a high-brightness LED backlight (1000 nits).
Building a custom LCD display comes with its own set of challenges:
1. Precision: Maintaining consistent cell gap and alignment is crucial for display quality.
2. Contamination: Even small particles can cause defects in the display.
3. Electrical connections: Ensuring reliable connections between the glass substrates and driver circuitry can be tricky.
4. Environmental factors: Consider temperature, humidity, and vibration effects on your display.
As technology advances, custom LCD displays are evolving:
1. Flexible displays: Incorporating bendable substrates for curved or foldable screens.
2. Higher resolutions: Pushing pixel densities for sharper images and text.
3. Enhanced color gamuts: Implementing quantum dot technology for wider color ranges.
4. Improved energy efficiency: Developing new liquid crystal materials and backlight technologies to reduce power consumption.
Building a custom LCD display is a complex but rewarding process that combines elements of electronics, optics, and materials science. By following the steps outlined in this guide and considering advanced techniques, you can create unique displays tailored to your specific needs. As technology continues to evolve, the possibilities for custom LCD displays will only expand, offering exciting opportunities for innovation in various industries.
Custom LCD displays offer several advantages:
◆ Tailored to specific application requirements
◆ Optimized form factor and design
◆ Potential cost savings for large-scale production
◆ Full control over features and functionality
◆ Ability to differentiate products in the market
The development time for a custom LCD display can vary significantly depending on complexity, but a typical timeline might be:
◆ Design and prototyping: 2-4 months
◆ Testing and refinement: 1-2 months
◆ Production setup: 1-3 months
Total development time can range from 4 to 9 months or more for complex projects.
Consider these factors when choosing between OLED and LCD:
◆ Power consumption: OLEDs are generally more efficient for darker content
◆ Contrast ratio: OLEDs offer better contrast with true blacks
◆ Lifespan: LCDs typically have longer lifespans
◆ Cost: LCDs are usually more cost-effective, especially for larger sizes
◆ Brightness: LCDs can achieve higher brightness levels more easily
To make your custom LCD display more environmentally friendly:
◆ Use LED backlights instead of CCFL for better energy efficiency
◆ Choose recyclable materials for components where possible
◆ Implement power-saving modes in your display driver software
◆ Consider using bio-based liquid crystal materials
◆ Design for easy disassembly and recycling at end-of-life
Common interface options include:
◆ SPI (Serial Peripheral Interface)
◆ I2C (Inter-Integrated Circuit)
◆ Parallel interfaces (8-bit, 16-bit, 24-bit)
◆ MIPI DSI (Display Serial Interface)
◆ LVDS (Low-Voltage Differential Signaling)
The choice depends on factors like data transfer speed requirements, number of available pins on the host controller, and power consumption considerations.
