Backlighting an LCD display is essential for enhancing visibility, especially in low-light environments. This guide will provide a detailed overview of the process, including the materials needed, step-by-step instructions, and troubleshooting tips. By the end of this article, you will have a thorough understanding of how to successfully backlight an LCD display.

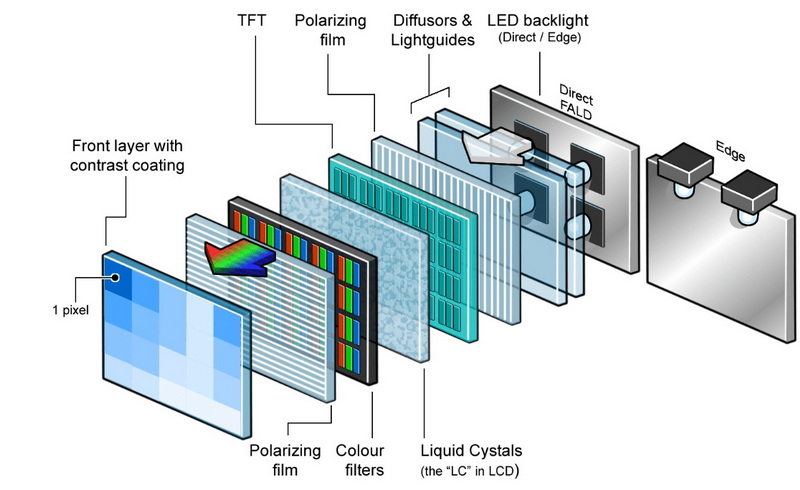

Liquid Crystal Displays (LCDs) are flat-panel displays that utilize liquid crystals to modulate light. They are widely used in televisions, computer monitors, and mobile devices due to their slim profile and energy efficiency. However, LCDs require a backlight to be visible in dim lighting conditions.
1. CCFL (Cold Cathode Fluorescent Lamp): This older technology provides uniform illumination but is less energy-efficient compared to newer methods.
2. LED (Light Emitting Diode): The most common backlighting technology today, offering several configurations:
- Edge-Lit: LEDs are positioned along the edges of the screen.
- Direct-Lit: LEDs are placed directly behind the display for improved brightness and contrast.
- Local Dimming: Allows for localized brightness adjustments based on the image content.
To backlight an LCD display effectively, you will need the following components:
- LCD Panel: The main display unit.
- Backlight Source: Typically white LEDs or CCFLs.
- Power Supply: To power the backlight.
- Diffuser: To evenly distribute light across the screen.
- Reflector: To maximize light output from the backlight source.
- Wiring and Connectors: For electrical connections.
In addition to the components listed above, you may require some additional tools for your project:
- Multimeter: To test voltage and current levels.
- Heat Shrink Tubing: For insulating wire connections.
- Tweezers: For handling small components.
- Hot Glue Gun: For securing components in place.
Before starting your project, ensure you have all necessary materials:
- White LEDs (or CCFL if using that technology)
- Resistors (for LED circuits)
- Transparent plastic sheet (for diffusion)
- Soldering iron and solder
- Power supply (matching your LED specifications)
- Tools (screwdriver, wire cutters, etc.)
Carefully disassemble your LCD panel:
1. Remove any screws holding the panel together.
2. Gently separate the layers of the display without damaging any components.
If using LEDs:
1. Cut a piece of transparent plastic to fit behind the LCD.
2. Sand both sides of the plastic to diffuse light effectively.

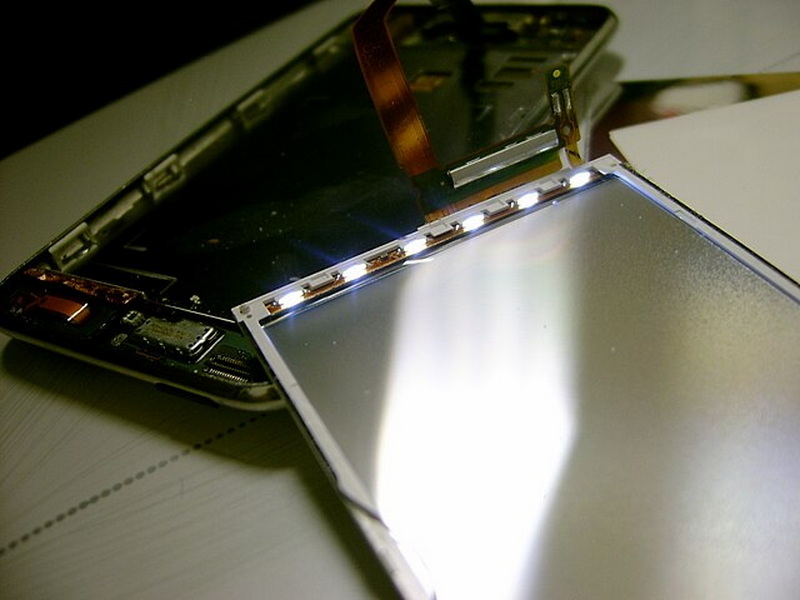

For LED installation:
1. Create notches on the sides of the plastic for LED placement.
2. Securely attach LEDs using hot glue or adhesive.
For CCFL installation:
1. Carefully place the CCFL tube behind the LCD panel.
2. Ensure it fits snugly without pressure on any components.
Connect your power supply:
1. For LEDs, calculate resistor values based on LED specifications and connect them in series or parallel as needed.
2. For CCFLs, connect according to manufacturer instructions.
Before final assembly:
1. Power on the backlight to test functionality.
2. Check for even illumination across the display.
Once testing is complete:
1. Reassemble the LCD panel carefully.
2. Ensure all connections are secure and properly insulated.
If your display appears dim:
- Check power supply voltage.
- Ensure proper connection of all components.
- Verify that resistors are correctly rated for your LEDs.

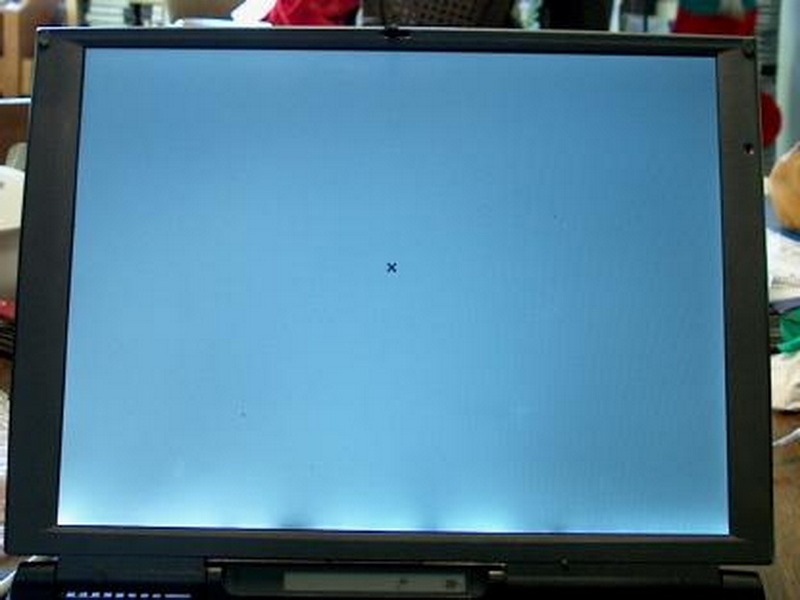

For uneven lighting issues:
- Adjust LED placement for better diffusion.
- Ensure that the diffuser is properly installed and free from scratches.
If you notice flickering in your backlight:
- Check wiring connections for loose or faulty connections.
- Inspect power supply stability; consider using a regulated power supply.
Local dimming can significantly enhance contrast ratios by adjusting brightness levels in specific areas of the screen based on content requirements. This technique can be particularly beneficial when watching movies or playing games with dark scenes.
To implement local dimming:
1. Use a microcontroller to control individual LED zones based on image data input.
2. Program algorithms that analyze frame content in real-time to adjust brightness dynamically.
Adjusting color temperature can improve color accuracy and overall viewing experience. You can achieve this by using RGB LEDs instead of standard white LEDs or by adding filters over your existing backlights.
1. Choose RGB LEDs that allow you to mix colors according to desired temperature settings (cool or warm).
2. Use a microcontroller with PWM capabilities to control each LED color output effectively.
Backlighting an LCD display can significantly enhance its usability and aesthetic appeal. By following this guide, you can successfully implement backlighting in various applications, whether for a DIY project or improving existing displays. Always remember to handle components carefully and prioritize safety during assembly.
This comprehensive approach not only covers basic installation but also delves into advanced techniques that can elevate your project beyond standard expectations. With patience and attention to detail, you can create an impressive display that meets your specific needs.
The best type of backlight depends on your specific needs. LED backlights are generally preferred due to their energy efficiency and brightness control capabilities.
Brightness can be controlled using PWM (Pulse Width Modulation) techniques or by adjusting resistor values in your circuit design.
Not all LEDs are suitable for backlighting; it's essential to choose white LEDs with appropriate specifications for brightness and size.
Disassembling an LCD panel can be risky; ensure you follow safety precautions and handle components with care to avoid damage.
You'll need basic tools such as a screwdriver, soldering iron, wire cutters, and possibly some adhesive materials like hot glue.
