Arduino LCD displays are versatile components that can greatly enhance your projects by providing real-time information and user feedback. Whether you're building a temperature monitor, a digital clock, or a custom control panel, mastering the use of LCD displays will open up a world of possibilities for your Arduino creations.
Before we dive into the setup and programming, let's gather the necessary components:
- Arduino board (e.g., Arduino Uno)
- 16x2 LCD display (compatible with Hitachi HD44780 driver)
- Breadboard
- Jumper wires
- Potentiometer (10k ohm)
- 220-ohm resistor (for LCD backlight)
It's important to note that while we're focusing on the common 16x2 LCD display, the principles we'll discuss can be applied to other sizes as well, such as 20x4 displays.
Understanding the LCD pinout is crucial for proper connection. A typical 16x2 LCD has 16 pins, each with a specific function. We'll be using the LCD in 4-bit mode, which requires fewer connections and leaves more pins available on your Arduino for other components.

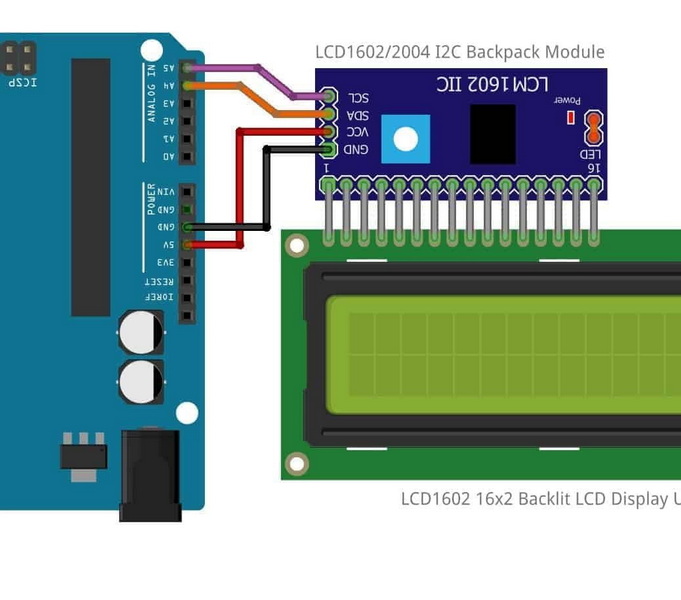

When wiring your LCD to the Arduino, take care to make secure connections. Loose wires can cause intermittent issues that can be frustrating to troubleshoot. It's also a good practice to use different colored wires for power, ground, and data lines to make your wiring easier to understand and debug.
The Arduino Integrated Development Environment (IDE) is where you'll write, compile, and upload your code to the Arduino board. If you're new to Arduino programming, take some time to familiarize yourself with the IDE's interface and basic functions.
The LiquidCrystal library is a powerful tool that simplifies the process of communicating with LCD displays. While it comes pre-installed with the Arduino IDE, it's always a good idea to check for updates, as newer versions may include bug fixes or additional features.

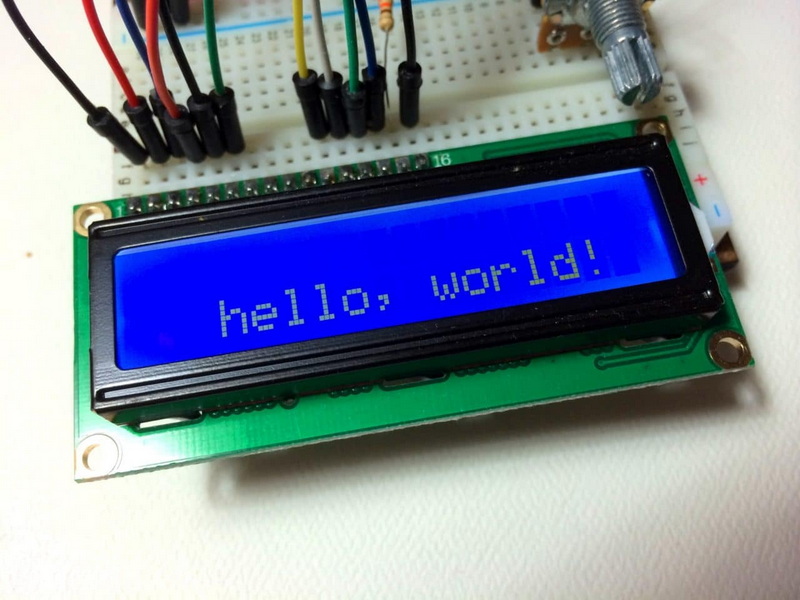

Starting with a simple "Hello, World!" program is a great way to ensure your LCD is properly connected and functioning. Once you've successfully displayed your first message, you can move on to more complex operations.
Scrolling text is not only visually appealing but also practical when you need to display messages longer than the LCD's width. When implementing scrolling text, consider the speed of scrolling – too fast can make it difficult to read, while too slow might frustrate users.
Custom characters allow you to display unique symbols or simple graphics on your LCD. This feature is particularly useful for creating intuitive user interfaces or displaying special indicators. Remember that most LCD displays can store up to eight custom characters at a time.
One of the most common uses for LCD displays in Arduino projects is to show sensor readings. When displaying sensor data, consider the update frequency – updating too often can make the display hard to read, while infrequent updates might miss important changes.
Even experienced makers can run into issues with LCD displays. Patience and systematic troubleshooting are key to resolving these problems. Always start with the basics: check your wiring, power supply, and code for any obvious errors.
As you become more comfortable with LCD programming, you can start incorporating displays into more complex projects. Here are some ideas to inspire you:
A digital clock is a classic project that combines timekeeping with display functionality. Consider adding features like date display, alarms, or even time zone conversion to make your clock more versatile.
Creating a menu system is an excellent way to make your projects more interactive. When designing your menu, think about user experience – how will users navigate through options, and how will you provide feedback on their selections?
A weather station is a perfect project for showcasing multiple sensor readings on an LCD display. You could expand this project by adding data logging capabilities or connecting it to the internet to display weather forecasts.
To take your LCD projects to the next level, consider these additional tips and techniques:
If you're building a portable project, power consumption becomes a crucial factor. LCD displays, especially those with backlights, can drain batteries quickly. Implement power-saving features like turning off the backlight when idle or using sleep modes for both the Arduino and LCD.
While LCDs are great for displaying information, they're not always the best for user input. Consider combining your LCD with other interface elements like buttons, rotary encoders, or even touch sensors to create more interactive projects.
Presenting data clearly on an LCD with limited space requires thoughtful formatting. Use techniques like rounding numbers, using appropriate units, and clever abbreviations to make the most of your display's real estate.
Even with character-based LCDs, you can create simple animations using custom characters. For example, you could create a loading bar, animated icons, or even simple game graphics.
For more complex projects, you might want to use multiple LCD displays. This could allow you to show different types of information simultaneously or create larger display areas. Coordinating multiple displays requires careful planning of your Arduino's pin usage and potentially using I2C expanders to free up pins.
By combining LCD displays with serial communication, you can create projects that display data received from a computer or other devices. This opens up possibilities for creating Arduino-based monitoring systems for various applications.
As you work on more complex LCD projects, keep these best practices in mind:
1. Modular Code: Write functions for common LCD operations to make your code more readable and reusable.
2. Efficient Updates: Only update the parts of the display that have changed to reduce flickering and improve performance.
3. Error Handling: Implement error checking and display meaningful error messages on the LCD when things go wrong.
4. Documentation: Comment your code thoroughly, especially for custom character definitions and complex display routines.
5. Testing: Develop a test routine that exercises all aspects of your LCD code to ensure everything works as expected.
While character LCDs are still widely used, the world of displays is constantly evolving. Keep an eye on emerging technologies like OLED displays, e-paper screens, and color TFT LCDs. Many of these can be used with Arduino, offering new possibilities for your projects.
As you continue to explore the world of Arduino and LCD displays, remember that the key to success is experimentation and persistence. Don't be afraid to try new things, and learn from both your successes and failures.
Mastering the use of LCD displays with Arduino opens up a world of possibilities for your projects. From simple text displays to complex menu systems and sensor readouts, LCDs provide an excellent way to add visual feedback to your Arduino creations. Remember to experiment, troubleshoot patiently, and most importantly, have fun creating!
As you continue to develop your skills, you'll find that LCD displays can be integrated into almost any Arduino project, enhancing functionality and user experience. Whether you're building home automation systems, educational tools, or interactive art installations, the ability to effectively use LCD displays will be an invaluable skill in your maker toolkit.
Here are some frequently asked questions about Arduino LCD displays:
Strange characters on your LCD display can be caused by incorrect wiring or improper initialization. Double-check your connections, especially the data pins (D4-D7), and ensure you've properly initialized the LCD in your setup() function using lcd.begin(16, 2) for a 16x2 display.
The contrast of your LCD display can be adjusted using the potentiometer connected to the V0 pin (pin 3) of the LCD. Turn the potentiometer clockwise or counterclockwise to increase or decrease the contrast until the text is clearly visible.
Yes, you can use larger LCD displays, such as 20x4 or even graphic LCDs, with Arduino. The wiring remains similar, but you'll need to adjust the lcd.begin() function in your code to match the dimensions of your display. For example, for a 20x4 display, use lcd.begin(20, 4).
Custom characters can be created using the lcd.createChar() function. Define your character as an array of bytes representing the pixel pattern, then use lcd.createChar() to store it in the LCD's memory. You can then display the custom character using lcd.write().
LCD displays can operate in either 4-bit or 8-bit mode. In 4-bit mode, only four data pins (D4-D7) are used, which saves Arduino pins but requires two write operations per byte. In 8-bit mode, all eight data pins (D0-D7) are used, allowing for faster communication but requiring more Arduino pins. For most applications, 4-bit mode is sufficient and is the most commonly used.
