Volumio is a popular open-source music player designed to run on embedded systems, particularly the Raspberry Pi. Combining Volumio with a 3.5-inch TFT LCD display creates a compact, user-friendly music player with a dedicated interface. This article provides a comprehensive guide to setting up a 3.5-inch TFT LCD display with Volumio on a Raspberry Pi, ensuring you can enjoy your music with an interactive touch interface.
Volumio is a free and open-source operating system designed for music playback. It supports various audio formats, streaming services, and network protocols, making it a versatile choice for audiophiles. Volumio can be controlled via a web interface, smartphone app, or through a connected display. Its modular design allows for extensive customization through plugins, catering to diverse user preferences.
Using a TFT LCD display with Volumio offers several advantages:
- Intuitive Interface: A touchscreen provides a direct and interactive way to control your music playback, making navigation and selection seamless.
- Compact Design: Integrates the control interface directly into the device, reducing the need for external devices and creating a neat, all-in-one solution.
- Customization: Allows for a personalized user experience with customizable themes and settings, allowing for a tailored interface that matches individual preferences.
- Portability: Transforms your Volumio setup into a portable music player.
Before starting, ensure you have the following components:
- Raspberry Pi: (Model 3B, 3B+, or 4 recommended) - For optimal performance, a model with sufficient processing power and RAM is recommended.
- 3. 5-inch TFT LCD Display: Compatible with Raspberry Pi GPIO pins, including capacitive or resistive touch functionality.
- MicroSD Card: (8GB or larger) with Volumio image - A high-speed card (Class 10 or UHS-I) is recommended for faster boot times.
- Power Supply: For the Raspberry Pi - Ensure it meets the power requirements of both the Raspberry Pi and the TFT display.
- Ethernet Cable or Wi-Fi: For internet connectivity - Reliable internet access is crucial for initial setup and software updates.
- Putty: An SSH client - or any other SSH client.
- Optional: A USB drive with music files - For local music playback.
1. Visit the official Volumio website and download the latest Raspberry Pi image, ensuring it is compatible with your Raspberry Pi model.
2. Use a tool like balenaEtcher to flash the Volumio image onto your microSD card. Verify the integrity of the flashed image to avoid potential issues during bootup.
1. Insert the microSD card into the Raspberry Pi.
2. Connect the Raspberry Pi to your network via Ethernet or Wi-Fi.
3. Power on the Raspberry Pi and wait for it to boot.
4. Open a web browser and navigate to `volumio.local` to access the Volumio web interface.
Follow the on-screen instructions to configure basic settings such as:
- Language: Set your preferred language for the user interface.
- Audio Output: Configure audio output settings to match your audio hardware.
- Network Settings: If using Wi-Fi, configure the Wi-Fi network.
1. In the Volumio web interface, go to `Settings > Plugins`.
2. Click on the "Installed Plugins" tab.
3. Search for "Touch Display" in the list of available plugins, or look for the plugin in the "Browse Plugins" section.
1. Click the "Install" button next to the "Touch Display" plugin.
2. Wait for the installation to complete. This may take several minutes, depending on your internet connection speed.
3. Once installed, enable the plugin.

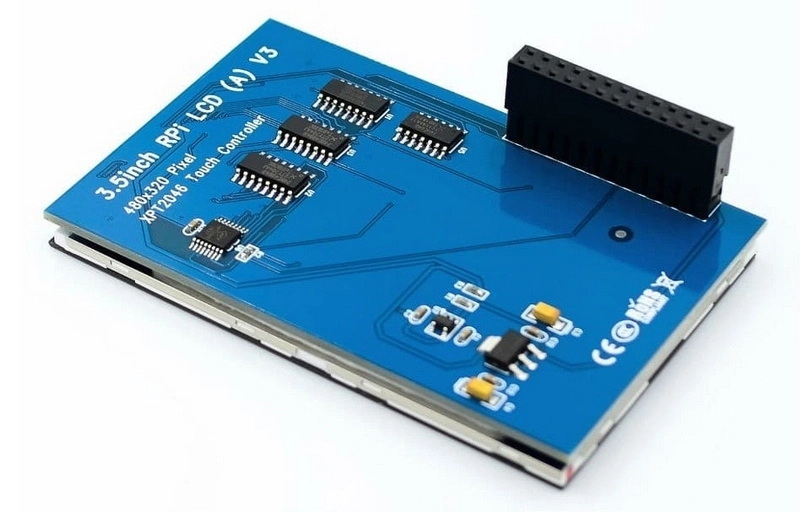

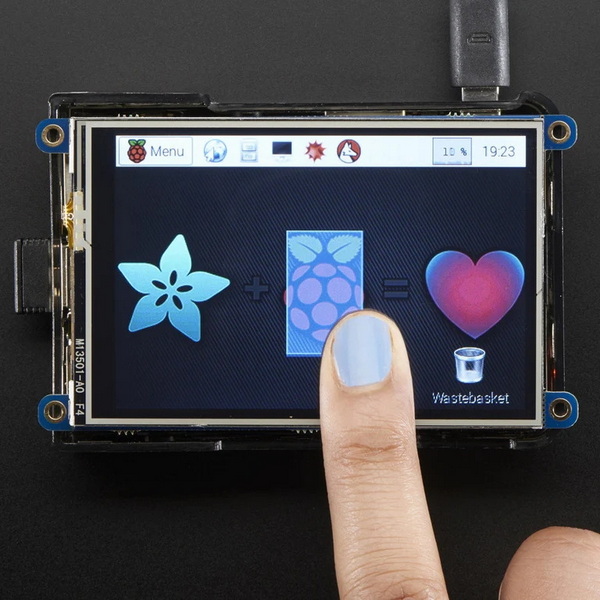

1. Carefully connect the 3.5-inch TFT LCD display to the GPIO pins on your Raspberry Pi. Refer to the manufacturer's instructions for the correct pin configuration. Proper wiring is critical for ensuring that your display functions correctly. Take care in following the pin configuration provided by the manufacturer of your TFT display, as incorrect connections can lead to malfunctions or even damage components. Some displays require specific pin assignments for optimal performance.
2. Ensure that all connections are secure before powering on the Raspberry Pi to prevent accidental disconnections or shorts.
1. Navigate to `volumio.local/dev` in your web browser.
2. Enable SSH by selecting "Enable". This allows you to access the Raspberry Pi via a terminal, which is necessary for installing and configuring drivers.
1. Open a terminal application like PuTTY and connect to `volumio.local`.
2. Use the default credentials: `username: volumio`, `password: volumio`.
1. Clone the required repository:
git clone https://github.com/goodtft/LCD-show
This repository contains drivers and scripts for many TFT LCD displays.
2. Change the directory:
cd LCD-show
3. Install the LCD35 driver:
sudo ./LCD35-show
This step installs necessary drivers for the TFT display to communicate effectively with Volumio. The script configures the Raspberry Pi kernel to recognize and utilize the TFT LCD.
1. If the display is upside down or sideways, edit the `config.txt` file:
sudo nano /boot/config.txt
2. Add the following line to rotate the display:
dtoverlay=tft35a:rotate=270
Adjust the rotation angle (0, 90, 180, 270) as needed. Save and exit the nano editor by pressing Ctrl+X, then Y, then Enter.
1. After rebooting, go to the Touch Display plugin settings in Volumio: `volumio.local/plugin-manager`.
2. Rotate the screen to match the display orientation (90 or 270 degrees). This ensures that touch inputs align correctly with the visual display.
1. After making changes, reboot the Raspberry Pi to ensure all configurations take effect properly:
sudo reboot
This step is crucial as it ensures that all settings are applied correctly before testing out functionality on your TFT display.
1. After rebooting, check if the display shows the Volumio interface clearly and is responsive to touch inputs.
2. If touch functionality is not aligned correctly, you may need to calibrate it using specific calibration tools available within Linux environments.
- Check Connections: Ensure all connections are secure and that the TFT LCD is properly seated on the GPIO pins. Use a multimeter to test for continuity if necessary.
- Verify Drivers: Confirm that you have installed the correct drivers for your specific TFT LCD model. Consult the manufacturer's documentation for detailed installation instructions.
- Configuration Files: Double-check the `config.txt` file for any errors. Ensure that the `dtoverlay` line is correctly formatted and that there are no conflicting settings.
- Power Supply: Ensure the power supply is providing sufficient power. An inadequate power supply can lead to display malfunctions.
- Calibration: Calibrate the touchscreen using tools like `xinput_calibrate`. Run the command in the terminal and follow the on-screen instructions.
- Driver Compatibility: Ensure that the touch input drivers are compatible with your display and Volumio version. Check the manufacturer's website for updated drivers.
- Interference: Electrical interference can sometimes affect touch functionality. Ensure there are no nearby devices causing interference.
- Verify SSH is Enabled: Make sure SSH is enabled in the Volumio settings. Check `volumio.local/dev` to confirm that SSH is activated.
- Network Connectivity: Check that the Raspberry Pi is connected to the network. Use the `ping volumio.local` command to test network connectivity.
- Firewall Settings: Ensure that your firewall is not blocking SSH connections. Temporarily disable the firewall to test if it is the cause of the issue.
- IP Address: If `volumio.local` does not work, try connecting using the Raspberry Pi's IP address.
1. Volumio supports various themes that can be installed via its plugin system, allowing users to customize their interface's look and feel. Navigate to `Settings > Appearance` to select and apply different themes.
2. Explore different themes to find one that suits your preferences and enhances usability on the 3.5-inch display.
1. Connect a USB drive with your music files to the Raspberry Pi.
2. Volumio will automatically detect and index the music files, making them available in your library. Ensure the USB drive is formatted with a compatible file system (FAT32, NTFS, or exFAT).
1. Web Radio: Add and listen to internet radio stations by navigating to `Browse > Webradio` in the Volumio interface.
2. Spotify and Tidal: Integrate your Spotify or Tidal accounts for streaming music by installing the respective plugins from the "Plugins" section.
3. Multiroom Audio: Set up multiple Volumio devices for synchronized audio playback throughout your home. Use the Volumio multiroom feature to group devices together.
4. DLNA/UPnP: Enable DLNA/UPnP support to stream music from other devices on your network. Configure the settings under `Sources > DLNA`.
1. DAC (Digital-to-Analog Converter): Consider using an external DAC to improve audio quality. Connect the DAC via USB or I2S and configure Volumio to use the external DAC as the audio output.
2. Audio Settings: Adjust audio settings in Volumio, such as resampling and buffer size, to optimize audio playback.
Setting up a 3.5-inch TFT LCD display with Volumio on a Raspberry Pi can significantly enhance your audio experience by providing an intuitive touch interface for music control and navigation. By following this guide step-by-step, you should be able to enjoy a fully functional setup that allows you to engage with your music library effortlessly while customizing it according to personal preferences and needs. The combination of Volumio's versatile music playback capabilities and a dedicated touch display creates a streamlined and enjoyable user experience.
A TFT LCD display provides a visual interface for navigating music libraries, adjusting settings, and controlling playback without needing an external monitor or keyboard. It makes the system more compact and user-friendly.
Yes, while this guide focuses on a 3.5-inch display, other sizes can also work as long as they are compatible with Raspberry Pi and have appropriate drivers available. Configuration steps may vary slightly.
Ensure all connections are secure, verify that you've installed necessary drivers correctly, and check configuration files for errors. Consult the manufacturer's documentation for detailed troubleshooting steps.
Yes, Volumio supports various themes that can be installed via its plugin system, allowing users to customize their interface's look and feel. Explore available themes under `Settings > Appearance`.
You can improve touch accuracy by calibrating your touchscreen using tools like `xinput_calibrate`, adjusting settings in both configuration files and plugin options until touch input aligns correctly with visual output. Ensure no electrical interference is affecting the touch response.
