Liquid Crystal Displays (LCDs) have become ubiquitous in modern electronics, from simple calculators to complex computer screens. Among the various types of LCDs, text LCD displays are particularly popular for their simplicity and effectiveness in conveying information. This article delves into the workings of text LCD displays, exploring their components, operation, interfacing with microcontrollers, applications, and more.
A text LCD display is a type of LCD that primarily shows alphanumeric characters and symbols. They are commonly used in devices like digital clocks, appliances, and various electronic projects. The most common format is the 16x2 display, which can show 16 characters per line across two lines.
1. Liquid Crystal Panel: The core of the display, made up of liquid crystal molecules sandwiched between two layers of glass or plastic.
2. Backlight Module: Provides illumination for the display, often using LEDs.
3. Driver IC: Controls the voltage applied to the liquid crystal layer.
4. Control IC: Manages the overall functionality of the display, including brightness and contrast.
Text LCD displays are constructed using several layers:
- Polarizing Filters: These filters are placed on both sides of the liquid crystal layer. They allow light to pass through in a specific orientation.
- Glass Substrates: The polarizing filters are adhered to glass substrates that protect the liquid crystal material.
- Liquid Crystal Layer: This layer contains liquid crystals that react to electric fields by changing their alignment and thus modulating light.
- Electrodes: Thin transparent electrodes are placed on the glass substrates, allowing for voltage application to control the liquid crystals.
Text LCD displays operate based on the manipulation of light through liquid crystals. When an electric current is applied to the liquid crystal layer, it alters the orientation of the liquid crystals, which in turn affects how light passes through them.

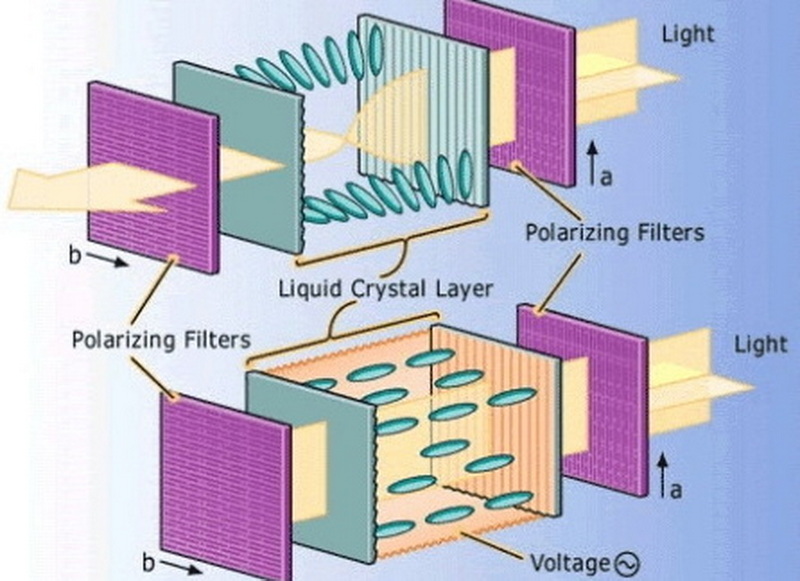

1. Polarization: The display uses two polarizing filters aligned perpendicular to each other. Without liquid crystals in between, light passing through one filter would be blocked by the other.
2. Liquid Crystal Alignment: When voltage is applied, the liquid crystals align themselves in such a way that they twist the polarization of light passing through them.
3. Light Transmission: Depending on the voltage applied, some light can pass through both filters while other configurations block it entirely, resulting in visible characters on the display.
The most common type used in text LCDs is Twisted Nematic (TN) liquid crystals. These crystals twist light as it passes through them when voltage is applied.
- Fast Response Time: TN crystals have a quick response time, making them suitable for applications where refresh rates matter.
- Cost-Effective: They are cheaper to produce compared to other types like In-Plane Switching (IPS) or Vertical Alignment (VA) technologies.
The contrast ratio of a text LCD display is crucial for readability. It is determined by how effectively the liquid crystals can block or allow light to pass through when different voltages are applied.
1. Backlight Intensity: A brighter backlight can improve visibility but may also increase power consumption.
2. Ambient Light Conditions: In bright environments, reflections can reduce contrast; hence anti-reflective coatings can be beneficial.
3. Viewing Angle: TN displays typically have limited viewing angles compared to IPS displays; however, they suffice for applications where direct frontal viewing is standard.
To interface a text LCD with a microcontroller like an Arduino, you typically connect several pins:
- Data Pins: Used to send data to be displayed.
- Control Pins: Include RS (Register Select), RW (Read/Write), and E (Enable).
Beyond simply displaying text, text LCDs can be controlled using various commands:
- Clear Display: Clears all characters from the display.
- Set Cursor Position: Moves the cursor to a specified location on the display.
- Display On/Off Control: Turns the entire display on or off without clearing it.
Text LCD displays are widely used due to their versatility and ease of use:
- Consumer Electronics: Such as microwaves and washing machines where simple user interfaces are needed.
- Industrial Equipment: For status displays and user interfaces in machinery and control panels.
- Educational Projects: Commonly used in DIY electronics projects for beginners who wish to learn programming and hardware interfacing.
1. Home Automation Systems: Text LCDs can be used as part of user interfaces for home automation systems where users need to input commands or view system statuses.
2. Medical Devices: Devices like blood glucose meters often use text LCDs due to their clear readability and low power consumption requirements.
3. Robotics Projects: In robotics applications, text LCDs provide feedback on sensor readings or system status without requiring complex graphical interfaces.
Text LCD displays offer several advantages that make them suitable for various applications:
- Low Power Consumption: Ideal for battery-operated devices; they consume significantly less power than LED or OLED displays when displaying static images or text.
- Cost-Effective: Generally cheaper than other types of displays such as OLEDs or TFT screens.
- Easy to Interface: Simple wiring and programming make them accessible for hobbyists and beginners alike.
While there are many advantages to using text LCDs, there are also some limitations:
1. Limited Graphics Capability: Unlike graphical displays that can show images or complex graphics, text LCDs are limited to alphanumeric characters and symbols.
2. Viewing Angles: Many text LCDs have limited viewing angles compared to modern IPS technology displays; this may affect usability depending on placement.
3. Refresh Rate Limitations: While suitable for static information display, they may not perform well for rapidly changing content.
Text LCD displays are essential components in many electronic devices due to their efficiency in displaying information clearly and concisely. Understanding how they work not only helps in using them effectively but also in troubleshooting and designing new applications. Their low cost and ease of integration make them an ideal choice for hobbyists and professionals alike.
As technology continues to advance, we may see improvements in display technology that could enhance or replace traditional text LCDs; however, their fundamental principles will remain relevant as long as there is a need for simple and effective information presentation.
LCDs use liquid crystals to modulate light while LEDs use light-emitting diodes to create images directly.
Yes, text LCD displays can be interfaced with Raspberry Pi using appropriate libraries and GPIO pins.
Brightness can often be adjusted by changing the voltage supplied to the backlight LED or using PWM control if supported.
Common languages include C/C++ (for Arduino), Python (for Raspberry Pi), and JavaScript (for web-based projects).
Yes, text LCDs come in various sizes such as 16x2, 20x4, etc., indicating the number of characters displayed per line and lines available.
