Organic Light-Emitting Diode (OLED) technology has revolutionized the display industry by offering vibrant colors, deep contrast, and energy efficiency. One of the most exciting advancements is the development of flexible OLED screens, which enable new form factors such as foldable smartphones, rollable TVs, and wearable devices. This article delves into how OLED screens are made flexible, the materials and technologies involved, and the future potential of this innovative display technology.

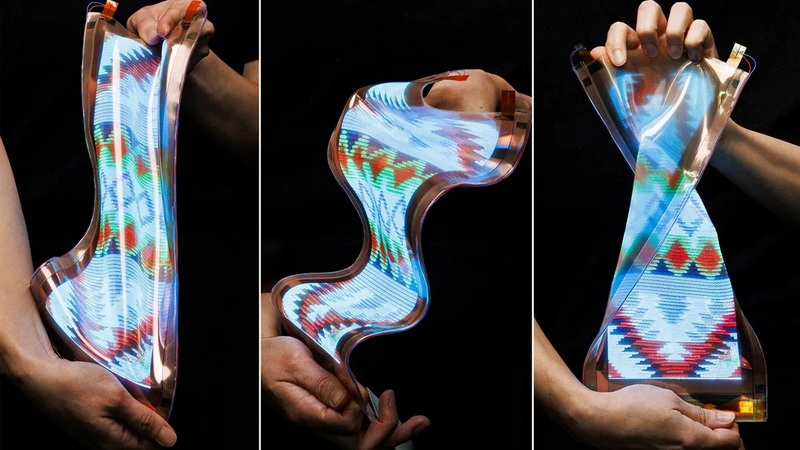

A flexible OLED screen is a display that can bend, fold, or roll without losing functionality. Unlike traditional rigid displays that use glass substrates, flexible OLEDs are built on pliable materials like plastic or ultra-thin glass, allowing them to conform to various shapes and withstand mechanical stress.
Flexible OLEDs have evolved through generations:
- First generation: OLEDs on flexible substrates that are curved or bent during manufacturing but not bendable by users.
- Second generation: Truly bendable and foldable OLEDs that users can manipulate, enabling foldable smartphones and other devices.
- Emerging forms: Rollable and stretchable OLEDs that can be rolled up or stretched while maintaining display performance.
The substrate is the base layer supporting the OLED structure. For flexible OLEDs, traditional glass is replaced with flexible materials such as:
- Polyimide (PI): A plastic polymer known for its excellent thermal stability, flexibility, and durability.
- Ultra-Thin Glass (UTG): Glass processed to be extremely thin and flexible, combining the hardness and transparency of glass with the flexibility of plastic.
- Metal Foils: Occasionally used for their flexibility and conductivity.
The choice of substrate is crucial as it must be transparent, smooth, and defect-free to ensure uniform layer deposition and light emission.
OLEDs consist of multiple organic molecular layers sandwiched between electrodes. These layers include:
- Emissive Layer: Contains organic molecules that emit light when an electric current passes through.
- Conductive Layer: Helps transport electrical charges to the emissive layer.
The organic materials are carefully engineered to be flexible and maintain luminescence even when bent or stretched. Recent research focuses on polymers with bendable molecular chains that combine flexibility with efficient light emission.
TFTs control the current flow to each pixel, turning them on or off and adjusting brightness. For flexible OLEDs, TFTs are made from materials like amorphous silicon or low-temperature polysilicon that can bend without losing electronic properties.
OLED materials are sensitive to moisture and oxygen, which degrade performance. Flexible OLEDs use advanced encapsulation techniques involving multilayer thin films of inorganic and organic materials to protect the display while maintaining flexibility. This thin-film encapsulation (TFE) prolongs device lifespan and prevents environmental damage.
High-performance adhesives bond the layers together, balancing flexibility and strength to endure repeated bending. Protective coatings shield the screen from scratches and wear, essential for devices like smartphones and wearables.
The flexible substrate (polyimide or UTG) is cleaned and treated to create a smooth surface for subsequent layer deposition.
A matrix of thin-film transistors is deposited on the substrate to control pixel operation.
Organic layers responsible for light emission are deposited using vacuum deposition or printing techniques. These layers include the emissive and conductive materials.
Transparent electrodes (often indium tin oxide or flexible alternatives like graphene) are applied to enable electrical conduction.
The OLED layers are sealed with multilayer thin films to protect against moisture and oxygen ingress while maintaining flexibility.
The OLED panel is connected to driver integrated circuits (ICs), flexible printed circuits (FPCs), and covered with a protective window. The entire assembly is designed to be ultra-thin and lightweight.
Polyimide substrates are widely used due to their flexibility and thermal stability. However, ultra-thin glass (UTG) is gaining traction as it combines the durability and scratch resistance of glass with foldability. Samsung's foldable OLEDs use UTG that can withstand over 200,000 folds, making it suitable for long-term use in devices like foldable smartphones.
Replacing rigid glass encapsulation with multilayer thin-film barriers allows flexible OLEDs to maintain performance while bending. Alternating inorganic and organic layers create a tortuous path that prevents moisture and oxygen from reaching the organic layers.
Flexible OLEDs require circuits that can stretch and bend without failure. Innovations in stretchable wiring, miniaturization, and laser writing enable flexible circuits that endure thousands of bending cycles.
Advanced organic materials using TADF convert electrical energy into light efficiently while being flexible. This enhances brightness and energy efficiency, matching or exceeding conventional OLED performance.
- Foldable Smartphones: Devices that open like a book to provide larger screens while remaining pocketable.
- Rollable TVs: Large displays that roll up for easy storage and transport.
- Wearables: Smartwatches and fitness bands with curved or wrap-around displays.
- Automotive Displays: Flexible dashboards and control panels conforming to the vehicle's interior shape.
- Innovative Devices: Concept products like rollable tablets, flexible monitors, and conformable lighting panels.
- Thin and Lightweight: Flexible substrates reduce thickness and weight compared to glass-based displays.
- Durability: Plastic or UTG substrates are less prone to shattering.
- Energy Efficiency: OLEDs emit their own light, eliminating the need for backlighting and reducing power consumption.
- Superior Image Quality: High contrast ratios, vibrant colors, and wide viewing angles.
- Design Freedom: Enables new form factors like foldable, rollable, and stretchable devices.
- Durability: Repeated bending can cause mechanical stress and potential failure.
- Encapsulation: Protecting sensitive organic layers from moisture and oxygen remains complex.
- Manufacturing Costs: Flexible OLED production requires advanced materials and processes, increasing costs.
- Integration: Combining flexible displays with flexible electronics and batteries is challenging.
- Material Limitations: Finding materials that balance flexibility, durability, and performance is ongoing.
The future of flexible OLED technology is promising, with ongoing research focusing on improving durability, reducing costs, and expanding applications. Some emerging trends include:
- Stretchable OLEDs: Beyond bending and folding, stretchable OLEDs can expand and contract, opening possibilities for wearable devices that conform more naturally to the human body.
- Transparent and Dual-Sided Displays: Flexible OLEDs that are transparent or can display images on both sides are under development, enabling new interactive applications.
- Integration with Sensors: Embedding sensors directly into flexible OLED displays could lead to smart surfaces capable of touch, health monitoring, and environmental sensing.
- Roll-to-Roll Manufacturing: This high-throughput production technique promises to lower costs and increase scalability by printing OLED layers on flexible substrates continuously.
- Improved Materials: Development of novel organic compounds and flexible electrodes such as graphene and silver nanowires aims to enhance brightness, lifespan, and flexibility.
These innovations will further expand the versatility and adoption of flexible OLEDs across industries.
Flexible OLED screens represent a transformative leap in display technology, combining the superior image quality and energy efficiency of OLEDs with the mechanical flexibility needed for new device designs. Through innovations in flexible substrates, thin-film encapsulation, bendable electronics, and advanced organic materials, manufacturers have created displays that can bend, fold, and roll without compromising performance. While challenges remain in durability and cost, the rapid progress and growing adoption in smartphones, wearables, and TVs signal a bright future for flexible OLED technology. This flexibility not only enhances user experience but also opens the door to entirely new categories of electronic devices, reshaping how we interact with screens.
Flexible OLED screens use plastic substrates like polyimide or ultra-thin glass instead of rigid glass. Organic layers with flexible polymers and flexible electrodes like indium tin oxide or graphene also contribute to flexibility.
They use thin-film encapsulation layers made of alternating inorganic and organic films that create a barrier against moisture and oxygen, protecting the sensitive organic layers inside.
Yes, with advanced materials and design, flexible OLEDs can endure hundreds of thousands of folds. For example, Samsung's ultra-thin glass has been tested to withstand over 200,000 folds at room temperature.
Applications include foldable smartphones, rollable TVs, wearable devices, automotive displays, and innovative form factors like rollable tablets and flexible monitors.
Flexible OLEDs offer better contrast, wider viewing angles, faster response times, thinner profiles, and do not require backlighting, making them more energy-efficient and visually superior to LCDs.
