Character LCDs (Liquid Crystal Displays) are ubiquitous in embedded systems and hobbyist projects, offering a simple and effective way to display textual information. These displays are favored for their ease of use, low cost, and compatibility with a wide range of microcontrollers. This article delves into the intricacies of character LCDs, focusing on their line display capabilities, underlying technology, interfacing methods, and practical applications.

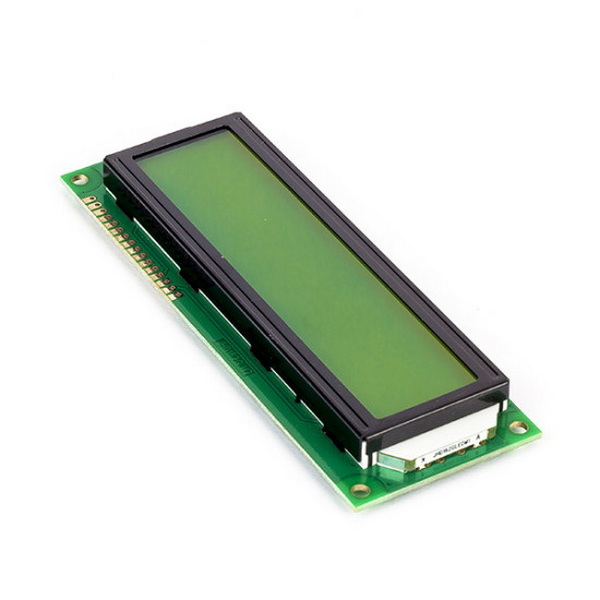

A character LCD is a type of display that presents information in the form of alphanumeric characters and symbols. Unlike graphic LCDs, which can display arbitrary images and patterns, character LCDs are limited to a predefined set of characters. These characters are typically arranged in a grid, such as 16x2 (16 characters per line, 2 lines) or 20x4 (20 characters per line, 4 lines).[3].
Key Features of Character LCDs:
- Alphanumeric Display: Displays letters, numbers, and symbols.[3]
- Fixed Character Grid: Characters are arranged in rows and columns.[3]
- HD44780 Controller: Most character LCDs use the Hitachi HD44780 controller or a compatible chip[2].
- Parallel or Serial Interface: Can be interfaced using parallel (4-bit or 8-bit) or serial (I2C, SPI) communication[3].
- Backlight: Often equipped with an LED backlight for better visibility[3].
- Low Power Consumption: Generally consumes less power compared to graphic LCDs[3].
The number of lines a character LCD can display is a crucial specification that determines the amount of information it can present at a time. Common configurations include 1, 2, or 4 lines[1].
- Single-Line LCDs: These are less common today but were among the earliest character LCDs. They typically display 8 or 16 characters.

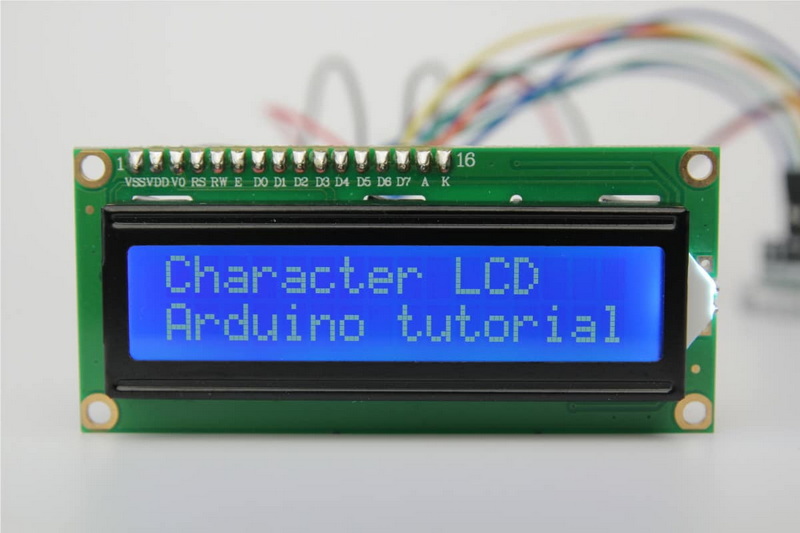

- Two-Line LCDs: The most popular configuration, often with 16 or 20 characters per line (16x2 or 20x2)[3].

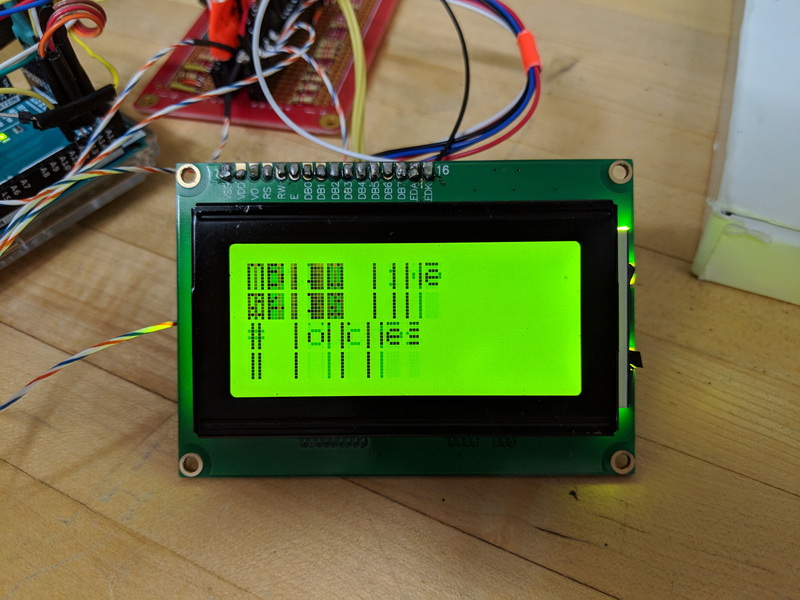

- Four-Line LCDs: Provides more display space, typically with 16 or 20 characters per line (16x4 or 20x4)[2].
It's also possible to create displays with more lines by daisy-chaining multiple HD44780 controllers, although this is less common due to the availability of graphic LCDs and OLED displays that offer more flexibility[1].
The HD44780 controller is the heart of most character LCDs. It manages the display of characters, controls the cursor, and handles communication with the host microcontroller[2].
Key Features of the HD44780:
- Character ROM (CGROM): Contains a predefined set of characters and symbols[6].
- Character RAM (CGRAM): Allows the user to define custom characters[1].
- Display Data RAM (DDRAM): Stores the characters to be displayed on the LCD[4].
- Control Registers: Configures the display mode, cursor position, and other settings[6].
The HD44780's DDRAM has a capacity of 80x8 bits, which means it can store up to 80 characters. However, not all of these characters are visible on the display at once. For example, a 16x2 LCD displays only 32 characters out of the 80 stored in DDRAM[4].
Understanding how memory is mapped in the HD44780 is essential for effectively using character LCDs. The DDRAM is organized as a contiguous block of memory, but the mapping of characters to the display lines can be non-intuitive[2].
For a 2-line display, the memory map is typically as follows:
- Line 1: Addresses 0x00 to 0x3F
- Line 2: Addresses 0x40 to 0x7F
For a 4-line display, the memory map is often arranged as:
- Line 1: Address 0x00
- Line 2: Address 0x40
- Line 3: Address 0x10
- Line 4: Address 0x50
This mapping means that to display text on the third line, you need to write to address 0x10, not 0x20. This is a common source of confusion for beginners[2].

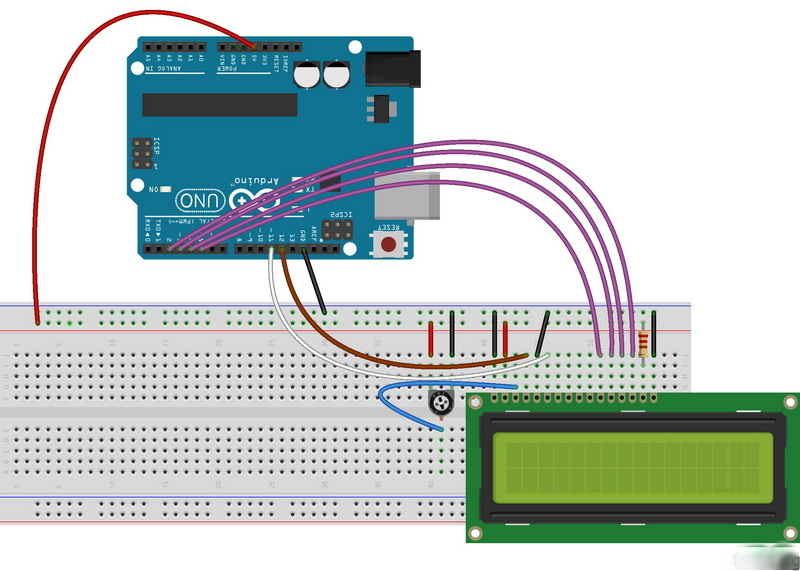

Character LCDs can be interfaced with microcontrollers using either parallel or serial communication.
The parallel interface typically uses 4 or 8 data lines, along with control lines such as RS (Register Select), EN (Enable), and RW (Read/Write).
- 8-bit Mode: Uses all 8 data lines for faster data transfer. Requires more I/O pins on the microcontroller.
- 4-bit Mode: Uses only 4 data lines by sending data in two nibbles (4 bits at a time). Saves I/O pins but is slightly slower.
The serial interface, particularly I2C, is becoming increasingly popular because it requires only two data lines (SDA and SCL) and two power lines (VCC and GND). This significantly reduces the number of I/O pins needed on the microcontroller[3].
- Power Supply: Ensure the LCD is powered with the correct voltage (typically 5V or 3.3V)[3].
- Contrast Adjustment: Use a potentiometer to adjust the contrast for optimal visibility.
- Backlight Control: Control the backlight to save power or adjust brightness.
- Character Encoding: Use the correct character encoding (usually ASCII) to display characters correctly[4].
Character LCDs are used in a wide variety of applications:
- Embedded Systems: Displaying sensor data, status messages, and user interfaces[3].
- Industrial Control: Monitoring and controlling industrial processes.
- Consumer Electronics: Displaying information on devices like calculators, microwave ovens, and coffee machines.
- Hobbyist Projects: Interfacing with Arduino, Raspberry Pi, and other microcontrollers for DIY projects.
- Telemetry Display: Showcasing real-time data in telemetry systems[3].
- Home Automation: Displaying status and control options for home automation systems[3].
- Human-Machine Interfaces: Providing a simple interface for users to interact with machines[3].
Character LCDs are a simple yet powerful way to display textual information in a variety of applications. Understanding their line display capabilities, underlying technology, and interfacing methods is essential for effectively integrating them into your projects. Whether you're a hobbyist or a professional engineer, character LCDs offer a cost-effective solution for displaying data and creating user interfaces.
To display custom characters, you need to define them in the Character Generator RAM (CGRAM) of the HD44780 controller. The CGRAM allows you to create up to 8 custom characters. Each character is defined as a 5x8 pixel matrix.
The primary difference is the display capacity. A 16x2 LCD has 16 characters per line and 2 lines, while a 20x4 LCD has 20 characters per line and 4 lines. This means the 20x4 LCD can display more information at once compared to the 16x2 LCD[1]. The choice between them depends on the amount of data you need to display in your application.
Scrolling text can be achieved by shifting the display or the cursor position. The HD44780 controller provides commands to shift the display content to the left or right.
Yes, you can use multiple character LCDs with a single microcontroller. If using a parallel interface, each LCD would require its own set of I/O pins, which can quickly become a limiting factor. A more efficient approach is to use I2C-based LCDs, as multiple I2C devices can share the same two data lines (SDA and SCL). You'll need an I2C multiplexer if the LCDs have the same address[3].
Common issues include:
No Display:
- Check the power supply and contrast adjustment.
- Verify the wiring connections.
- Ensure the LCD is properly initialized in the code.
Garbled Text:
- Check the character encoding and ensure it matches the LCD's character set.
- Verify the data transmission rate and timing.
- Make sure the correct LCD library is being used.
Backlight Issues:
- Check the backlight wiring.
- Ensure the backlight control pin is properly configured.
By systematically checking these potential issues, you can often resolve common problems encountered when using character LCDs.
