Dots per inch (DPI) is a term frequently encountered when discussing display technology, printing, and image resolution. In the context of LCD monitors, understanding DPI is crucial for optimizing viewing experience, ensuring image clarity, and making informed purchasing decisions. This article delves into the intricacies of DPI in LCD monitors, exploring its relationship with pixel density, resolution, screen size, and viewing distance. We will also address common misconceptions, provide practical guidance on choosing the right DPI for your needs, and answer frequently asked questions.
DPI stands for dots per inch, a measurement of the density of dots (or pixels) in a given space[5]. Although the term "dots" is more relevant to printing, in the context of digital displays, DPI is often used interchangeably with pixels per inch (PPI)[2]. PPI refers to the number of individual pixels contained within one inch of the display area[2]. A higher DPI or PPI value indicates a greater number of pixels packed into the same physical space, resulting in a sharper and more detailed image[1].
It's important to distinguish DPI from other related terms like resolution and pixel density to fully grasp its significance.

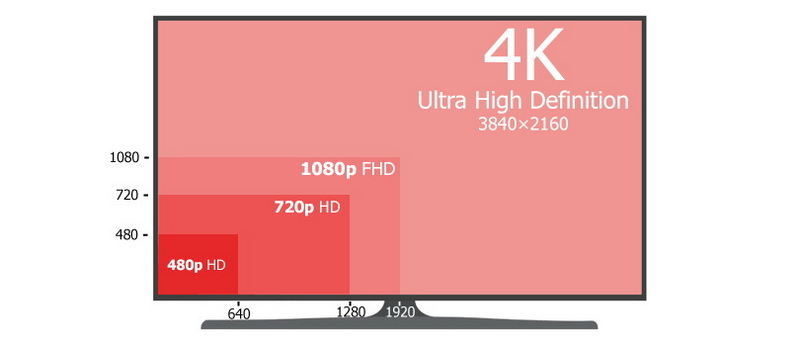

- Resolution: Resolution refers to the total number of pixels in a display, typically expressed as width x height (e.g., 1920x1080, 3840x2160)[2]. A higher resolution means more pixels overall, which can contribute to a more detailed image, especially on larger screens.
- Pixel Density (PPI): Pixel density, as mentioned earlier, is the number of pixels per inch[1]. It is determined by both the resolution and the physical size of the display. For example, a 27-inch monitor with a 3840x2160 resolution will have a higher pixel density than a 32-inch monitor with the same resolution[1].
While resolution determines the total number of pixels, DPI (or PPI) indicates how densely those pixels are packed together. A high-resolution display with a low DPI may not appear as sharp as a lower-resolution display with a high DPI[1].
DPI directly impacts the perceived image quality on an LCD monitor. A higher DPI results in:
- Sharper Text: Text appears crisper and more legible, reducing eye strain during prolonged use[1].
- Finer Details: Images exhibit greater detail and clarity, making them more realistic and immersive[1].
- Reduced Pixelation: Individual pixels become less noticeable, resulting in a smoother and more seamless visual experience.
However, there are also potential drawbacks to excessively high DPI values:
- Increased Processing Demands: Rendering images and graphics at very high DPI can put a strain on the computer's graphics processing unit (GPU), potentially leading to performance issues.
- Scaling Issues: Operating systems and applications may struggle to properly scale user interface elements at extremely high DPI settings, resulting in tiny or distorted text and icons.
DPI can be calculated using the following formula[2]:
1. Calculate diagonal resolution in pixels using the Pythagorean theorem:
2. Calculate the PPI:
PPI=dp/di
where:
- wp is width resolution in pixels
- hp is height resolution in pixels
- dp is diagonal size in pixels.
- di is diagonal size in inches (this is the number advertised as the size of the display).
For example, a 27-inch screen with a 3840x2160 resolution has a DPI of approximately 163[2].
While there is no single "standard" DPI for all LCD monitors, certain values are more common and generally considered optimal for specific use cases[1].
- 96 DPI: Historically, 96 DPI was the standard for computer displays, originating from the early days of Windows and Macintosh operating systems[6][2]. However, modern displays often exceed this value to provide sharper images.
- 110-140 DPI: This range is generally considered ideal for general-purpose computing, providing a good balance between image quality and performance[1]. Monitors in this range are suitable for office work, web browsing, and multimedia consumption.
- 140+ DPI: High-DPI displays offer exceptional image clarity and are particularly well-suited for tasks that require fine detail, such as graphic design, photo editing, and video production[1].
It is worth noting that a pixel density between 110 and 140 PPI is recommended for the best viewing experience[1].
The optimal viewing distance for an LCD monitor is closely related to its DPI[1]. A higher DPI allows for closer viewing distances without sacrificing image quality. Conversely, a lower DPI may require a greater viewing distance to avoid pixelation[1].
| Screen Size | Screen Resolution | Pixel Density | Optimal Viewing Distance |
|---|---|---|---|
| 24″ | 1920×1080 | 92 PPI | 37″ (94cm) |
| 27″ | 2560×1440 | 109 PPI | 32″ (81cm) |
| 32″ | 3840×2160 | 140 PPI | 25″ (64cm) |
| 34″ UltraWide | 3440×1440 | 110 PPI | 31″ (79cm) |
Selecting the appropriate DPI for an LCD monitor depends on several factors, including:
- Intended Use: If the monitor will be used primarily for general office work and web browsing, a DPI in the 110-140 range should suffice[1]. For more demanding tasks like graphic design or gaming, a higher DPI may be desirable.
- Screen Size: Larger screens generally benefit from higher DPI values to maintain image sharpness[1]. A 27-inch or larger monitor with a 1080p resolution may appear pixelated, while the same resolution on a smaller screen may look perfectly acceptable.
- Viewing Distance: If you tend to sit close to the monitor, a higher DPI is recommended[1]. If you sit further back, a lower DPI may be adequate.
- Budget: High-DPI monitors tend to be more expensive than their lower-DPI counterparts. It's important to balance your desire for image quality with your budgetary constraints.
Modern operating systems like Windows and macOS offer scaling options that allow users to adjust the size of text, icons, and other user interface elements[3]. Scaling can be useful for making the display more comfortable to view, especially on high-DPI monitors where elements may appear too small[3].
However, it's important to note that scaling is not a perfect solution. In some cases, scaling can introduce blurriness or distortion, particularly in older applications that are not designed to handle high DPI displays.
- Higher DPI is Always Better: While a higher DPI generally results in a sharper image, it's not always necessary or desirable[1]. Excessively high DPI values can strain system resources and lead to scaling issues[3].
- DPI is the Only Factor Determining Image Quality: Image quality is influenced by a variety of factors, including resolution, color accuracy, contrast ratio, and viewing angle. DPI is just one piece of the puzzle.
- DPI and Resolution are Interchangeable: DPI and resolution are related but distinct concepts. Resolution refers to the total number of pixels, while DPI refers to the density of those pixels[2].
As display technology continues to advance, we can expect to see even higher DPI values become more common. Smartphone manufacturers have already been pushing the boundaries of pixel density, with some devices exceeding 500 PPI[2]. It's likely that this trend will eventually extend to LCD monitors, resulting in even sharper and more immersive viewing experiences.
Kopin Corporation has already developed LCDs with extremely high pixel densities, such as a 0.44 inch SVGA LCD with 2272 PPI, and a 0.21 inch VGA color display with 3760-DPI[2]. These displays are designed for applications like high-resolution eyewear devices[2].
Understanding DPI is essential for choosing the right LCD monitor for your needs. By considering factors like intended use, screen size, viewing distance, and budget, you can select a monitor that provides a comfortable and visually pleasing viewing experience. While higher DPI values generally result in sharper images, it's important to strike a balance between image quality and performance. As display technology continues to evolve, we can expect to see even higher DPI values become more prevalent, further blurring the line between the digital and physical worlds.
The ideal DPI for a monitor typically falls between 110 and 140 PPI, offering a balance between sharpness and performance[1]. However, the best DPI depends on your specific needs, screen size, and viewing distance. For tasks requiring high detail, a DPI above 140 may be preferable.
You can calculate DPI using the formula: $$ PPI={\frac {d_{p}}{d_{i}}} $$ where $$ d_{p} $$ is the diagonal resolution in pixels (calculated using the Pythagorean theorem) and $$ d_{i} $$ is the diagonal size in inches[2].
Yes, a higher DPI generally results in better image quality, with sharper text, finer details, and reduced pixelation[1]. However, excessively high DPI can strain system resources and cause scaling issues.
Resolution refers to the total number of pixels in a display (e.g., 1920x1080), while DPI (or PPI) refers to the density of those pixels per inch[2].
Scaling allows you to adjust the size of text and other user interface elements on a display. While it can improve readability on high-DPI monitors, it may also introduce blurriness or distortion in some cases[3].
