Liquid Crystal Display (LCD) technology has revolutionized the way we view content on our televisions. This article delves into the intricate workings of LCD TV displays, exploring their components, mechanisms, and the science behind their operation. We'll also compare LCD technology to other display types and discuss its advantages and limitations.

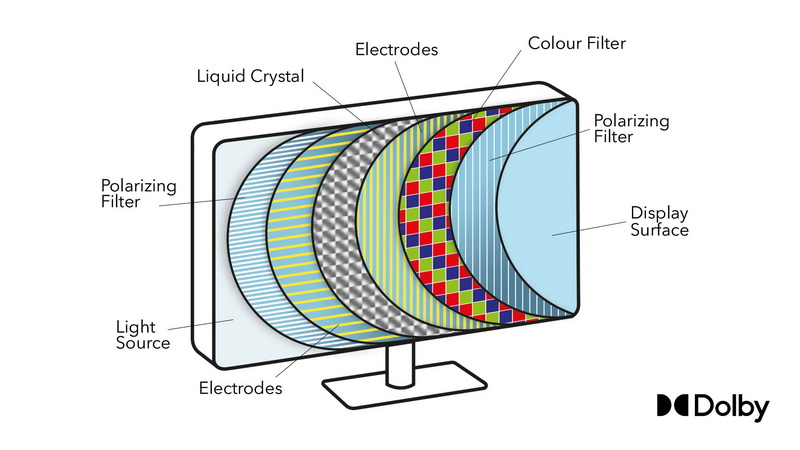

LCD technology is based on the unique properties of liquid crystals, which are substances that exhibit characteristics of both liquids and solid crystals. These liquid crystals are sandwiched between two polarizing filters and can be manipulated using electrical currents to control the passage of light[1].

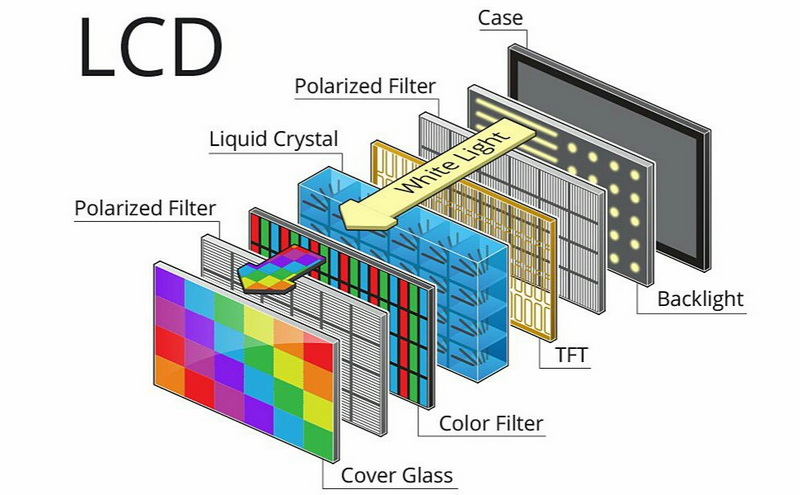

1. Backlight: Usually LED-based in modern LCD TVs
2. Liquid Crystal Layer: Contains millions of liquid crystal molecules
3. Color Filters: Red, Green, and Blue (RGB) filters for each pixel
4. Polarizing Filters: Two layers that control light passage
5. Thin-Film Transistors (TFT): Control individual pixels

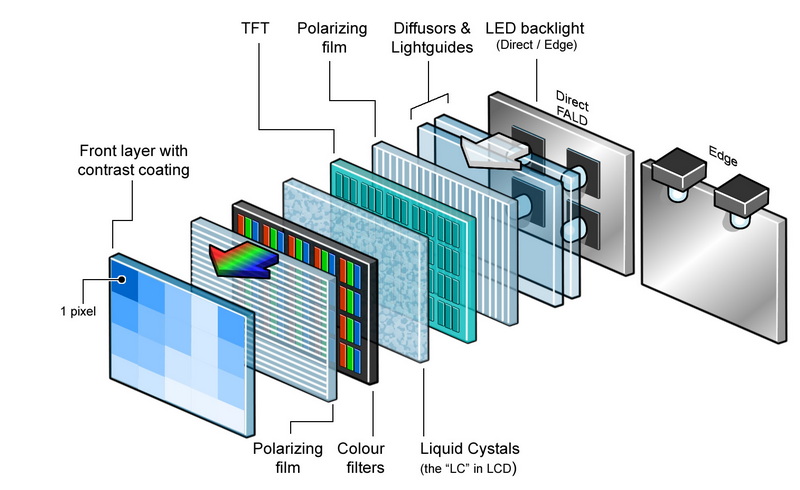

The process of creating images on an LCD TV involves several steps:
1. Backlight Illumination: LED backlights provide a uniform white light source behind the LCD panel[2].
2. Pixel Control: Each pixel consists of three subpixels (red, green, and blue). The TFT array controls the voltage applied to each subpixel[1].
3. Liquid Crystal Alignment: When voltage is applied, the liquid crystals align to allow light to pass through[2].
4. Color Filtering: The light passes through color filters to produce the desired color for each subpixel[3].
5. Image Formation: The combination of lit subpixels creates the full-color image on the screen.
Local dimming is a technique used to improve contrast ratios in LCD TVs. It involves dividing the backlight into zones that can be individually dimmed or brightened based on the content being displayed[2].
QLED TVs use quantum dots, which are tiny semiconductor particles that emit specific colors when excited by light. This technology enhances color reproduction and brightness in LCD displays[1][6].
While LCD TVs rely on backlighting, OLED (Organic Light-Emitting Diode) displays have self-emissive pixels that produce their own light. This results in better contrast ratios and deeper blacks for OLED displays[1][2].
| Feature | LCD | OLED |
|---|---|---|
| Backlight | Required | Not required |
| Contrast Ratio | Good | Excellent |
| Power Consumption | Higher | Lower |
| Lifespan | Longer | Shorter |
| Cost | Lower | Higher |
Plasma TVs, now obsolete, used small chambers filled with gas to create images. While they offered excellent picture quality, they were eventually outcompeted by LCD and OLED technologies due to their higher power consumption and risk of burn-in[2].
1. Brightness: LCD TVs can achieve high brightness levels, making them suitable for well-lit rooms[3].
2. Energy Efficiency: Especially with LED backlighting, LCD TVs are more energy-efficient than older technologies like plasma[3].
3. Longevity: LCD panels typically have a longer lifespan compared to OLED displays[1].
4. No Burn-in: Unlike plasma and OLED, LCD TVs are not susceptible to permanent image retention or burn-in[2].
5. Affordability: LCD technology is generally less expensive than newer technologies like OLED[3].
1. Contrast Ratio: While local dimming has improved contrast, LCD TVs still struggle to achieve the deep blacks of OLED displays[2].
2. Viewing Angles: Image quality can degrade when viewed from extreme angles[3].
3. Motion Blur: LCD TVs may exhibit some motion blur during fast-moving scenes[1].
4. Backlight Bleeding: In some cases, light from the backlight can leak through in dark scenes, reducing image quality[2].
Despite the emergence of OLED and other display technologies, LCD continues to evolve:
1. Mini-LED: This technology uses thousands of tiny LEDs as the backlight, offering better local dimming and improved contrast[1].
2. Dual-Layer LCD: Some manufacturers are experimenting with dual-layer LCD panels to enhance contrast and black levels[8].
3. Advanced Quantum Dot Integration: Ongoing research aims to further improve color accuracy and efficiency using quantum dot technology[6].
As consumer electronics become increasingly prevalent, it's important to consider the environmental impact of LCD TV production and disposal:
1. Energy Efficiency: Modern LCD TVs are more energy-efficient than their predecessors, reducing power consumption during use[3].
2. Materials: The production of LCD panels involves some hazardous materials, necessitating proper handling and disposal[1].
3. Recycling: Many components of LCD TVs can be recycled, including the glass, metals, and plastics[3].
4. Lifespan: The long lifespan of LCD TVs helps reduce electronic waste compared to shorter-lived technologies[1].
LCD TV technology has come a long way since its introduction, offering consumers a balance of picture quality, energy efficiency, and affordability. While newer technologies like OLED present some advantages, ongoing innovations in LCD displays ensure their continued relevance in the television market. As consumers, understanding the workings of LCD TVs can help us make informed decisions when purchasing and using these devices.
LCD and LED TVs are often confused, but they're actually very similar. Both use liquid crystal displays to create images. The main difference is in the backlighting:
- Traditional LCD TVs used CCFL (Cold Cathode Fluorescent Lamp) backlights.
- LED TVs are essentially LCD TVs that use LED backlights instead of CCFL.
LED backlighting allows for thinner designs, better energy efficiency, and improved picture quality through local dimming techniques[3].
LCD TVs are generally not susceptible to permanent burn-in like OLED or plasma displays. However, they can experience temporary image retention, where a ghost of a static image may remain visible for a short time. This is usually not permanent and will disappear after a while or after displaying varied content[2].
Quantum dots are tiny semiconductor particles that emit specific colors when excited by light. In LCD TVs (often marketed as QLED), quantum dots are used to enhance color reproduction and brightness:
- They're typically placed between the LED backlight and the LCD panel.
- When illuminated by blue LEDs, they emit pure red and green light.
- This results in a wider color gamut and more vibrant, accurate colors[1][6].
Transmissive and emissive displays differ in how they produce images:
- Transmissive displays (like LCD) use a backlight and control the passage of light through pixels to create images. They don't generate their own light.
- Emissive displays (like OLED) have pixels that produce their own light. Each pixel can be turned on or off individually[8].
This difference affects contrast ratios, power consumption, and overall picture quality.
Local dimming is a technique used in LED-backlit LCD TVs to improve contrast and black levels:
- The LED backlight is divided into zones that can be dimmed or brightened independently.
- In dark scenes, LEDs in black areas can be dimmed or turned off completely.
- This reduces light leakage and improves contrast ratios.
More advanced local dimming systems with more zones generally provide better results, with mini-LED technology offering the most precise control[2].
