Liquid Crystal Displays (LCDs) are indispensable components of modern technology, powering interfaces in devices ranging from smartphones and televisions to sophisticated industrial control panels and intricate embedded systems. A core aspect of designing effective LCD interfaces is the precise control over the display position of characters, graphics, and dynamic elements. This article provides an in-depth exploration of the techniques, considerations, and advanced approaches involved in selecting and manipulating display positions on various types of LCDs, including character-based displays and more versatile graphical LCDs. We will explore aspects such as character positioning, viewing angle optimization, contrast enhancement, and advanced methods to create user-friendly interfaces.

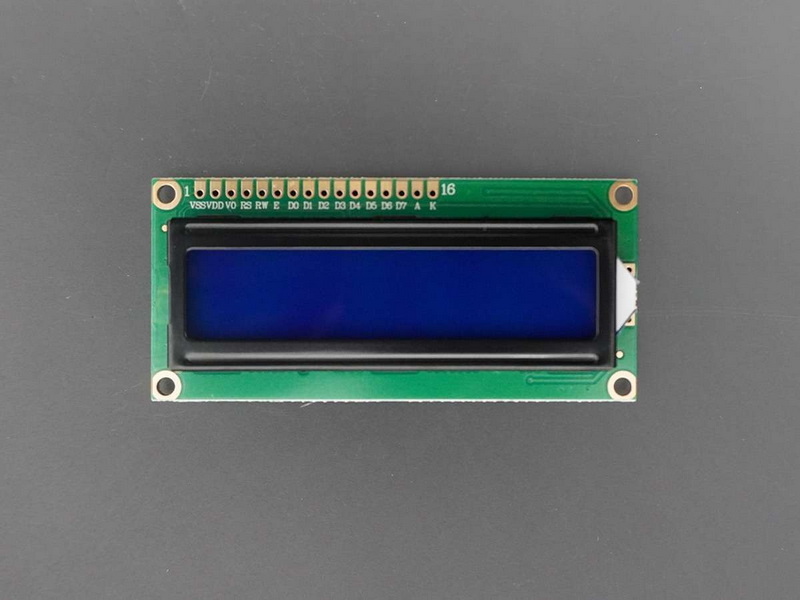

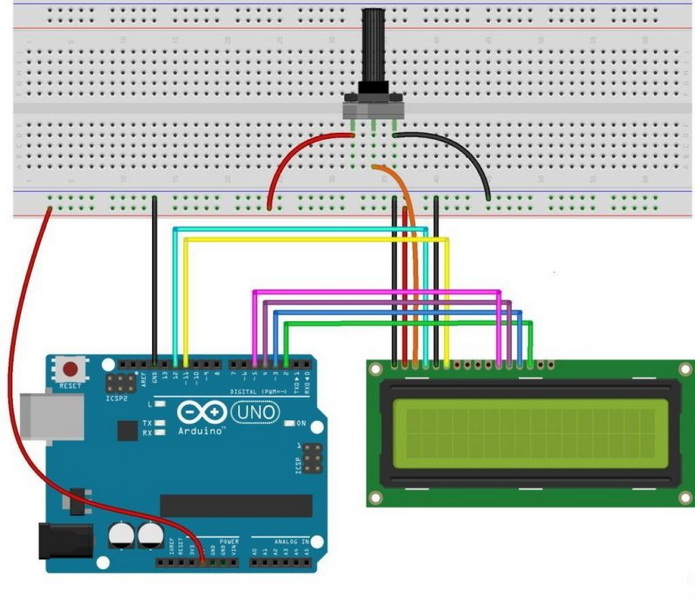

Character LCDs, particularly prevalent in embedded systems, hobbyist electronics, and cost-sensitive applications, operate on a fixed grid of character positions. A common configuration is a 16x2 LCD, which presents 16 character positions spread across two rows. Efficient utilization of these character positions hinges on understanding how the display's memory is structured and addressed.
DDRAM (Display Data RAM): At the heart of character LCD operation lies the DDRAM, which serves as the storage location for the character data that appears on the screen. Each character position visible on the LCD is directly mapped to a unique address within the DDRAM. To display a specific character at a designated location, the ASCII code representing that character must be written to the corresponding DDRAM address. This direct correspondence allows for precise placement of text on the display.
Setting the Cursor: The Key to Precise Positioning: Character LCDs typically offer a command specifically designed to set the cursor position. The cursor position dictates the location where the next character written to the DDRAM will be displayed. This command usually involves transmitting a special control code to the LCD, followed by the DDRAM address that represents the intended character position. The control code alerts the LCD that an address is being specified, rather than character data.
Memory Mapping and Addressing Considerations: Understanding the memory mapping is critical. The first row of a 16x2 LCD typically starts at address 0x00. However, the second row may not necessarily start at 0x10 (16). Instead, it might start at address 0x40 (64). This non-contiguous memory mapping can be a source of confusion if not properly understood, and the LCD's datasheet is vital to comprehend the mapping.

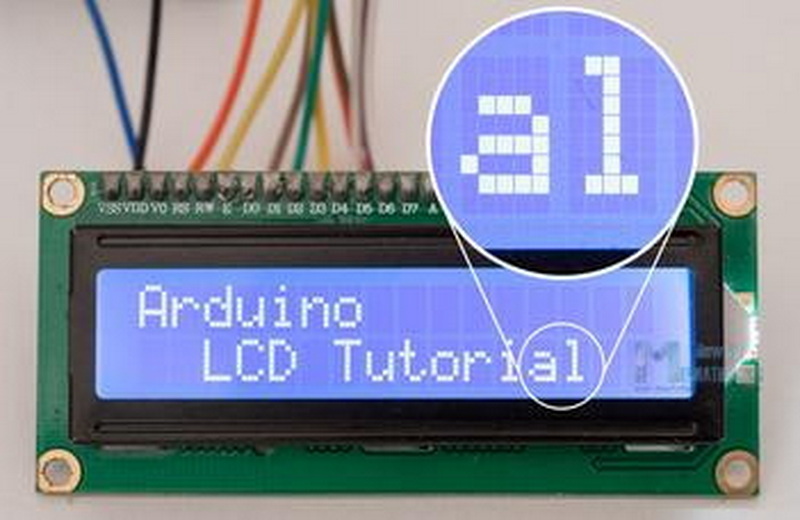

Example Scenario: Displaying Text at a Specific Location: Imagine wanting to display the word "HELLO" starting at the sixth position (column 5, assuming zero-based indexing) on the first line of a 16x2 LCD. First, the cursor would be set to address 0x05. Subsequently, each character of "HELLO" would be written sequentially. The LCD would then automatically increment the cursor to the next position as each character is received, resulting in "HELLO" being displayed starting at the intended location.
While direct addressing provides the most straightforward method for character placement, it can become unwieldy when the amount of information exceeds the display's capacity. This limitation is especially pronounced in applications requiring the presentation of dynamic data streams or scrolling text.
Scrolling Techniques: One solution is to use the LCD's built-in scrolling capabilities. Many LCDs support hardware-based scrolling, where the display shifts its content to reveal different portions of a larger virtual screen that exists in the DDRAM. By manipulating the starting address and direction of the display, one can create the illusion of continuous scrolling.
Entry Mode and Character Shifting: LCDs feature different entry modes that control how characters are written to the display. The most common mode involves writing characters from left to right, starting at the leftmost position. However, it's also possible to configure the LCD to automatically shift characters either to the left or right as new characters are written. This capability is useful for creating dynamic displays where information flows in a specific direction.
The viewing angle represents a critical factor that directly impacts the readability and overall user experience of an LCD. The viewing angle defines the range of perspectives from which the display offers optimal contrast and clarity. LCD viewing angles are commonly described using a clock-face analogy, indicating the direction from which the best visibility is achieved.
- 12:00 View: This configuration signifies that the display is optimized for viewing from above, or a top-down perspective.
- 6:00 View: Conversely, a 6:00 view indicates optimal contrast when the display is viewed from below, or a bottom-up perspective.
Factors Influencing Viewing Angle Performance: Several factors contribute to the overall viewing angle characteristics of an LCD.
- Voltage Adjustment: Subtle adjustments to the contrast voltage can significantly influence the viewing angle. Optimizing the contrast voltage can tailor the display for a specific viewing position. However, it's important to note that attempting to compensate for an inherently mismatched viewing angle (e.g., using a 12:00 display in a 6:00 application) may not yield optimal results, and the contrast may never be as high as a native 6:00 display.
- LCD Design and Manufacturing: The manufacturing process and design parameters of the LCD itself play a crucial role in determining its viewing angle. Factors such as the alignment of the liquid crystal molecules and the properties of the polarizing filters directly affect the display's visibility from different angles. Using a smaller driving multiplex (duty ratio) can improve contrast. Static drive has the best contrast.
- Polarizer Quality: The quality of the polarizing filters employed in the LCD construction directly affects contrast, particularly in negative displays. Higher-quality polarizers enhance contrast across wider viewing angles. The higher the efficiency, the better the contrast. It is especially important for negative display. Changing from 98% to 99.9% polarizer will do the work.
- Ambient Light Considerations: In environments with ambient light, a more reflective polarizer enhances contrast. Conversely, in applications with backlighting, a more transmissive polarizer improves visibility.
Strategies for Improving Viewing Angle:
- Optimal Positioning: The simplest and often most effective strategy involves carefully positioning the LCD at eye level and ensuring that it is perpendicular to the viewer's line of sight.
- Calibration and Configuration: Calibrating the display's settings, including brightness, contrast, and color temperature, is crucial for maximizing viewing angle performance.
- Anti-Glare Measures: Applying anti-glare filters or coatings to the LCD surface minimizes reflections and glare, especially in brightly lit environments.
Beyond the fundamental techniques of character positioning and viewing angle optimization, advanced methods and considerations come into play when dealing with more sophisticated LCD implementations.
Custom Characters: Adding Flexibility: Many character LCDs offer the ability to define custom characters, allowing the display of symbols, icons, or specialized glyphs that are not included in the standard character set. This feature is particularly useful in applications requiring specific visual elements, such as displaying units of measurement, custom status indicators, or specialized symbols.
Graphical LCDs: Unleashing Pixel-Level Control: For applications demanding greater visual complexity and flexibility, graphical LCDs provide pixel-level control. Unlike character LCDs, which are restricted to a fixed grid of character positions, graphical LCDs enable control over individual pixels. This fine-grained control allows for drawing arbitrary lines, shapes, and images, as well as implementing custom fonts and dynamic graphical elements. Graphical LCDs typically incorporate their own memory buffer, and updating the display involves writing pixel data directly to this buffer.
Backlights and Contrast: Critical Elements of Visibility: Adjusting the backlight and contrast settings is vital for ensuring readability under varying lighting conditions. Most LCDs provide a potentiometer for adjusting the contrast voltage, and some also incorporate backlight control pins for turning the backlight on or off or adjusting its brightness using pulse width modulation (PWM).
Touch Screen Integration: Many modern LCDs are integrated with touch screen technology, enabling interactive user interfaces. In these applications, precise control over display position is essential for aligning touch targets with displayed elements and for providing accurate feedback to user interactions.

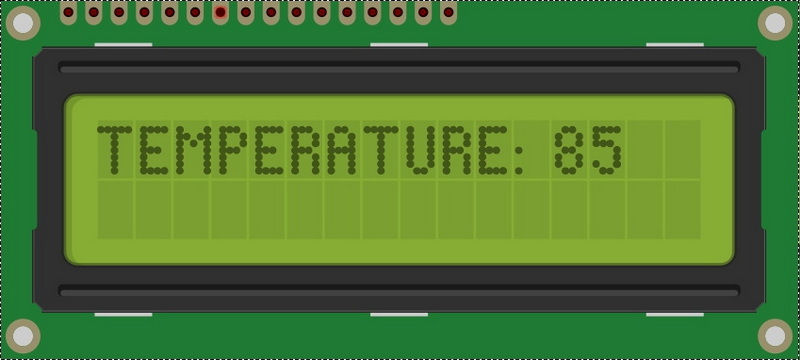

Robotics and Automation: In robotics and automation systems, LCDs are commonly employed to display sensor readings, battery voltage, and program status. The ability to precisely control display position is crucial for presenting this information in a clear, concise, and organized manner.
Industrial Control Systems: Industrial control panels often incorporate LCDs to display process parameters, alarm conditions, and operator instructions. Custom characters and symbols are particularly valuable in these applications, allowing for the display of specialized information and status indicators.
Consumer Electronics: Many consumer electronic devices, such as calculators, kitchen appliances, and portable audio players, utilize LCDs to present information. Optimizing the viewing angle and contrast is essential for ensuring a positive user experience.
Selecting the appropriate display position on an LCD requires a thorough understanding of the underlying addressing scheme, careful optimization of viewing angles, and the strategic application of advanced techniques such as custom characters and graphical displays. By carefully considering these factors, designers can create LCD interfaces that are not only informative but also intuitive, user-friendly, and visually appealing. As LCD technology continues to evolve, mastering these fundamental concepts will remain essential for creating effective and engaging user interfaces across a wide range of applications.
You set the cursor position by sending a specific command code followed by the DDRAM address, with the exact command code and addressing scheme depending on the LCD's datasheet. For example, with Arduino, you might use `lcd.setCursor(column, row)`.
The "best" viewing angle depends on typical user placement. 12:00 is a top view, and 6:00 is a bottom view.
Adjust the contrast voltage, use a higher-quality polarizer, and optimize the backlight settings.
Yes, most character LCDs allow custom characters through character generator RAM (CGRAM).
DDRAM (Display Data RAM) is where the characters to be displayed are stored.
