Reflective LCDs work by reflecting ambient light from the surrounding environment back to the viewer's eyes[2][4]. Instead of emitting light from a backlight, these displays use a reflective layer along with a polarizing filter to bounce light back[2]. The liquid crystal layer modulates the amount of light that is reflected, creating the image[2].
The reflective film is a crucial component in LCD backlight modules, located at the bottom of the backlight module and under the light guide plate[1]. Its primary function is to reflect any light that leaks through the light guide plate back towards the panel side[1]. This process minimizes light loss and enhances brightness[1].
There are two main types of LCD reflective films: white reflective film and silver-plated mirror reflective film[1]. White reflective film can be further divided into white polyester reflective film and white polypropylene reflective film, with white polyester reflective film being the most common[1]. White reflective film is suitable for backlight modules of all sizes, while silver-plated mirror reflective film is mainly used in small and medium-sized backlight modules like those found in mobile phones and notebook computers[1].
When light strikes the surface of the reflective film, most of it is reflected due to the film's high opacity (over 99%)[1]. Silver-plated mirror reflection films exhibit specular reflection, where there is a direct correspondence between incident and reflected light; the higher the surface gloss, the higher the reflectivity[1]. White reflective films, on the other hand, cause light to be reflected in multiple directions due to their fine, uneven surface structure, resulting in diffuse reflection[1].
In white reflective films, some light is refracted into the film medium[1]. The fillers and microbubbles within the film cause the light to be reflected, refracted, and re-reflected[1]. The microbubbles, with a refractive index of 1.0, reflect light on their inner surface, causing it to refract at larger angles[1]. This complex internal structure prevents light from passing through the film smoothly, redirecting it back to the surface[1].
To optimize reflectivity, white films require high opacity and a surface gloss of less than 40% at a 60° angle[1]. Applying a white coating or a mirror coating to the back of the film can further improve reflectivity[1].
- Low Power Consumption: Reflective LCDs do not need a backlight, greatly reducing power consumption and extending battery life[2]. In fact, reflective LCDs can reduce power consumption by up to 40 times compared to traditional LCDs[5].
- High Visibility in Sunlight: The reflective nature of these displays makes them easily readable in bright sunlight[2]. Reflective LCD technology harnesses sunlight instead of fighting against it, providing natural illumination[5].
- Thin and Lightweight: Without a backlight, reflective LCDs are thinner and lighter than transmissive LCDs, making them ideal for portable devices[2].
- Limited Viewing Angles: Reflective LCDs typically have a narrower viewing angle, making it difficult to see the display from certain angles[2].
- Poor Performance in Low Light: These displays rely on ambient light, so they are not well-suited for low-light environments[2].
- Reduced Color Depth: Reflective LCDs may have a reduced color depth compared to transmissive LCDs, which can affect image quality[2].
Reflective LCDs are commonly used in various applications, including:
- Outdoor Devices: GPS devices, e-readers, and digital watches benefit from the high visibility in sunlight and low power consumption of reflective LCDs[2].
- Portable Devices: The thin and lightweight nature of these displays makes them suitable for handheld devices[2].
- Smart City Infrastructure: Reflective LCDs can be integrated into smart city infrastructure, particularly in Internet of Things (IoT) applications[5].
- Electronic Shelf Labels: Reflective TFT LCDs are used in electronic shelf labels due to their energy efficiency and readability[7].
- Automotive Displays: These displays are also suitable for automotive applications[7].

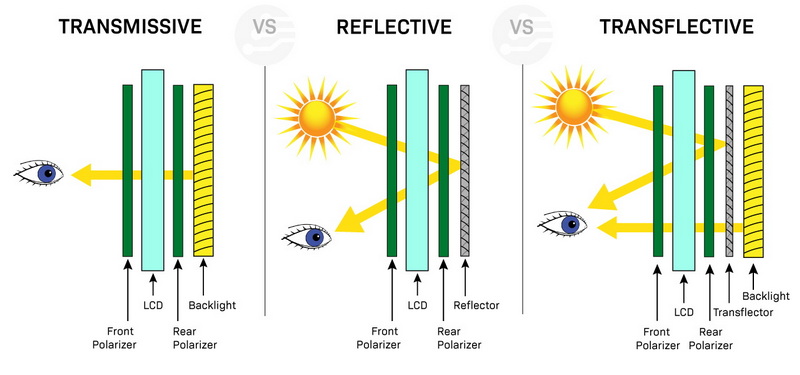

LCDs can be divided into reflective, transmissive, and transflective, depending on how light is provided to the LCD cell[8].
Transmissive LCDs use a backlight (usually white LEDs) to illuminate the display[8]. These displays are ideal for indoor environments where ambient light is limited. However, they consume more power than reflective LCDs and can be difficult to view in direct sunlight[5].
Transflective LCDs combine the characteristics of both reflective and transmissive displays[4][8]. They can operate in reflective mode when ambient light is sufficient and switch to transmissive mode with a backlight in low-light conditions[4]. Transflective displays offer a compromise between visibility in various lighting conditions, but they typically consume more power than reflective displays[4].
Reflective LCDs can also incorporate an additional light source, such as a lamp or LED, which is reflected back by a mirror[8]. This configuration provides better visibility in low-light conditions while maintaining the energy efficiency of a reflective display[6].
Reflective Thin-Film Transistor Liquid Crystal Displays (TFT LCDs) combine TFT technology with reflective LCDs[7]. TFT technology allows for precise control over each pixel's color and brightness, delivering vibrant colors and sharp images[7]. Reflective TFT LCDs are energy-efficient and offer enhanced readability, making them suitable for various applications[7].
Reflective LCD technology offers significant advantages in terms of power efficiency and visibility in bright sunlight[2][5]. By utilizing ambient light instead of a backlight, these displays consume significantly less power, making them ideal for battery-powered devices and outdoor applications[7][9]. While they have some limitations, such as limited viewing angles and poor performance in low light, advancements in technology, such as reflective TFT LCDs and the integration of frontlights, are addressing these issues[2][7]. As the demand for sustainable and energy-efficient display solutions grows, reflective LCD technology is poised to play a crucial role in the future of digital displays[5].
A reflective LCD display is a type of display that uses ambient light to create an image[6][9]. Unlike traditional LCDs that rely on a backlight, reflective LCDs reflect ambient light from the environment back to the viewer's eyes[2][4]. This makes them highly energy-efficient, as they do not require a separate light source[7][9].

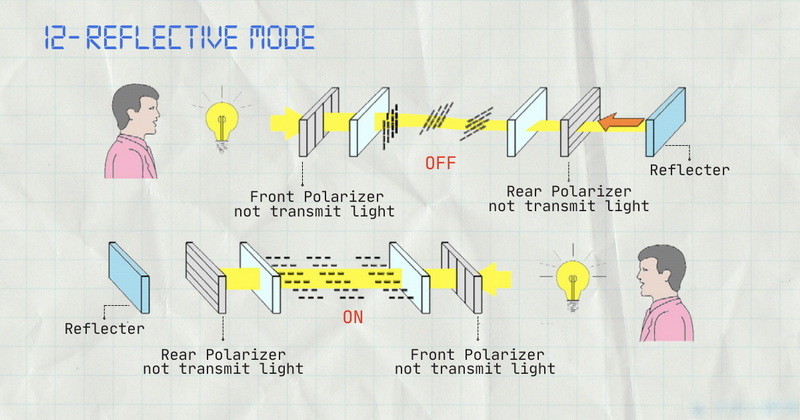

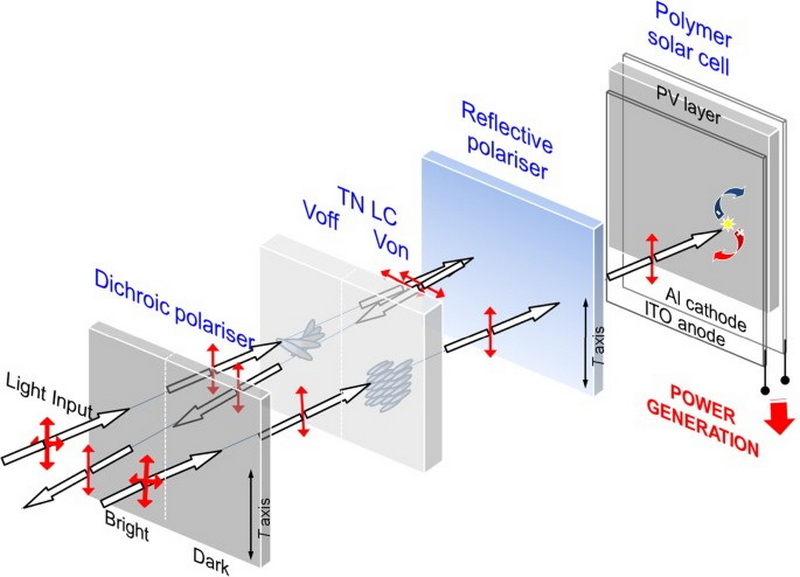

A reflective LCD works by using a reflective layer behind the liquid crystal layer[3][9]. Ambient light passes through the front of the display, travels through the liquid crystals, and hits the reflective layer[9]. The reflective layer then bounces the light back to the viewer[2][9]. The liquid crystals modulate the reflected light to create the image[2][9].
The primary advantages of reflective LCDs are low power consumption and high visibility in bright sunlight[2][5]. Because they do not require a backlight, reflective LCDs consume significantly less power than traditional LCDs, making them ideal for battery-powered devices[2][7]. Additionally, the reflective nature of the display makes it easy to read in direct sunlight[2].
The main disadvantages of reflective LCDs are limited viewing angles and poor performance in low-light conditions[2]. Reflective LCDs typically have a narrower viewing angle compared to transmissive LCDs, making it difficult to see the display from certain angles[2]. Additionally, because they rely on ambient light, reflective LCDs are not well-suited for use in dark or dimly lit environments[2].
Reflective LCDs are commonly used in a variety of applications, including e-readers, digital watches, GPS devices, and other portable devices where battery life and sunlight readability are important[2][5]. They are also finding increasing use in smart city infrastructure and electronic shelf labels[5][7].
