Introduction

Double-sided mirror displays integrate LCD technology with a partially reflective, partially transparent mirror to create displays viewable from both sides. These are used in various applications, from retail displays to interactive kiosks[2][9]. This article explores the technology, construction, and functionality of double-sided mirror LCD displays.

Basic Principles

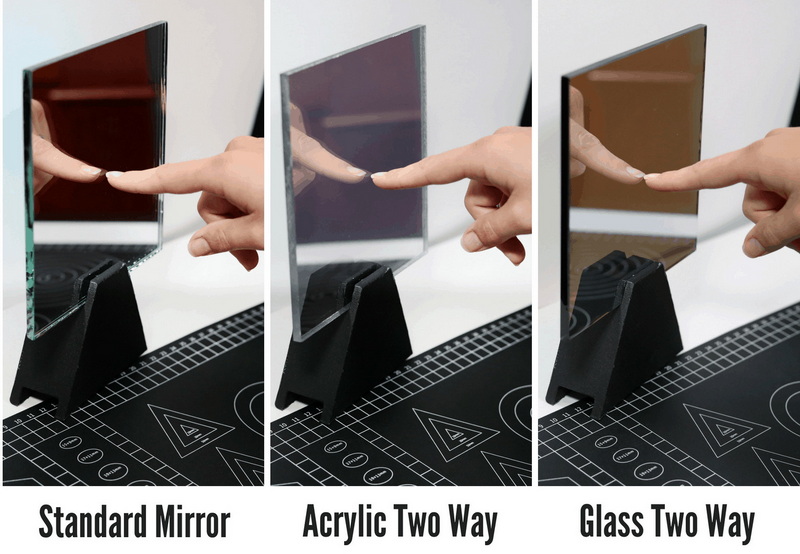

Two-Way Mirrors: A two-way mirror, also known as a one-way mirror, is a partially reflective and partially transparent[1]. It is created by applying a thin, almost transparent layer of metal (typically aluminum or silver) to a glass substrate[1][8]. This coating allows some light to be reflected while the rest passes through. The mirror's functionality depends on the lighting conditions: one side needs to be brightly lit, and the other needs to be dark[1][11]. When the light intensity is higher on one side, it acts as a mirror from that vantage point. From the darker side, it appears transparent, allowing visibility through the mirror[1][8].

LCD Technology: Liquid Crystal Displays (LCDs) use liquid crystals to modulate light and display images[6]. LCDs do not emit light directly but rely on a backlight or reflector[6][7]. The liquid crystals are arranged between two transparent electrodes and polarizing filters[6]. Applying an electric field to the liquid crystals causes them to untwist, changing the polarization of light passing through them and controlling the amount of light that passes through each pixel[3][6].

Construction of Double-Sided Mirror LCD Displays

The construction of a double-sided mirror LCD display involves several key components:

1. LCD Panels: Two LCD panels are placed back-to-back[2]. These panels can be standard TFT (Thin Film Transistor) LCDs, which provide high resolution and color accuracy[6].

2. Backlight System: A backlight element is positioned between the two LCD panels[2]. This element provides the necessary light for both displays to be visible. Advanced designs use controlled light output in two opposite directions to ensure each screen is lit effectively[2].

3. Two-Way Mirror: A two-way mirror is placed on the front side of each LCD panel[9]. This mirror reflects ambient light when the display is off, giving a mirror-like appearance. When the display is on, the light from the LCD panel shines through the mirror, making the image visible[1][16].

4. Transparent Conductive Film: Indium Tin Oxide (ITO) is often used as a transparent electrode material[6][12]. This film allows electrical current to pass through the LCD panel while maintaining transparency[6].

5. Polarizing Filters: Polarizing filters are essential for LCD operation, ensuring that light is properly aligned and modulated as it passes through the liquid crystal layer[6].

Functionality and Working Principles

1. Light Management: The backlight system is crucial for the functionality of double-sided displays. There are several ways to implement this:

-  Shared Backlight: A single backlight unit is placed between the two LCD panels, emitting light in both directions[2]. This requires careful management of light to ensure even illumination on both sides[2].

-  OLED Technology: Transparent OLEDs can be used as backlight elements. OLEDs do not require a separate backlight because each pixel emits its own light[1]. Transparent OLEDs allow light to pass through when the pixels are off, enhancing the transparency of the display[1].

-  Edge-Lit LEDs: LEDs are placed along the edges of the display, with a light guide distributing the light evenly across the panels[6]. This method allows for thinner displays but requires efficient light diffusion[6].

2. Image Display: When the display is active, the LCD panels modulate the light from the backlight to create images. The light passes through the transparent areas of the two-way mirror, making the images visible on both sides[1][35].

3. Mirror Effect: When the display is inactive, the two-way mirrors reflect ambient light, creating a mirror-like surface. This allows the display to blend into its surroundings when not in use[9].

4. Pixel Technology: The resolution and clarity of the display depend on the pixel density and the quality of the LCD panels. High-resolution displays ensure sharp and clear images[6].

Advantages of Double-Sided Mirror LCD Displays

-  Enhanced User Experience: These displays offer an interactive and engaging experience, making them suitable for retail, advertising, and information kiosks[9].

-  Space Efficiency: They serve a dual purpose as both a mirror and a display, saving space and providing aesthetic appeal[9].

-  Versatility: Suitable for various applications, including advertising, information displays, and interactive installations[9][28].

Disadvantages of Double-Sided Mirror LCD Displays

-  Complexity: The construction and calibration of these displays are complex, requiring precise alignment and light management[2].

-  Cost: High-quality LCD panels, two-way mirrors, and advanced backlight systems can make these displays expensive[1].

-  Energy Consumption: The need for a bright backlight can lead to higher energy consumption compared to standard displays[6].

Applications

-  Retail: Used in store windows and in-store displays to attract customers and provide product information[9].

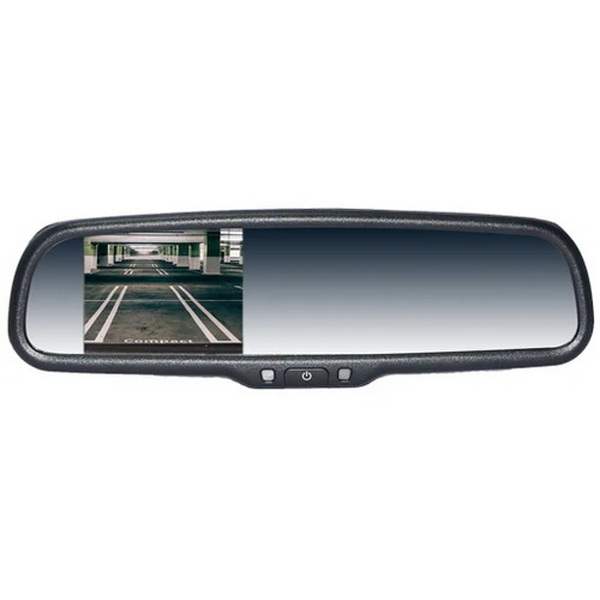

-  Automotive: Integrated into car dashboards and rearview mirrors to display information while maintaining visibility[18].

-  Interactive Kiosks: Used in museums, exhibitions, and public spaces to provide information and interactive experiences[9].

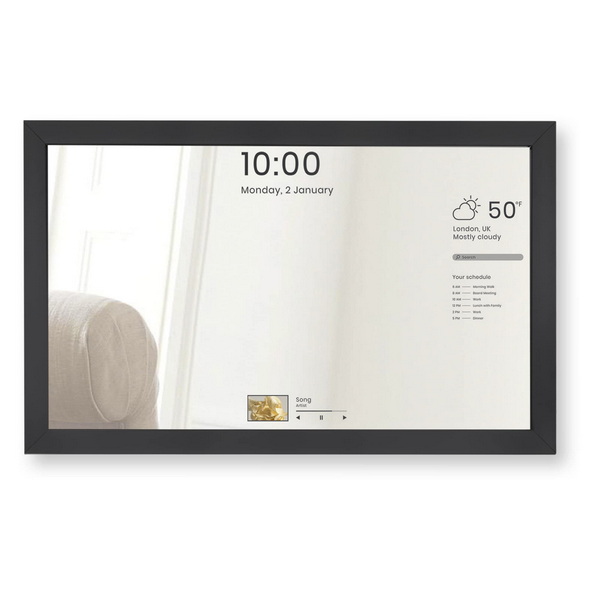

-  Smart Mirrors: Integrated into home environments to display information such as weather, news, and personal calendars[5][19].

Conclusion

Double-sided mirror LCD displays combine LCD technology with two-way mirrors to create versatile and visually appealing display solutions. These displays offer unique advantages in user experience and space efficiency, making them suitable for various applications. While challenges related to complexity, cost, and energy consumption exist, advancements in technology continue to improve their performance and accessibility.

FAQ

1: How does a two-way mirror work?

A two-way mirror has a thin metallic coating that reflects some light and allows the rest to pass through. The effect relies on having a significant difference in lighting between the two sides[1][8].

2: What type of LCD is best for a double-sided mirror display?

TFT LCDs are commonly used due to their high resolution and color accuracy. Transparent OLEDs can also be used to enhance transparency and eliminate the need for a separate backlight[6].

3: How is the backlight managed in a double-sided mirror display?

A shared backlight system is placed between the two LCD panels, emitting light in both directions. Advanced designs use controlled light output to ensure even illumination on both sides[2].

4: What are the main advantages of using double-sided mirror LCD displays?

The main advantages include an enhanced user experience, space efficiency, and versatility for various applications such as retail, advertising, and interactive installations[9].

5: What are some common applications of double-sided mirror LCD displays?

Common applications include retail displays, automotive dashboards, interactive kiosks in museums, and smart mirrors in home environments[9][18][19].
