Liquid Crystal Displays (LCDs) are ubiquitous in modern motorcycles, providing crucial information such as speed, RPM, fuel level, and more. However, these displays are susceptible to damage and degradation over time due to environmental factors like sunlight, heat, and physical wear. This article provides a detailed guide on how to restore an LCD display on your motorcycle, covering various repair techniques, preventive measures, and troubleshooting tips.
Before diving into the restoration process, it's essential to identify the common issues that affect motorcycle LCDs:
- Fading or Dim Display: Prolonged exposure to sunlight can cause the polarizing film on the LCD panel to fade, resulting in a dim or barely visible display[9].

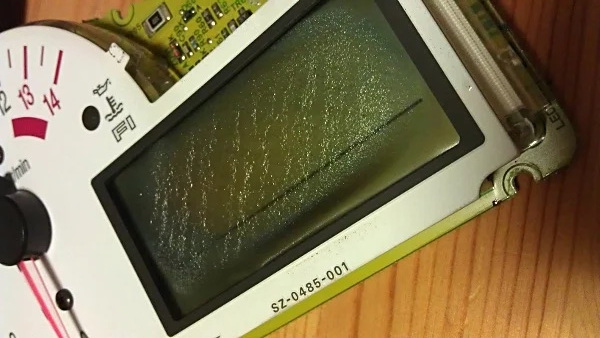

- Delamination: The LCD screen can delaminate over time, leading to a melted or distorted appearance[3].
- Scratches and Scuffs: The LCD screen can accumulate scratches and scuffs from regular use and cleaning, reducing visibility[5].
- Dead Pixels or Segments: Individual pixels or segments of the LCD may fail, resulting in incomplete or unreadable information[4].
- Loose Connections: Internal connections within the display unit can become loose, causing intermittent or complete failure of the LCD[7].
Gather the necessary tools and materials before starting the restoration process. Here's a comprehensive list:
- Screwdrivers: Assorted screwdrivers to disassemble the motorcycle's instrument cluster[4].
- Pliers: To bend and adjust metal flanges[2].
- Hot Air Gun or Hair Dryer: To soften adhesive and loosen connections[4].
- Glass Scraper or Short Blade: To remove old polarizing film[3].
- Polarizing Film: Replacement polarizing film for LCD restoration[1].
- Cleaning Solutions: Isopropyl alcohol, rubber spirit, or specialized LCD cleaning solutions[7].
- Microfiber Cloths: For cleaning and polishing the LCD screen[5].
- Plastic Pry Tool: To gently separate components without causing damage.
- Pencil Eraser: To clean and improve electrical connections[4].
- Screen Protector: To protect the LCD screen from future scratches[5].
- Conductive Rubber Strips: Replacement strips for ensuring good contact[2].
- Sticky Tape: For temporarily holding components in place[3].
1. Remove the Instrument Cluster:
- Consult your motorcycle's service manual for specific instructions on removing the instrument cluster.
- Typically, this involves removing screws and disconnecting electrical connectors[2].
2. Open the Instrument Cluster:
- Carefully open the instrument cluster to access the LCD unit.
- Note the position of all components to ensure proper reassembly[2].
1. Detach the LCD Assembly:
- Bend straight the metal flanges on the rear of the LCD unit using pliers[2].
- Gently push on the flanges until they are flush with the PCB (Printed Circuit Board)[2].
- Carefully slide the LCD unit out of the front dial cover[2].
2. Separate the LCD from the Bracket:
- Remove the white plastic LED diffuser bracket on the back of the LCD assembly[2].
- Detach the black metal bracket surrounding the LCD, noting that the LCD unit is glued to this bracket[2].
1. Remove Old Polarizing Film:
- Use a glass scraper or short blade to carefully remove the old polarizing film from the front and back of the LCD[3].
- Be gentle to avoid scratching the glass[3].
2. Clean the LCD Screen:
- Apply a small amount of isopropyl alcohol or rubber spirit to a microfiber cloth[7].
- Gently wipe the LCD screen to remove any remaining adhesive or debris[7].
3. Address Electrical Connections:
- If the LCD has dead rows or columns, heat the ribbon cable connection with a low-heat hot air gun[4].
- While heating, gently rub the connection strip with a pencil eraser to improve the connection[4].
1. Cut the New Film:
- Measure the LCD screen and cut the new polarizing film to the exact size[3].
- Ensure the film is clean and free of dust.

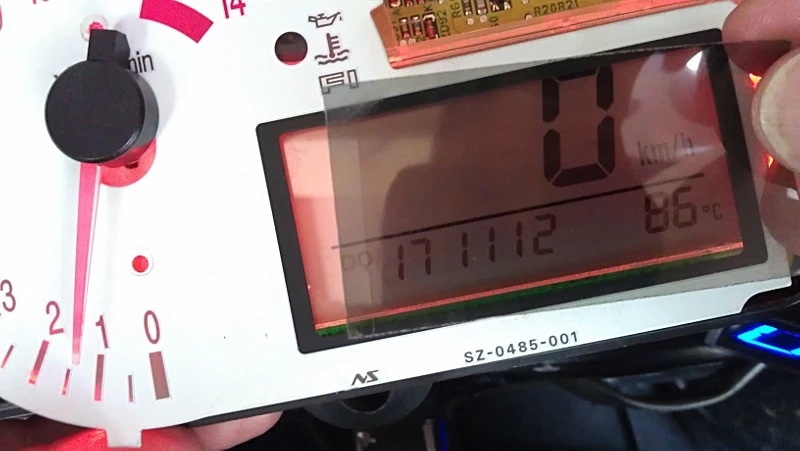

2. Apply the New Film:
- Peel off the protective cover from one side of the polarizing film[3].
- Carefully apply the film to the LCD screen, ensuring there are no air bubbles[3].
- Use a plastic card to smooth out any bubbles[3].
- Repeat for the other side of the LCD screen[3].
1. Reassemble the LCD Unit:
- Place the LCD unit into the black metal bracket[2].
- Put the white conductive rubber strips on either side of the back of the LCD unit[2].
- Drop the white plastic LED diffuser into the black metal bracket[2].
2. Reattach to the Main PCB:
- Gently bend up the black dial cover and slide in the completed LCD assembly[2].
- Carefully re-bend the metal flanges so that the LCD assembly is re-secured to the main PCB[2].
3. Reinstall the Instrument Cluster:
- Reinstall the instrument cluster back into the motorcycle, following the reverse steps of the disassembly process.
- Ensure all electrical connectors are securely attached.

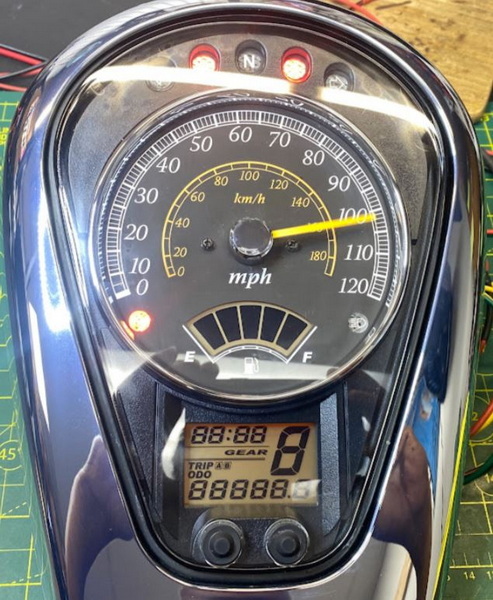

1. Test the Display:
- Turn on the motorcycle and check if the LCD display is functioning correctly[3].
- Verify that all segments and pixels are lit and that the display is clear and bright[3].
2. Apply Screen Protector:
- Install a screen protector to prevent future scratches and damage[5].
- Ensure the screen protector is properly aligned and free of bubbles[5].
- Backlight Repair: Consider backlight repairs if the display is dim. This may involve replacing the backlight LEDs[1].
- Lens Polishing: Polish the lens of the instrument cluster to improve clarity if it is scratched or faded[1].
- Professional Help: If you're uncomfortable performing these repairs yourself, seek professional help from a motorcycle repair shop[5].
- Park in the Shade: Whenever possible, park your motorcycle in the shade to reduce exposure to direct sunlight[9].
- Use a Motorcycle Cover: Use a motorcycle cover to protect the instrument cluster from the elements[5].
- Regular Cleaning: Clean the LCD screen regularly with a microfiber cloth and LCD-safe cleaning solution[5].
- Avoid Harsh Chemicals: Do not use harsh chemicals or abrasive cleaners on the LCD screen[7].
Display Still Faint:
- Check the backlight LEDs and replace if necessary[1].
- Ensure the polarizing film is correctly installed[3].
Missing Segments:
- Check the conductive rubber strips and replace if damaged[2].
- Reheat and rub the ribbon cable connection[4].
Intermittent Display:
- Check all electrical connections and ensure they are secure[7].
- Inspect the wiring for any signs of damage[7].
Restoring an LCD display on a motorcycle requires patience and attention to detail. By following the steps outlined in this guide, you can effectively repair and maintain your motorcycle's LCD, ensuring clear and reliable information display. Regular maintenance and preventive measures will further extend the life of your LCD, keeping it in optimal condition for years to come.
To prevent your motorcycle's LCD from fading, always park your bike in shaded areas or use a motorcycle cover to minimize direct sunlight exposure. Regularly clean the screen with a microfiber cloth and apply a screen protector for added protection[5][9].
You will typically need a set of screwdrivers (Phillips and flathead), pliers, and possibly plastic pry tools to safely disassemble the instrument cluster without damaging the surrounding components[2][4].
Yes, replacing the polarizing film is a feasible DIY task if you have the correct tools and materials. You'll need a glass scraper, new polarizing film, cleaning solutions, and a microfiber cloth. Follow the steps carefully to avoid damaging the LCD screen[3].
If some segments are not working, it could be due to poor electrical connections. Try reheating the ribbon cable connection with a hot air gun and gently rub it with a pencil eraser. Also, check and replace the conductive rubber strips if they are damaged[4][7].
Whether to repair or replace depends on the extent of the damage. Minor issues like scratches, fading, or loose connections can often be repaired. However, if the LCD has significant damage, such as a cracked screen or extensive dead pixels, replacement might be the more cost-effective option[1][4].
