An LCD (Liquid Crystal Display) projector is a versatile tool for displaying video, images, or computer data on a screen or flat surface[1]. Serving as a modern counterpart to the traditional slide or overhead projector, it's widely used in classrooms, conference rooms, home theaters, and various other settings[1]. This article provides a detailed guide on how to effectively display your screen on an LCD projector, covering everything from the basic working principles of LCD projectors to troubleshooting common issues.
LCD projectors utilize an optical light engine that incorporates three LCD panels—one each for red, green, and blue—combined with a light source, filters, mirrors, and a prism to create the projected image[2]. The light source can be a bulb, LED, or laser[2].
1. Light Source: The process begins with a light source emitting white light[2].
2. Polarization: The light is then concentrated and polarized using a polarizing lens. Polarization involves filtering the light waves to travel on the same wavelength, enhancing the efficiency of light passing through the liquid crystals and increasing brightness[2].
3. LCD Panels: The polarized light passes through the LCD panels. These panels consist of liquid crystals installed in a glass panel. Each crystal is connected to a transistor that sends an electrical charge to each pixel[2]. The electrical pulses charge the crystals, causing them to twist and either block or bend the light[2]. The amount of charge determines the degree to which light is blocked or allowed to pass through, modulating the image[2].
4. Dichroic Mirrors and Prism: Dichroic mirrors split the white light into three primary colors: red, green, and blue[2]. Each color then passes through its respective LCD panel. A dichroic prism recombines the three colors, reflecting the red and blue light while allowing the green light to pass through[2]. This forms a single, multicolored image.
5. Projection Lens: Finally, the combined image is magnified by a projection lens and cast onto the projection screen[2]. This lens typically consists of multiple lens elements grouped by function.
- Light Source: This can be a bulb-based, LED, or laser-powered light source[2].
- Regular Mirrors: Used to direct the light path within the projector[2].
- Dichroic Mirrors: These mirrors split white light into red, green, and blue components[2].
- LCD Panels (RGB): Three LCD panels, one for each primary color, modulate the light[2].
- Dichroic Combiner Cube/Prism: This recombines the three primary colors into a single image[2].
- Polarizing Lens: Focuses the light beam from the source and polarizes it to increase brightness[2].
- Projection Lens: Magnifies the combined image and projects it onto the screen[2].
- Portability: LCD projectors are often smaller and more portable due to their use of small lamps[1].
- Image Quality: They can project images on any flat surface, though optimal quality is achieved with a dedicated projection screen[1].
- Color Accuracy: LCD projectors excel at producing vibrant and accurate colors, making them suitable for presentations and home theaters[2].
- Brightness: Metal-halide lamps used in LCD projectors can produce a significant amount of light within a small area, averaging between 2,000 to 15,000 ANSI lumens[1].
The resolution of an LCD projector is determined by the number of pixels on the LCD panel. Common aspect ratios include[2]:
- 640x480 (SD)
- 1280x720 (HD)
- 1920x1080 (HD)
- 3840x2160 (UHD)
- 4096x2160 (DCI 4K)
Different aspect ratios are used in home theater, business, and commercial settings[2].

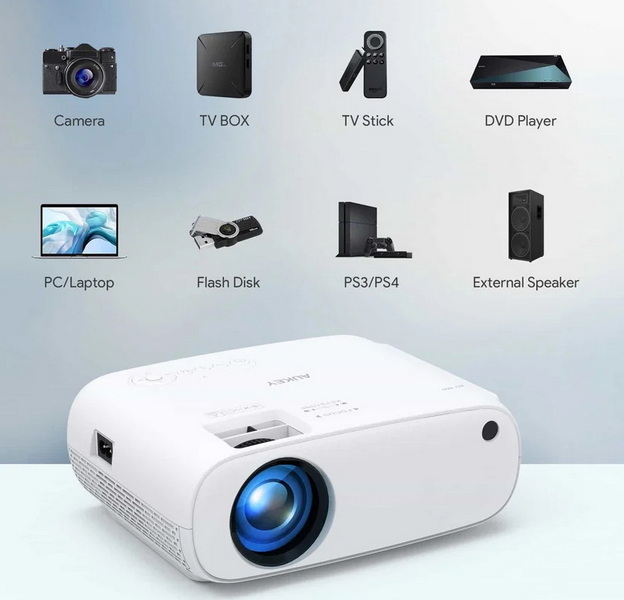

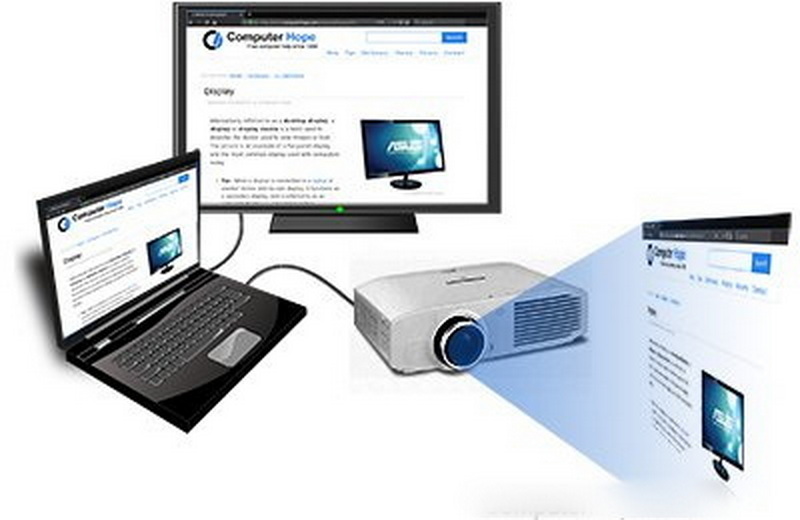

The first step in displaying your screen on an LCD projector is connecting your device to it[6]. Most projectors support multiple input sources. Common connection types include:
HDMI: High-Definition Multimedia Interface is a widely used standard for transmitting high-quality video and audio signals. It is the preferred option for modern devices due to its ability to carry digital signals without compression.
How to connect: Plug one end of the HDMI cable into the HDMI output port on your laptop or computer and the other end into the HDMI input port on the projector.
Benefits: Supports high resolutions, including 4K, and carries both video and audio signals.
VGA: Video Graphics Array is an older analog interface commonly found on older computers and projectors.
How to connect: Connect a VGA cable from the VGA output on your computer to the VGA input on the projector.
Limitations: VGA is an analog signal, so image quality may not be as sharp as HDMI, especially at higher resolutions. It also does not carry audio signals, so a separate audio cable is required.
USB: Universal Serial Bus can be used to display content from a USB drive or, in some cases, to connect directly to a computer.
How to connect: Plug the USB cable into the USB port on your projector and your device.
Functionality: The functionality of USB connections varies. Some projectors allow you to display images or videos directly from a USB storage device. Others may support USB connections for direct display from a computer, but this is less common.
Composite Video: This is a legacy analog video connection, typically using a single RCA connector (usually yellow).
How to connect: Use an RCA cable to connect the composite video output on your device to the composite video input on the projector.
Limitations: Composite video provides the lowest image quality and is typically used only with older devices.
Component Video: This analog video connection uses three RCA connectors (typically red, green, and blue) to separate the color signals.
How to connect: Connect the component video outputs on your device to the corresponding inputs on the projector.
Benefits: Component video offers better image quality than composite video but is still inferior to digital connections like HDMI.
DVI: Digital Visual Interface is a digital video interface that can carry high-resolution video signals.
How to connect: Use a DVI cable to connect the DVI output on your computer to the DVI input on the projector.
Considerations: DVI only carries video signals, so a separate audio connection is needed.

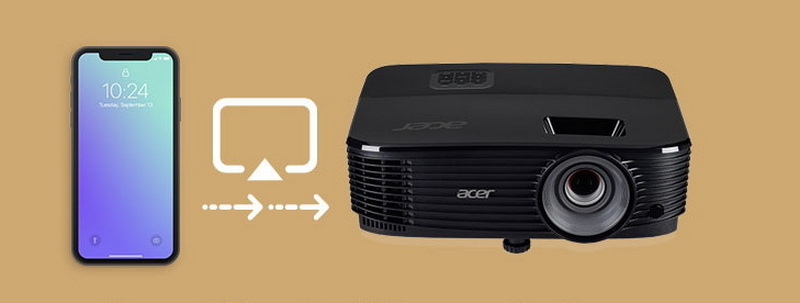

Some modern projectors offer wireless connectivity options, such as Wi-Fi or Bluetooth, which can simplify the connection process and reduce cable clutter.
How to connect:
1. Ensure that both your projector and device are connected to the same Wi-Fi network.
2. On your device, select the wireless display option and choose your projector from the list of available devices.
3. Follow any on-screen prompts to complete the connection.
Benefits: Wireless connections provide flexibility and convenience, allowing you to display content without physical cables.
How to connect:
1. Enable Bluetooth on both your projector and device.
2. Pair the devices through the Bluetooth settings.
3. Use the appropriate app or software to send the content to the projector.
Use Cases: Bluetooth is more commonly used for audio connections but can also support some data transfer for display purposes.
1. Connect the Projector: Use an HDMI or VGA cable to connect the projector to your laptop[6].
2. Display Settings: If the projector doesn't immediately display an image, press and hold down the Fn key and tap the display toggle key[7]. Alternatively, press the Windows key + P to open the projection pane[8].
3. Choose a Display Mode:
- Duplicate: This mode mirrors your laptop screen on the projector.
- Extend: This mode extends your desktop, allowing you to have different content on each screen.
- Projector Only: This mode displays the image only on the projector screen.
1. Connect the Projector: Use an appropriate adapter (such as USB-C to HDMI) to connect the projector to your MacBook.
2. System Preferences: Go to System Preferences > Displays.
3. Arrangement Tab: In the Arrangement tab, you can choose to mirror displays or extend the desktop.
- Optimal Settings: For classroom LCD projectors, a resolution setting of 1024 x 768 pixels (4:3 aspect ratio) is often recommended[4]. For widescreen displays, use a 16:9 aspect ratio[4].
- Adjusting Resolution: Right-click on the desktop, select Display Settings, and choose the appropriate resolution from the drop-down menu.
- Adjusting Settings: Use the projector's on-screen menu to adjust brightness, contrast, and sharpness.
- Environmental Considerations: Adjust these settings based on the ambient light in the room. Darker rooms require lower brightness, while brighter rooms may need higher settings.
- Color Temperature: Adjust the color temperature to achieve natural-looking colors.
- RGB Settings: Fine-tune the red, green, and blue color levels to correct any color imbalances.
- Purpose: Keystone correction is used to correct trapezoidal distortion that occurs when the projector is not perpendicular to the screen.
- Adjusting Keystone: Use the keystone correction feature in the projector's menu to adjust the image shape. Some projectors offer automatic keystone correction.
- Manual Focus: Most projectors have a manual focus ring or slider on the lens. Adjust this until the image is sharp and clear.
- Motorized Focus: Some higher-end projectors offer motorized focus, which can be adjusted via the remote control or on-screen menu.
- Dedicated Screens: While LCD projectors can project onto any flat surface, using a dedicated projection screen provides the best image quality[1].
- Color of Screen: White screens are suitable for natural color tones, while gray screens can enhance perceived contrast[1].
- Reducing Ambient Light: Minimize ambient light in the room to improve image clarity and contrast.
- Blackout Curtains: Use blackout curtains or blinds to block external light sources.
- Distance from Screen: The distance between the projector and the screen affects the size of the projected image. Use the projector's throw ratio to determine the optimal distance[1]. For example, a throw ratio of 2:1 means that for every two feet of distance from the screen, the image width will be one foot[1].
- Angle of Projection: Position the projector perpendicular to the screen to avoid keystone distortion. Use keystone correction if necessary.
- Check Connections: Ensure all cables are securely connected to both the projector and the device.
- Input Source: Verify that the correct input source is selected on the projector.
- Display Settings: Confirm that your computer is sending the signal to the projector (Windows key + P).
- Resolution: Ensure the projector resolution matches the recommended resolution for your device.
- Focus: Adjust the focus ring on the projector lens.
- Screen Quality: Use a high-quality projection screen for optimal image clarity.
- Color Settings: Adjust the color settings in the projector's menu.
- Cable Issues: Check for damaged or faulty cables.
- Lamp Condition: If the colors appear faded or distorted, the projector lamp may need to be replaced.
- Projector Placement: Ensure the projector is placed squarely in front of the screen.
- Keystone Correction: Use the keystone correction feature to correct the image shape.
- Cable Connections: Check the audio cable connections.
- Volume Settings: Adjust the volume settings on both the projector and the device.
- External Speakers: If necessary, connect external speakers to the projector or device.
- Reflected Light: Projectors can be used as computer monitors, offering reflected light that may be more comfortable for some users[5].
- Focus Issues: Be aware that focus may not be uniform across the screen, potentially causing blurry corners[5].
- Ambient Light: Changes in ambient light can affect the image quality[5].
- Extend Mode: Allows you to use the projector as a secondary display, increasing your workspace.
- Mirror Mode: Duplicates your primary display on the projector, ideal for presentations.
- Lamp Life: Projector lamps have a limited lifespan. Monitor the lamp usage and replace it when necessary.
- Cleaning: Regularly clean the projector lens and air filters to maintain optimal performance.
- Presentation Software: Use presentation software like Microsoft PowerPoint, Google Slides, or Keynote to create and display engaging content.
- Remote Control Apps: Some projectors offer remote control apps that allow you to control the projector from your smartphone or tablet.
Displaying your screen on an LCD projector involves several steps, from understanding the projector's technology to optimizing display settings and the projection environment. By following this comprehensive guide, you can ensure a high-quality viewing experience for presentations, movies, and other visual content. Proper setup, maintenance, and troubleshooting will help you maximize the lifespan and performance of your LCD projector.
- Answer: Connect your laptop to the LCD projector using an HDMI or VGA cable[6]. For Windows laptops, press the Windows key + P to select a display mode (Duplicate, Extend, Projector Only)[8]. For Mac laptops, go to System Preferences > Displays and choose the appropriate display settings.
- Answer: For classroom LCD projectors, a resolution of 1024 x 768 pixels (4:3 aspect ratio) is often recommended[4]. For widescreen displays, use a 16:9 aspect ratio. Adjust the resolution in your computer's display settings.
- Answer: Adjust the focus ring on the projector lens until the image is sharp and clear. Also, ensure that the projector resolution matches the recommended resolution for your device.
- Answer: Position the projector perpendicular to the screen to avoid keystone distortion. Use the keystone correction feature in the projector's menu to adjust the image shape. Some projectors offer automatic keystone correction.
- Answer: Check that all cables are securely connected to both the projector and the device. Verify that the correct input source is selected on the projector. Confirm that your computer is sending the signal to the projector (Windows key + P on Windows).
