Liquid Crystal Displays (LCDs) are integral to our interaction with technology, presenting information in devices ranging from the simplest digital watches to sophisticated television screens. While these displays are typically functional right out of the box, there are numerous reasons why one might want to modify them. These reasons range from purely aesthetic enhancements to functional improvements that better suit the LCD for integration into a specific project or environment. This comprehensive guide delves into the various ways LCDs can be modified, spanning simple adjustments that even a novice can undertake to more complex alterations that require a solid understanding of electronics.
Before attempting any modification, it is crucial to understand the basic components and operational principles of an LCD. An LCD isn't a single entity but a layered structure. Key components include a backlight, polarizing filters, liquid crystals, and electrodes, all working in concert to produce the images we see. The liquid crystals are the heart of the display; by controlling the voltage applied to them, we can modulate the amount of light that passes through each pixel, thereby constructing images.
A Closer Look at LCD Types:

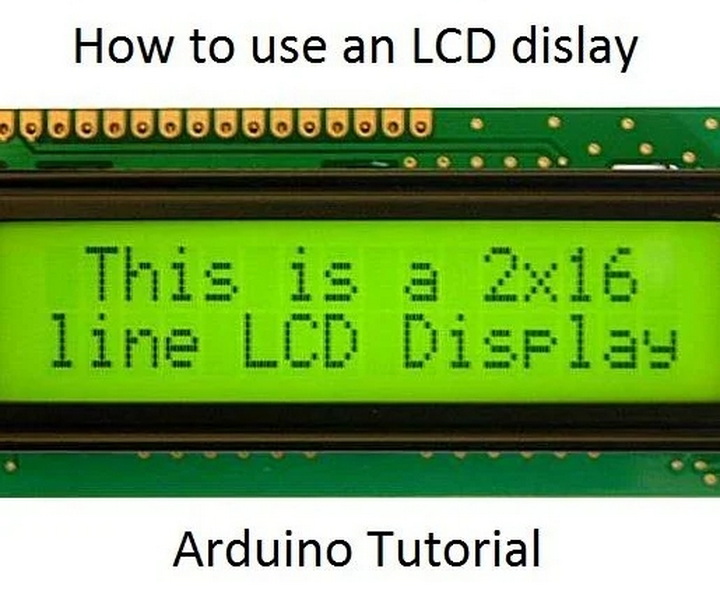

- Character LCDs: Typically found in simpler applications and popular among hobbyists, especially in Arduino-based projects. They are designed to display alphanumeric characters and are relatively straightforward to interface with microcontrollers.
- Graphic LCDs: A step up in complexity, these displays can render arbitrary images. This capability demands more sophisticated control schemes compared to character LCDs.
- TFT LCDs (Thin-Film Transistor): These offer the highest resolution and color depth, commonly used in modern smartphones, computer monitors, and televisions. Each pixel is controlled by one to four transistors.
Many LCD modifications are simple and can be achieved with minimal tools and basic understanding. These are often the first steps for anyone looking to customize their display.
1. Contrast Adjustment (Detailed):
Contrast is paramount to an LCD's readability. Without proper contrast, characters or images can appear washed out or too dark, making them difficult to discern. Many LCD modules, particularly character LCDs, are equipped with a potentiometer for adjusting the contrast.
- Step-by-Step Adjustment: First, locate the potentiometer on the LCD module. It is usually a small, adjustable knob that can be turned with a small screwdriver. Slowly rotate the knob while observing the display until the characters are clear and sharply defined against the background.
- Importance of Adjustment: Proper contrast ensures that the characters or images are clear and easily visible under various lighting conditions. Over-adjusting can lead to a negative image or completely black screen.
2. Backlight Control (In-Depth):
The backlight is responsible for illuminating the LCD panel, and its control is crucial for ensuring visibility under different ambient lighting conditions. Modifying the backlight can significantly enhance the usability of the display.
- Simple On/Off Control: Many LCDs feature a backlight pin that can be controlled either via software or hardware. Connecting this pin to a microcontroller allows for easy toggling of the backlight.
- Advanced Brightness Control: For more granular control, Pulse Width Modulation (PWM) can be employed to adjust the backlight's brightness. PWM involves rapidly switching the backlight on and off, with the duty cycle determining the perceived brightness.
- Color Modification: Some backlights can have their color modified through software, particularly in RGB-backlit displays.
3. Software Tweaks (Comprehensive):

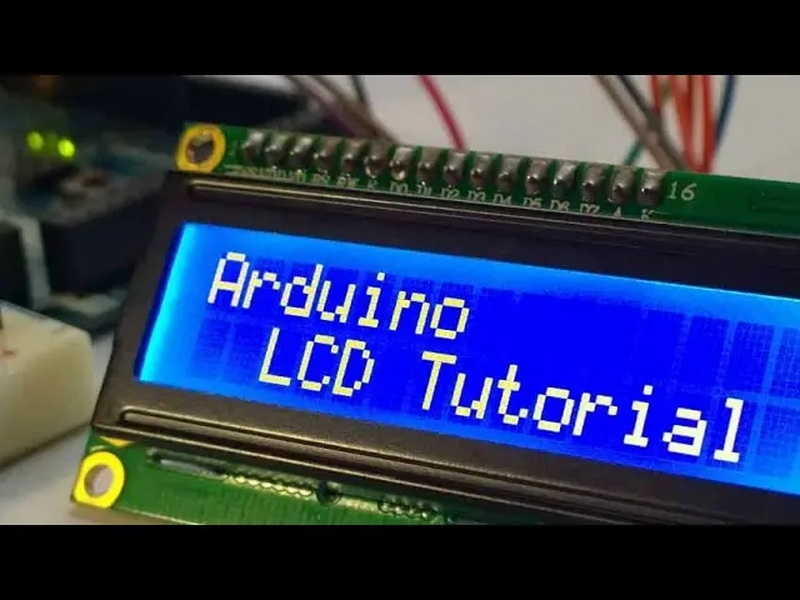

Software modifications are primarily concerned with using appropriate libraries and functions to control the LCD's behavior. The `LiquidCrystal` library is the standard choice for Arduino-based LCD projects.
- Text Printing: The `lcd.print()` function is used to display text strings or numerical values on the LCD. It's the most basic and essential function for displaying information.
- Cursor Positioning: The `lcd.setCursor()` function allows you to specify the exact position on the screen where the next character will be printed. This function is indispensable for creating structured displays.
- Display Clearing: The `lcd.clear()` function erases the entire display, providing a clean slate for new information. This is useful for dynamic displays that need to update frequently.
- Scrolling Text: By combining `lcd.print()`, `lcd.setCursor()`, and delays, you can implement scrolling text for displaying long messages on limited-size LCDs.
These modifications require a deeper understanding of electronics and display technology and often involve physical alterations to the LCD module.
1. Replacing the Backlight (Comprehensive):
Replacing the backlight can breathe new life into an old display or allow for customization with different colors or brightness levels.
- Key Considerations: It is essential to ensure that the replacement backlight is compatible with the LCD concerning voltage, current requirements, physical dimensions, and connector type.
- Detailed Process: Carefully disassemble the LCD module, taking note of the orientation and placement of each component. Remove the old backlight, and install the new one, ensuring it fits snugly and is properly connected.
2. Modifying the Polarizing Filter (Expert):
The polarizing filter affects the contrast and viewing angle of the LCD. Modifying it can create unique visual effects, but it is a delicate process.
- Critical Considerations: This modification carries a high risk of damaging the LCD and should only be attempted by experienced individuals.
- Advanced Process: Remove the original filter using a solvent or heat gun (with extreme caution) and replace it with a different type of polarizing film or re-orient the original one.
3. Interfacing with Different Microcontrollers (Advanced):

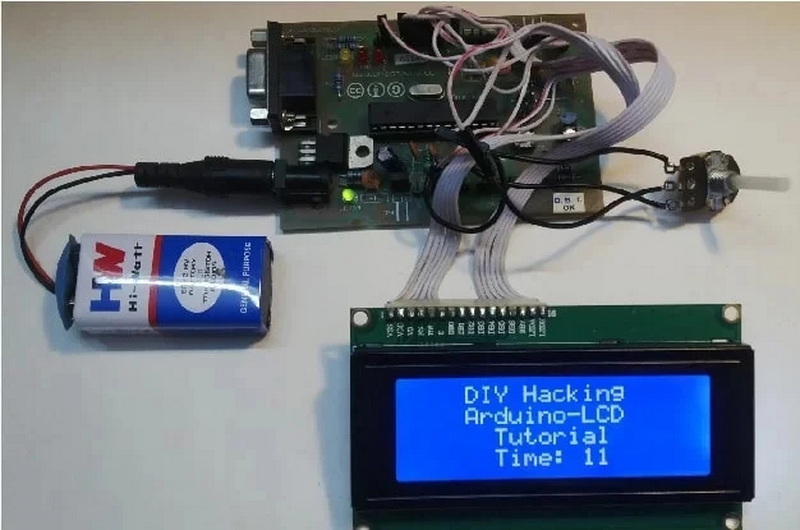

While Arduino is a popular choice for hobbyist projects, LCDs can be interfaced with a wide array of microcontrollers, such as ESP32, Raspberry Pi, and others.
- Key Considerations: Each microcontroller may have different voltage levels, pin configurations, and library requirements. Thorough research and adaptation are necessary.
- Adaptation Process: Adjust the code, wiring, and power supply to align with the chosen microcontroller's specifications.

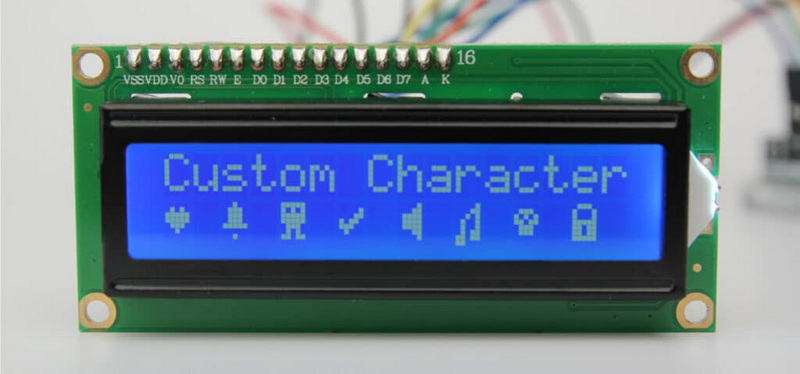

4. Custom Character Creation (Elaborate):
Character LCDs allow for the creation of custom characters, which can significantly enhance the display's functionality.
- Detailed Process: Define the pixel pattern for each new character. This involves specifying which pixels should be lit up for each of the 8 rows in a 5x8 pixel grid. Load these patterns into the LCD's memory using the `createChar()` function, assigning each custom character a unique index number.
1. Implementing Graphical User Interfaces (GUIs): With advanced microcontrollers and suitable libraries, you can create basic GUIs on graphic LCDs, allowing for interactive menus and control interfaces.
2. Displaying Sensor Data with Visualizations: LCDs can be used to visualize sensor data, such as temperature, humidity, or light levels, using bar graphs, line graphs, or custom icons.
3. Real-Time Clocks and Calendars: By interfacing an LCD with a real-time clock (RTC) module, you can create a digital clock or calendar display.
4. Game Development on LCDs: Simple games can be developed and displayed on LCDs, providing a nostalgic experience with pixelated graphics and straightforward gameplay.
Modifying LCDs involves inherent risks, and it is essential to take precautions to prevent damage or injury.
- Static Electricity Awareness: LCDs are highly susceptible to damage from static electricity. Always use an anti-static wrist strap and work in a static-controlled environment.
- Voltage Regulation: Supplying the LCD with the wrong voltage can cause permanent damage. Always double-check the voltage ratings and use a regulated power supply.
- Physical Handling: LCD screens are fragile and easily damaged by scratches, pressure, or impacts. Handle with care and avoid applying excessive force.
- Wiring Accuracy: Incorrect wiring can lead to short circuits and component failure. Double-check all connections before applying power.
1. Interactive Art Displays: Modify LCDs to create dynamic art pieces that respond to sensor input, user interaction, or environmental changes.
2. Smart Home Integration: Use LCDs to display information from smart home systems, such as energy consumption, security status, or weather forecasts.
3. Data Visualization Tools: Create custom dashboards with LCDs to visualize data from various sources, such as stock market trends, social media activity, or website traffic.
4. Custom Notification Systems: Build notification systems that display alerts, reminders, or messages on LCDs, providing a visual indication of important events.
Modifying LCD displays provides a gateway to a world of customization and creative project possibilities. The modifications range from elementary adjustments, such as contrast tuning, to intricate procedures like complete backlight replacements. A foundational understanding of LCD principles and adherence to safety measures are paramount for achieving successful modifications. By meticulous planning and careful execution, you can significantly enhance the functionality and aesthetics of your LCD projects, transforming them into bespoke solutions tailored to your specific needs. The ability to modify these ubiquitous displays offers a satisfying blend of technical skill and creative expression, limited only by your imagination.
A: Adjusting the contrast is crucial to ensure optimal readability. Proper contrast makes characters or images appear sharp and clear, improving visibility under varying lighting conditions.
A: Compatibility is key. Ensure the replacement backlight matches the LCD's voltage and current requirements, physical dimensions, and connector type.
A: The LiquidCrystal library provides a set of functions for easily controlling LCD displays, including printing text, positioning the cursor, and clearing the screen.
A: Prevent static electricity discharge by grounding yourself with a wrist strap, provide the correct voltage, handle the display with care, and double-check all wiring connections.
A: Yes, you can. First, define the pixel pattern for the new character. Then, load the pattern into the LCD's memory using the `createChar()` function, assigning it a unique index number for later use.
