● Understanding the LCD Display with I2C Module
>> Benefits of Using I2C with LCD Displays
● Wiring the LCD Display to Raspberry Pi
● Enabling I2C on Raspberry Pi
>> Installing Required Libraries
● Troubleshooting Common Issues
>> 2. How do I find my LCD's I2C address?
>> 3. Can I use any type of LCD with an I2C module?
>> 4. What libraries do I need for Python?
>> 5. What if my display does not light up?

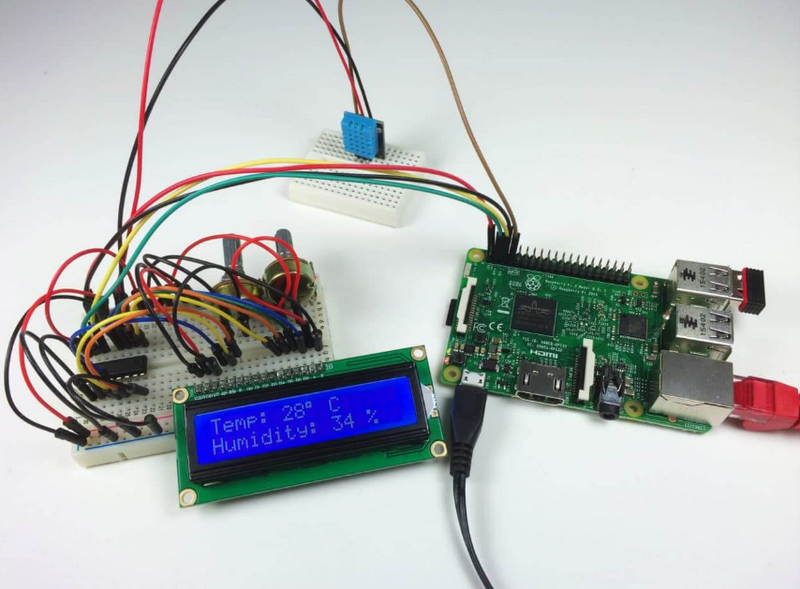

An LCD (Liquid Crystal Display) is a flat-panel display technology commonly used in various electronic devices. The I2C (Inter-Integrated Circuit) protocol is a communication protocol that allows multiple devices to communicate with each other using only two wires: SDA (Serial Data Line) and SCL (Serial Clock Line). The combination of an LCD display with an I2C module significantly reduces the number of GPIO pins required for connection, making it ideal for projects where pin availability is limited.
- Reduced Wiring Complexity: Only two data lines are needed for communication, along with power and ground connections.
- Multiple Device Support: The I2C bus can support multiple devices, allowing for easy expansion of your project.
- Simplified Programming: Libraries available for Python make it easy to control the display without dealing with low-level commands.
To get started with your LCD display and I2C module on Raspberry Pi, you will need the following components:
- Raspberry Pi (any model with GPIO pins)
- 16x2 LCD Display (with I2C backpack)
- I2C Module (usually integrated into the LCD backpack)
- Jumper Wires
- Breadboard (optional, for easier connections)

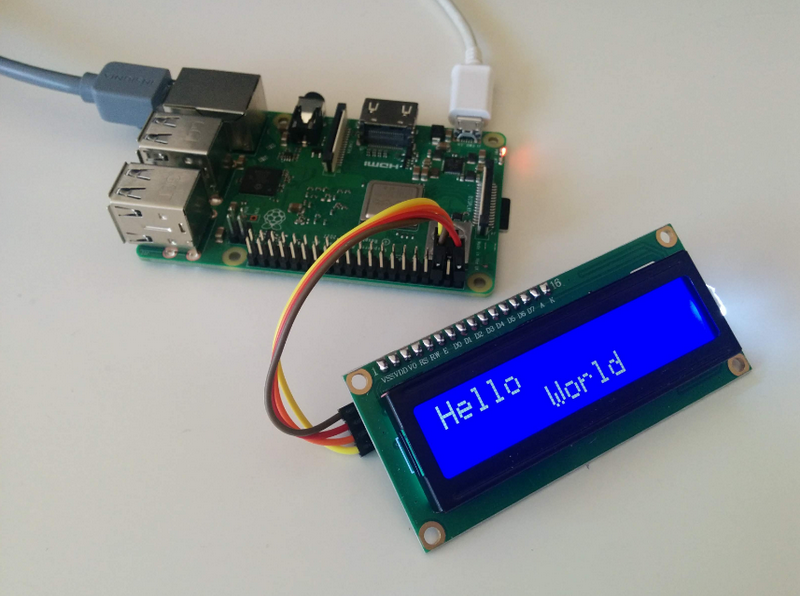

The wiring setup is straightforward. Here's how you can connect your LCD display with an I2C module to the Raspberry Pi:
| LCD I2C Pin | Raspberry Pi Pin |
|---|---|
| VCC | 5V |
| GND | GND |
| SDA | GPIO 2 (SDA) |
| SCL | GPIO 3 (SCL) |
1. Connect the VCC pin of the LCD to the 5V pin on the Raspberry Pi.
2. Connect the GND pin of the LCD to any GND pin on the Raspberry Pi.
3. Connect the SDA pin of the LCD to GPIO 2 on the Raspberry Pi.
4. Connect the SCL pin of the LCD to GPIO 3 on the Raspberry Pi.
Before using the I2C interface, you need to enable it on your Raspberry Pi:
1. Open a terminal window.
2. Run `sudo raspi-config`.
3. Navigate to Interfacing Options and select I2C.
4. Enable I2C and reboot your Raspberry Pi.
You can verify that I2C is enabled by running `lsmod | grep i2c` in the terminal.
To control the LCD display, you will need to install a Python library that supports I2C communication.
You should see "Hello World!" on line 1 and "Raspberry Pi" on line 2 of your LCD display for five seconds before it clears.
If you encounter issues while setting up your LCD display, consider these common troubleshooting steps:
- Check Connections: Ensure all wires are connected properly according to the wiring diagram.
- Verify I2C Address: Use `sudo i2cdetect -y 1` in the terminal to check if your display is detected and note its address (commonly `0x27` or `0x3f`).
- Install Missing Libraries: Make sure all necessary libraries are installed correctly.
Using an LCD display with an I2C module on a Raspberry Pi opens up many possibilities for projects ranging from simple displays to complex user interfaces in embedded systems. With minimal wiring and straightforward programming, this setup is accessible even for beginners.
In summary, here are some key points covered in this article:
- The benefits of using an I2C module with an LCD display.
- Step-by-step instructions for wiring and enabling I2C.
- How to write a simple Python program to control your display.
By following these guidelines, you can easily integrate an LCD display into your Raspberry Pi projects.
An I2C module allows multiple devices to communicate over two wires (SDA and SCL), simplifying connections in electronic projects.
You can find your LCD's address by running `sudo i2cdetect -y 1` in the terminal after enabling I2C on your Raspberry Pi.
Most commonly used are HD44780-based displays; ensure that your specific model supports I2C communication.
You will need `python3-smbus` and a library like `rpi_lcd` or similar that supports controlling an LCD via I2C.
Check all connections, ensure proper power supply (5V), and verify that you have enabled the I2C interface correctly.
