The Adafruit FLORA platform is a powerful tool for wearable electronics, offering a compact, sewable microcontroller compatible with Arduino. One of the most common questions among makers is: Can the FLORA drive an LCD display? The answer is *yes*—with the right hardware and software configurations. This article provides a detailed guide on how to interface LCD displays with FLORA, covering hardware requirements, wiring diagrams, software setup, and advanced projects.

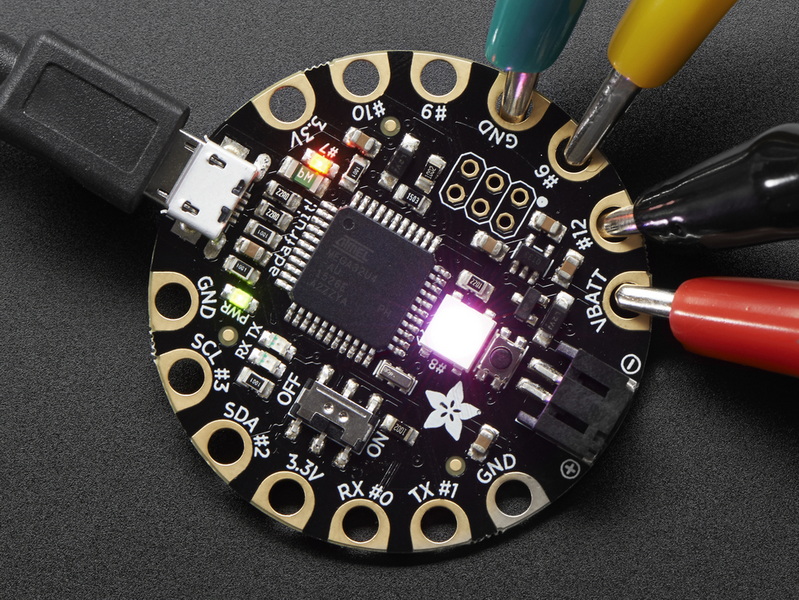

Adafruit FLORA is a wearable electronics platform designed for e-textiles and interactive projects. It features:
- A compact, circular design with 14 sewable pads.
- Compatibility with Arduino IDE for coding.
- Support for I2C and SPI communication protocols.
LCDs (Liquid Crystal Displays) are versatile output devices commonly used to display text or graphics in projects. They come in various configurations, such as:
- Character LCDs: 16x2 or 20x4 displays for text output.
- Graphical LCDs: For more complex visuals but require additional processing power.
FLORA has limited GPIO pins, making it challenging to connect devices like LCDs that require multiple connections. However, this limitation can be overcome using I2C or SPI communication protocols, which reduce the number of required pins.
1. I2C/SPI-Compatible LCDs:
These displays use only two data lines (SDA and SCL), leaving other GPIO pins free for additional sensors or actuators.
2. Standard Character LCDs with Parallel Interface:
These require 4–8 data lines but can still be used if optimized for 4-bit mode.
- Adafruit FLORA microcontroller
- I2C-compatible 16x2 or 20x4 LCD display
- Jumper wires or conductive thread (for e-textiles)
- Optional potentiometer for contrast adjustment
| Component | FLORA Connection | Notes |
|---|---|---|
| LCD VCC | 3.3V or VBAT | Use 3.3V for compatibility with FLORA’s voltage level. |
| LCD GND | GND | Common ground ensures stable operation. |
| SDA | D0 | Default I2C data line on FLORA. |
| SCL | D2 | Default I2C clock line on FLORA. |
To drive an I2C-compatible LCD, you'll need the `Adafruit_LiquidCrystal` library:
1. Open Arduino IDE and go to *Sketch > Include Library > Manage Libraries*.
2. Search for "Adafruit LiquidCrystal" and install it.
FLORA's onboard voltage regulator provides a stable 3.3V output suitable for small character LCDs.

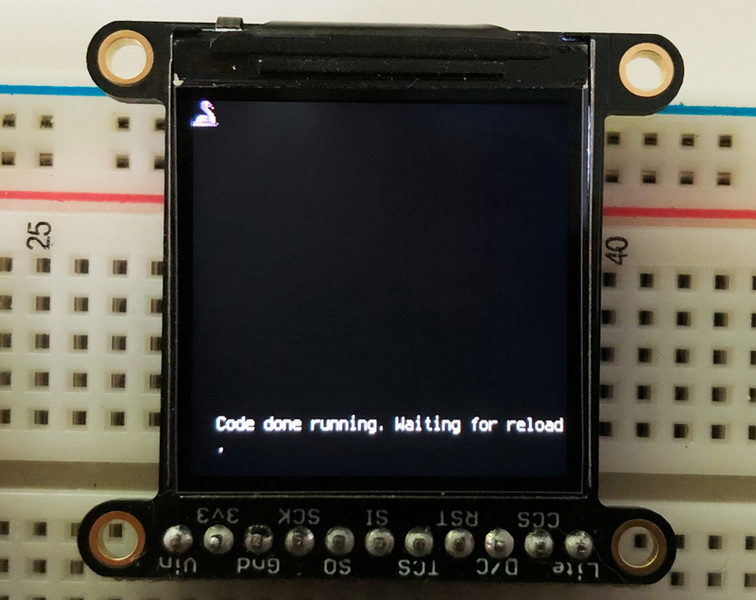

If you're using larger displays like graphical TFTs or OLEDs, consider powering them through an external source (e.g., a battery pack connected via the JST connector). This prevents overloading FLORA's regulator.
Combine an I2C-compatible 16x2 LCD with a DHT11 temperature and humidity sensor to create a wearable weather station.
Use an accelerometer (e.g., ADXL345) along with an I2C OLED display to create dynamic visuals based on movement.
1. No Display Output: Double-check wiring connections and ensure the correct I2C address is used in your code.
2. Flickering Text: This may occur if power supply voltage fluctuates; use capacitors to stabilize.
3. Unresponsive Display: Verify that SDA/SCL pins are correctly connected and not swapped.
4. Contrast Issues: Adjust the potentiometer connected to the VO pin until characters are clearly visible.
The Adafruit FLORA is highly capable of driving various types of LCD displays when paired with proper hardware like I2C backpacks or optimized wiring setups. Whether you're building wearable tech or interactive art installations, integrating an LCD enhances your project by providing real-time feedback or visual appeal.
By following this guide, you can confidently connect and program an LCD display with your FLORA board while exploring creative applications in wearable electronics.
You can connect multiple devices as long as each has a unique address and total power consumption doesn't exceed FLORA's capacity.
Yes, but they require external power and optimized libraries like `Adafruit_GFX`.
I2C works reliably up to about one meter; longer distances may require pull-up resistors or signal boosters.
No—conductive thread is better suited for low-power devices like LEDs or small sensors.
Use an I2C scanner sketch to detect connected devices and verify their addresses.
