Before diving into troubleshooting, let's briefly review what an I2C 1602 serial LCD module is and how it works.
The I2C 1602 LCD module consists of two main components:
1. A standard 16x2 character LCD display
2. An I2C adapter board (usually based on the PCF8574 I/O expander chip)
This combination allows for simplified wiring, requiring only four connections to your microcontroller:
- VCC (Power)
- GND (Ground)
- SDA (Serial Data)
- SCL (Serial Clock)

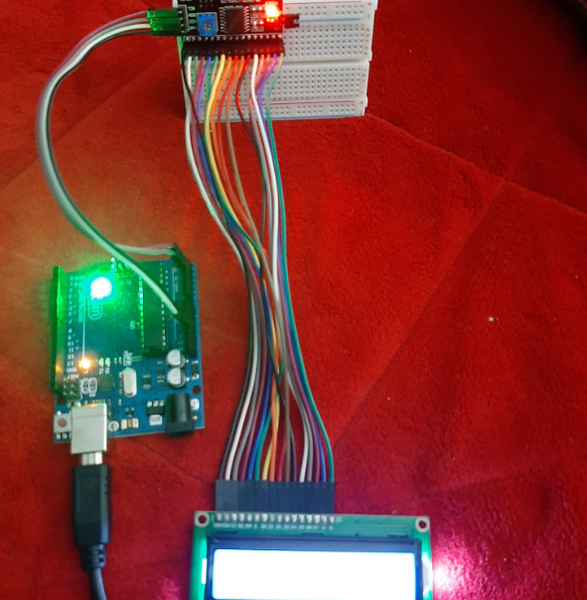

There are several reasons why your I2C 1602 serial LCD module might not be showing text. Let's explore these issues and their solutions.
One of the most common reasons for display issues is incorrect wiring. Double-check your connections to ensure they are correct and secure.
Make sure:
- VCC is connected to the power source (usually 5V)
- GND is connected to ground
- SDA is connected to the appropriate SDA pin on your microcontroller
- SCL is connected to the appropriate SCL pin on your microcontroller
Each I2C device has a unique address. The default address for most I2C 1602 LCD modules is 0x27, but it can vary. If you're using the wrong address in your code, the display won't work.

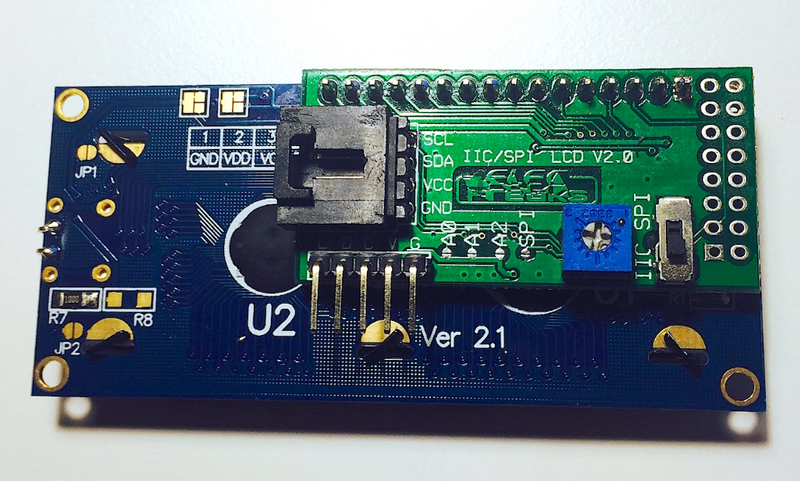

If you see nothing on the display or all black squares, the contrast might need adjustment. Look for a small blue potentiometer on the back of the I2C adapter board.
Use a small screwdriver to gently turn this potentiometer while your display is powered on. You should see the text appear as you find the right contrast setting.
Ensure you're using the correct library for your I2C LCD module. The most commonly used library is the LiquidCrystal_I2C library. You can install it through the Arduino IDE Library Manager or download it from GitHub.
Ensure your power supply can provide enough current for both your microcontroller and the LCD. The backlight of the LCD can draw significant current. If you're using a USB power source, try using an external power supply instead.
If you've tried the above solutions and your I2C 1602 serial LCD module still isn't working, here are some more advanced troubleshooting steps.
Inspect your LCD module and I2C adapter for any visible damage. Look for burnt components, loose connections, or signs of short circuits.
If possible, try connecting your LCD to a different microcontroller. This can help determine if the issue is with the LCD or your original microcontroller.
Use an oscilloscope or logic analyzer to verify that I2C communication is occurring correctly. You should see activity on both the SDA and SCL lines when your microcontroller attempts to communicate with the LCD.
If you have multiple I2C devices connected to your microcontroller, they might be conflicting. Try disconnecting other I2C devices and testing the LCD alone.
In rare cases, the firmware on your I2C adapter might be corrupted. Some I2C adapters allow for firmware updates. Check the documentation for your specific module to see if this is possible.
For a visual guide on troubleshooting your I2C 1602 serial LCD module, check out this helpful video:
This video provides a step-by-step guide to connecting and programming your I2C LCD display with Arduino.
Troubleshooting an I2C 1602 serial LCD module that's not showing text can be frustrating, but with a systematic approach, most issues can be resolved. Remember to check your wiring, verify the I2C address, adjust the contrast, use the correct library, and ensure adequate power supply. If problems persist, don't hesitate to seek help from the maker community or consider replacing the module if all else fails.
By following this guide, you should be able to get your I2C 1602 LCD display up and running, adding a valuable output device to your electronics projects.
To find the correct I2C address for your LCD module, you can use an I2C scanner sketch. Upload the scanner sketch provided earlier in this article to your Arduino, open the Serial Monitor, and it will display the address of your I2C LCD module. Most commonly, the address is 0x27, but it can vary depending on the manufacturer.
If your I2C 1602 LCD display is showing only black squares, it's likely a contrast issue. Look for a small blue potentiometer on the back of the I2C adapter board. Use a small screwdriver to gently adjust this potentiometer while the display is powered on. You should see the text appear as you find the right contrast setting.
Yes, you can use the I2C 1602 LCD module with various microcontrollers that support I2C communication. This includes popular boards like Raspberry Pi, ESP8266, ESP32, and many others. However, you may need to use different libraries or code depending on the platform you're using.
To display custom characters on your I2C 1602 LCD, you need to create the character bitmap and store it in the LCD's CGRAM (Character Generator RAM).
The main differences between an I2C LCD module and a standard parallel LCD are:
1. Wiring: I2C LCDs require only 4 connections (VCC, GND, SDA, SCL), while parallel LCDs typically need 6-16 connections.
2. Pin usage: I2C LCDs use fewer pins on your microcontroller, leaving more pins available for other components.
3. Communication: I2C LCDs use the I2C protocol for communication, which allows for longer cable lengths and easier multi-device setups.
4. Speed: Parallel LCDs can potentially be faster, but for most applications, the speed difference is negligible.
5. Code: The libraries and code used to control I2C LCDs are different from those used for parallel LCDs.
In most cases, I2C LCD modules are preferred for their simplicity and reduced wiring complexity.
