Liquid crystal displays (LCDs) have become an integral part of modern electronic devices, ranging from smartphones and laptops to televisions and digital watches. The technology behind LCDs relies on a fascinating state of matter known as liquid crystals, which exhibit properties between those of conventional liquids and solid crystals. This article offers an in-depth examination of the types of liquid crystals used in LCDs, their molecular behavior, the working principles of LCD technology, and the advantages and challenges associated with this display method. Throughout the article, detailed explanations and illustrative descriptions will help clarify the role of liquid crystals in LCDs.
The primary liquid crystal used in LCD technology is the nematic liquid crystal, specifically in the twisted nematic (TN) form. Nematic liquid crystals consist of rod-shaped molecules that tend to align parallel to each other but do not form rigid layers like some other liquid crystal phases. The twisted nematic configuration involves these molecules being twisted approximately 90 degrees between two glass substrates, which enables the manipulation of light polarization and transmission.
- Nematic Liquid Crystals: These are the most widely used in LCDs. Their molecules align roughly parallel to each other, and their orientation can be controlled by electric fields to modulate light.
- Twisted Nematic (TN) Liquid Crystals: A subtype of nematic crystals where the molecules are twisted between two plates, allowing polarized light to be rotated and pass through crossed polarizers.
- Super Twisted Nematic (STN) Liquid Crystals: Similar to TN but with a greater twist angle, providing better contrast for certain applications.
- In-Plane Switching (IPS) Liquid Crystals: A variation where molecules rotate parallel to the display plane, improving viewing angles and color reproduction.
- Vertical Alignment (VA) Liquid Crystals: Molecules align perpendicular to the glass substrates when no voltage is applied, offering higher contrast ratios.
While nematic liquid crystals dominate the LCD market, other types such as smectic and cholesteric liquid crystals are less common in standard displays but find niche applications in specialized devices.
Liquid crystals represent a unique phase of matter that exhibits both fluidity and a degree of molecular order. Their molecules are typically elongated, rod-shaped structures that can flow like a liquid but maintain directional alignment akin to a crystal.
In LCDs:
- The liquid crystal layer is sandwiched between two transparent glass plates coated with electrodes.
- The inner surfaces of these plates are treated with microscopic grooves to align the liquid crystal molecules in a specific direction.
- At one plate, molecules are aligned horizontally; at the opposite plate, they are aligned vertically, creating a 90-degree twist across the liquid crystal layer.
- This twisted structure rotates the plane of polarized light passing through it, enabling light to pass through a second polarizer oriented perpendicular to the first.
When an electric voltage is applied, the liquid crystal molecules reorient themselves along the electric field, losing their twist. This change prevents the rotation of polarized light, causing the light to be blocked by the second polarizer and making the pixel appear dark.

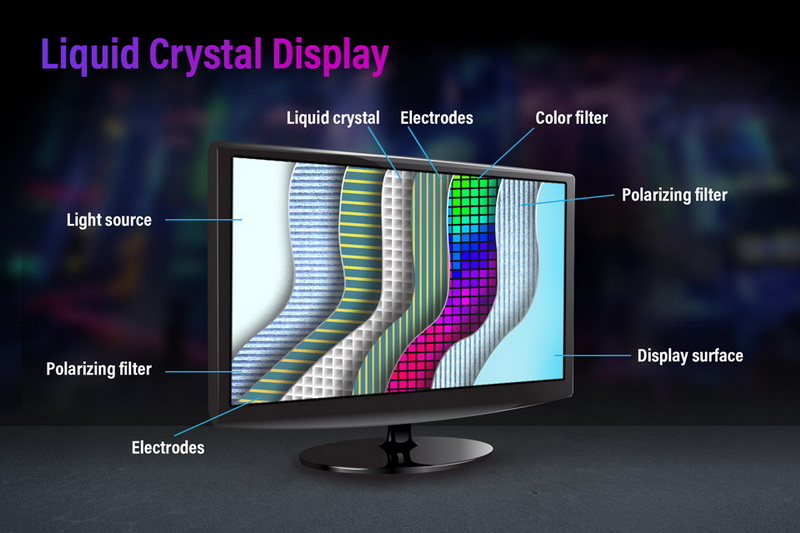

- Liquid Crystal Layer: The core medium whose molecular orientation controls light transmission.
- Polarizers: Two polarizing filters placed at 90 degrees to each other on either side of the liquid crystal layer.
- Electrodes: Transparent conductive layers (commonly indium tin oxide) that apply an electric field to the liquid crystal molecules.
- Backlight: A light source (such as LEDs or cold cathode fluorescent lamps) positioned behind the display to provide illumination.
1. No Voltage Applied: The twisted nematic liquid crystals rotate the plane of polarized light by 90 degrees, allowing it to pass through the second polarizer, resulting in a bright pixel.
2. Voltage Applied: The electric field causes the liquid crystal molecules to align with the field, straightening out and losing their twist. This prevents the rotation of polarized light, which is then blocked by the second polarizer, making the pixel appear dark.
By controlling the voltage applied to each pixel, the LCD can selectively block or allow light, thereby forming images.
To better understand how liquid crystals function within an LCD, imagine polarized light as a wave vibrating in a specific direction. The first polarizer filters the incoming light so that only waves vibrating in one direction pass through. The twisted nematic liquid crystal layer then rotates this vibration direction by 90 degrees, allowing the light to pass through the second polarizer, which is oriented perpendicular to the first.
When the liquid crystal molecules are aligned by an electric field, they no longer twist the light's polarization, so the second polarizer blocks the light, and the pixel appears dark. This elegant control of light enables the LCD to display images with varying brightness and contrast.
- Low Power Consumption: Liquid crystals require minimal electric current to change orientation, making LCDs energy-efficient compared to older display technologies.
- Thin and Lightweight: The liquid crystal layer is extremely thin, allowing LCDs to be compact and lightweight.
- No Light Emission: Liquid crystals modulate light rather than emitting it, reducing heat generation and improving device longevity.
- Good Image Quality: LCDs can produce sharp images with good contrast and color accuracy.
- No Screen Burn-in: Unlike plasma or CRT displays, LCDs do not suffer from permanent image retention.
Despite their many advantages, LCDs have some limitations:
- Viewing Angle Dependency: The image quality and contrast can degrade when viewed from angles other than straight on, due to the optical properties of liquid crystals.
- Temperature Sensitivity: Liquid crystals have optimal operating temperature ranges; extreme cold or heat can impair their performance.
- Backlight Power Consumption: While liquid crystals themselves consume little power, the backlighting system can be energy-intensive.
- Response Time: Some LCDs have slower response times compared to OLED or other advanced display technologies, potentially causing motion blur in fast-moving images.
- Color and Contrast Limitations: Compared to newer display technologies, LCDs may have lower contrast ratios and less vibrant colors.
| Technology | Description | Advantages | Disadvantages |
|---|---|---|---|
| Twisted Nematic (TN) | Molecules twisted 90°, fast response | Low cost, fast response | Narrow viewing angles |
| Super Twisted Nematic (STN) | Molecules twisted >90°, better contrast | Better contrast than TN | Slower response |
| In-Plane Switching (IPS) | Molecules aligned parallel to glass plates | Wide viewing angle, good color | Higher cost, slower response |
| Vertical Alignment (VA) | Molecules aligned perpendicular to glass plates | High contrast, good black levels | Moderate viewing angles |
Each technology uses nematic liquid crystals but differs in molecular alignment and electrode configuration to optimize display characteristics for various applications.
Recent advancements in liquid crystal materials focus on improving response times, viewing angles, color reproduction, and energy efficiency. New liquid crystal compounds with enhanced dielectric anisotropy and birefringence allow faster molecular reorientation and better light modulation.
Additionally, innovations such as quantum dot enhancement films combined with LCDs improve color gamut and brightness, bridging the gap between LCDs and OLED displays.
The liquid crystal used in LCD displays is predominantly the twisted nematic nematic liquid crystal, whose unique molecular structure and electro-optical properties allow for precise control of light transmission. This technology revolutionized display devices by enabling thin, energy-efficient, and versatile screens. While LCDs face challenges like limited viewing angles and backlight energy use, ongoing advancements in liquid crystal materials and display engineering continue to enhance performance. Understanding the chemistry and physics of liquid crystals is essential for appreciating the sophisticated technology behind everyday screens.
The main type is nematic liquid crystals, particularly the twisted nematic form, which allows control of light polarization through molecular orientation changes under an electric field.
Liquid crystals combine fluidity with molecular order, enabling them to modulate light effectively when electrically controlled, which allows thin, low-power displays with good image quality.
They rotate the plane of polarized light when in a twisted state, allowing light to pass through crossed polarizers. When an electric field is applied, the molecules straighten, blocking light passage.
Polarizers filter light waves to specific orientations. Two polarizers are set at 90 degrees to each other, and the liquid crystal layer rotates the light's polarization to allow or block light, creating the image.
Limitations include restricted viewing angles, sensitivity to temperature changes, backlight power consumption, and slower response times compared to newer display technologies.
