Views: 222 Author: Tina Publish Time: 2025-06-22 Origin: Site
Content Menu
● What Are TFT and IPS LCD Displays?
● How Do TFT and IPS LCD Technologies Work?
● Key Differences Between TFT and IPS LCD
● Pros and Cons of TFT Displays
>> Advantages
● Pros and Cons of IPS LCD Displays
>> Advantages
● Application Scenarios: Which Display Suits Your Needs?
● Advanced Considerations: Lifespan, Durability, and Future Trends
>> 1. What are the main differences between TFT and IPS LCD displays?
>> 2. Are IPS displays worth the extra cost?
>> 3. Can I use a TFT display for gaming?
>> 4. How do I know if my device has a TFT or an IPS display?
>> 5. Is power consumption a significant factor when choosing between these two technologies?
Choosing the right display for your device is a crucial decision, whether you're a tech enthusiast, a professional designer, or a casual user. Among the most popular options are TFT (Thin Film Transistor) and IPS (In-Plane Switching) LCDs. Both technologies are widely used in smartphones, monitors, laptops, and televisions, but each offers unique strengths and weaknesses. This comprehensive guide explores the differences, advantages, disadvantages, and best use cases for TFT and IPS LCD displays, helping you make an informed decision.
TFT LCD stands for Thin Film Transistor Liquid Crystal Display. It is a type of active-matrix LCD that uses thin-film transistors to control each pixel, enabling faster refresh rates and better image quality than older passive-matrix LCDs. Most entry-level and mid-range devices use TFT displays due to their affordability and decent performance.
IPS LCD stands for In-Plane Switching Liquid Crystal Display. It is a subtype of TFT LCD that improves upon the limitations of standard TFT, especially in terms of color accuracy and viewing angles. IPS was developed to address the shortcomings of traditional Twisted Nematic (TN) panels, which are commonly used in basic TFT displays.
- Uses a grid of thin-film transistors, each controlling a single pixel.
- Requires a backlight (usually LED) since liquid crystals do not emit light.
- Most commonly uses TN (Twisted Nematic) panels, which are fast but have limited color accuracy and narrow viewing angles.
- The structure is relatively simple, which keeps production costs lower and allows for thinner, lighter screens.
- Also uses a grid of transistors, but aligns liquid crystals parallel to the glass substrate.
- This alignment allows for better light transmission, resulting in superior color consistency and much wider viewing angles.
- Requires a backlight, just like TFT, but the structure is more complex, often leading to higher power consumption and cost.
- The parallel alignment helps minimize color and contrast shifts, making IPS panels ideal for tasks demanding high visual fidelity.
| Feature | TFT LCD (Typical TN) | IPS LCD |
|---|---|---|
| Color Accuracy | Good, but limited | Superior, consistent |

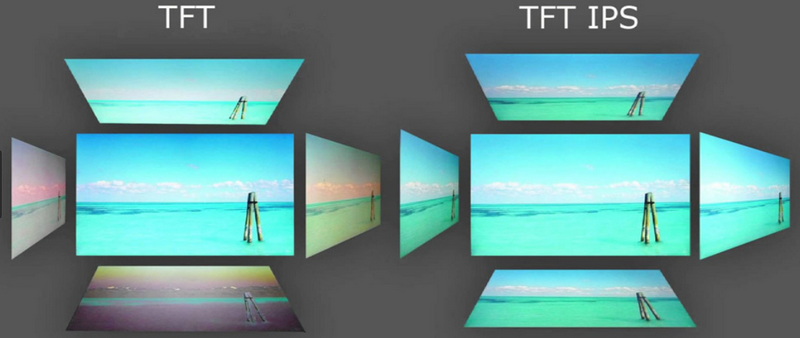

| Viewing Angles | Narrow, color shifts visible | Wide (up to 178°), stable |
| Response Time | Fast | Moderate (improving) |
| Contrast Ratio | Decent | Higher, deeper blacks |
| Power Consumption | Lower | Higher (due to backlight needs) |
| Cost | More affordable | More expensive |
| Best Use Cases | Budget devices, gaming | Professional, creative work |
- Affordability: Lower production costs make TFT displays ideal for budget devices and mass-market applications.
- Fast Response Time: Excellent for fast-paced content such as gaming and video playback.
- Energy Efficiency: Consumes less power than IPS, making it suitable for battery-powered devices.
- Good Visibility: Offers sharp images and decent brightness for everyday use.
- Thin and Lightweight: Enables slim device designs, making them ideal for portable electronics.
- Limited Viewing Angles: Colors and contrast shift when viewed from the side or above/below.
- Color Accuracy: Not as precise as IPS, which can be a drawback for design or photo editing.
- Contrast and Black Levels: Blacks may appear grayish, and contrast isn't as deep as IPS.
- Susceptibility to Motion Blur: Some TFT panels may exhibit motion blur in fast-moving scenes.
- Sunlight Readability: Often requires very bright backlights to be readable outdoors, increasing power consumption.
- Aging and Burn-in: Over time, TFT panels can experience uneven aging, leading to color inconsistencies.
- Superior Color Accuracy: Delivers vibrant, consistent colors, making it ideal for professional and creative work.
- Wide Viewing Angles: Maintains image quality and color fidelity even when viewed from extreme angles.
- High Contrast Ratios: Offers deeper blacks and more brilliant images than standard TFT.
- Consistent Image Quality: Minimal color shift or contrast loss across the screen.
- Preferred for Collaboration: Great for environments where multiple people view the screen at once.
- Better for Touchscreens: IPS panels are commonly used in touch devices due to their stable visuals from any angle.
- Higher Cost: More expensive to produce due to complex structure.
- Greater Power Consumption: Requires more backlight power, which can reduce battery life in portable devices.
- Response Time: While much improved, still generally slower than TN-based TFT for ultra-fast gaming.
- Potential for IPS Glow: Some panels may show a faint glow in dark scenes, especially at wide angles.
- Thickness: IPS panels can be slightly thicker than basic TFT, though the difference is narrowing.
- Backlight Bleed: Some IPS panels may suffer from uneven backlight, especially at the edges.
- Budget Smartphones and Tablets: Where cost and battery life are priorities, and users are less concerned about color accuracy or viewing angles.
- Automotive Displays: Where the screen is viewed head-on, and durability is important.
- Basic Computer Monitors: For office work, document editing, or general use where premium image quality is not critical.
- Gaming: Where fast response times are essential and viewing angles are less critical, especially for competitive gamers.
- Professional Monitors: For design, photography, and video editing, where color accuracy and consistency are essential.
- High-End Smartphones and Tablets: Where premium image quality and wide viewing angles are desired.
- Televisions and Public Displays: Where wide viewing angles enhance the user experience, such as in living rooms or public spaces.
- Collaborative Workspaces: Where multiple people view the screen simultaneously, such as in meetings or classrooms.
- TFT LCD: Generally robust and long-lasting under normal use. However, over time, TFT panels may experience color fading or uneven backlight performance, especially if exposed to high temperatures or direct sunlight for extended periods.
- IPS LCD: Also durable, with a lifespan similar to TFT panels. IPS technology is less prone to color distortion over time, maintaining consistent quality for longer periods. However, due to more complex construction, repairs can be more expensive.
Both TFT and IPS LCDs rely on backlighting and contain materials that require careful disposal. Manufacturers are increasingly focusing on eco-friendly production and recycling programs to minimize environmental impact.
- Mini-LED and Micro-LED: Newer backlighting technologies like mini-LED and micro-LED are being integrated with IPS panels to enhance contrast, brightness, and energy efficiency.
- OLED Competition: While OLED displays offer even better color and contrast, they are currently more expensive and face their own issues like burn-in. IPS LCD remains a strong choice for users who want a balance between performance and cost.
- Touch and Flexible Displays: Both TFT and IPS technologies are being adapted for flexible and foldable devices, expanding their use in innovative product designs.
- Budget Laptops: Many affordable laptops use TFT LCDs to keep costs low while delivering acceptable performance for everyday tasks.
- Professional Graphics Monitors: High-end monitors for photographers and designers almost exclusively use IPS panels for their superior color accuracy and consistency.
- Automotive Infotainment Systems: TFT LCDs are common in car dashboards where the display is viewed straight on, while luxury vehicles may opt for IPS for better visibility from all seats.
- Smartphones: Entry-level smartphones often use TFT LCDs, while flagship models favor IPS or even OLED for the best possible display experience.
The answer depends on your priorities:
- Choose TFT LCD if you need a cost-effective, energy-efficient display with fast response times, and you'll mostly view the screen head-on. This makes TFT ideal for budget devices, automotive applications, and gaming monitors where speed is more important than color accuracy or viewing angles.
- Choose IPS LCD if you require superior color accuracy, wide viewing angles, and consistent image quality for professional or creative work, high-end consumer electronics, or collaborative environments. IPS is the preferred choice for designers, photographers, and anyone who values premium visual performance—even if it comes at a higher price and power cost.
In summary: IPS LCD is generally considered the best LCD technology for color displays due to its combination of color fidelity and wide viewing angles. However, TFT LCD remains a strong contender for budget-conscious users and applications where speed and efficiency are paramount. As display technology continues to evolve, both TFT and IPS LCDs are likely to remain relevant, each serving distinct user needs and market segments.
TFT LCDs use thin-film transistors to control pixels and are known for fast response times and affordability, but have limited viewing angles and color accuracy. IPS LCDs are a subtype of TFT that align liquid crystals in-plane, offering superior color accuracy and wide viewing angles, but at a higher cost and power consumption.
For professionals in design, photography, or video editing, or for users who value image quality and viewing angles, IPS displays are worth the investment. For basic tasks or budget devices, TFT may suffice.
Yes, TFT displays are well-suited for gaming due to their fast response times. However, if you also value color accuracy and wide viewing angles, consider a gaming monitor with an advanced IPS panel.
Check your device specifications online or in the user manual. Manufacturers often list the display type. If viewing angles are poor and colors shift from the side, it's likely a standard TFT. If colors remain consistent at wide angles, it's probably IPS.
Yes. TFT displays generally consume less power, making them better for battery-powered devices. IPS displays use more power due to their backlight requirements, which can affect battery life in portable devices.
