OLED screens have revolutionized the way makers and engineers add visual feedback to their Arduino projects. Their crisp contrast, low power consumption, and ability to display both text and graphics make them a favorite for hobbyists and professionals alike. However, choosing the right Arduino board for driving an OLED screen can be confusing given the variety of models available. This comprehensive guide explores which Arduino is best for driving OLED screens, providing detailed comparisons, wiring guides, project examples, and troubleshooting tips to help you get started.

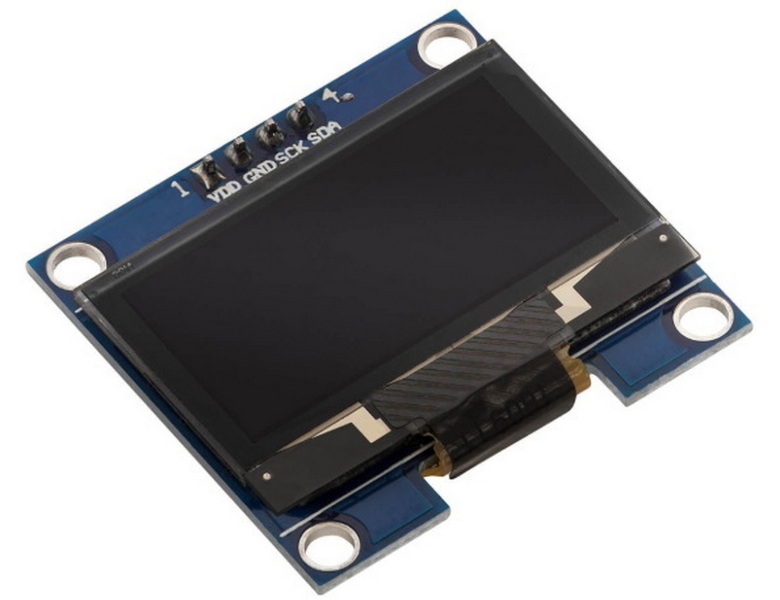

An OLED (Organic Light Emitting Diode) screen is a display technology that emits light when an electric current passes through organic compounds. Unlike traditional LCDs, OLEDs do not require a backlight, resulting in higher contrast and lower power consumption. Common OLED modules for Arduino include the SSD1306 and SH1106 controllers, typically available in sizes like 0.96 inches with a resolution of 128x64 pixels.
- High Contrast: Perfect for displaying text and graphics in all lighting conditions.
- Low Power Consumption: Ideal for battery-powered projects.
- Compact Size: Fits into small enclosures and wearable devices.
- Versatile Communication: Supports both I2C and SPI protocols, offering flexibility in wiring.
OLEDs are especially popular in projects where clear display of information is crucial but space and power are limited, such as wearable devices, portable instruments, and sensor readouts.
When selecting an Arduino board for driving an OLED screen, several factors should be considered to ensure optimal performance and ease of use:
- Communication Protocol Support: The OLED display typically communicates via I2C or SPI. Ensure the Arduino board has the necessary pins and hardware support for these protocols.
- Memory Capacity: OLED libraries and graphics operations require sufficient SRAM and Flash memory. Boards with limited memory may struggle with complex graphics or animations.
- Processing Speed: For projects involving animations or multiple sensors, a faster microcontroller will provide smoother performance.
- Physical Size and Form Factor: Depending on your project enclosure, the size of the Arduino board might be a constraint.
- Power Supply Compatibility: The OLED display voltage requirements (usually 3.3V or 5V) must match the Arduino's output to prevent damage.
| Arduino Model | I2C Pins | SRAM | Flash | Clock Speed | Power Supply | Suitability for OLED |
|---|---|---|---|---|---|---|
| Uno | A4/A5 | 2 KB | 32 KB | 16 MHz | 5V/USB | Excellent for beginners and most projects |
| Nano | A4/A5 | 2 KB | 32 KB | 16 MHz | 5V/USB | Compact and versatile, great for small projects |
| Mega 2560 | 20/21 | 8 KB | 256 KB | 16 MHz | 5V/USB | Overkill for simple OLED projects but good for complex multitasking |
| Leonardo | 2/3 | 2.5 KB | 32 KB | 16 MHz | 5V/USB | Good for USB HID projects with OLED display |
| Pro Mini | A4/A5 | 2 KB | 32 KB | 16 MHz | 5V/3.3V | Ideal for compact builds with limited space |
| Due | 20/21 | 96 KB | 512 KB | 84 MHz | 3.3V/USB | Best for demanding graphics and multitasking |
| ESP32 | Any | 520 KB | 4 MB | 240 MHz | 3.3V/USB | Best for WiFi-enabled and high-performance OLED projects |
- Arduino Uno and Nano: These are the most popular choices for OLED projects due to their simplicity, availability, and rich community support. Both offer sufficient memory and processing power for most OLED applications, including text, basic graphics, and simple animations.
- Arduino Mega 2560: While it offers plenty of memory and pins, it is often more than necessary for simple OLED displays. It becomes useful in projects that require multiple sensors or displays simultaneously.
- Arduino Leonardo: Unique for its native USB capabilities, the Leonardo can be combined with OLED to create custom USB devices with display feedback.
- Arduino Pro Mini: Its small size makes it perfect for wearable or space-constrained projects. However, it requires an external USB-to-serial adapter for programming.
- Arduino Due: A powerful 32-bit board with ample memory and speed, suitable for complex graphics or multitasking OLED applications.
- ESP32: A highly capable microcontroller with built-in WiFi and Bluetooth, large memory, and fast processing speed. Ideal for IoT projects that require OLED display and wireless communication.
- Arduino board (Uno, Nano, Mega, etc.)
- 0.96" I2C OLED display (SSD1306)
- Jumper wires
- Breadboard (optional)

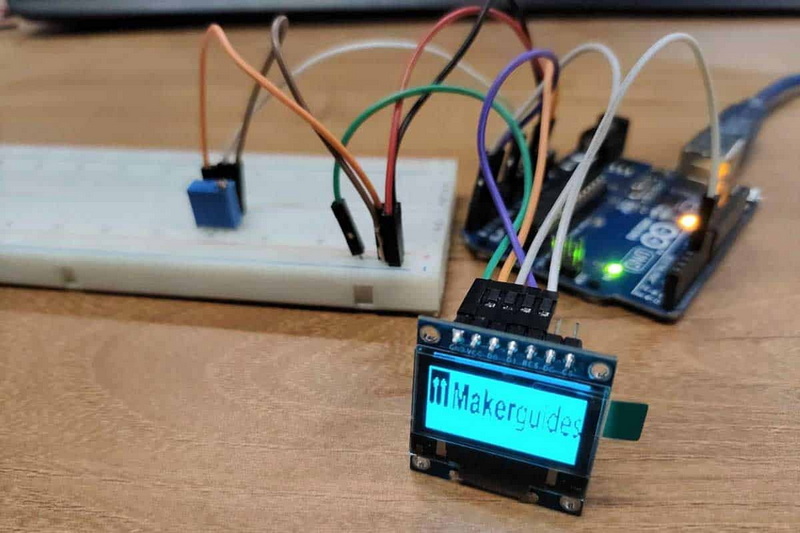

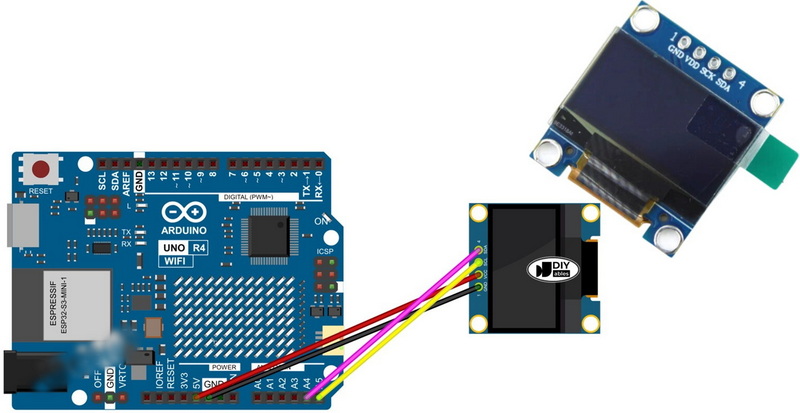

OLED displays typically have four main pins: VCC, GND, SCL (clock), and SDA (data). The wiring depends on the Arduino model but generally follows this pattern:
| OLED Pin | Arduino Uno/Nano | Mega 2560 | Leonardo | Due/ESP32 |
|---|---|---|---|---|
| VCC | 5V | 5V | 5V | 3.3V |
| GND | GND | GND | GND | GND |
| SCL | A5 | 21 | 3 | 21 |
| SDA | A4 | 20 | 2 | 20 |
- Double-check the OLED's voltage requirements; some OLEDs are 3.3V only.
- Use short jumper wires to reduce noise.
- If using SPI OLEDs, more pins are involved (MOSI, MISO, SCK, CS).
- For multiple OLEDs, ensure unique I2C addresses or use SPI.
To program the OLED, install the Adafruit SSD1306 and Adafruit GFX libraries via the Arduino IDE's Library Manager. These libraries provide essential functions for drawing text, shapes, and bitmaps.
- Initialization: Begin communication with the OLED and set display parameters.
- Clear Display: Erase previous content.
- Set Text Size and Color: Customize appearance.
- Draw Text and Graphics: Display information or images.
- Update Display: Push the buffer to the screen.
- Use double buffering to avoid flickering.
- Optimize graphics by limiting redraw areas.
- Use bitmap arrays to display custom images.
- Implement scrolling text or animations for dynamic effects.
Combine a temperature and humidity sensor with an OLED to display real-time environmental data. This project teaches sensor integration and data visualization.
Use an ultrasonic distance sensor to measure distances and display results on the OLED. This project is practical and demonstrates sensor-display interaction.
Create a simple snake game using the OLED for graphics. This project introduces game logic and graphical programming on limited hardware.
Display moving shapes, icons, or scrolling messages on the OLED. This project explores animation techniques and timing.
Convert your logo or any image into a bitmap and display it on the OLED during startup or idle states. This adds a professional touch to your projects.
- Blank Screen: Check wiring, power supply, and I2C address. Use an I2C scanner sketch to verify the OLED is detected.
- Garbled Text or Graphics: Confirm correct library versions and screen dimensions in code.
- No Display Update: Ensure `display.display()` is called after drawing commands.
- Flickering or Unstable Display: Use a stable power source; avoid long wires or breadboards for high-frequency signals.
- Programming Errors: Verify board and port selection in the Arduino IDE.
Choosing the best Arduino for driving an OLED screen depends on your project's requirements. For most applications, the Arduino Uno and Nano offer the perfect balance of simplicity, compatibility, and performance. For advanced graphics, multitasking, or wireless features, the ESP32 stands out due to its superior processing power and memory. Regardless of your choice, integrating an OLED display into your Arduino project is straightforward and opens up endless possibilities for creative and functional designs. By understanding the hardware requirements, wiring protocols, and programming techniques, you can create impressive projects that leverage the sharp visuals and low power consumption of OLED technology.
The Arduino Uno and Nano are the most popular and reliable choices for driving SSD1306 OLED screens. They offer sufficient memory, easy wiring, and are widely supported by libraries. For more complex graphics or WiFi-enabled projects, the ESP32 is highly recommended.
Yes, you can use multiple OLEDs by assigning different I2C addresses or using SPI communication. However, ensure your Arduino has enough memory and processing power for multiple displays.
Most small OLED displays can be powered directly from the Arduino's 5V or 3.3V pin. For larger screens or multiple displays, consider using an external power supply.
The Adafruit SSD1306 and Adafruit GFX libraries are the most popular and well-documented. They support a wide range of OLED modules and provide functions for text, graphics, and animations.
Yes, you can display bitmaps and simple animations. Use online tools to convert images to bitmap arrays and utilize the Adafruit GFX library's drawBitmap function.
