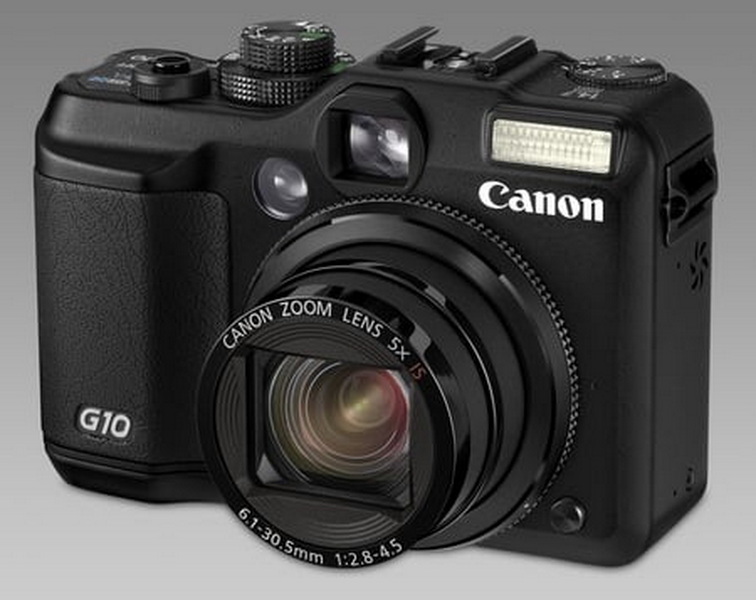

The Canon PowerShot G10 stands as a testament to the era of advanced compact digital cameras, celebrated for its robust design, extensive manual controls, and impressive imaging capabilities. Central to the user experience is its 3-inch fixed LCD display, a critical interface for composing shots, reviewing images, and navigating the camera's settings. However, like any electronic component, the LCD is susceptible to wear, damage, and technological limitations. This comprehensive guide explores every aspect of the Canon G10's LCD display, from specifications and common issues to detailed replacement procedures, maintenance tips, and answers to frequently asked questions.

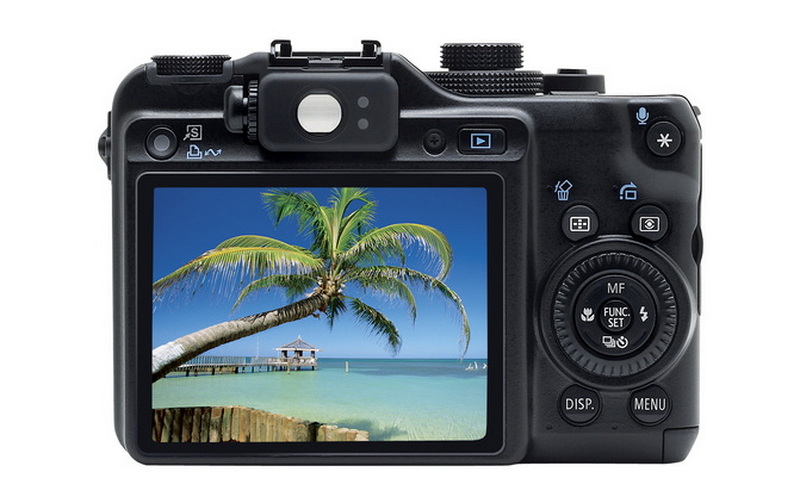

The Canon PowerShot G10 is equipped with a 3.0-inch fixed TFT LCD display, offering a resolution of 461,000 dots. This display serves as the camera's primary visual interface, providing a clear and bright platform for composing photographs, reviewing images, and accessing camera settings. Unlike some earlier or later G-series models, the G10's LCD is not articulated, meaning it remains fixed in place and does not swivel or tilt.
Key Specifications:
- Size: 3.0 inches (diagonal)
- Type: TFT LCD, fixed (non-articulating)
- Resolution: 461,000 dots
- Aspect Ratio: 4:3
- Viewing Angle: Wide, but with some limitations in direct sunlight
- Touchscreen: No
- Protective Cover: Glass or plastic overlay for durability
The display's fixed nature means it is less prone to mechanical failure compared to articulated screens, but it also limits flexibility in composing shots from unconventional angles.
Despite its durability, the G10's LCD display can develop several problems over time, especially with regular use or accidental mishandling. Understanding these issues is crucial for effective troubleshooting and repair.
Typical Problems:
- Physical Damage: Cracks, chips, or shattered screens due to drops or pressure.
- Display Artifacts: Dead pixels, colored lines, or areas of the screen that do not display correctly.
- Backlight Failure: Dim or flickering backlight, making the screen difficult to see.
- Color Distortion: Inaccurate color reproduction, often noticeable when comparing LCD output to prints or calibrated monitors.
- Complete Failure: The screen remains blank or does not power on, even though the camera is operational.
User Experiences:
Many photographers have noted that the G10's LCD, while generally reliable, can sometimes display colors and contrast differently from what is seen on a computer monitor or in printed photos. This is a limitation of the display technology rather than a defect, but it is important to be aware of when evaluating images in the field.
Proper diagnosis is essential before deciding on repair or replacement. Some issues may be superficial or related to other camera components.
Diagnosis Steps:
1. Visual Inspection: Examine the LCD for visible cracks, discoloration, or other physical damage.
2. Functionality Test: Power on the camera and observe the display for lines, flickering, or blank areas.
3. Menu Navigation: Attempt to access and navigate the camera's menus. If the display responds but shows artifacts, the issue is likely with the LCD itself.
4. External Output Test: If possible, connect the camera to an external display. If the external image is fine, the problem is isolated to the LCD.
5. Check for Firmware Issues: Occasionally, display problems can be caused by firmware glitches. Resetting the camera or updating the firmware may resolve these issues.
By systematically checking each aspect, you can determine whether the LCD is at fault or if another component requires attention.
When faced with a malfunctioning LCD, G10 users have several options:
- DIY Replacement: For those comfortable with electronics, purchasing a compatible replacement LCD and installing it yourself is a cost-effective solution. Replacement screens are widely available online and are often affordable.
- Professional Repair: Sending the camera to a Canon Factory Service Center or a reputable third-party repair shop ensures professional handling and may include a warranty on the repair.
- Temporary Fixes: Applying a screen protector over minor cracks can prevent further damage, but this is not a long-term solution.
- Upgrade Consideration: If the camera is aging or has multiple issues, upgrading to a newer G-series model may be more practical.
Each option has its pros and cons, and the best choice depends on your technical skills, budget, and attachment to the G10.
Replacing the LCD on a Canon G10 is a manageable project for those with patience and the right tools. Below is a detailed, step-by-step guide to help you through the process.
- Replacement LCD screen (compatible with Canon G10)
- Precision screwdriver set
- Plastic prying tool
- Tweezers
- Anti-static wrist strap (recommended)
- Small container for screws
- Power off the camera and remove the battery and memory card.
- Place the camera on a clean, static-free work surface to prevent damage to sensitive components.
- Use a precision screwdriver to remove all screws securing the back cover.
- Carefully pry off the back cover with a plastic tool, being mindful of internal connectors and cables.
- Locate the LCD connector ribbon and gently release the connector latch using tweezers.
- Disconnect the ribbon cable, taking care not to damage the delicate pins or connectors.
- Unscrew any brackets or frames holding the LCD in place.
- Carefully lift out the damaged LCD screen, noting its orientation and how it is attached.
- Align the new LCD in the frame, ensuring it sits flush and is properly oriented.
- Secure the LCD with screws and reconnect the ribbon cable, making sure the connector latch is firmly closed.
- Replace the back cover and secure it with screws.
- Reinsert the battery and memory card.
- Power on the camera to verify that the new LCD functions correctly, checking for proper display, color accuracy, and responsiveness.
- Visuals of each step, such as removing screws, disconnecting the ribbon cable, and installing the new LCD, can greatly aid in understanding the process.
- Close-up images of the connector and LCD placement help users avoid common mistakes.
- A final image showing the fully reassembled camera with the new display ensures users know what to expect.
Proper care and maintenance can extend the life of your camera's LCD display and prevent common issues.
- Use a Screen Protector: Applying a high-quality screen protector can prevent scratches and minor cracks.
- Store Safely: Always store the camera in a padded case and avoid placing heavy objects on top of it.
- Avoid Extreme Temperatures: LCDs are sensitive to both heat and cold, which can cause damage or reduce performance.
- Clean Gently: Use a microfiber cloth and a screen-safe cleaner to remove fingerprints and smudges without scratching the display.
- Handle with Care: Avoid pressing hard on the screen, and be mindful when carrying the camera in crowded or rough environments.
The quality of your camera's LCD display significantly impacts your shooting experience and the accuracy of your image review. A high-resolution, color-accurate LCD allows photographers to:
- Assess Exposure and Focus: Quickly check if images are sharp and properly exposed.
- Navigate Menus Efficiently: Access and adjust settings with ease.
- Review Images On the Go: Make informed decisions about reshooting or adjusting settings in the field.
However, even the best LCDs have limitations compared to calibrated monitors. Photographers should use the LCD as a guide but rely on post-processing and proper workflow for final image evaluation.
If you find the G10's LCD lacking or difficult to repair, several alternatives exist:
- External Viewfinders: Some users attach optical viewfinders or external monitors for better composition in bright light.
- Upgrading to Newer Models: Later Canon G-series cameras, such as the G11 and G12, feature articulated screens and improved display technology.
- Mobile Device Integration: Some modern cameras allow wireless image transfer to smartphones or tablets, offering larger and higher-quality displays for image review.
Exploring these alternatives can enhance your photography experience and provide greater flexibility in challenging shooting conditions.
The Canon PowerShot G10 remains a beloved camera among enthusiasts for its balance of portability, manual control, and image quality. The LCD display is a vital component, serving as the gateway to the camera's features and the primary tool for composing and reviewing shots. While the fixed 3-inch TFT LCD is generally reliable, it is not immune to damage or wear. Understanding the display's specifications, common issues, and repair options empowers users to keep their G10 in top condition. With accessible replacement parts and clear guides, even those with modest technical skills can undertake repairs. Proper maintenance and gentle handling will help prevent future problems, ensuring that your Canon G10 continues to deliver excellent results for years to come.
The Canon G10 uses a 3.0-inch fixed TFT LCD display with a resolution of 461,000 dots. It is not a touchscreen and does not articulate.
Yes, the LCD can be replaced by users with basic technical skills and the right tools. Replacement screens are available online, and several guides can walk you through the process.
Replacement LCDs are available from online retailers and electronics parts suppliers. Always ensure the part is specifically listed as compatible with the Canon G10.
If the camera is otherwise functional and you appreciate its features, replacing the LCD is a cost-effective solution. However, if there are multiple issues or you desire newer technology, upgrading to a later G-series model may be more practical.
The G10's LCD may display colors and contrast differently due to its limited color accuracy and brightness. For critical work, always review images on a calibrated monitor.
