LCD stands for Liquid Crystal Display. This technology utilizes the light-modulating properties of liquid crystals, which do not emit light directly but use a backlight or reflector to produce images in color or monochrome. Since their commercial introduction, LCDs have rapidly replaced older display technologies, such as cathode-ray tubes, due to their slim profiles, lower energy consumption, and superior image quality.
LCD displays are now ubiquitous, found in everything from smartphones and televisions to industrial machinery and medical devices. Their versatility and reliability have made them the standard for digital visual communication.
At the heart of every LCD display is a thin layer of liquid crystal material sandwiched between two sheets of glass or plastic. These crystals can be manipulated by electric currents to control the passage of light.
1. Backlight Generation
The process begins with a backlight, typically composed of white LEDs, which emits uniform light across the display panel.
2. Polarization
The light passes through a polarizing filter, ensuring that only light waves aligned in a specific direction continue forward.
3. Liquid Crystal Alignment
The liquid crystals are arranged in a matrix and can twist or align in response to electrical signals. By changing their orientation, they either block or allow light to pass through.
4. Color Filtering
The light then moves through color filters (red, green, and blue subpixels), enabling the display to generate a full spectrum of colors.
5. Image Formation
By selectively controlling the voltage applied to each pixel, the display creates images, text, and video content with remarkable clarity.
This intricate dance of light and liquid crystals allows LCDs to render sharp, vibrant visuals while maintaining low power consumption.

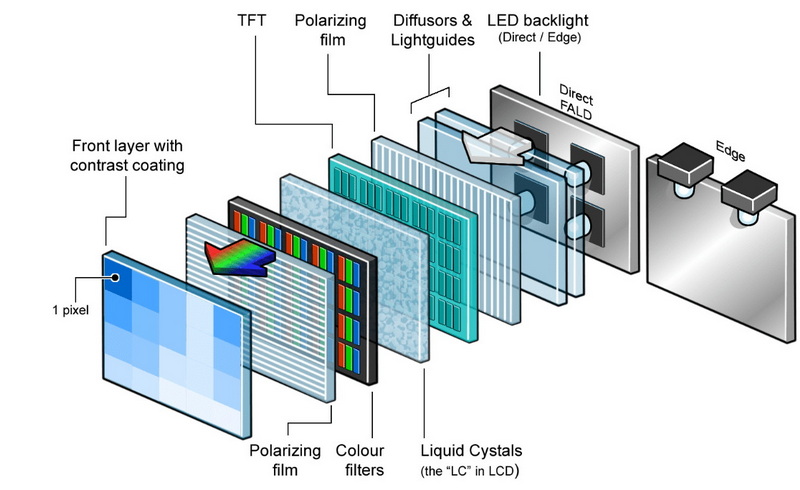

- Liquid Crystals: The core material that modulates light.
- Polarizing Filters: Control the orientation of light waves.
- Glass Substrates: Provide structure and hold the liquid crystals.
- Electrodes: Apply voltage to manipulate the crystals.
- Backlight: Supplies the necessary illumination for the display.
- Color Filters: Create the full range of displayable colors.
- Thin Film Transistors (TFTs): Precisely control individual pixels in active matrix displays.
These components work in harmony to deliver the crisp, detailed images that define the LCD experience.
LCD technology is incredibly versatile, powering a vast array of devices and systems. Here are some of the most prominent applications:
- Televisions: LCD TVs dominate the market, offering large, flat screens with vivid colors and high resolutions.
- Computer Monitors: Essential for both home and office use, LCD monitors provide sharp visuals for work, gaming, and media consumption.
- Smartphones and Tablets: Compact, high-definition displays are central to mobile devices, enabling touch interaction and multimedia playback.
- Billboards: Large-format LCD panels are used for dynamic advertising in public spaces.
- Menu Boards: Restaurants and retail stores utilize LCDs for interactive menus and promotional displays.
- Microwaves, Refrigerators, Washing Machines: LCD screens display settings, timers, and operational status, enhancing usability.
- Dashboard Screens: Modern vehicles feature LCDs for speed, navigation, and vehicle diagnostics.
- Infotainment Systems: Touchscreen LCDs provide control over audio, navigation, and climate systems.
- Patient Monitors: LCDs display vital signs and diagnostic information in hospitals and clinics.
- Imaging Devices: Used in ultrasound machines and other diagnostic tools to present high-resolution images.
- Control Panels: Factories and laboratories rely on LCDs for real-time data visualization and system control.
- Instrumentation Displays: Provide clear, precise readouts for measurements and monitoring.
- Interactive Whiteboards: Classrooms use large LCD panels for dynamic lessons and collaboration.
- Gaming Consoles: High-refresh-rate LCDs deliver smooth, immersive gameplay experiences.
- Smartwatches and Fitness Trackers: Compact LCD screens display notifications, health metrics, and more.
LCD displays offer a suite of benefits that have made them the preferred choice for a wide range of applications:
- Thin and Lightweight: Their slim profiles enable sleek, portable device designs.
- Low Power Consumption: Efficient operation extends battery life in portable electronics.
- High Resolution: Capable of displaying sharp, detailed images and text.
- Wide Viewing Angles: Modern LCDs allow multiple viewers to see clear images from various positions.
- Bright and Vivid Colors: Enhance the visual experience for entertainment and professional use.
- Long Lifespan: Durable components ensure years of reliable performance.
- Environmentally Friendly: Free from hazardous substances like mercury, unlike some older technologies.
- Versatility: Suitable for applications ranging from tiny wearables to massive digital billboards.
These advantages have cemented LCD technology as a mainstay in both consumer and industrial markets.
Despite their many strengths, LCD displays are not without drawbacks:
- Limited Viewing Angles: Some models experience color and contrast shifts at extreme angles, though this has improved with advancements in panel technology.
- Lower Contrast Ratios: Blacks may appear grayish compared to OLED screens, which can emit true black.
- Slower Response Times: Can result in motion blur during fast-moving scenes, though high-refresh-rate models mitigate this issue.
- Backlight Dependency: LCDs cannot emit light on their own and require a backlight, which can affect uniformity and power consumption.
- Potential for Dead Pixels: Manufacturing defects or damage can result in non-functioning pixels, which may be noticeable on the screen.
Understanding these limitations is crucial when choosing a display for specific applications.
LCD technology continues to evolve, with ongoing innovations addressing its limitations and expanding its capabilities:
- Higher Refresh Rates: Newer LCDs offer refresh rates of 120Hz or higher, delivering smoother motion for gaming and video playback.
- Improved Contrast Ratios: Advances in backlight technology, such as local dimming, enhance the depth of blacks and the brilliance of whites.
- Faster Response Times: Modern LCDs are engineered for quick pixel transitions, reducing motion blur.
- Eye Protection Features: Features like low blue light emission and anti-glare coatings are increasingly common, protecting users' eyes during prolonged use.
- Flexible and Transparent Displays: Emerging technologies enable bendable and see-through LCD panels, opening new possibilities in design and functionality.
- Smart Integration: LCDs are being integrated into smart home devices, automotive systems, and industrial controls for enhanced human-machine interaction.
These innovations ensure that LCD displays remain at the forefront of display technology, adapting to new demands and applications.
LCD displays have fundamentally changed how people interact with information and technology. In daily life, they serve as the primary interface for communication, entertainment, and productivity. Whether checking the time on a smartwatch, watching a movie on a television, or navigating a car's infotainment system, LCDs provide clear, reliable, and engaging visual experiences.
In the workplace, LCD monitors and control panels streamline operations, improve efficiency, and enable remote monitoring and management. In education, interactive LCD whiteboards foster collaboration and dynamic learning. In healthcare, high-resolution LCDs support accurate diagnostics and real-time patient monitoring, directly impacting patient outcomes.
Beyond mainstream applications, LCD technology plays a vital role in specialized industries:
- Aviation: Cockpit displays in modern aircraft rely on ruggedized LCD panels for flight data and navigation.
- Military and Defense: Tactical displays and portable communication devices use LCDs for their reliability and readability in diverse environments.
- Marine: Navigation systems and sonar equipment on ships and submarines utilize waterproof LCD screens.
- Scientific Research: Laboratory instruments and data loggers depend on LCDs for precise, easy-to-read measurements.
- Public Infrastructure: Ticketing machines, ATMs, and information kiosks employ LCDs for user interaction and service delivery.
These specialized uses demonstrate the adaptability and importance of LCD technology across critical sectors.
LCD displays have revolutionized the world of visual technology, offering a perfect blend of efficiency, clarity, and versatility. From the screens in our pockets to the massive digital billboards that light up our cities, LCD technology is everywhere—shaping the way we live, work, and communicate. As advancements continue, we can expect even more innovative uses and improved performance, ensuring that LCDs remain a cornerstone of digital display technology for years to come.
LCD displays are thin, lightweight, energy-efficient, and capable of producing high-resolution, vibrant images. They are also durable and environmentally friendly, making them suitable for a wide range of applications.
LCDs rely on a backlight and liquid crystals to control light, while OLED displays use organic compounds that emit light directly. OLEDs offer better contrast and deeper blacks but are generally more expensive and less durable in certain conditions.
LCDs are found in televisions, computer monitors, smartphones, tablets, digital signage, home appliances, automotive dashboards, medical equipment, industrial control panels, and wearable devices.
Limitations include limited viewing angles, lower contrast ratios compared to OLED, slower response times, dependency on backlighting, and the potential for dead pixels.
Future trends include higher refresh rates, improved contrast, flexible and transparent displays, enhanced eye protection features, and broader integration into smart home and industrial devices.
